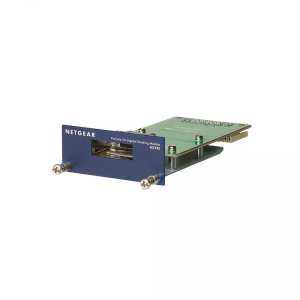

AX742

ProSAFE® 24G/48G Stacking Kit ( M5300系列24G/48G堆疊模組 )

產品概述

  • For deployment convenience, M5300 series two rear I/O bays are pre-configured for stacking mode in factory default settings, allows for zero-touch stacking as soon as back connectivity is detected.

  • Copper, fiber can be mixed and matched for stacking interconnect.

  • One AX742 Stacking Kit per M5300 switch for local, dual ring topology

  • AX742 is a bundle: 2 CX4 I/O modules AX744 + 1 stacking CX4 cable (1m – 3.3 ft)

  • Latest IEEE 802.3ak 10GBASE-CX4 specifications (infiniband)

  • Each I/O module half-duplex speed is 12 Gbps (24 Gbps full duplex) with 1m cable

  • Dual ring stacking interconnect is 48 Gbps per switch (384 Gbps per stack) when one AX742 kit per switch (two I/O modules)

  • Longer cable may be used (standard infiniband CX4 cable)

  • Ordering Part Number (Worldwide): AX742
