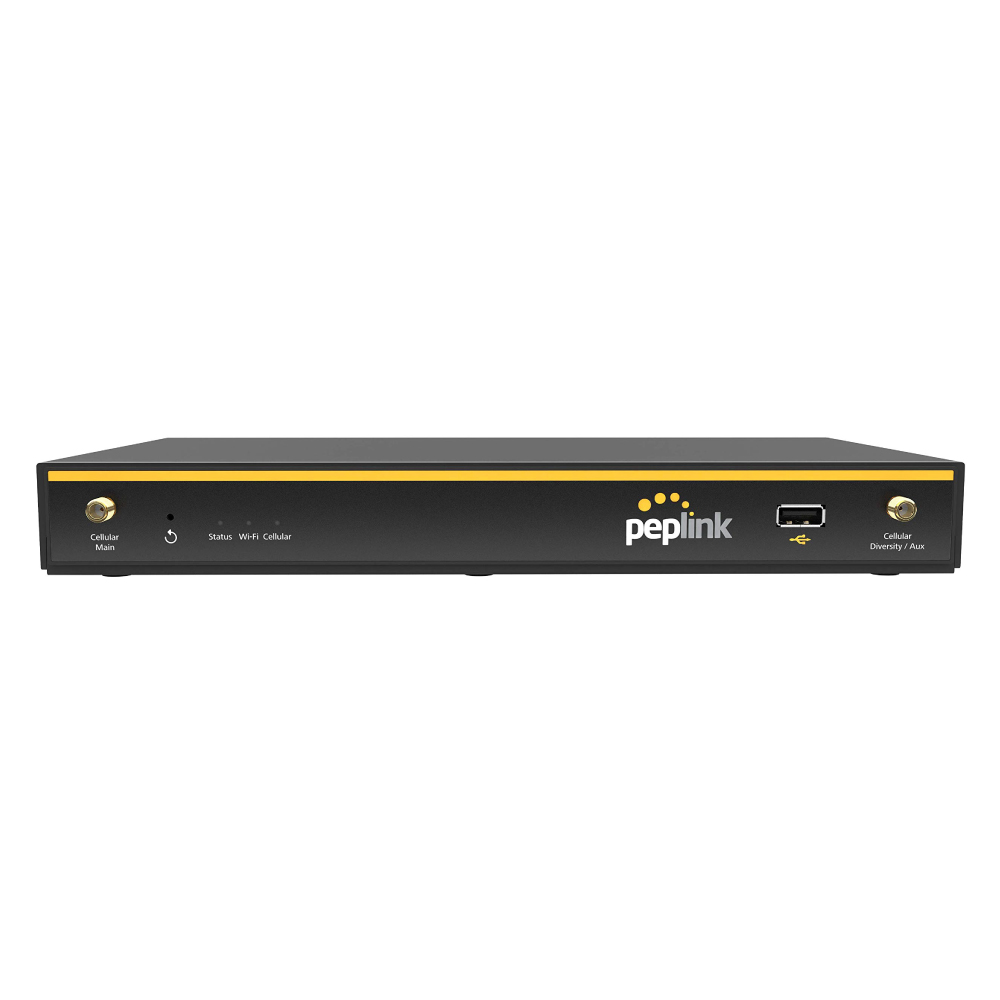

PEPLINK BALANCE 20X

★ 可透過4G LTe/5G/ADSL/ Wi-FiWAN 進行線路備援
★插槽可以搭配4G / 5G 或WAN Port模組，提升網路效能
★每年度的服務訂閱(Prime Care)可提供範圍廣泛的服務。
★適用於小型企業和家庭辦公室、分支機構、零售地點

經銷採購
經銷商洽詢

產品介紹

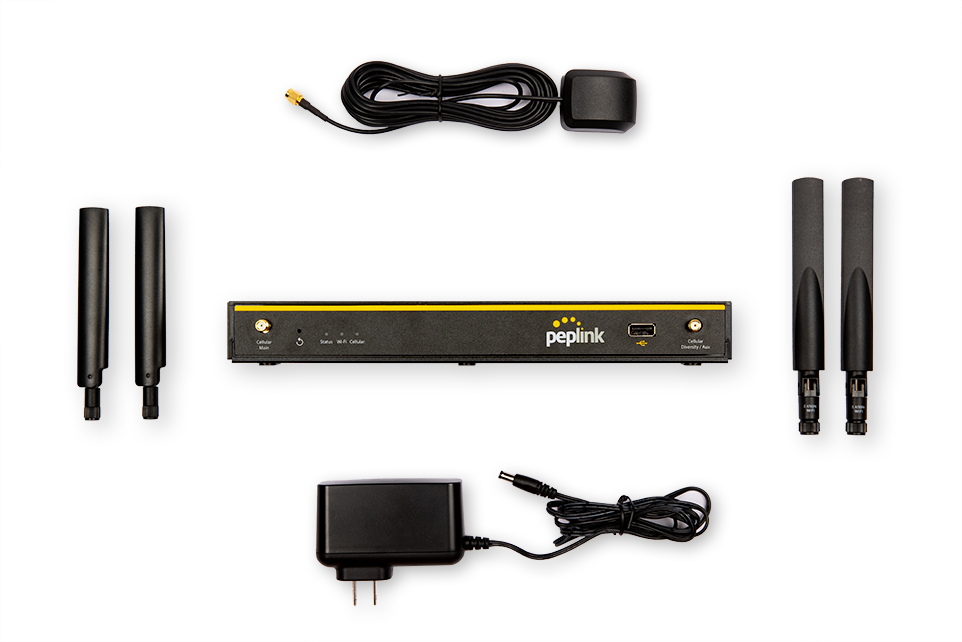

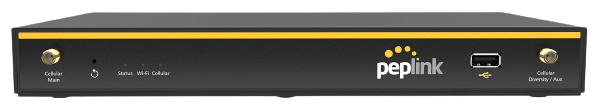

具有突破性性價比的 多 WAN 路由器 Balance 20X
透過嵌入式Lte/5G Modem 提供出色的路由吞吐量，
使其成為一款易於使用的一體化路由器。

使用SpeedFusion Connect
應用程序輕鬆進行網路管理

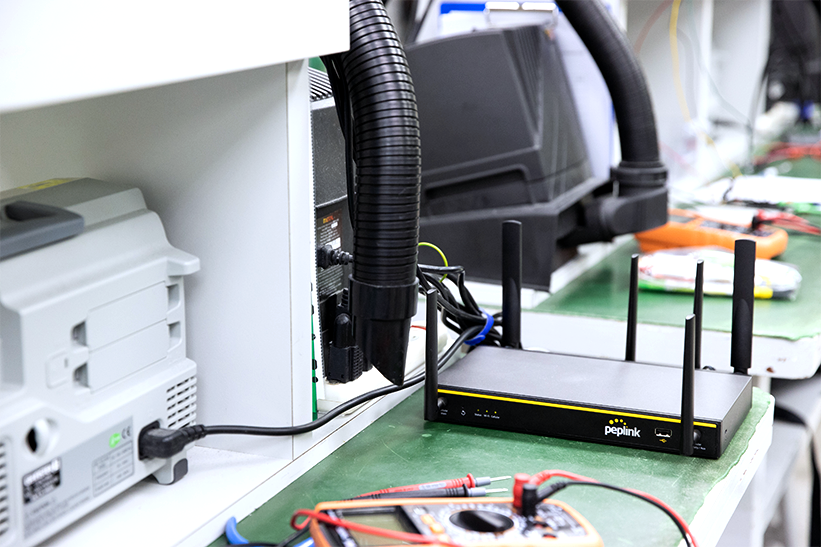

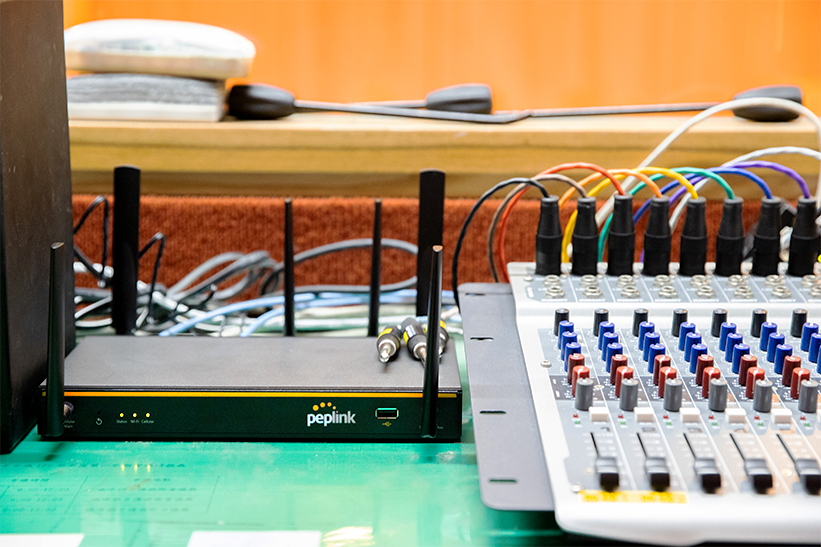

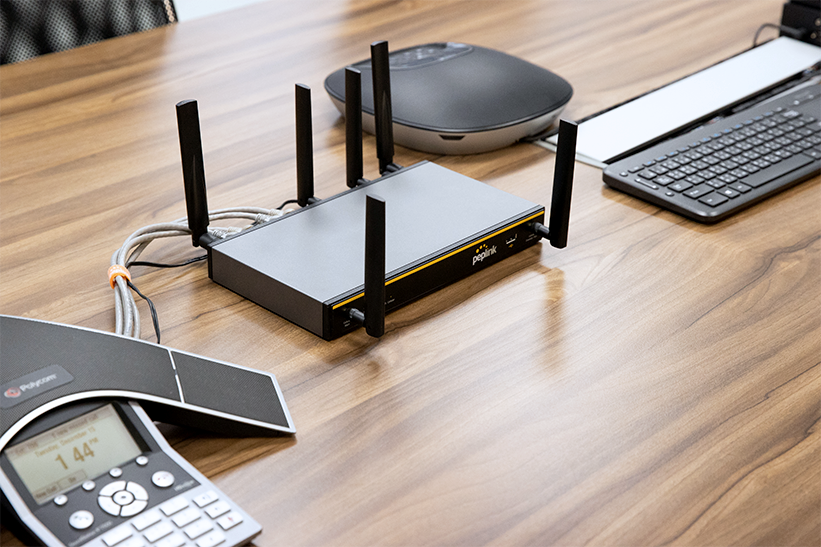

準備好進行任何部署

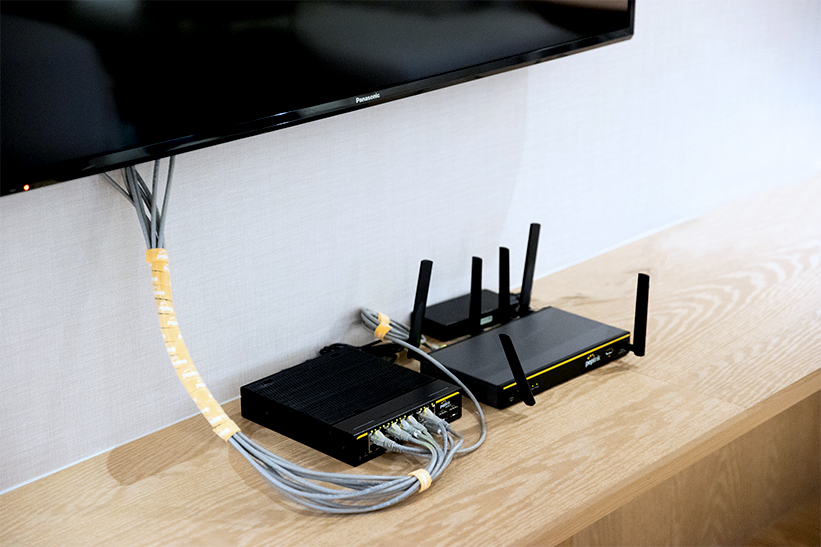

小型企業和家庭辦公室

分支機構

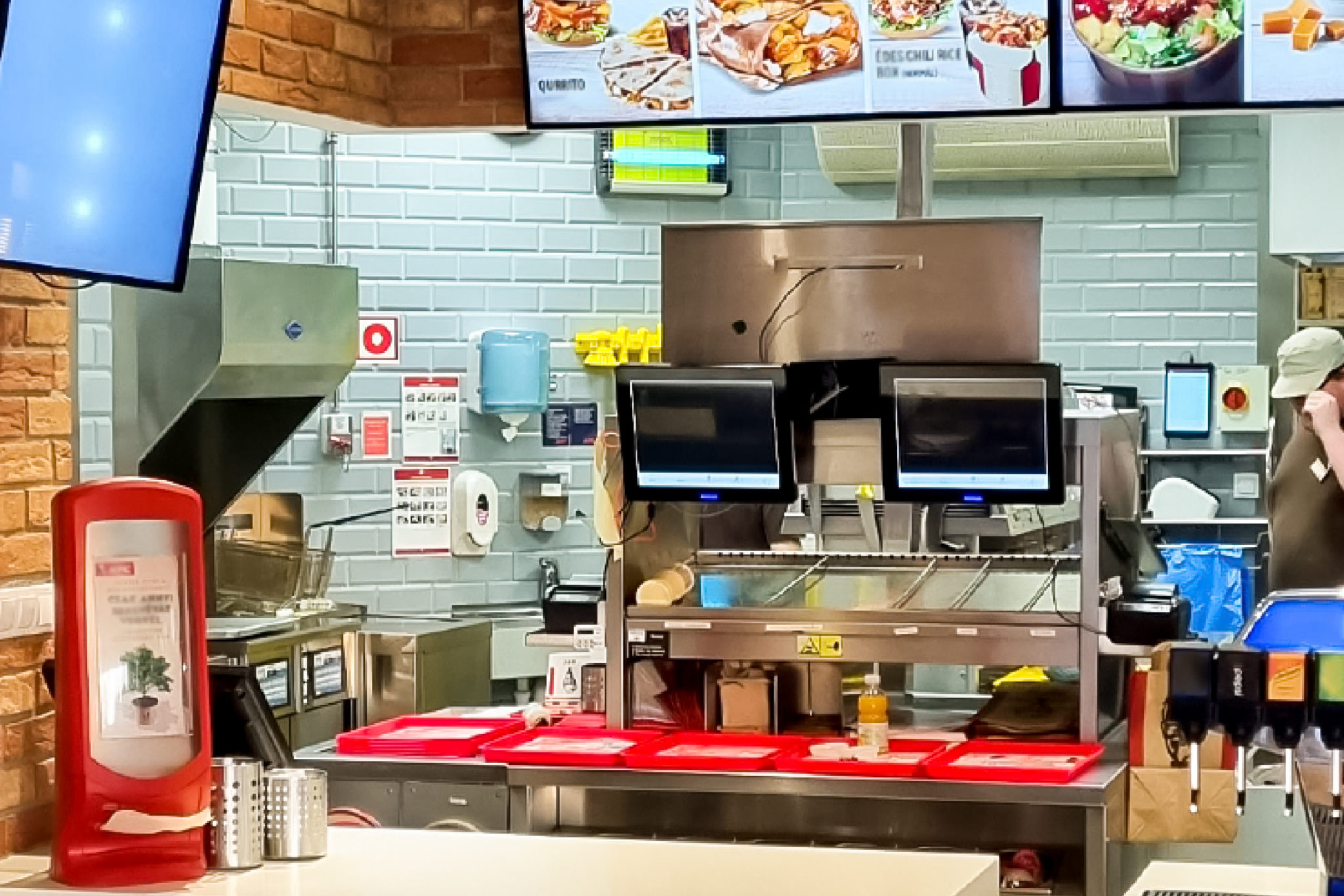

零售地點

Protect Your Branch POS with Peplink!

給您更多的WAN埠

透過License，可增加最多3個額外的虛擬WAN，使您的Balance設備提
高20倍的靈活使用

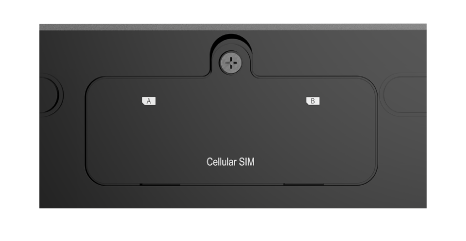

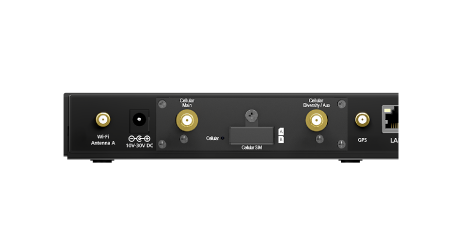

網路備援

可將4G LTE / 5G 當作您xDSL 線路的備援網路(最多兩個：使用FlexModule Mini 與
備援的SIM卡)。當其中一條線路斷線，您的網路也不會有影響。

安全的網路環境

可將4G LTE / 5G 當作您xDSL 線路的備援網路
(最多兩個：使用FlexModule Mini 與備援的SIM卡)。
當其中一條線路斷線，您的網路也不會有影響。

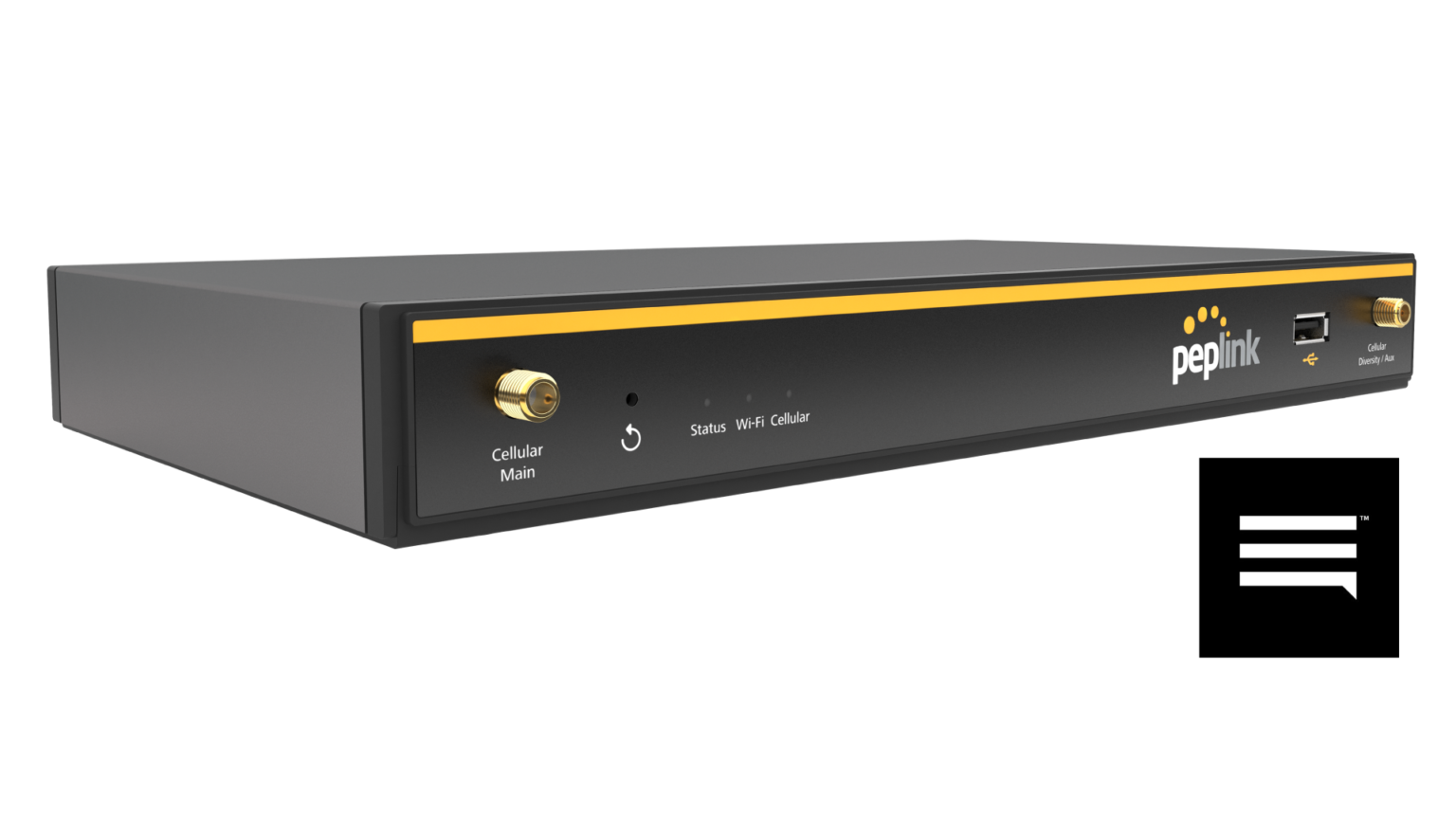

FirstNet 就緒

FirstNet（頻段 14）為急救人員提供具有更
高優先級和網絡容量的專用 LTE 網絡。
Balance 20X 支持頻段 14，可根據情況需要
提供額外的覆蓋範圍。

#PowerofPeplink

產品規格

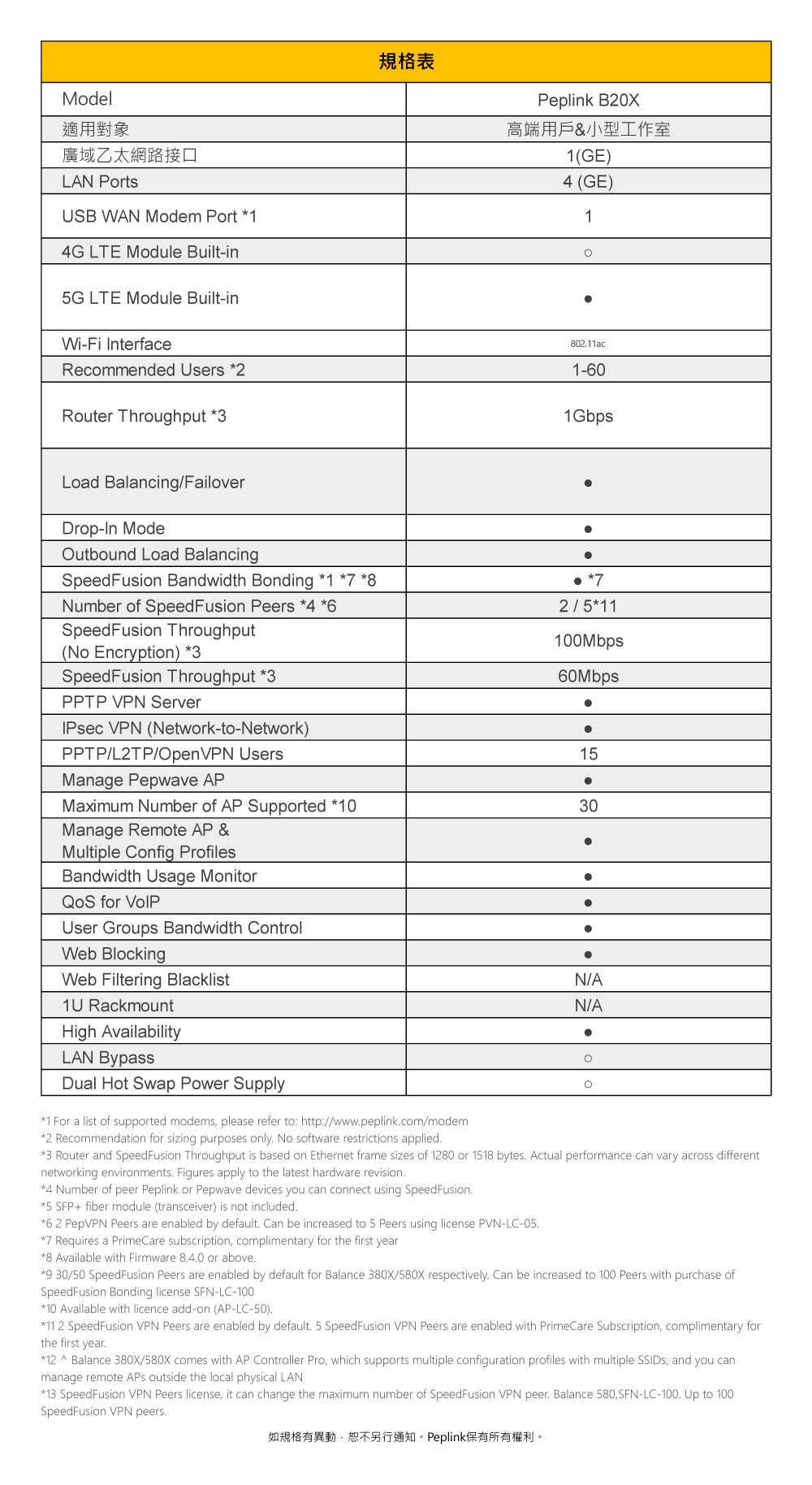

規格表

Model

Peplink B20X

適用對象

高端用戶&小型工作室

廣域乙太網路接口

1(GE) , 1 Cellular

LAN Ports

4 (GE)

USB WAN Modem Port*1

1

4G LTE Module Built-in

●

5G LTE Module Built-in

● (*需加購擴充模組)*14

Wi-Fi Interface

802.11ac

Recommended Users *2

1-60

Router Throughput*3

1Gbps

Load Balancing & Failover

●

Drop-In Mode

●

Outbound Load Balancing

●

SpeedFusion Bandwidth Bonding*7 *17

●*6

Number of SpeedFusion VPN Peers*4

2 / 5*10

SpeedFusion VPN Throughput (No Encryption)*3

100Mbps

SpeedFusion VPN Throughput*3

60Mbps

PPTP VPN Server

●

IPsec VPN (Network-to-Network) *18

●

Maximum PPTP / L2TP / OpenVPNUsers

15

Peplink AP Series Management

●

Maximum Number of AP Supported

30 / 50*9

Remote AP & Multiple ConfigProfiles Management

○

Bandwidth Usage Monitoring

●

QoS for VoIP and E-Commerce

●

User Groups Bandwidth Control

●

Application and Web Blocking

●

Web Content Filtering

Lite

1U Rackmount

○

High Availability

●

LAN Bypass

○

Dual Hot Swap Power Supply

○

*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

如規格有異動，恕不另行通知。Peplink保有所有權利。
