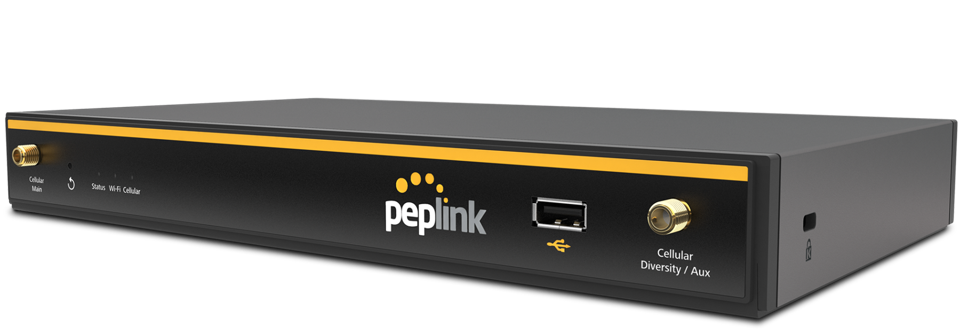

Peplink Balance

從用於小型辦公室的簡單而強大的雙WAN路由器到具有SFP +功能的12-WAN企業路由器,Balance系列非常適合任何部署固定線路部署。

歡迎來電洽詢(02)2722-7559 | E-mail : support@netbridgetech.com.tw | LINE 線上洽詢 ID : @cyp0256q

SD-WAN vs 傳統對外網路(WAN)

特性比較

傳統對外網路(WAN)

專線成本高
沒有彈性
一台一台設定

SD-WAN


專線1/3 成本

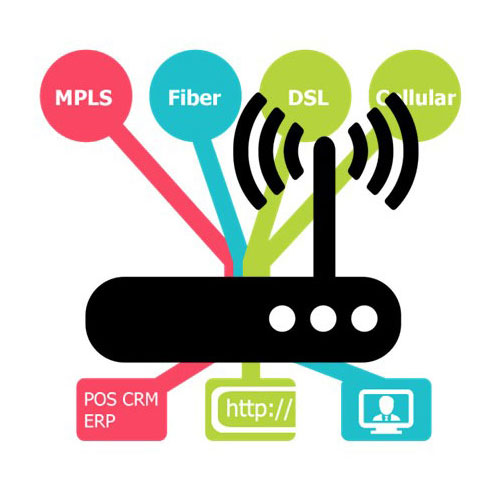

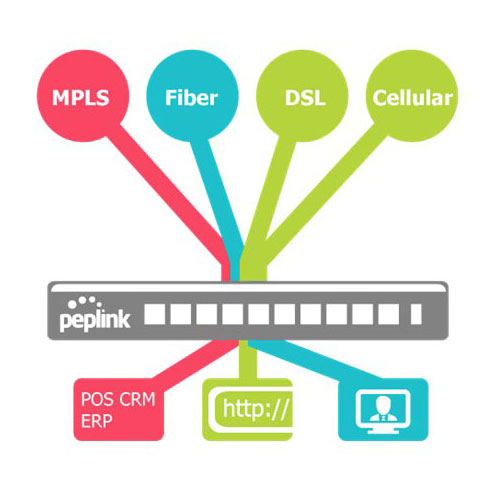

整合各式線路
隨時可以增加或減少線路

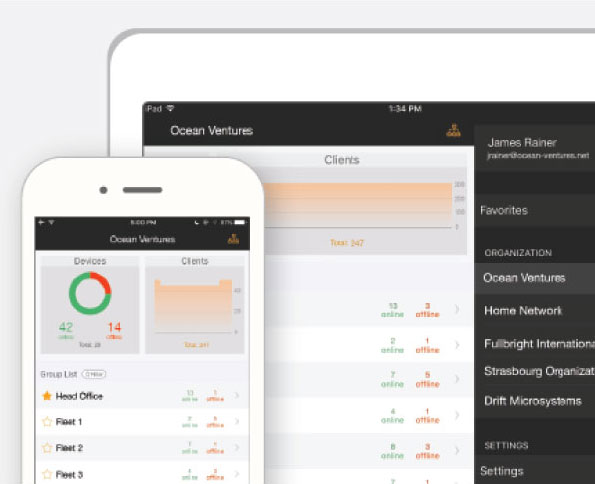

可透過雲管理集中設定

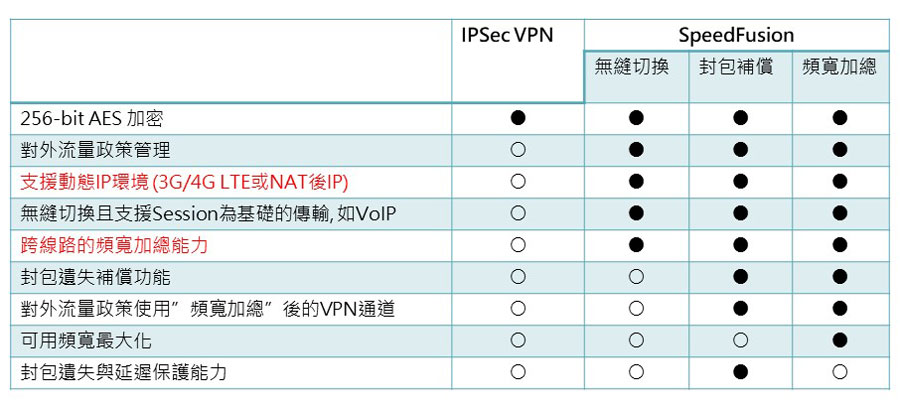

SD-WAN 流量偵測及導流

Challenges

SD-WAN 在VPN Tunnel中必須可以動態偵測所有線路品質並經由不同WAN的線路做負載平衡

Solutions

Peplink SpeedFusion 功能完美詮釋了SD-WAN所需具備的特性

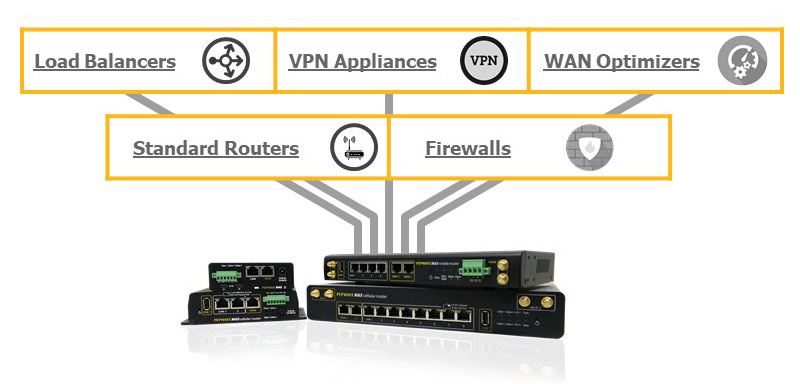

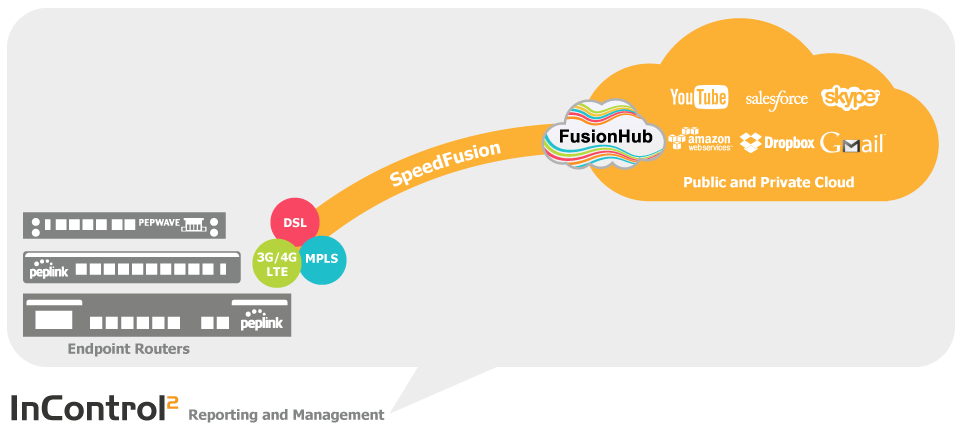

Peplink’s SD-WAN: SpeedFusion

● 在多條不同的對外網(WAN)路上,透過專利技術建立起單一VPN。

業界唯一,在VPN上做封包分流,即使單一Session也能分流到不同的對外線路。

  • 在所有的對外線路上,以256位元的AES加密技術,建立VPN Tunnel。

  • 對各別用戶或連線作連線速度的聚合。

  • 單個對外線路斷線,VPN連線仍不會中斷。

Peplink to Peplink VPN


● 兩條線路即可作SpeedFusion

  • 不同型號的Peplink / Pepwave設備可以創建不同級別的PepVPN / SpeedFusion



只要一端有固定IP,即可建立VPN。

  • 若對外線路沒有固定IP,亦可使用DDNS,再以DDNS主機名稱來建立SpeedFusion。

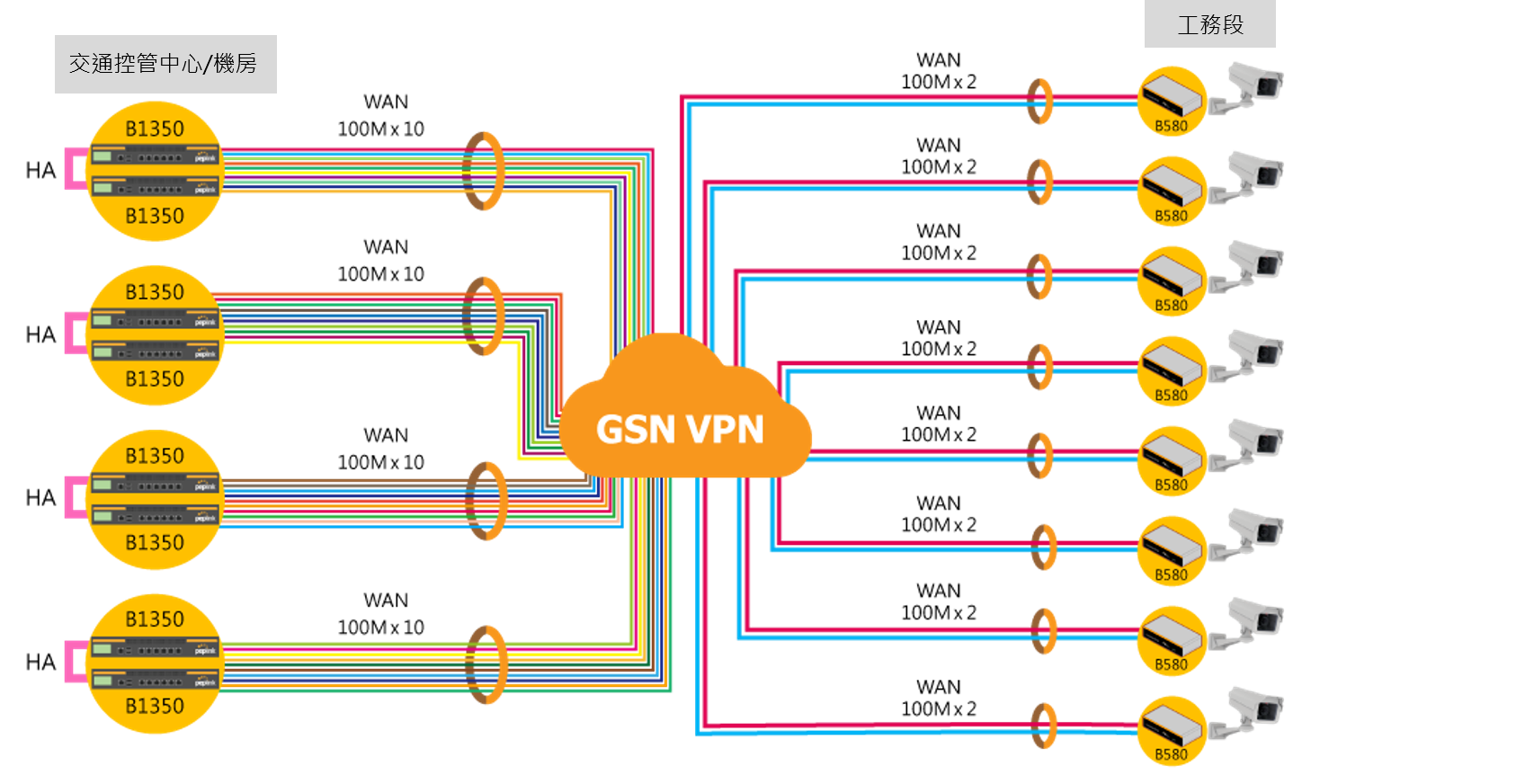

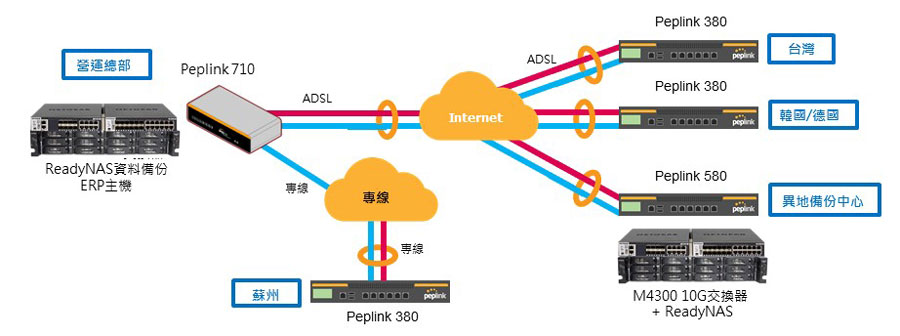

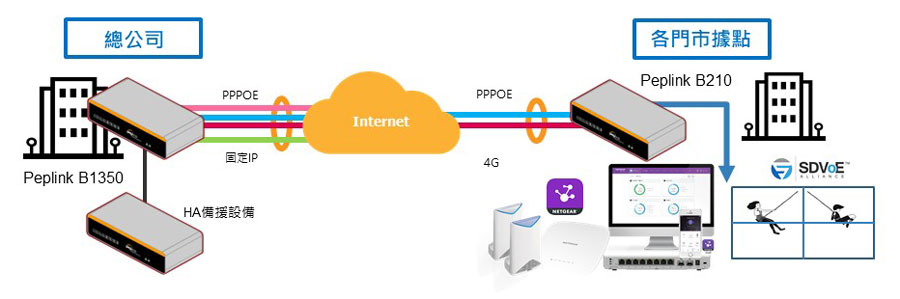

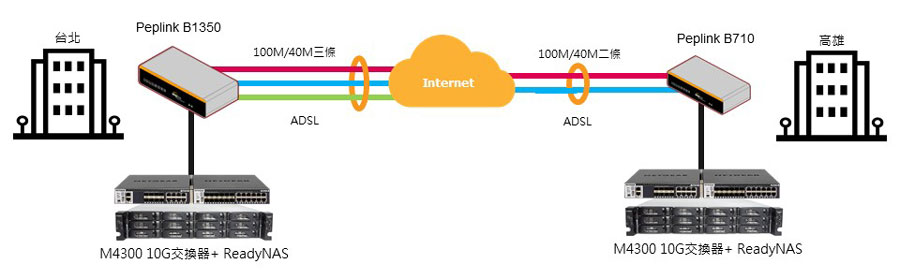

支援多樣化的VPN網路拓撲

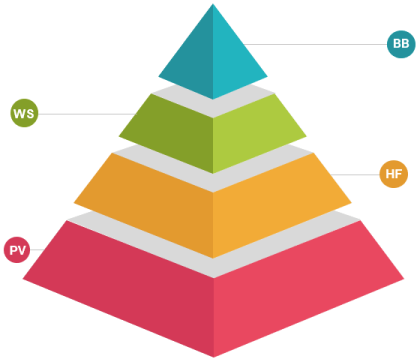

多種管控模式

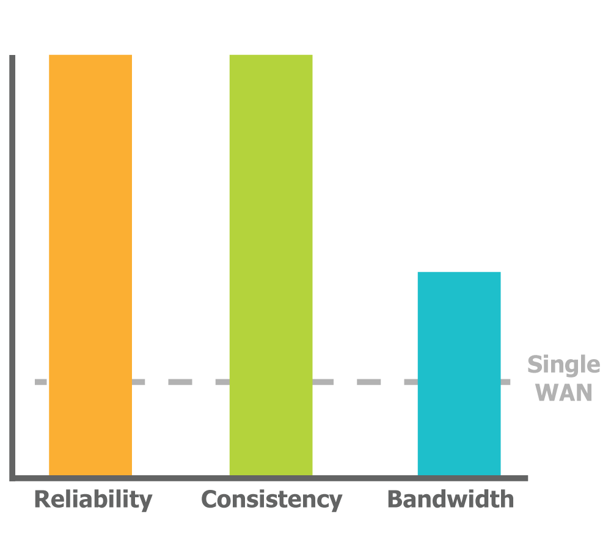

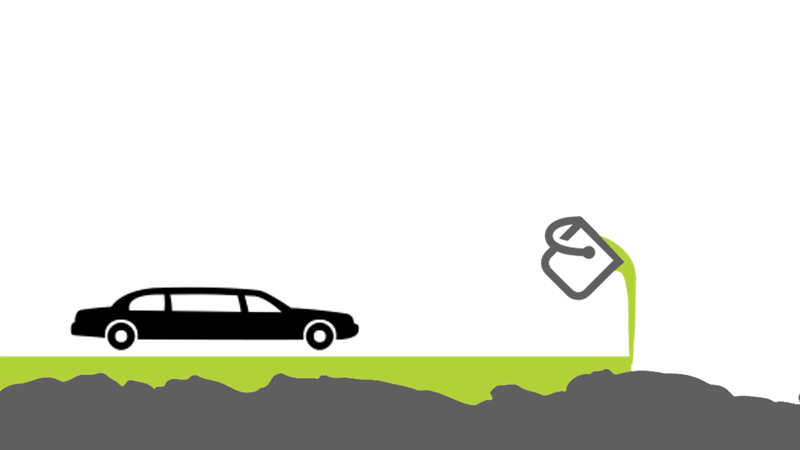

WAN Smoothing自動偵測網路品質確定流暢

使用多條對外線路,建立單一低延遲的連線。

PepVPN專用VPN

提供IPsec的優點,以及各種性能和可靠性功能。

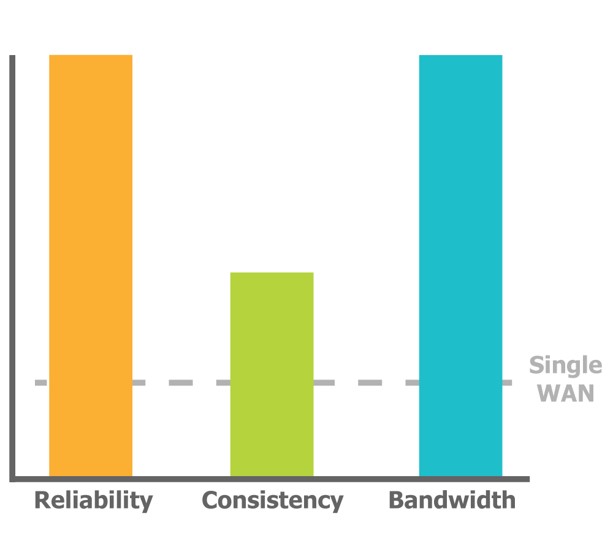

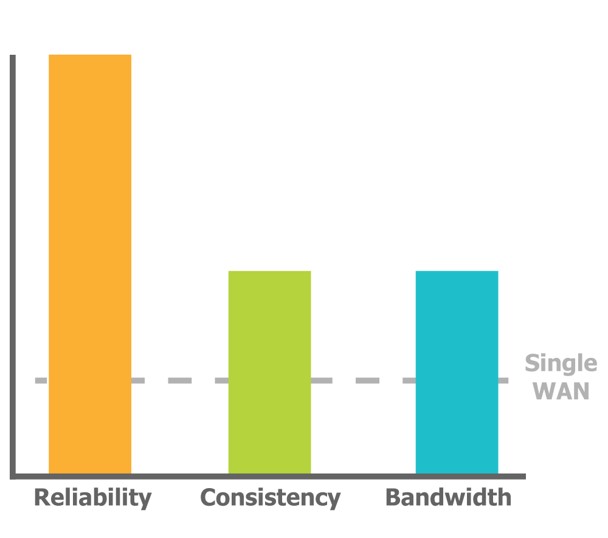

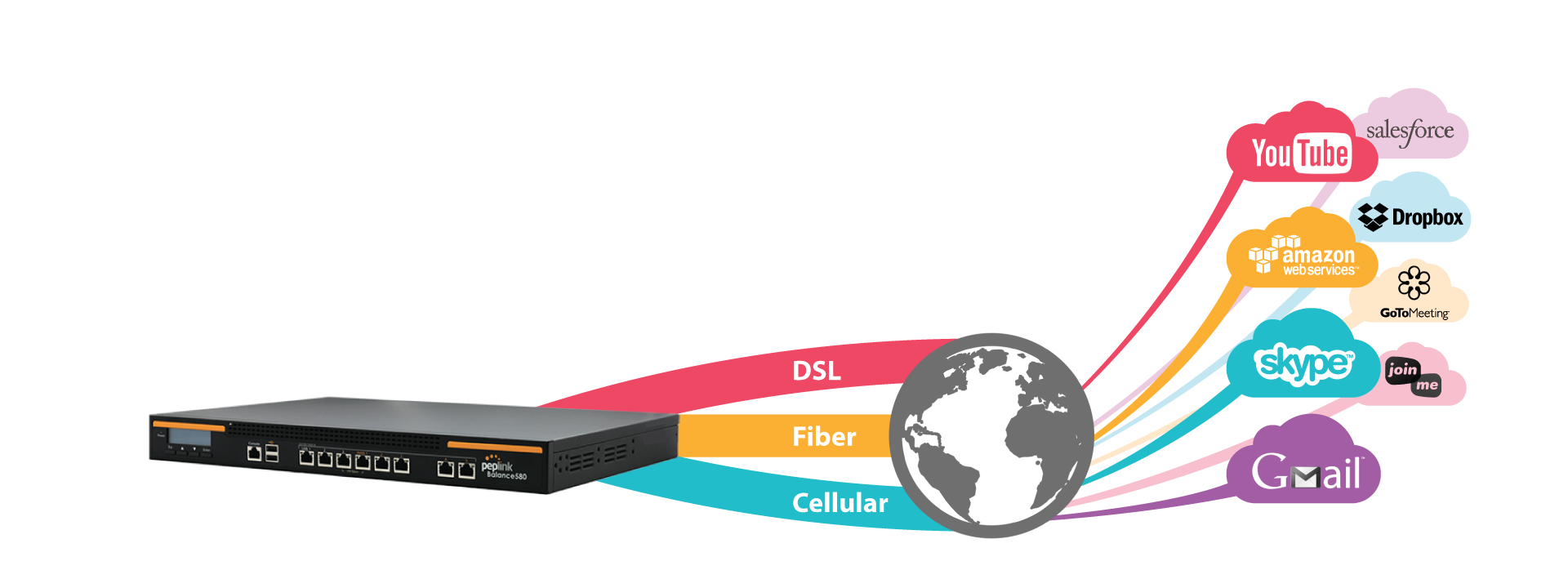

Bandwidth Bonding頻寬綑綁

結合多條對外線路連接之速度與頻寬。

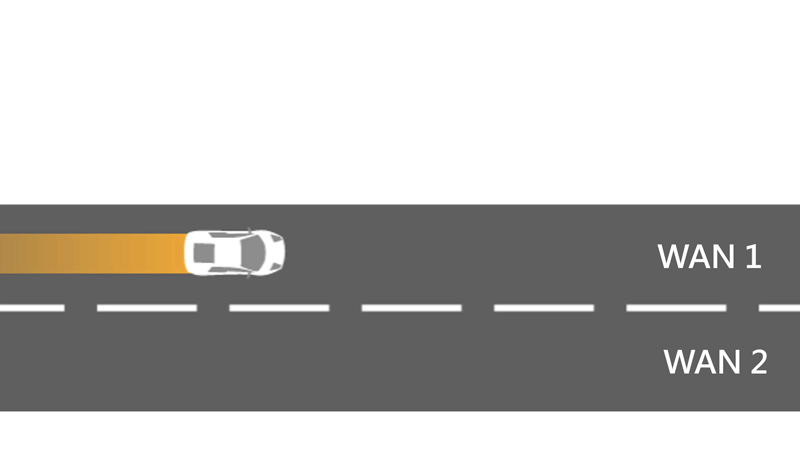

Hot Failover即時切換不斷線

結合多條對外線路連接之速度與頻寬,若其中有任何一條斷線,也不影響連線品質。

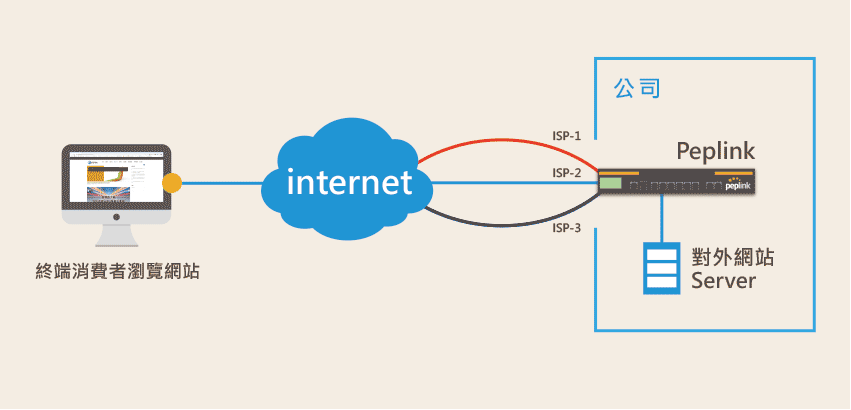

網路負載平衡

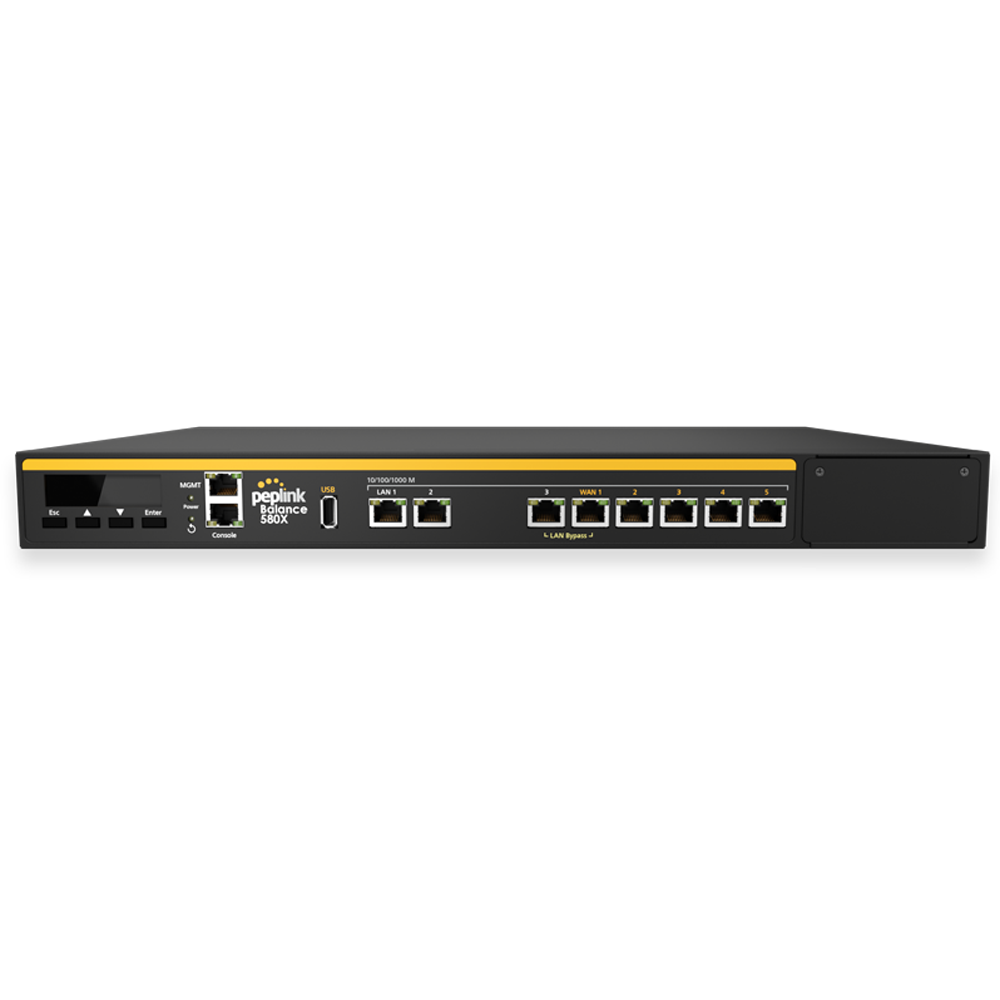

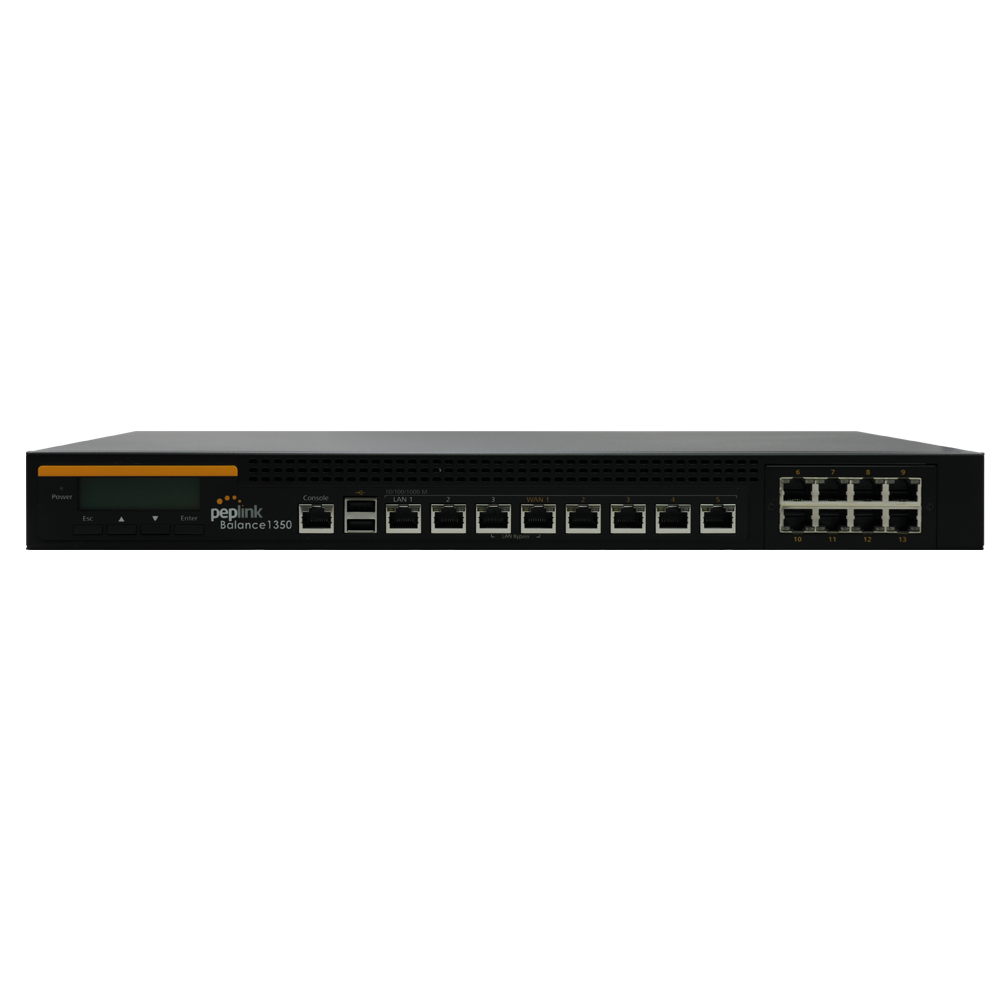

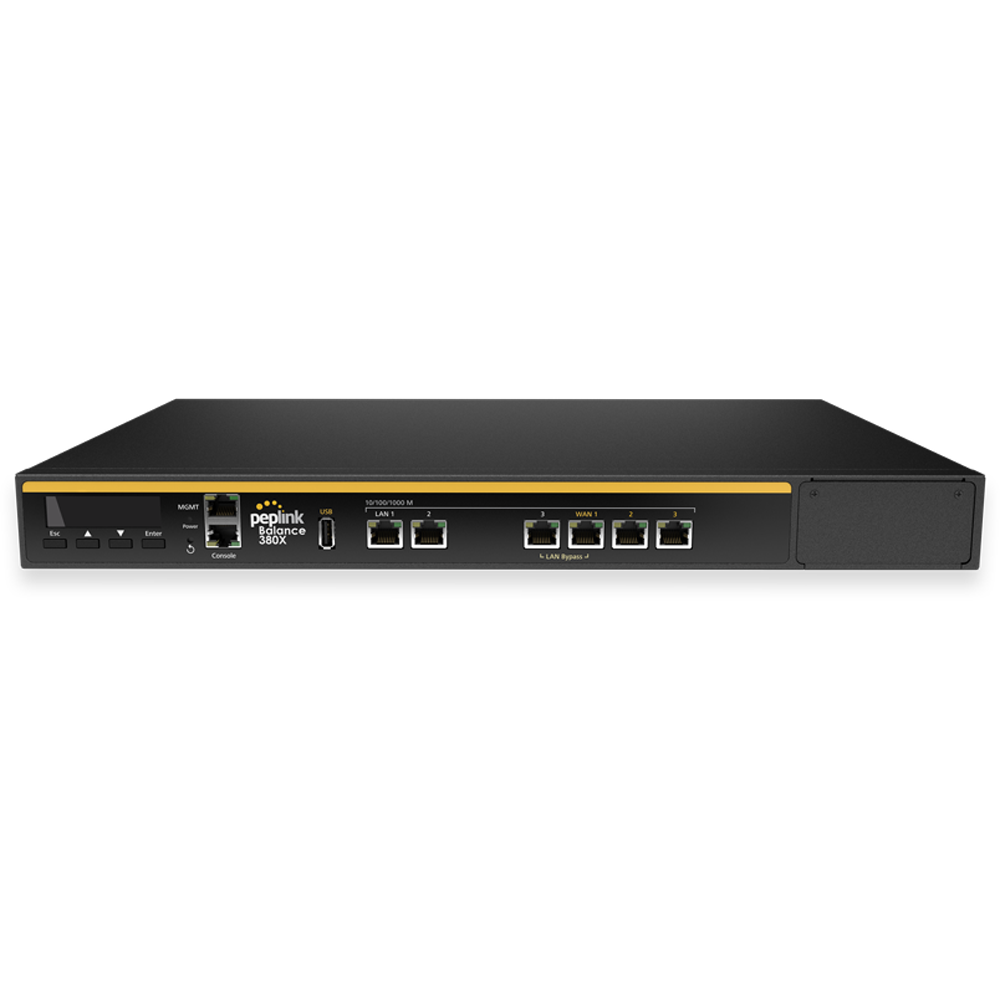

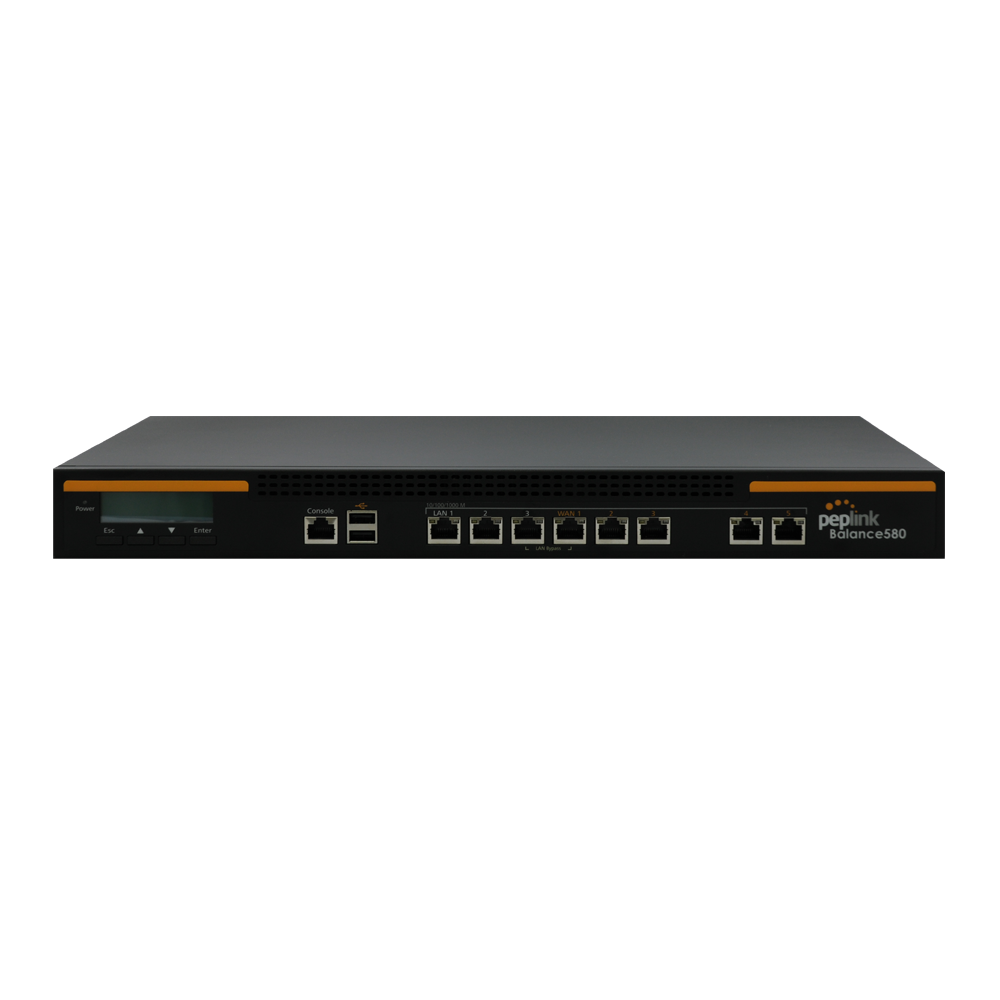

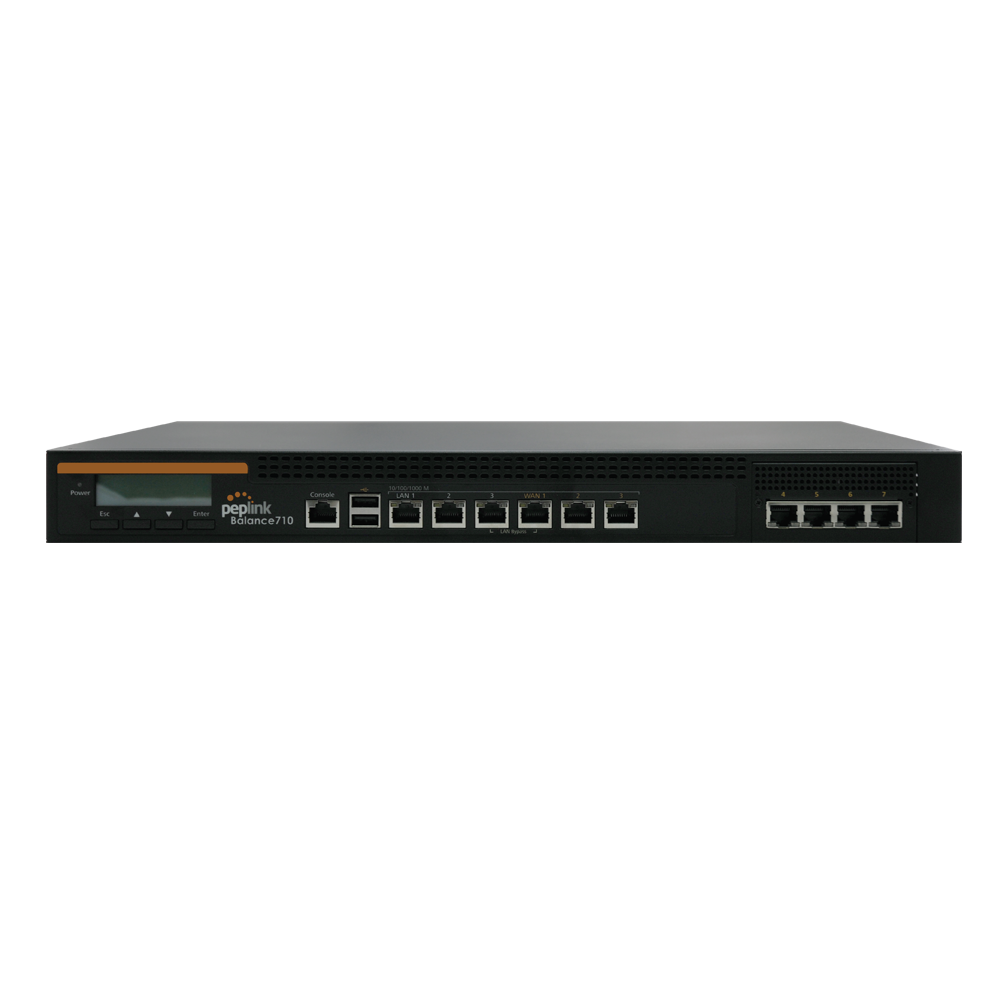

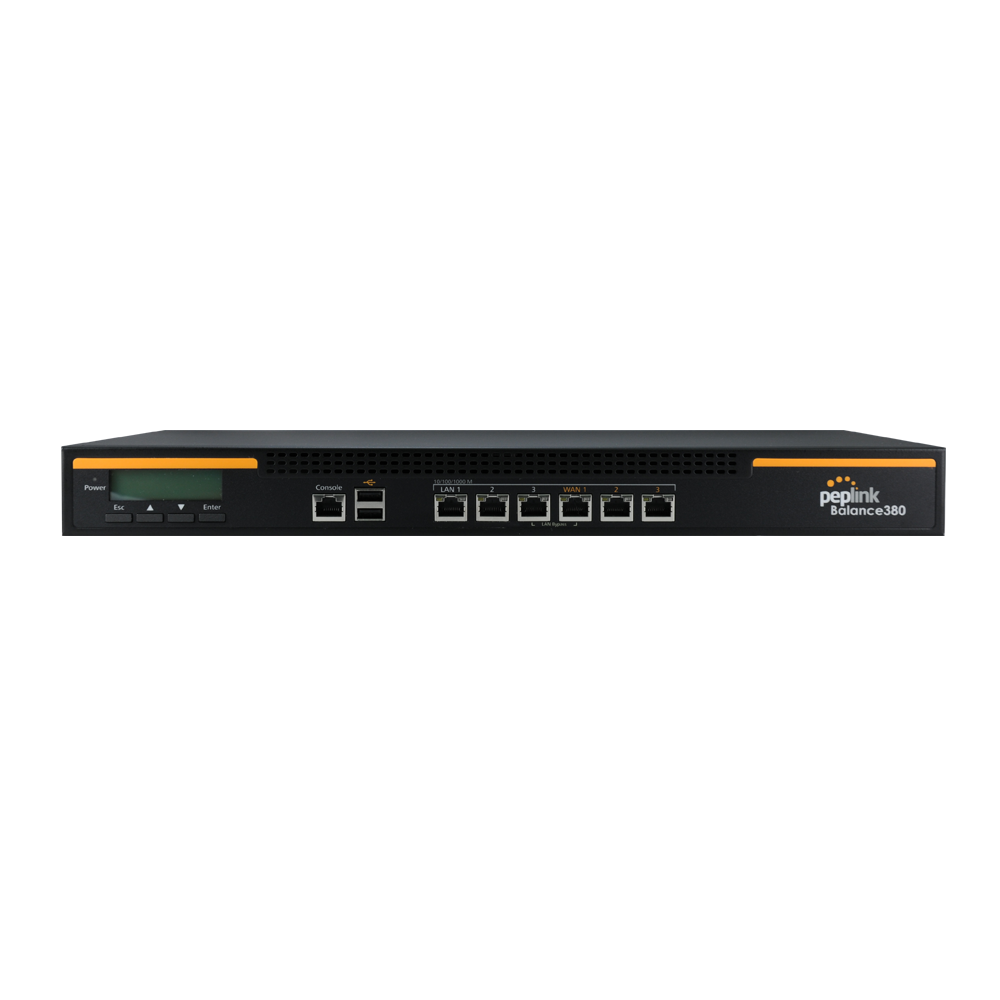

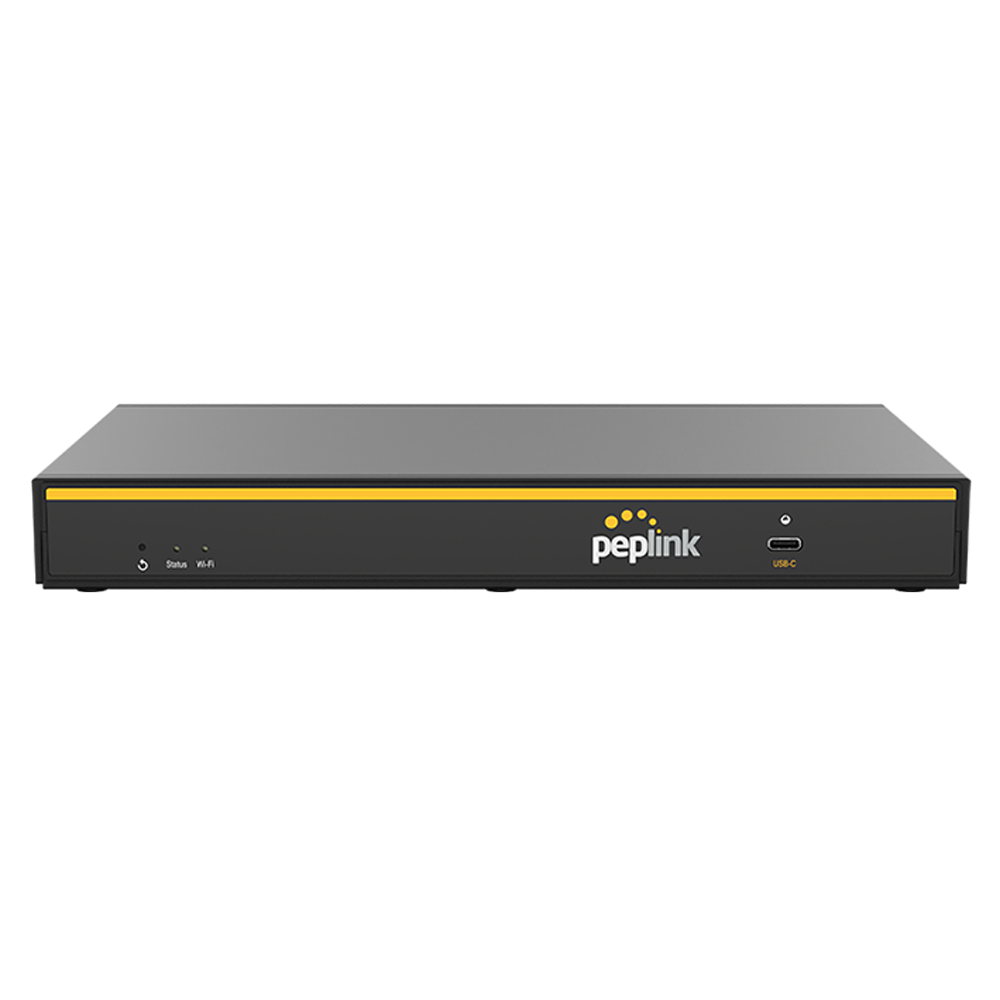

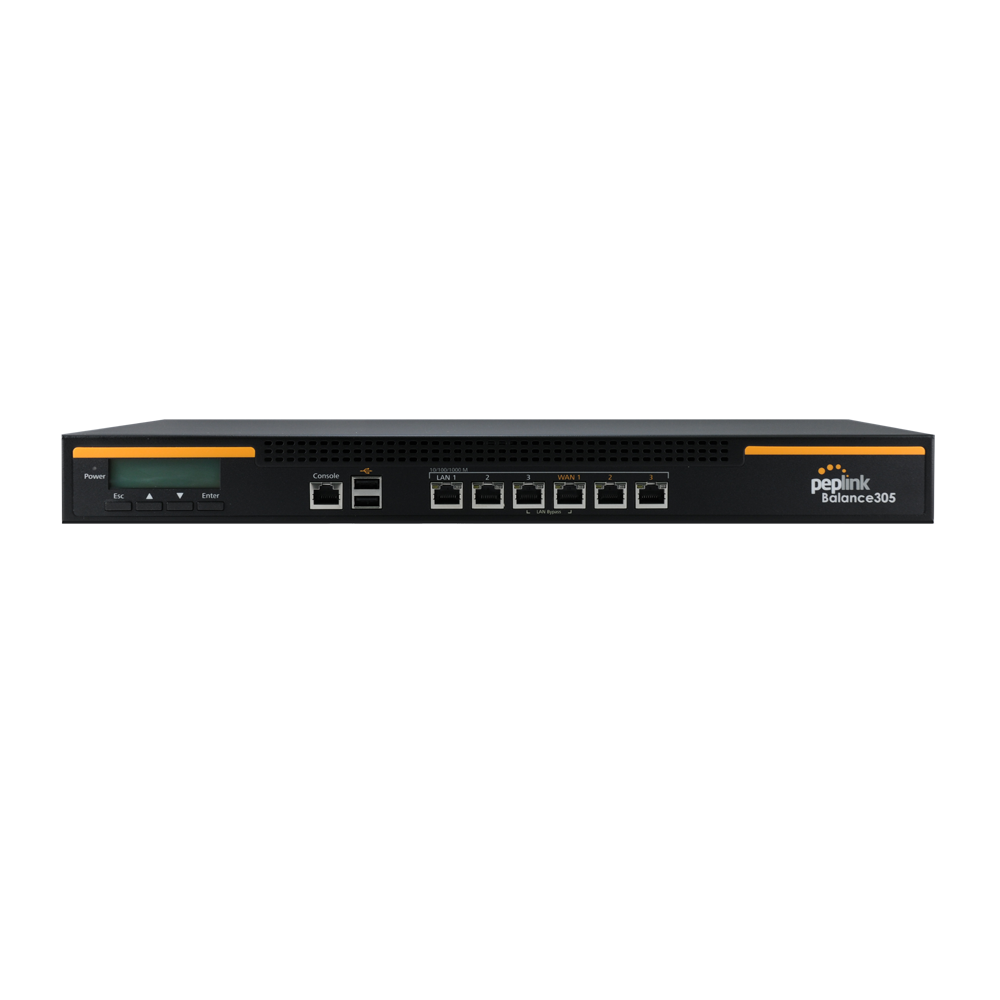

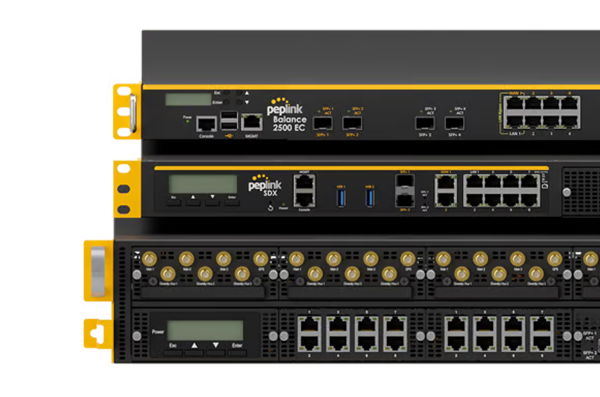

ModelBalance 20/30Balance One Core21030538058071013502500
適用對象高端用戶&小型工作室小型企業中型企業大型企業
廣域乙太網路接口2/32(GE) 2(GE) 3 (GE) 3 (GE) 5 (GE) 7 (GE) 13 (GE) 12 (GE)/ 4 (GE) & 2
(10G SFP+) *10
LAN Ports 4 (GE) 8(GE) 7 (GE) 3 (GE) 3 (GE) 3 (GE) 3 (GE) 3 (GE) 8( GE) / 2 (10G SFP+) * 10
USB WAN Modem Port *1 111111111
4G LTE Module Built-in
Wi-Fi Interface
Recommended Users *2 1-60 1-60 25-150 50-500 50-500 300-1000 500-2000 1000-5000 5000-20000+
Stateful Firewall Throughput *3 150Mbps 600Mbps/400Mbps *6 350Mbps 1Gbps 1Gbps 1.5Gbps 2.5Gbps 5Gbps 8Gbps
Load Balancing/Failover
Drop-In Mode
Inbound Load Balancing
SpeedFusion Bandwidth Bonding ● *14
Number of SpeedFusion Peers *4 2/5 *12 2/5/20 *13 2/5 *12 2/30 *8 30/100 *14 50/100 *14 3008004000
SpeedFusion Throughput *3 30Mbps 30Mbps 80Mbps 150Mbps 150Mbps 200Mbps 400Mbps 800Mbps 2Gbps
SpeedFusion Throughput (No Encryption) *3 60Mbps 60Mbps 150Mbps 150Mbps 150Mbps 200Mbps 400Mbps 800Mbps 2Gbps
L2TP / PPTP VPN Server
IPsec VPN (Network-to-Network)
Manage Pepwave AP
Maximum Number of AP Supported 10103050501002505001500
Manage Remote AP & Multiple
Config Profiles
○ *9 ○ *9 ○ *9 ● *9 ● *9 ● *9 ● *9 ● *9 ● *9
Bandwidth Usage Monitor
QoS for VoIP and E-commerce
User Groups Bandwidth Control
Web Blocking
Web Filtering Blacklist Lite Lite Full Full Full Full Full Full
1U Rackmount
High Availability
LAN Bypass *5
Dual Hot Swap Power Supply
*1 For a list of supported modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 The Balance 20 and 210 has 2 WAN ports activated by default. The third WAN port can be activated by an optional license key.
*6 If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
*7 Available in BPL-ONE.
*8 Balance 305 supports 2 SpeedFusion peers. It supports up to 30 SpeedFusion peers with purchase of SpeedFusion License (BPL-305-SPF).
*9 Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.

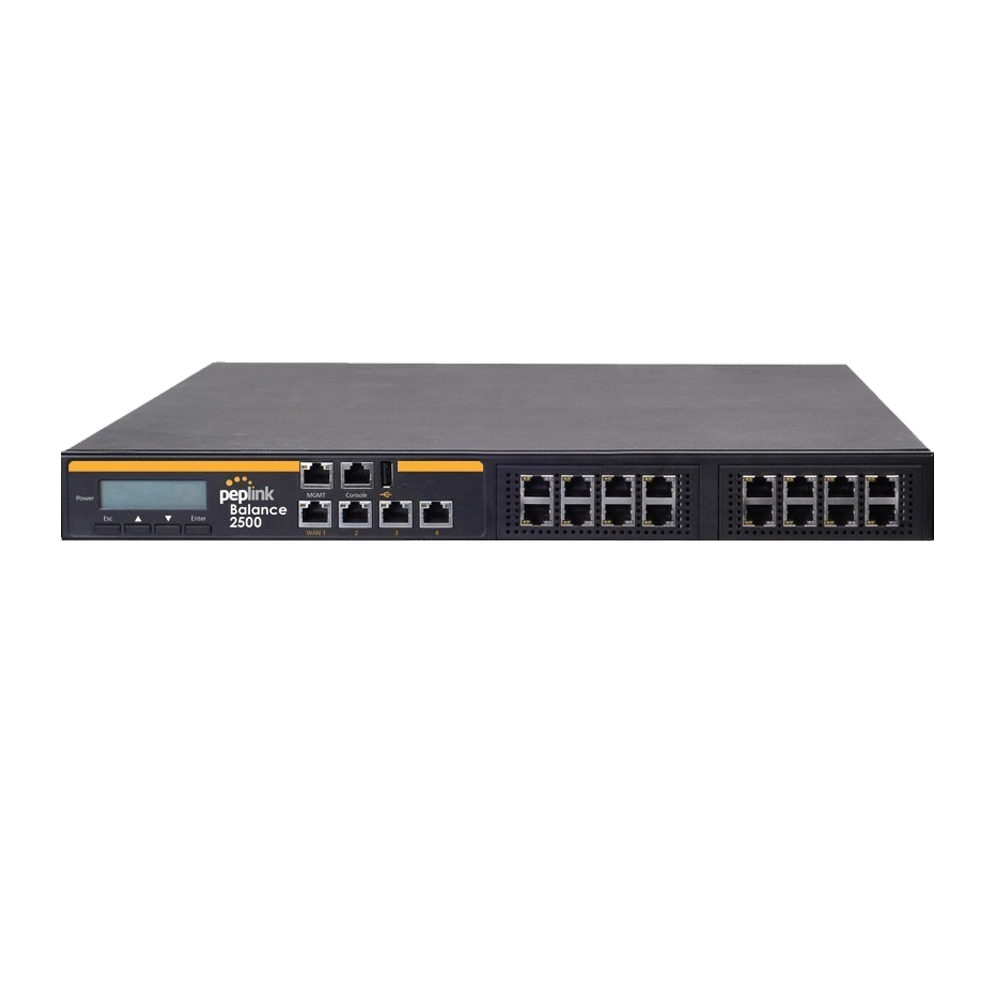

*10 Balance 2500 is available in two configurations with different LAN interfaces.
*11 SFP+ fiber module (transceiver) is not included.
*12 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
*13 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
*14 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.
*15 Available as a license add-on.
