Peplink SDX

Peplink SDX

★最大支援2000個使用者
★12Gb雙向傳輸速度(上傳+下載)
★提供 1 x FlexModules(10Gx4 SFP+ / SIM injector) (*需加購擴充模組)
★內建 GE x 8 Port(PoE+)
★可支援4G/5G 網路進行線路備援 (*需加購擴充模組)
★支援 Peplink 獨家 eSIM Data Plans方案

經銷商洽詢

產品介紹

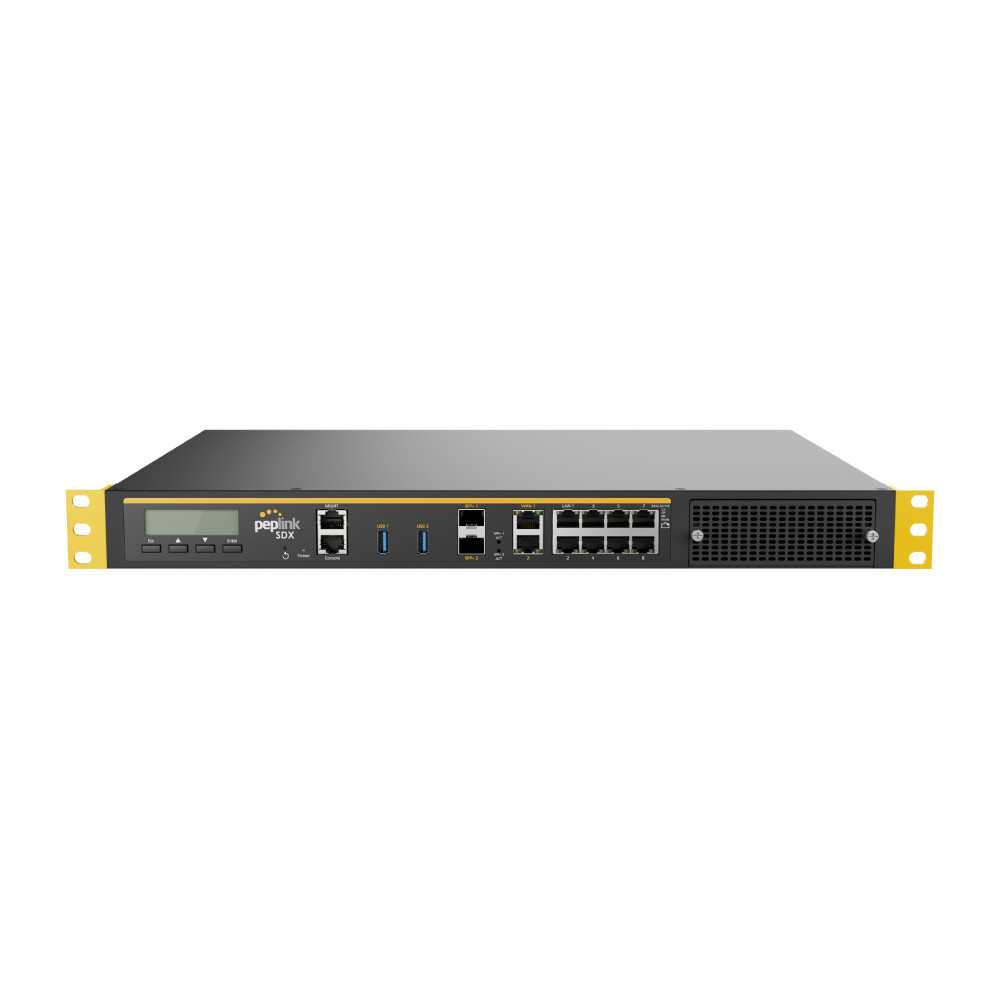

Peplink SDX

滿足任何企業分公司網路的頻寬需求。
SDX 支援 FlexModule，讓您能夠根據自己的選擇自訂路由器，
並在發布新模組時立即應用新技術。

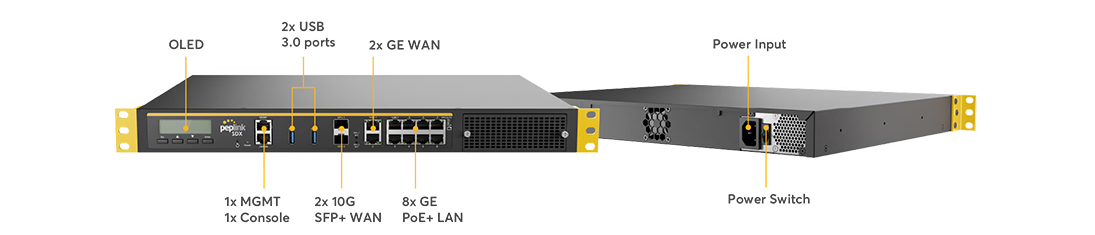

產品特色一覽

Peplink SDX

Peplink SDX

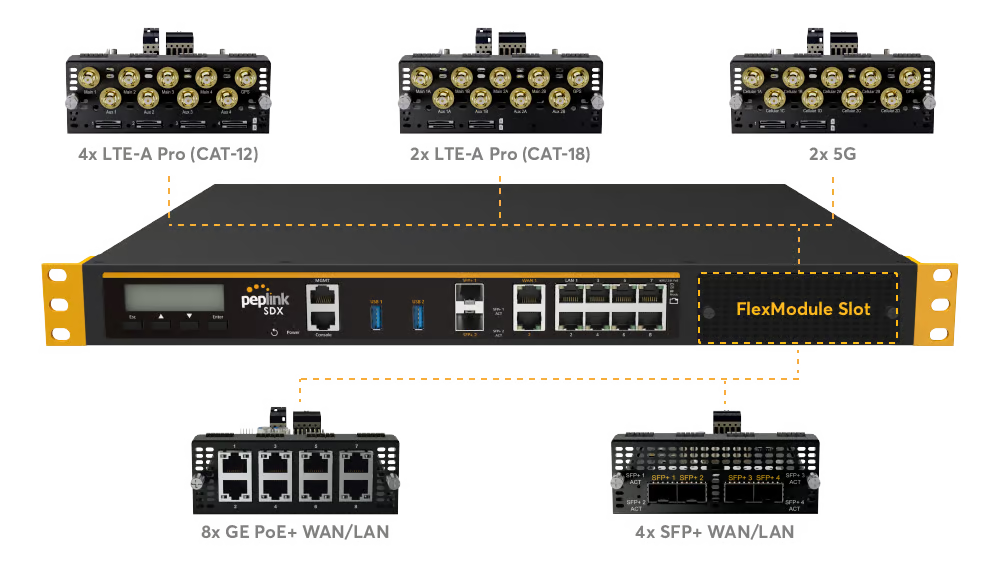

多模組設計，靈活擴展

Peplink SDX

4x 蜂巢 WAN

整合行動網路連線，作為主要連線的無線 SD-WAN 備援。

8x copper WAN/LAN

WAN 端可連接支援 PoE 的數據機，LAN 端可連接 PoE 設備，如攝影機、IP 電話和 Wi-Fi AP。

4x 光纖 WAN/LAN

透過光纖 WAN 和 LAN 交換器，打造全光纖網路環境。

SpeedFusion™帶來速度和可靠性

結合多個移動連接的頻寬，形成超快的數據鏈路。無需固定線路即可維持頻寬消耗和延遲敏感任務。

熱故障轉移在所有可用的廣域網連結上維護安全隧道，以在連接斷開時保持網路正常運行。如果一個廣域網連結發生故障，SpeedFusion會立即將流量路由到一個工作隧道中，以便進行不間斷的VoIP會話。

我們的產品通過多個營運商認證。通過合併多個行動營運商的覆蓋網路，可以最大限度地減少出現網路盲點或擁塞的機會。

在廣域網平滑的幫助下，網路流量將以最低的延遲分配給廣域網連接。使用多個廣域網連接創建一個單一的、無抖動的資料鏈。

產品規格

規格表

Model

Peplink SDX

適用對象

中大型企業

廣域乙太網路接口

2(10G SFP+) *5 & 2(GE)

LAN Ports

8(GE) with PoE+ Output

USB WAN Modem Port*1

2

4G LTE Module Built-in

●
(*需加購擴充模組)*13

5G LTE Module Built-in

●
(*需加購擴充模組)*13

Wi-Fi Interface

○

Recommended Users *2

500-2000

Router Throughput*3

12 Gbps

Load Balancing & Failover

●

Drop-In Mode

●

Outbound Load Balancing

●

SpeedFusion Bandwidth Bonding*7 *17

●

Number of SpeedFusion VPN Peers*4

300

SpeedFusion VPN Throughput (No Encryption)*3

1Gbps

SpeedFusion VPN Throughput*3

600Mbps

PPTP VPN Server

●

IPsec VPN (Network-to-Network) *18

●

Maximum PPTP / L2TP / OpenVPNUsers

200

Peplink AP Series Management

●

Maximum Number of AP Supported

250

Remote AP & Multiple ConfigProfiles Management

●

Bandwidth Usage Monitoring

●

QoS for VoIP and E-Commerce

●

User Groups Bandwidth Control

●

Application and Web Blocking

●

Web Content Filtering

Full

1U Rackmount

●

High Availability

●

LAN Bypass

○

Dual Hot Swap Power Supply

○

電源輸入

AC input 100V-240V

耗電

80W System , 330W PoE+ Power Budget

尺寸

17.2 x 13.3 x 1.7 inches

/ 438 x 340 x 44 mm

重量

11.7 pounds / 5.3 kg

操作溫度

32° – 104°F / 0° – 40°C

濕度

5% – 90% (non-condensing)

認證

FCC, IC, CE

保固

1-Year Limited Warranty

包裝內容

Balance SDX

SDX 底座機殼

1U 19″ 英寸機架安裝支架 (ACW-752)

L型安裝支架 (ACW-748)

1x 電源線 (ACW-614)

橡膠防滑墊

SIM 選擇

Mini-SIM (2FF)

Peplink eSIM

BYO eSIM (2 profiles)

RemoteSIM from SIM Injector

FusionSIM

*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

如規格有異動，恕不另行通知。Peplink保有所有權利。
