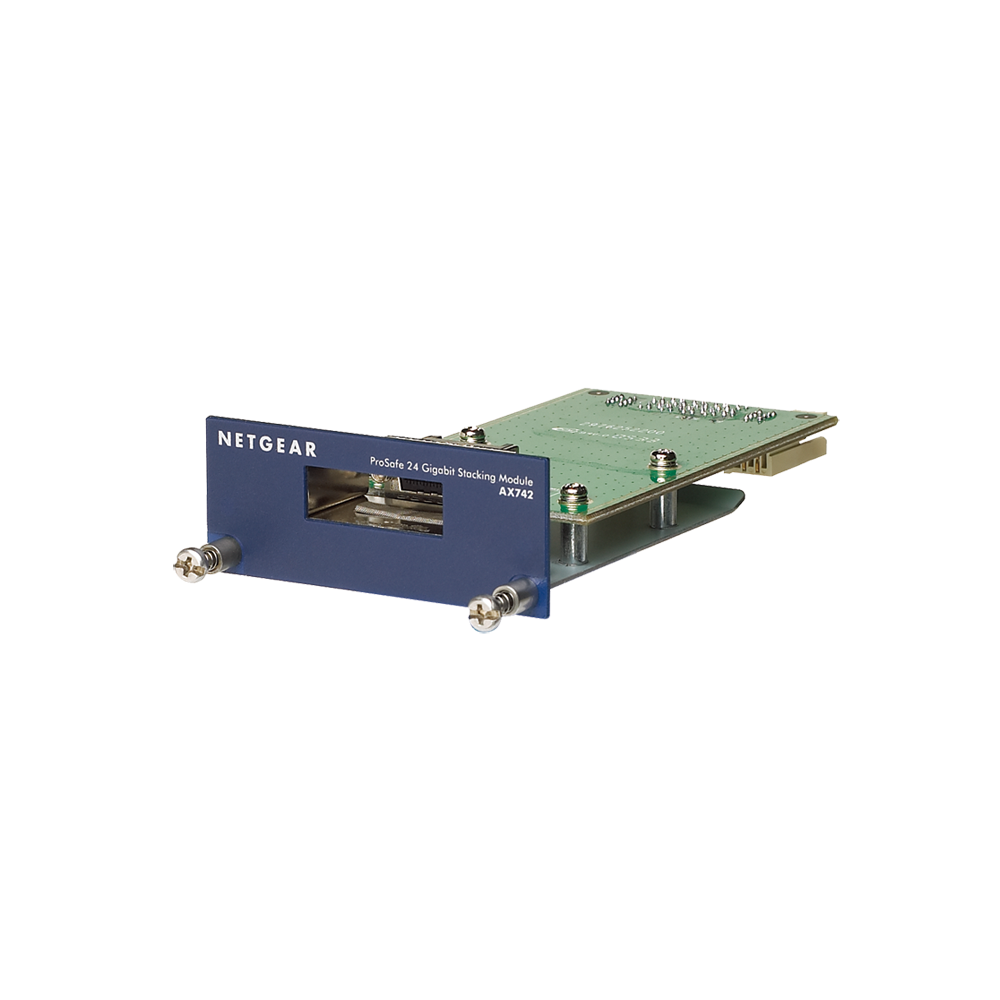

ProSAFE® 24G/48G Stacking Kit ( M5300系列24G/48G堆疊模組 )

產品概述

• For deployment convenience, M5300 series two rear I/O bays are pre-configured for stacking mode in factory default settings, allows for zero-touch stacking as soon as back connectivity is detected.

• Copper, fiber can be mixed and matched for stacking interconnect.

• One AX742 Stacking Kit per M5300 switch for local, dual ring topology

• AX742 is a bundle: 2 CX4 I/O modules AX744 + 1 stacking CX4 cable (1m – 3.3 ft)

• Latest IEEE 802.3ak 10GBASE-CX4 specifications (infiniband)

• Each I/O module half-duplex speed is 12 Gbps (24 Gbps full duplex) with 1m cable

• Dual ring stacking interconnect is 48 Gbps per switch (384 Gbps per stack) when one AX742 kit per switch (two I/O modules)

• Longer cable may be used (standard infiniband CX4 cable)

• Ordering Part Number (Worldwide): AX742

  如規格有異動，恕不另行通知。NETGEAR保有所有權利。
