★支援超過 20,000以上的使用者
★8Gb雙向傳輸速度(上傳+下載)
★特定版本支援 2x 10G SFP+ LAN ports.
● B2500 : 12 x 1G RJ45 WAN+ 8x 1G RJ45 LAN
● B2500 -SFP : 12x 1G RJ-45 WAN + 4 x 1G RJ-45 LAN+ 2x10G SFP+ LAN
● B2500-2SFP: 2x 10G SFP+ WAN + 2x 10G SFP+ LAN
The Easiest Way to Add Internet Speed, Bandwidth, and Reliability.
Peplink Balance
多線路負載平衡路由器
網路分流 流量管理 上網不中斷
產品特點 :
網際網路分流，提升上網速度，降低網路斷線風險
智能型QoS設定，自動保留上網連線優先順序，上網不卡卡
支援3G/4G LTE連線，增加網路連線可靠度

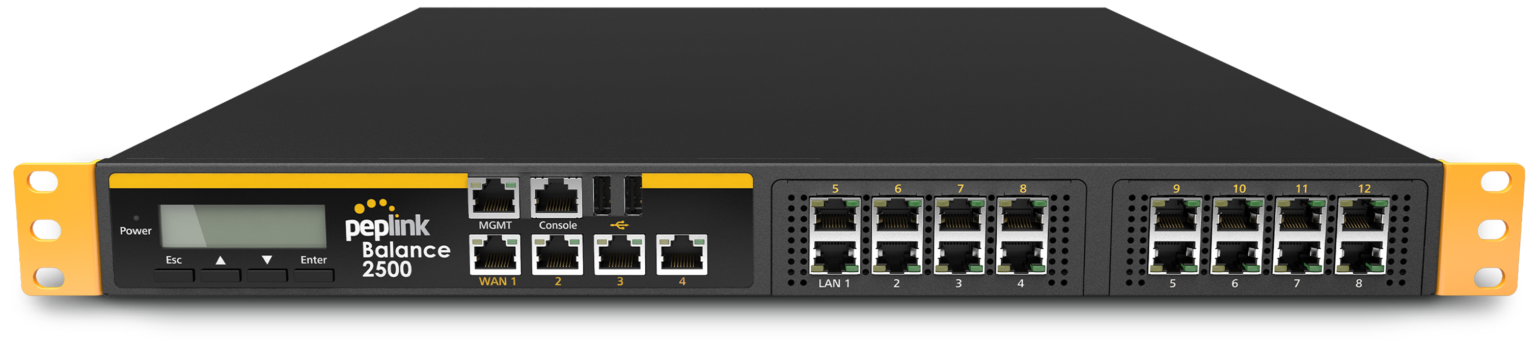

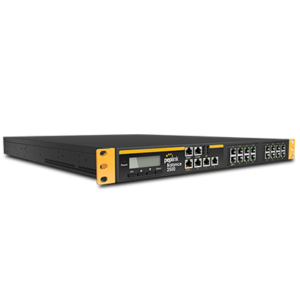

Balance 2500
保護您的業務不間斷
最多12個WAN埠口
大容量。20000用戶
8 Gbps吞吐量
4000個VPN對等
產品介紹 :
Peplink Balance 2500是一款可同時連接多條ADSL/光世代的網路負載平衡路由器，設備支援2/3個以上的廣域網路接口，可以分別連接不同的電信業者的ADSL或光世代上網線路，甚至還配有一個3G/4G USB網卡接口，除了一般有線的ADSL/光世代上網，Peplink Balance也可以利用3G/4G來做網路分流。
適用於每個情境的負載平衡器
Peplink利用為多WAN連結負載平衡而設計的Peplink SD-WAN科技，提高網路資料傳輸速率、可靠性和靈活性，同時大幅降低連接成本。使用負載平衡和SpeedFusion頻寬綁定，使用支持SD-WAN的網路提供超高速VoIP、視訊串流和數據傳輸。
SpeedFusion™帶來速度和可靠性
結合多個移動連接的頻寬，形成超快的數據鏈路。無需固定線路即可維持頻寬消耗和延遲敏感任務。
熱故障轉移在所有可用的廣域網連結上維護安全隧道，以在連接斷開時保持網路正常運行。如果一個廣域網連結發生故障，SpeedFusion會立即將流量路由到一個工作隧道中，以便進行不間斷的VoIP會話。
我們的產品通過多個營運商認證。通過合併多個行動營運商的覆蓋網路，可以最大限度地減少出現網路盲點或擁塞的機會。
在廣域網平滑的幫助下，網路流量將以最低的延遲分配給廣域網連接。使用多個廣域網連接創建一個單一的、無抖動的資料鏈。
網路分流與連線備援，上網不中斷
連接多條上網線路後，Peplink Balance會自動將上網流量分散在多條上網線路上；此外，使用者還可根據需求來自定義不同上網流量的分流規則，多線路之間亦可以互相支援，若其中一條線路發生斷線，那麼其餘的線路則可以接手已斷線線路的上網流量，可以提升上網速度之外，也提高網路運作的可靠度。
頻寬管理與防火牆安全限制
Peplink Balance提供群組式的網路頻寬管理，用戶可以根據不同的群組來限制與保留各群組可以使用的網路頻寬。
Peplink Balance採用智能型頻寬管理，系統會根據各群組的網路使用與否來動態分配與保留頻寬，用戶不必擔心無人使用的頻寬會被占用。
條列式的防火牆規則，可以針對特定的來源、目的地或服務來做進出流量的管制。防火牆規則搭配智能型的頻寬管理，讓用戶的網路資源運用更靈活，也提升網路安全性。
支援 3G / 4G LTE 上網
內建一組USB埠，用戶可以選擇使用3G/4G USB網卡連線，適用臨時備援線路或是行動辦公室的環境。
經久耐用
Balance系列能夠維持相當長的一段使用年限，為您輕鬆處理每月頻寬。
Peplink為您提供經濟實惠的企業級裝備，每一款產品設計都經過嚴格測試，在速度、可靠性、耐用性和易用性方面都相當卓越。
產品規格
| Model | 2500 |
|---|---|
 |
|
| 適用對象 | |
| 廣域乙太網路接口 | 12 (GE)/ 4 (GE) & 2 (10G SFP+) *10 |
| LAN Ports | 8( GE) / 2 (10G SFP+) * 10 |
| USB WAN Modem Port *1 | 1 |
| 4G LTE Module Built-in | ○ |
| Wi-Fi Interface | ○ |
| Recommended Users *2 | 5000-20000+ |
| Stateful Firewall Throughput *3 | 8Gbps |
| Load Balancing/Failover | ● |
| Drop-In Mode | ● |
| Inbound Load Balancing | ● |
| SpeedFusion Bandwidth Bonding | ● |
| Number of SpeedFusion Peers *4 | 4000 |
| SpeedFusion Throughput *3 | 2Gbps |
| SpeedFusion Throughput (No Encryption) *3 | 2Gbps |
| L2TP / PPTP VPN Server | ● |
| IPsec VPN (Network-to-Network) | ● |
| PPTP/L2TP/OpenVPN連線數 | 1000 |
| Manage Pepwave AP | ● |
| Maximum Number of AP Supported | 1500 |
| Manage Remote AP & Multiple Config Profiles | ● *9 |
| Bandwidth Usage Monitor | ● |
| QoS for VoIP and E-commerce | ● |
| User Groups Bandwidth Control | ● |
| Web Blocking | ● |
| Web Filtering Blacklist | Full |
| 1U Rackmount | ● |
| High Availability | ● |
| LAN Bypass *5 | ● |
| Dual Hot Swap Power Supply | ● |
| *1 For a list of supported modems, please refer to: http://www.peplink.com/modem | |
| *2 Recommendation for sizing purposes only. No software restrictions applied. | |
| *3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. | |
| *4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion. | |
| *5 The Balance 20 and 210 has 2 WAN ports activated by default. The third WAN port can be activated by an optional license key. | |
| *6 If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5. | |
| *7 Available in BPL-ONE. | |
| *8 Balance 305 supports 2 SpeedFusion peers. It supports up to 30 SpeedFusion peers with purchase of SpeedFusion License (BPL-305-SPF). | |
| *9 Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN. | |
| *10 Balance 2500 is available in two configurations with different LAN interfaces. | |
| *11 SFP+ fiber module (transceiver) is not included. | |
| *12 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05. | |
| *13 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF. | |
| *14 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100. | |
| *15 Available as a license add-on. | |
如規格有異動，恕不另行通知。Peplink保有所有權利。
