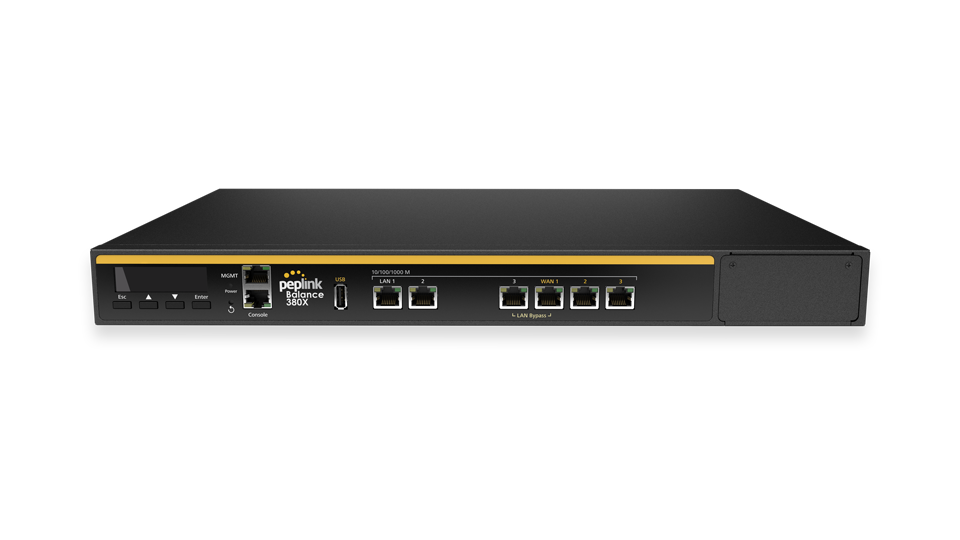

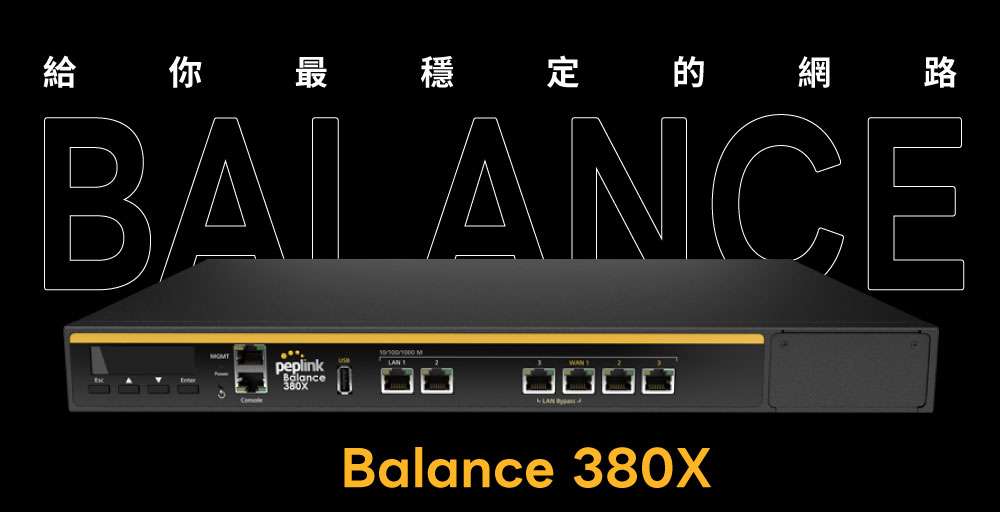

Peplink Balance 380X

Peplink balance_380X

★最大支援500個使用者
★4Gb雙向傳輸速度(上傳+下載)
★可支援 4G/5G 網路進行線路備援 (*需加購擴充模組)
★支援 Peplink 獨家eSIM Data Plans方案

Peplink balance_380X

產品特色

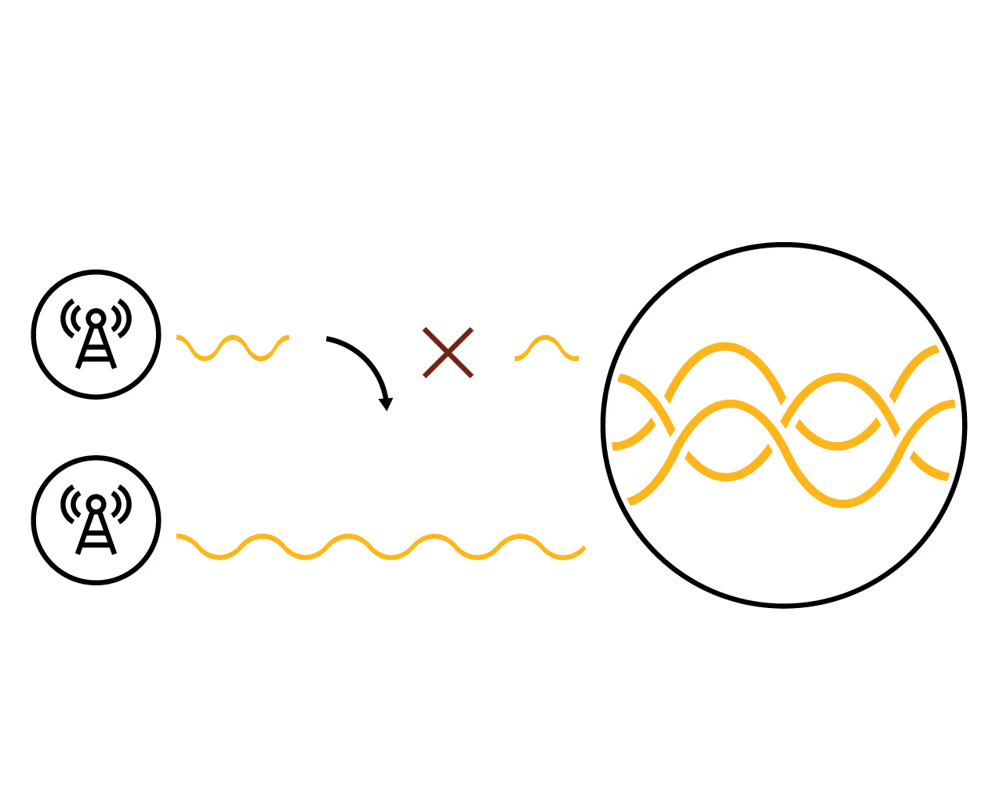

無縫連接(Hot Failover) LTE 或 5G

無縫連接(Hot Failover)
LTE 或 5G

當你的主要網路(光纖或有線網路)故障時,設備會自動切換到備用網路,例如 LTE 或 5G 行動網路,確保應用程式和使用者不會感到網路中斷。

*需加購 LTE 或 5G 模組

Peplink BPL380X.580X 支援遠端管理

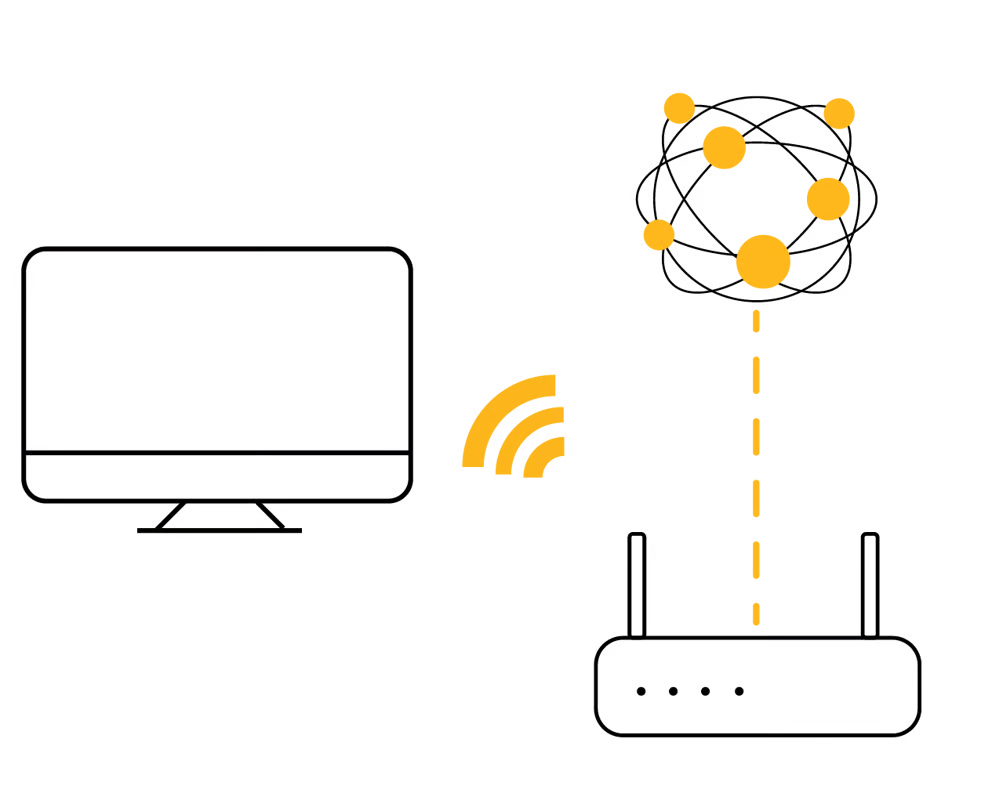

遠端管理

當主要網路無法正常運行(例如設備配置錯誤或網路中斷),可使用 OOBM 遠端訪問設備,進行排查或重新配置。

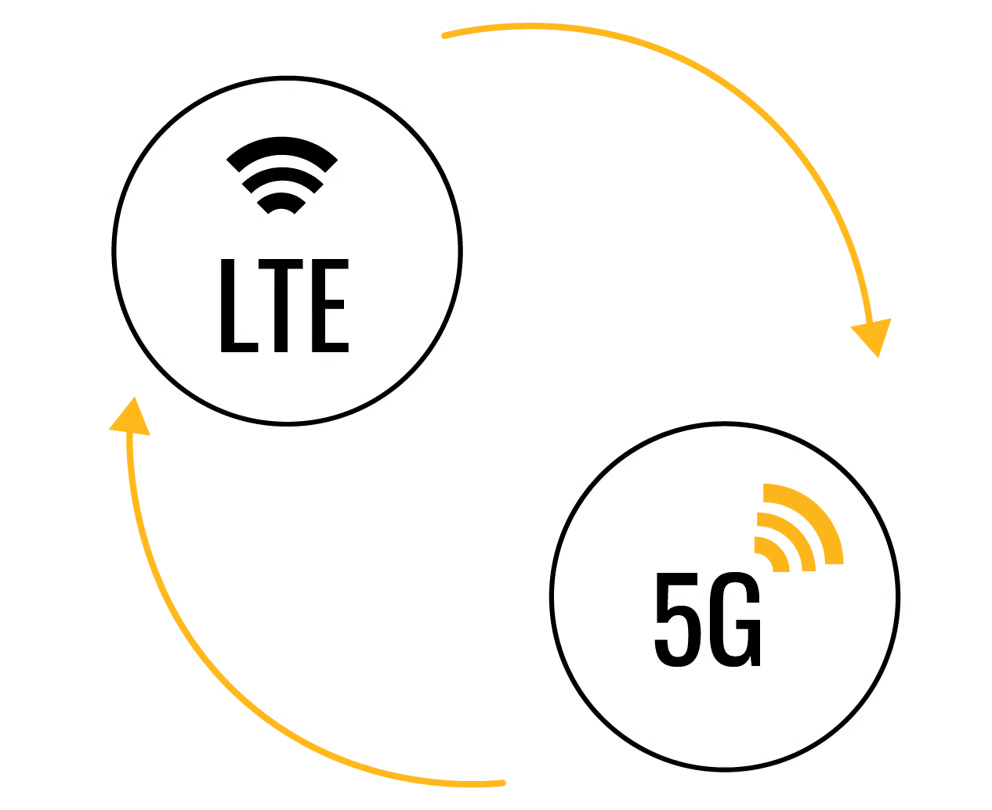

按需頻寬調整,支援 LTE 與 5G

按需頻寬調整,支援 LTE 與 5G

透過更換Peplink的模組配件 FlexModule Mini,可輕鬆將網路從 LTE 升級至 5G,實現靈活的網路配置。

*需加購 LTE 或 5G 模組

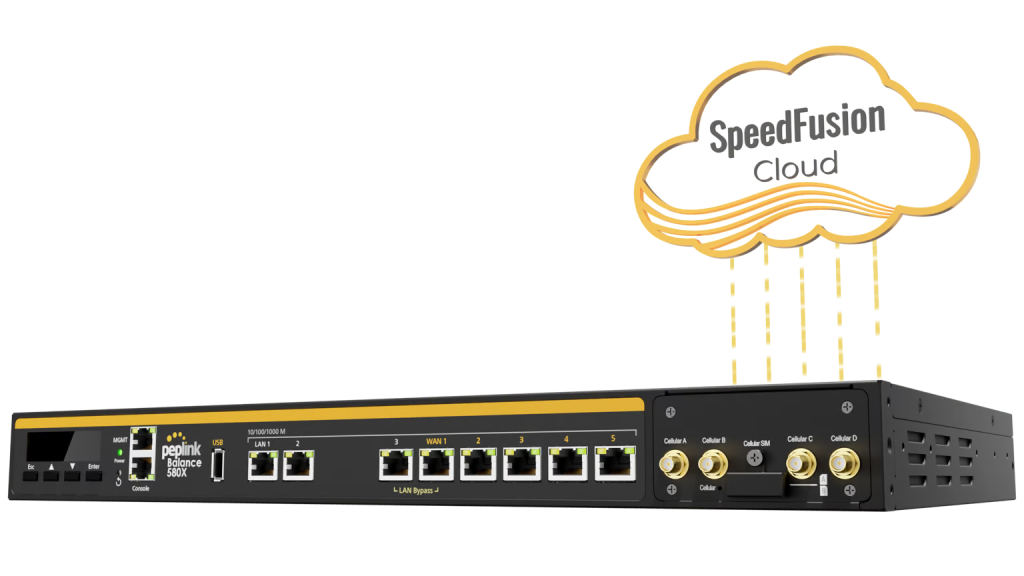

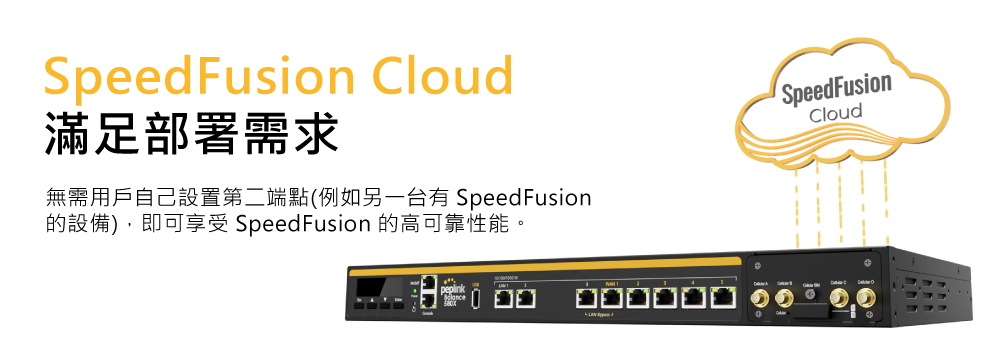

SpeedFusion Cloud

SpeedFusion Cloud 滿足部署需求

無需用戶自己設置第二端點(例如另一台有 SpeedFusion 的設備),即可享受 SpeedFusion 的高可靠性能。

SpeedFusion Cloud

準備好進行任何部署

balance_580X、balance_380X

規格表

Model

Peplink 380X

適用對象

中型企業

廣域乙太網路接口

3 (GE)

LAN Ports

3 (GE)

USB WAN Modem Port*1

1

4G LTE Module Built-in


(*需加購擴充模組)*14

5G LTE Module Built-in

●(*需加購擴充模組)*14

Wi-Fi Interface

Recommended Users *2

50-500

Router Throughput*3

3Gbps

Load Balancing & Failover

Drop-In Mode

Outbound Load Balancing

SpeedFusion Bandwidth Bonding*7 *17

Number of SpeedFusion VPN Peers*4

30 / 100*8

SpeedFusion VPN Throughput (No Encryption)*3

500Mbps

SpeedFusion VPN Throughput*3

500Mbps

PPTP VPN Server

IPsec VPN (Network-to-Network) *18

Maximum PPTP / L2TP / OpenVPNUsers

50

Peplink AP Series Management

Maximum Number of AP Supported

50

Remote AP & Multiple ConfigProfiles Management

*11

Bandwidth Usage Monitoring

QoS for VoIP and E-Commerce

User Groups Bandwidth Control

Application and Web Blocking

Web Content Filtering

FUll

1U Rackmount

High Availability

LAN Bypass

Dual Hot Swap Power Supply

電源輸入

AC input 100V-240V

耗電

35W (for the main chassis)

尺寸

17.3 x 10.4 x 1.73 inches

(440 x 265 x 44 mm)

重量

7.3 pounds (3.3 kg)

操作溫度

32° - 104°F (0° - 40°C)

濕度

10% - 85% (non-condensing)

認證

FCC, CE, RoHS

保固

1-Year Limited Warranty

包裝內容

Peplink Balance 380X

電源線 (ACW-614)*1

1 對安裝支架

橡膠腳墊組

*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

如規格有異動,恕不另行通知。Peplink保有所有權利。
