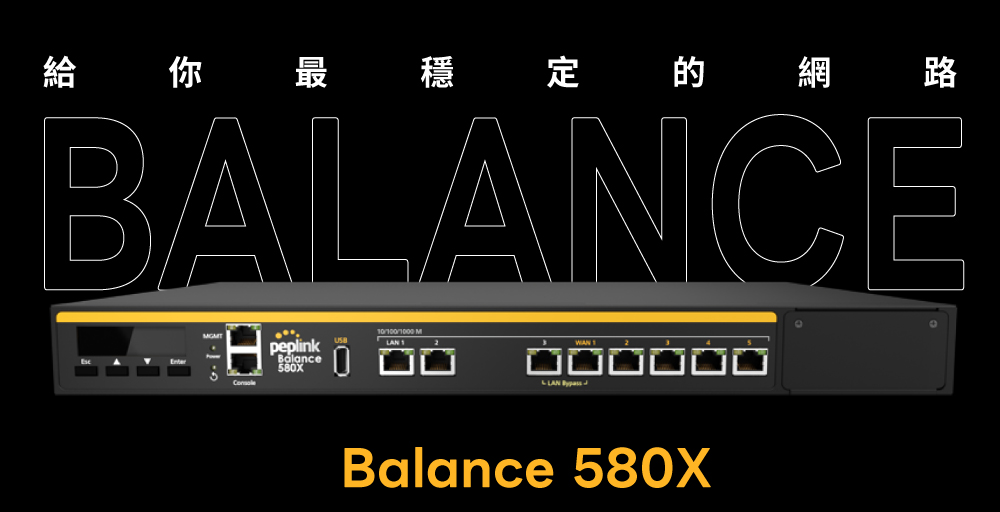

Peplink Balance 580X

★最大支援 2000 個使用者
★8Gb 路由器吞吐量
★1Gb SpeedFusion 頻寬綁定(加密/未加密皆為 1Gbps)
★內建 8 埠 802.3bt Type 4 PoE++(總預算 720W)
★4 個 2.5G 埠可自由設定為 WAN 或 LAN,另具 10G WAN/LAN 各一
★支援 Docker 邊緣運算(內建 8GB 儲存)
★TAA Compliant
★可支援 4G/5G 線路備援(*需加購 FlexModule Mini)
★多種 SIM 方案(Mini-SIM/Peplink eSIM/BYO eSIM/RemoteSIM/FusionSIM)

可設定的 Multi-Gig 埠

根據您的網路拓撲結構,將2.5G PoE++ 連接埠配置為 WAN 或 LAN 。
適應不斷變化的部署需求,同時最大限度地提高靈活性和基礎設施效率。

PoE++ 簡潔部署

輕鬆連接 5G 與 Peplink Dome 或 Antenna MAX,同時為 IPcam 和 Wi-Fi 7 AP 等設備供電。無需額外的供電器,簡化部署流程。

靈活的集中式SIM卡管理

可使用 SIM FlexModule* 無縫管理已連接的 Dome 或 Antenna MAX 的 SIM 卡。簡化 SIM 卡配置,保持最佳 5G 效能。

*相容於 FlexModule Mini(LTE/5G/SIM)。 FlexModule 模組需單獨購買。

準備好進行任何部署

規格表

Model

Peplink 580X

適用對象

中型企業

廣域乙太網路接口

4 x 2.5GE Multi-Gig(埠 2–5 可設定為 WAN/LAN)

1 x 10GE Multi-Gig

2 x USB-C

1 x 選配 Cellular(需 FlexModule Mini)

LAN Ports

4 x 2.5GE Multi-Gig(埠 2–5 可設定為 WAN/LAN)

1 x 10GE Multi-Gig

USB WAN Modem Port*1

2(USB-C,可輸出 5V/3A 供電給 Peplink 轉接器或 USB dongle)

4G LTE Module Built-in

●
(*需加購擴充模組)*14

5G LTE Module Built-in

●
(*需加購擴充模組)*14

SIM Options

Mini-SIM (2FF) / Peplink eSIM / BYO eSIM(2 profiles) / RemoteSIM from SIM Injector / FusionSIM

(均需搭配相容的 5G 或 LTE FlexModule Mini)

可設定式 Multi-Gig 埠

乙太網路 WAN 埠 2–5 可於 Web Admin 切換為 WAN 或 LAN

Recommended Users *2

500 – 2000

Router Throughput*3

8Gbps

Load Balancing & Failover

●

Drop-In Mode

●

Outbound Load Balancing

●

SpeedFusion Bandwidth Bonding*7 *17

●

Number of SpeedFusion VPN Peers*4

100(預設) / 300 / 500

SpeedFusion VPN Throughput (No Encryption)*3

1Gbps

SpeedFusion VPN Throughput*3

1Gbps

PPTP VPN Server

●

IPsec VPN (Network-to-Network) *18

●

Maximum PPTP / L2TP / OpenVPNUsers

100

Peplink AP Series Management

●

Maximum Number of AP Supported

100

Remote AP & Multiple ConfigProfiles Management

●*11

Bandwidth Usage Monitoring

●

QoS for VoIP and E-Commerce

●

User Groups Bandwidth Control

●

Application and Web Blocking

●

Web Content Filtering

FUll

1U Rackmount

●

High Availability

●

LAN Bypass

●

Dual Hot Swap Power Supply

○

Edge Computing(邊緣運算)

Docker (內建 8GB 儲存/可經 USB 外接儲存)

LACP (802.3ad) NIC Bonding

●

電源輸入

AC input 100V-240V (另具 PoE 輸出:8 x 802.3bt Type 4 PoE++)

PoE 輸出

8 x 802.3bt Type 4 PoE++

PoE 總功率預算

720W

耗電

37W(標稱)/ 39W(最大,不含 PoE 與 USB-C 輸出)

PoE 總功率預算 720W 另計

尺寸

17.3 x 12.2 x 1.73 inches (440 x 310 x 44 mm)

※ 機身加深 45mm

重量

4.26 kg

操作溫度

32° - 104°F (0° - 40°C)

濕度

10% - 95% (non-condensing)

認證

FCC, CE, RoHS, TAA Compliant

保固

1-Year Limited Warranty

包裝內容

Peplink Balance 580X x1

電源線 (ACW-614) x1

橡膠腳墊組

機架耳架套件含螺絲 x1

*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

如規格有異動,恕不另行通知。Peplink保有所有權利。
