★二十四個10/100/1000Mbps GIGA網路埠
★鐵殼散熱佳.高穩定度
★體積小巧.不佔空間
★無風扇靜音設計
★節能省電
★台灣公司貨,三年保固

商品規格
■ 尺寸 : 252x180x44 mm
■ 重量 : 1.31 kg



Model Description

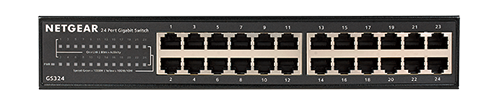

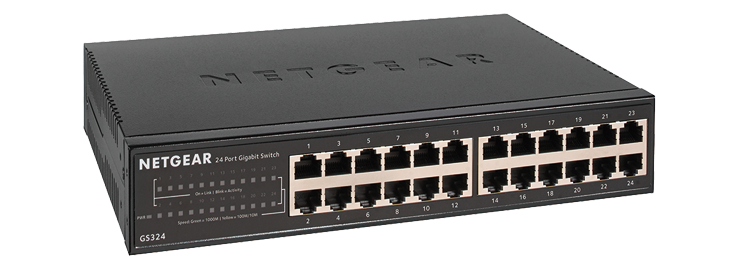

  • 24-Port Gigabit Ethernet Switch

Datasheet (PDF)

Speed
  • Gigabit
Number of Ports
  • 24
PoE Ports / Max Power Per Port
  • n/a
PoE Max Power Supplied (All Ports)
  • n/a
Switch Housing
  • Metal
LEDs
  • Power, Speed, Link/Activity
Short cable power saving
  • Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
  • Yes

Jumbo Frame Support

  • 9,216 bytes
MAC Table Size
  • 8K
Packet buffer size
  • 512 KB
Power
  • Internal (AC: 110-240V, 50-60Hz, 1.0A max)
Max Power Consumption (Watts)
  • 11.1W
Acoustic Noise Level @ 25° C (dBA)
  • 0 dBA (Fanless)
Operating Temperature
  • 0° to 40°C (32° to 104°F)
MTBF (@ 25° C)
  • 620,798 hours
Electromagnetic compliance (A or B)
  • Class A
Form Factor
  • Desktop, wall-mountable, or rack-mountable
Dimensions (W x D x H)
  • 252 x 180 x 44 mm (9.9 x 7.1 x 1.7 in)
Weight
  • 1.31 kg (2.90 lb)
Connector Type
  • Plastic
