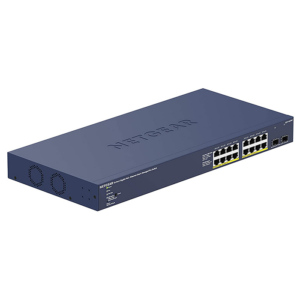

型號

GS716TP

GS716TPP

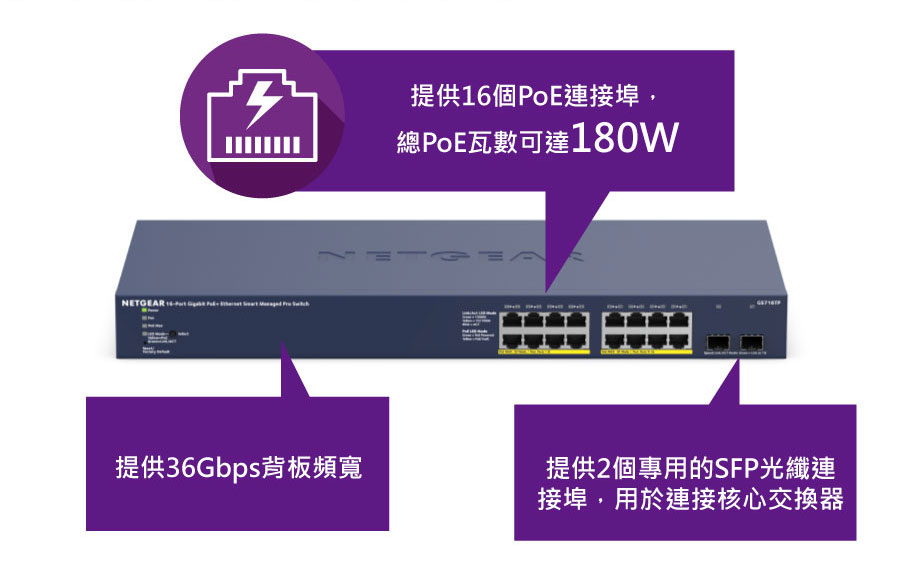

10/100/1000Mbps 連接埠數量

16口

PoE+ 電源 (802.3at)

16口

100M/1G 光纖埠數量

2 port(獨立)

電源供應

內建電源

正面燈號

電源(包含雲管模式)、風扇、PoE燈號

端口燈號

速度/鏈路/活動/PoE 狀態

雲管理

可用手機裝置、電腦 WEB做控管

雲端設定

可設定VLAN、ACL、QoS、LAG

雲端設備加入

自動套用雲網管設定

雲端端點設備管理

加入雲端管理可以同時檢視不同地方的設備及控管

在雲端同時設定多台交換器

可同時針對多台交換器做ACL、VLAN、QoS等設定

中央處理器

700MHz 單核 128MB RAM 32MB SPI FLASH

緩衝記憶體

1.5 MB

轉發方式

存儲轉發

頻寬

36 Gbps

優先隊列

8

優先排隊

加權輪詢 (WRR) 和嚴格優先級

MAC位址表大小

16K

組播組

256

VLAN數量

64

DHCP Snooping 綁定數

256

訪問控制列表 (ACL)

100 個共享用於 MAC、IP 和 IPv6 ACL（入口）

包轉發率

26.8

1G 銅纜標準延遲（微秒）（64 字節；1518 字節；9216 字節幀）

64 字節：3.932 微秒 1518 字節：3。669 微秒 9216 字節：3.286 微秒

64-byte: 3.941 µsec 1518-bye: 3.664 µsec 9216-byte: 3.296 µsec

1G SFP Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 3.304 µsec 1518-bye:3.304 µsec 9216-byte: 3.447 µsec

64-byte: 3.181 µsec 1518-bye: 3.181 µsec 9216-byte: 3.332 µsec

巨型封包

9216

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

27.3 dBA

28.2 dBA

Mean Time Between Failures (MTBF) @ 25° C

1,186,673 hrs (135 yrs)

1,257,629 hrs (144 yrs)

POE供電類型

16 PoE+

16 PoE+

最大供電

180W

300W

Advanced per-port PoE controls (enable/disable/ power limit)

Yes

Advanced per-port PoE scheduling/timers

Yes

IEEE 802.1Q VLAN Tagging

Yes

Protocol based VLANs

Yes

MAC based VLANs

Yes

Broadcast, multicast, unknown unicast storm control

IEEE 802.3ad - LAGs (LACP)

Yes

IEEE 802.3x (full duplex and flow control)

Yes

IEEE 802.1D Spanning Tree Protocol

Yes

IEEE 802.1w Rapid Spanning Tree

Yes

IEEE 802.1s Multiple Spanning Tree

Yes

IGMP snooping (v1, v2 and v3)

Yes

IGMP snooping queries

Yes

Block unknown multicast

Yes

Multicast groups

256

DHCP client

Yes

DHCP snooping

Yes

Number of DHCP snooping bindings

256

IEEE 802.3ad - LAGs (LACP)

Yes

Manual Static LAG

Yes

# of Static or LACP LAGs / # of members in each LAG

8 LAGs with max 8 members in each LAG

802.1ab LLDP

Yes

LLDP-MED

Yes

SNMP

Yes, v1/v2c/v3

RMON group 1,2,3,9

Yes

IEEE 802.1x

Yes

Guest VLAN

Yes

 RADIUS based VLAN assignment via .1x

Yes

 MAC-based .1x

Yes

RADIUS accounting

Yes

Access Control Lists (ACLs)

L2 / L3 / L4

 IP-based ACLs (IPv4 and IPv6)

Yes

MAC-based ACLs

Yes

TCP/UDP-based ACLs

Yes

MAC lockdown

Yes

MAC lockdown by the number of MACs

Yes

Control MAC # Dynamic learned entries

4096

Control MAC # static entries

48

IEEE 802.1x RADIUS port access authentication / type

Yes

Port-based security by locked MAC addresses

Yes

Broadcast, multicast, unknown unicast storm control

Yes

DoS attacks prevention

Yes

Protected ports

Yes

Port-based rate limiting

Yes, egress

Port-based QoS

Yes

Support for IPv6 fields

Yes

DiffServ QoS

Yes, egress

IEEE 802.1p COS

Yes

Destination MAC and IP

Yes

IPv4 and IPv6 DSCP

IPv4 only

TCP/UDP-based

Yes

Weighted Round Robin (WRR)

Yes

Strict priority queue technology

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, manuel or automatic assignment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters

Advanced per-port PoE controls (enable/disable/ power limit)

Yes

Advanced per-port PoE scheduling/timers

Yes

Loop detection & prevention

Yes

DNS Client

Yes

Option to enable/disable BPDU flooding when STP is disabled

Yes

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Yes

Cloud/Remote management

Yes

Insight mobile app & Insight Cloud Portal management

Yes

uPnP Discovery

Yes, activated by default

Bonjour Discovery

No

Networking monitoring

Yes

Data/performance logs

Yes

Centralized network configuration/policies (network-centric management)

Yes

Device auto-join and configure (zero-touch provisioning)

Yes

Multi-site, multi-network single pane-of-glass view

Yes

Multi-switch, multi-port concurrent configuration

Yes

Network/global password (for all Insight Managed devices on a network)

Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)

Password management

Yes

IP Access List

Yes

Configurable management VLAN

Yes

Admin access control via RADIUS and TACACS+

Yes

IPv6 management

Yes

SNTP client over UDP port 123

Yes

Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal)

Yes

SNMP v1/v2c

Yes

SNMP v3 with multiple IP addresses

Yes

RMON group 1,2,3,9

Yes

Smart Control Center (SCC) for multi-switch management

Yes

Port mirroring

Yes

Many-to-one port mirroring

Yes

Cable test utility

Yes

Ping and tracer out client

Yes

Local-only web browser-based management GUI

Yes

HTTP/TLS Web-based access (version)

Yes (v1.2)

HTTP firmware download

Yes

Dual software (firmware) image

Yes

Memory and flash log

Yes

Syslog (Server)

Yes

Max power (worst case, all ports used, line-rate traffic) (Watts)

17.01 W

18.06 W

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)

193.90 W

317.74 W

Min power (link-down standby) (Watts)

12.00 W

13.36 W

散熱 (min w/o PoE and max with full PoE) (BTU/hr)

Max: 662.05BTU/hr Min: 40.97 BTU/hr

Max: 1100.46BTU/hr Min: 45.62 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Auto power down

Yes (deactivated by default)

風扇 (temperature- and load-based speed control)

1

2

外觀尺寸 (W x D x H)

440 x 204 x 43 mm ( 17.3 x 8.0 x 1.7 in)

440 x 204 x 43 mm ( 17.3 x 8.0 x 1.7 in)

重量

3.00 kg (6.61 lb)

3.08 kg (6.79 lb)

架設方式

可放桌上 或 機架安裝

可放桌上 或 機架安裝

操作

運作環境溫度

0° to 50°C (32° to 122°F)

運作環境濕度

95%最大相對溼度，無冷凝

運作環境高度

10,000 ft (3,000 m) maximum

Storage

儲存溫度

–20° 至 70°C（– 4° 至 158°F）

運作環境濕度

95%最大相對溼度，無冷凝

運作環境高度

10,000 英尺（3,000 米）最大

保固

台灣公司貨享5年保固
