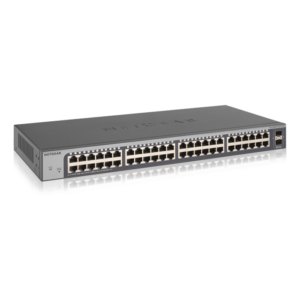

GS750E

★ 連接埠數:48埠
★ 保固期限:5年
★ Buffer:1.5M
★ 交換器MAC(address):16K
★ 模組支援傳輸速度:10/100/1000 Base-T
★ 背板頻寬:100G
★ 機構型式:機架型
★ 網管方式:L2

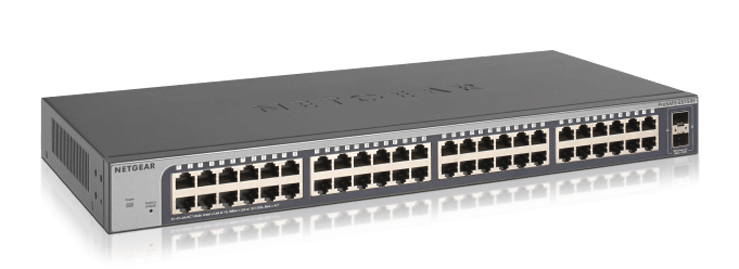

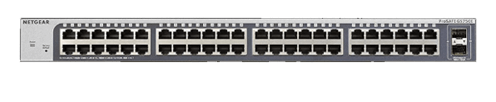

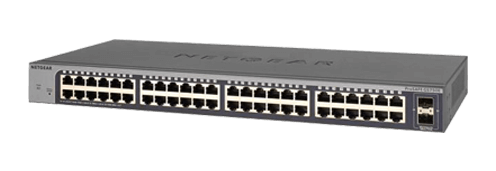

簡易網管交換器-GS750E

GS750E

48個GbE連接埠
2個光纖連接埠
GS750E

支援
LACP鏈路聚合

無風扇設計寧靜不入塵

GS750E

GS750E簡易網管交換器擁有48個Giga埠口和2個SFP光纖連接埠,提供L2網管功能,如VLAN,QoS…等。在許多企業在添購網管設備時,往往需考慮公司未來幾年的擴充需求,並在功能、性能和價格中取得最佳C/P值,這台GS750E機架式多埠口非常適合現今的網路連線環境。金屬機殼無風扇靜音設計使網管人員彈性規劃交換器位置不受限。

FeaturesGS750E
Gigabit ports48
Fiber ports2 SFP
# of PoE portsN/A
Total PoE power budget (watts)N/A
Max MAC entries16K
Buffer size1.5MB
Energy Efficient Ethernet (IEEE 802.3az) compliantYes
效能規格
Forwarding modesStore-and-forward
Bandwidth100Gbps
Priority queuingWeighted Round Robin (WRR)
Jumbo frame supportUp to 9K packet size
Acoustic noise (dB) (ANSI-S10.12)0
Mean Time Between Failures (MTBF) (hrs)1,055,076
L2 SERVICES - VLANS
VLAN (# Supported)4000
IEEE 802.1Q VLAN TaggingYes
Port-based VLANYes
L2 SERVICES - AVAILABILITY
Link Aggregation/ Port Trunking 2Static and LACP
Number of Static Manual LAGs and # of members8 LAGs and 2 to 4 members
L2 SERVICES - MULTICAST FILTERING
IGMP Snooping (v1, v2 and v3)Yes
Block unknown MulticastYes
Supported Mulitcast groups128
L3 SERVICES - DHCP
DHCP clientYes
QUALITY OF SERVICE (QOS)
Rate limitingYes
DSCPYes
IEEE 802.1p COSYes
Port-based VLANYes
TOSYes
WRR (Weighted Round Robin)Yes
Strict Priority Queue TechnologyNo
網路通訊協定•IEEE 802.3 Ethernet
•IEEE 802.3ab 1000BASE-T
•IEEE 802.1Q VLAN Tagging
•IEEE 802.3i 10BASE-T
•IEEE 802.1p Class of Service
•IEEE 802.3x Full-duplex Flow Control
•IEEE 802.3u 100BASE-T
•IEEE 802.3af (PoE)
管理
System PasswordYes
Web browser- based manage - ment GUIYes
PC UtilityYes
Port MirroringYes
Multiple Language GUINo
Max number of source ports allowed (many to 1)47
Many-to-One Port MirroringYes
Cable Test utilityYes
FW upgrade thru Plus Utility (TFTP)Yes
Config download (to Switch) thru Plus UtilityYes
Config upload (to Server)Yes
其他功能
Loop DetectionLoop Prevention
DoS PreventionYes
Broadcast Storm ControlYes
Energy Efficient Ethernet (EEE)Yes
LEDs提示燈
Per portSpeed, Link, Activity
Per devicePower, Fan and PoE Power Status
體積與重量
Dimensions (mm)440x204x43
Weight (kg)3.25
Fan0
功耗(所有埠同時啟用,及最大PoE使用量時)
Worst case, all ports used, line-rate traffic, max PoE (W)30
Heat Dissipation Max/Standby (BTU/hr)Max: 102.7 Min: 38.9
環境需求
運作環境
Operating temperature32° to 122°F (0° to 50°C)
Humidity90% maximum relative humidity, non-condensing
Altitude10,000 ft (3,000 m) maximum
儲藏環境
Storage temperature– 4° to 158°F (–20° to 70°C)
Humidity95% maximum relative humidity, non-condensing
Altitude10,000 ft (3,000 m) maximum
電磁輻射干擾與耐受性
Certifications Class (including but not limited to CE, FCC Part 15, VCCI, RCM, KCC, EAC and CCC)A
安全認證
CertificationsCB, CE LVD, CCC, EAC, UL 60950-1
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
