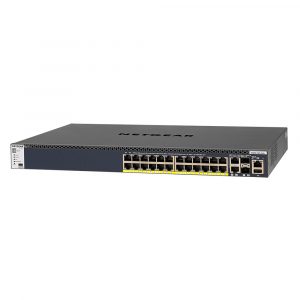

NETGEAR 全網管/ PoE 交換器 – M4300-28G-PoE (GSM4328PB)

★二十四個10/100/1000BASE-T RJ45埠
★兩個100/1000/10GBASE-T RJ45埠
★兩個1000/10GBASE-X SFP+光纖埠
★最大提供720W PoE 供電瓦數
★搭載Chassis交換器等級的Spine-Leaf技術
★結合Trunking/Redundant/Stacking等應用
★協助商辦場所建置高速、高備援的10G網路頻寬
★L3全網管功能
★台灣公司貨,五年保固,0800技術客服

GSM4328PB 規格

網路介面
• Auto-sensing RJ45 10/100/1000BASE-T: 24
• Auto-sensing RJ45 100/1000/10GBASE-T: 2
• Auto-sensing SFP+ ports 1000/10GBASE-X: 2
• Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)
• Storage port: 1 x USB (front)
硬體規格
• Processor (CPU): Integrated 800Mhz CPU in switching silicon
• System memory (RAM): 1 GB
• Code storage (flash): 256 MB
• Packet Buffer Memory: 16 Mb

VIRTUAL CHASSIS STACKING
• Max physical switches per stack: 8
• Max physical ports per stack: 384 x 1G ports or 384 x 10G ports or a combination
• Mixed stacking between 1G models and 10G models
• Stacking ports (max number): 1G models: up to 4 ports per switch 10G models: up to 16 ports per switch
• Distant stacking using fiber
• Non-stop forwarding (NSF)
• Automatic unit replacement (AUR)
• Distributed Link Aggregation (LAGs across the stack)
效能表現
• Switching fabric: 128 Gbps Line-rate (non blocking fabric)
• Throughput: 95.2 Mpps
• PoE bugget: 110V: 630W@1PSU,720W@2PSU(EPS Mode)
• 220V: 720W@1PSU,720W@2PSU(RPS Mode)
• Latency – 10G Fiber: 64-byte frames/1.961μs
• Latency – 10G Copper: 64-byte frames/2.74μs
• Latency – 1G Fiber: 64-byte frames/1.908μs
• Latency – 1G Copper: 64-byte frames/3.745μs
• Forwarding mode: Store-and-forward
• Address database size: 16K MAC addresses
• Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
• Number of multicast groups filtered (IGMP): 4K total (2,048 IPv4 and 2,048
IPv6)
• Number of Link Aggregation Groups (LAGs): 128 LAGs with up to 8 ports per
Group; 802.3ad / 802.1AX-2008
• Number of hardware queues for QoS (Standalone): 8 queues
• Number of hardware queues for QoS (Stack): 7 queues
• Number of static routes: IPv4/64; IPv6/64
• RIP application route scaling: IPv4/512
• OSPF application route scaling: IPv4/512; IPv6/256
• Number of IP interfaces (port or VLAN): 128
• Jumbo frame suppor: up to 9KB packet size
L2 支援協定
• IEEE 802.1Q VLAN Tagging
• Protocol Based VLANs: IP subnet, ARP, IPX
• Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN,
Private VLAN
• IEEE 802.1x
• Double VLAN Tagging (QoQ)
• GARP with GVRP/GMRP
• Multiple Registration Protocol (MRP)
• Multicast VLAN Registration Protocol (MVRP)
• MVR (Multicast VLAN registration)
• IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG
• Distributed Link Aggregation
• Storm Control
• IEEE 802.3x (Full Duplex and flow control)
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree
• IGMP Snooping Support: v2, v3
• Multicast VLAN registration (MVR)
L3 支援協定
• IGMP Proxy
• MLD Proxy
• Any Source Multicast (ASM)
• Source Specific Multicast (SSM)
• DVMRP (Distance Vector Multicast Routing Protocol)
• DHCP IPv4 / DHCP IPv6 Client
• DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
• DHCP Snooping IPv4 / IPv6
• DHCP Relay IPv4 / IPv6
• Static Routing / ECMP Static Routing: Multiple next hops to a given
destination; Load sharing, Redundancy; Default routes; Static Reject routes
• Port Based Routing
• VLAN Routing
• ICMP throttling
• Router Discovery Protocol
• DNS Client
• Proxy ARP
• ICMP
• Policy Based Routing (PBR)
• 802.1ab LLDP
• 802.1ab LLDP – MED
• SNMP: V1, V2, V3
• RMON 1,2,3,9
• sFlow
安全協定
• Broadcast, Unicast, Multicast DoS Protection
• DoS Attacks Protection
• ICMP throttling
• Management ACL (MACAL)
• Radius accounting
• TACACS+
• Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
• IEEE 802.1x Radius Port Access Authentication
• 802.1x MAC Address Authentication Bypass (MAB)
QUALITY OF SERVICE (QOS)
• Access Lists
• DiffServ QoS
• IEEE 802.1p COS
• Single Rate Policing
• Auto-VoIP
• iSCSI Flow Acceleration
體積與重量
• Width: 17.32 inches (44 cm); Height: 1U – 1.73 inches (4.4 cm); Depth: 12.2 inches (31 cm)
• Weight: 9.94 lb (4.51 kg)
使用與保存環境
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Operating Humidity: 90% maximum relative humidity, non-condensing
• Operating Altitude: 10,000 ft (3,000 m) maximum
• Storage Temperature: – 4° to 158°F (–20° to 70°C)
• Storage Humidity: 95% maximum relative humidity, non-condensing
• Storage Altitude: 10,000 ft (3,000 m) maximum
包裝內容物
• Power cord(s)
• RJ45 straight-through wiring serial console cable to DB9
• Mini-USB console cable
• Rubber caps for the SFP+ sockets
• Rubber footpads for tabletop installation
• Installation guide
保固年限
• 全機五年保固,故障更換新品免維修



如規格有異動,恕不另行通知。NETGEAR保有所有權利。
