產品分類

產品圖

型號

Ports

PoE Ports

PoE Budget

GSM4210PD

9 x GbE + 1 x SFP

8(PoE+)

110W

GSM4210PX

8 x GbE + 2 x SFP+

8(PoE+)

220W

GSM4212P

10 * 1G + 2 SFP

8(PoE +)

125W

GSM4212PX

10 * 1G + 2 SFP+

8(PoE +)

240W

GSM4212UX

10 * 1G + 2 SFP+

8(PoE ++)

720W

MSM4214X

12 x 100/1000/2.5G

2 x 10G SFP+

–

–

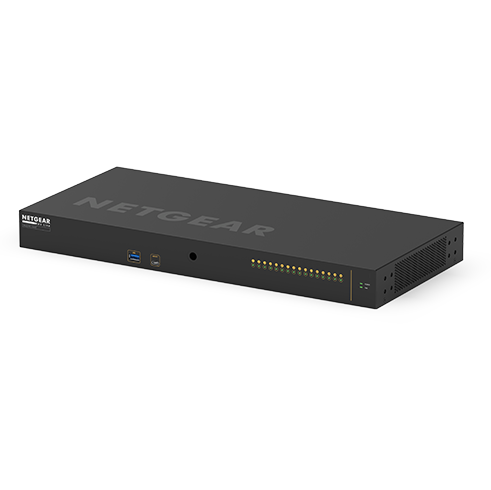

XSM4216F

1-12 port 支援1G/10G

13-16 port 支援10G

–

–

GSM4230P

26 * 1G + 4 SFP

24(PoE +)

300W

GSM4230UP

26 * 1G + 4 SFP

24(PoE ++)

720W with 1PSU

1440W with 2PSU

GSM4230PX

26 * 1G + 4 SFP+

24(PoE +)

480W

GSM4248P

40 * 1G + 8 SFP

40(PoE +)

480W

GSM4248PX

40 * 1G + 8 SFP+

40(PoE +)

960 W

GSM4248UX

40 * 1G + 8 SFP+

40(PoE ++)

720W with 1PSU

1650W with 2PSU

2880W with 3PSU

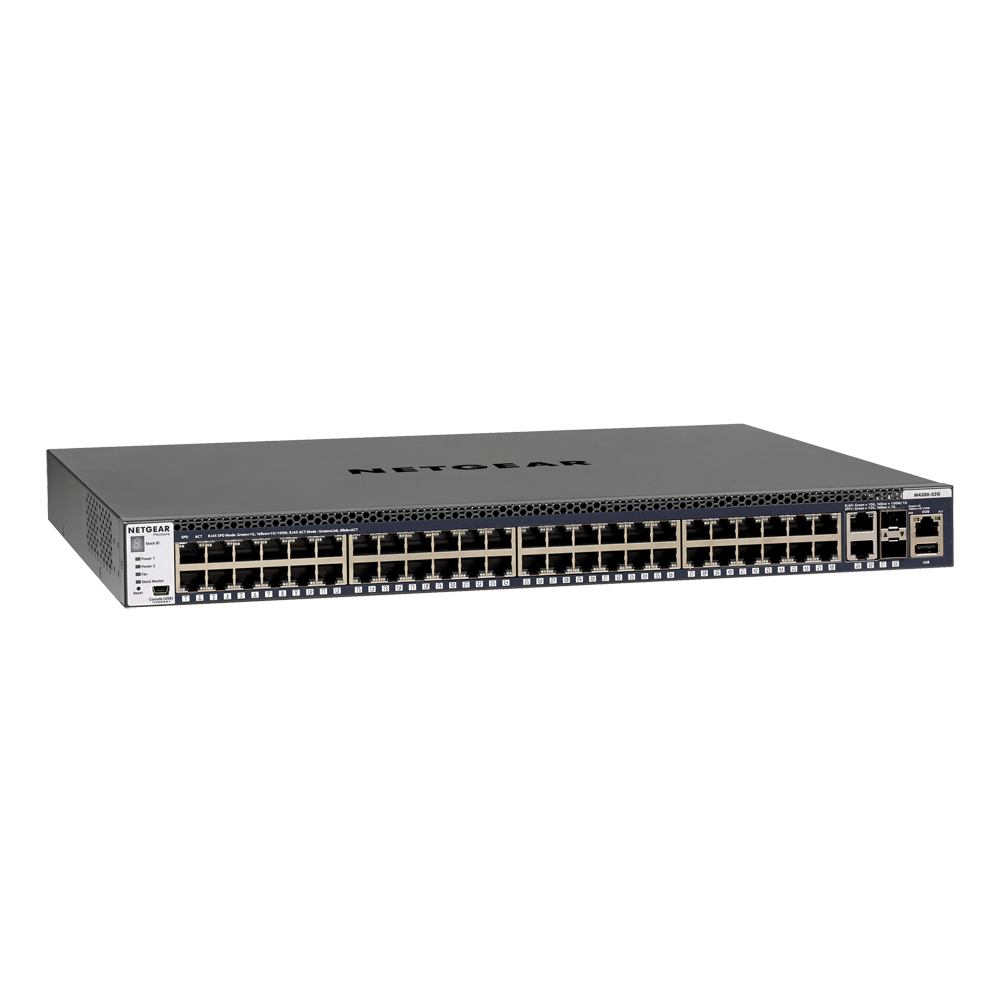

M4300-52G

GSM4352S

48 x GbE
2 x 10GbE
2 x 10G SFP+

-

-

M4200-10MG-PoE+
GSM4210P

6 x 2.5GbE//Multi-Gig
2 x 5GbE/Multi-Gig
2 x 10G SFP+

8 (PoE+)

240W

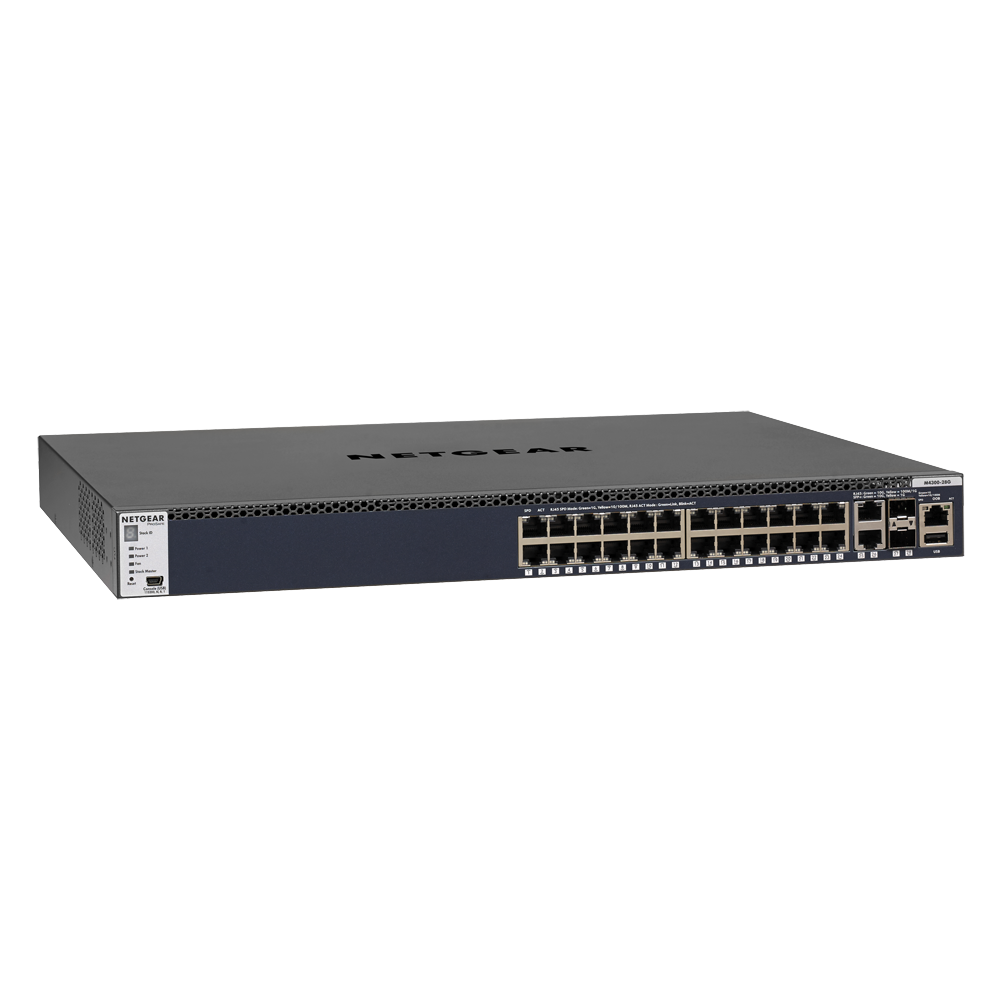

M4300-28G
GSM4328S

24 x GbE
2 x 10GbE
2 x 10G SFP+

-

-

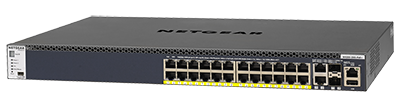

M4300-28G-PoE

GSM4328PA

24 x GbE
2 x 10GbE
2x 10G SFP+

24(PoE+)

480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode)

M4300-28G-PoE

GSM4328PB

24 x GbE
2 x 10GbE
2x 10G SFP+

24(PoE+)

630W with 1 PSU(APS1000W,110V AC in)
720W with 1 PSU(APS1000W,220V AC in) up to 720W with 2PSU (RPS mode)

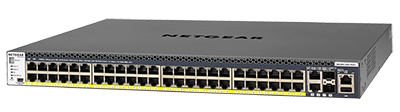

M4300-52G-PoE+
GSM4352PA

48 x GbE
2 x 10GbE
2x 10G SFP+

48(PoE+)

480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode)

M4300-52G-PoE+
GSM4352PB

48 x GbE
2 x 10GbE
2x 10G SFP+

48(PoE+)

591W with 1 PSU(APS1000W,110V AC in) up to 1010W with 2 PSU(110V, AC in EPS Mode) 860W with 1 PSU(APS1000W,220V AC in) up to 1440W with 2PSU (220V AC in, EPS mode)

M4300-8X8F XSM4316S

8 x 10GbE

8 x 10G SFP+

-

-

M4300-12X12F XSM4324S

12 x 10GbE

12 x 10G SFP+

-

-

M4300-24X24F XSM4348S

24 x 10GbE

24 x 10G SFP+

-

-

M4300-16X XSM4316PB

16 x 10GbE/Multi-Gig

16(PoE+)

500W

with APS600W PSU

M4300-16X XSM4316PA

16 x 10GbE/Multi-Gig

16(PoE+)

199W

with APS299W PSU

M4300-24X XSM4324CS

24 x 10GbE

4 x 10G SFP+(shared)

-

-

M4300-48X XSM4348CS

48 x 10GbE

4 x 10G SFP+(shared)

-

-

M4300-24XF XSM4324FS

2 x 10GbE (shared)

24 x 10G SFP+

-

-

M4300-48XF XSM4348FS

2 x 10GbE (shared)

48 x 10G SFP+

-

-

M4300-96X XSM4396K

up to 96 ports

-

-

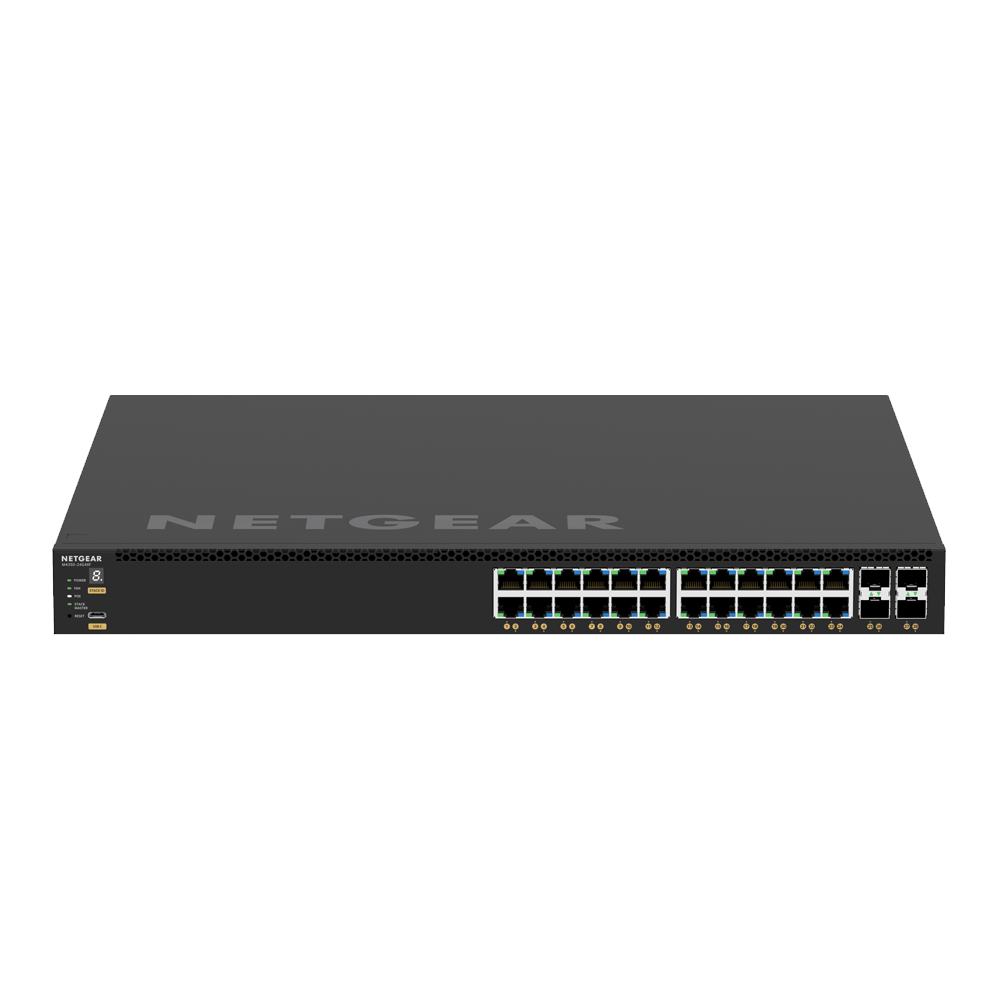

GSM4328

24 x GbE

4 x SFP+

24(PoE+)

內建電源供 648W（基本）

外加電源模組 x 1 可至 720W

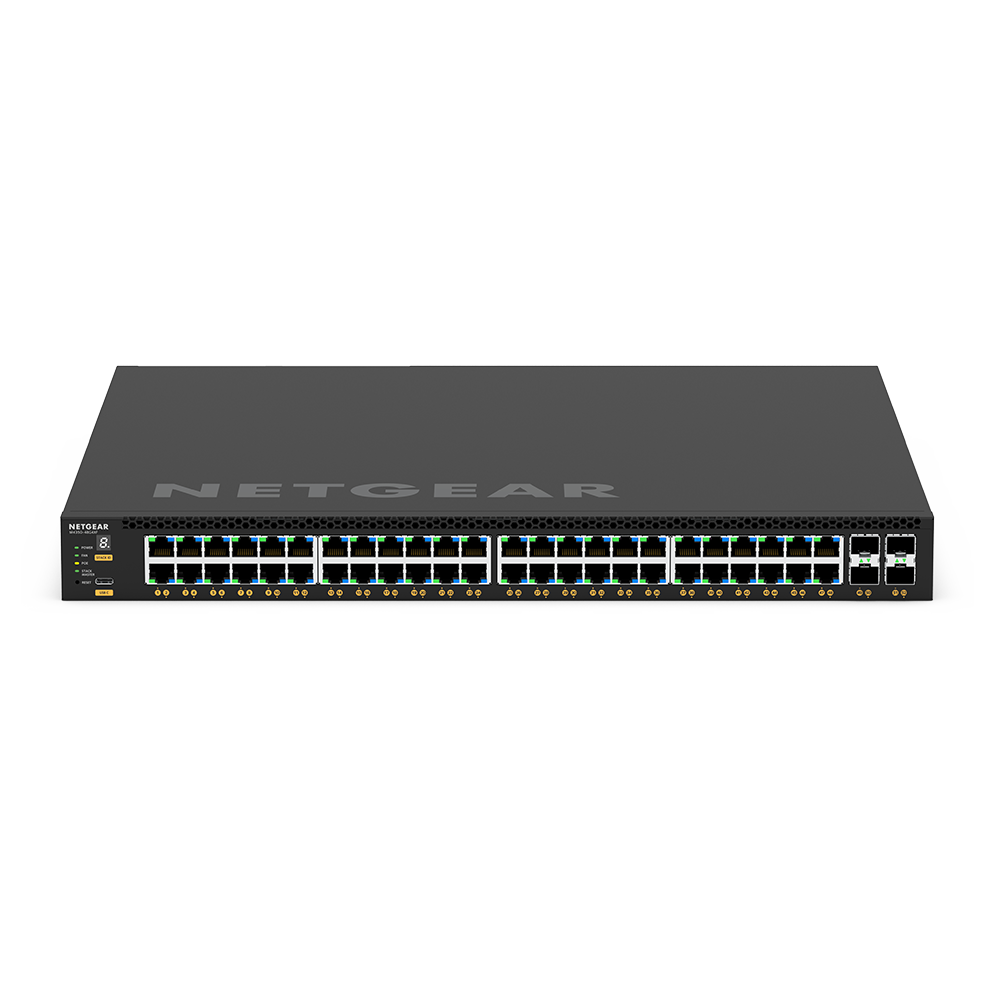

GSM4352

48 x GbE

4 x SFP+

48(PoE+)

內建電源供 236W（基本）

外加電源模組 x 2 可至 1,440W

XSM4316

8 x 10GbE/Multi-Gig

8 x 10G SFP+

-

-

XSM4324

12 x 10GbE/Multi-Gig

12 x 10G SFP+

-

-

MSM4352

44 x 100M/1G/2.5G PoE++
4 x 100M/1G/2.5G/5G/10G PoE++
4 x 1G/10G/25G SFP28

48(PoE+)

內建電源供 194W（基本）

外加電源模組 x 2 可至 3,314W

XSM4328CV

24 x 10GbE/Multi-Gig

4 x 25G SFP28

24(PoE+)

576W (base)

up to 720W

XSM4328FV

24 x 10G SFP+

4 x 25G SFP28

-

-

XSM4340CV

36 x 10GbE/Multi-Gig

4 x 25G SFP28

36(PoE++)

280W (base)

up to 1760W

XSM4340V

24 x 10GbE/Multi-Gig

8 x 10G SFP+

8 x 25G SFP28

24(PoE++)

290W (base)

up to 1770W

XSM4340FV

32 x 10G SFP+

8 x 25G SFP28

-

-

M4350-16V4C

VSM4320C

16 x 10G/25G SFP28

4 x 40G/100G QSFP28

–

–

XSM4344C

40 x 10GbE/Multi-Gig

4 x 100G QSFP28

40(PoE++)

196W (base)

up to 1676W

XSM4556

48 x 25G SFP28
8 x 100G QSFP28

-

-

CSM4532

32 x 100G QSFP28

-

-
