NETGEAR 2.5G NBase-T全網管交換器
M4200-10MG-PoE+
8個RJ45 2.5G NBase-T網路埠口,其中2埠可達5G頻寬
專為802.11ac Wave2 無線AP提供無網路瓶頸的連線頻寬
提供每埠802.3at PoE+ 30W供電,總供電瓦數達240瓦
壁掛式設計,可固定於各種梁柱、管道間等狹小空間
壁掛於牆面、
懸吊於梁柱
或者安裝於天花板、管道間
都能輕鬆安裝

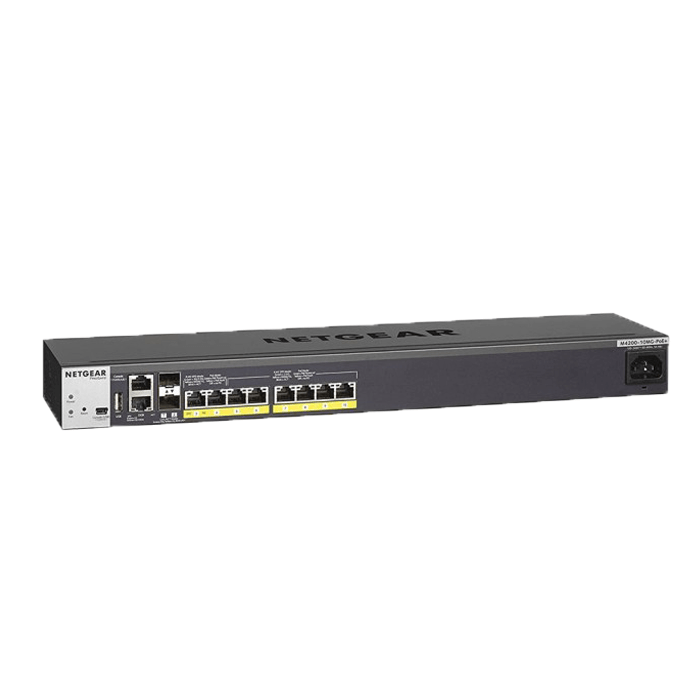

M4200-10MG-PoE+全網管交換器
擁有8個RJ45埠口,可提供2.5G的頻寬與每埠30瓦的足瓦PoE供電,其中
的2個RJ45埠口更可提供5G的頻寬,外加2個SFP+光纖埠連接上行鏈路;
此交換器專為下一代的802.11ac Wave 2商用無線AP所設計,提供無網
路瓶頸的連線頻寬,將Wave 2 AP的效能完全展現出來。
M4200-10MG-PoE+外觀苗條輕巧,可安裝於天花板、管道間或是吊掛
於柱子上等各種狹小的空間來使用,是中小企業、校園環境、商業中心與
大型賣場建置高速無線網路環境的最佳選擇!
產品規格
網路介面
•Auto-sensing RJ45 100/1000/2.5G BASE-T: 6
•Auto-sensing RJ45 100/1000/2.5G/5G BASE-T: 2
•Auto-sensing SFP+ ports 1000/10GBASE-X: 2
•Console ports: Serial RS232 RJ45 (front): Mini-USB (front)
•Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)
•Storage port: 1 x USB (front)
PoE規格
•PoE+ ports: 8
•PoE Budget @ 110V-220V AC in: 240 Watts (8 x 30W full power)
•IEEE 802.3af, IEEE 802.3at
•IEEE 802.3at Layer 2 (LLDP) method
•IEEE 802.3at 2-event classification
•PoE timer / schedule (week, days, hours)
硬體規格
•Processor (CPU): Integrated 800Mhz CPU in switching silicon
•System memory (RAM): 1 GB
•Code storage (flash): 256 MB
•Packet Buffer Memory: 16 Mb
效能表現
•Switching fabric: 90 Gbps Line-rate (non blocking fabric)
•Throughput: 66.9Mpps
•Latency – 10G Fiber: 64-byte frames/0.849μs
•Latency – 5G Copper: 64-byte frames/5.697μs
•Latency – 2.5G Copper: 64-byte frames/7.174μs
•Latency – 1G Fiber: 64-byte frames/2.775μs
•Latency – 1G Copper: 64-byte frames/2.784μs
•Forwarding mode: Store-and-forward
•Address database size: 16K MAC addresses
•Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
•Number of multicast groups filtered (IGMP): 2K total (1,024 IPv4 and 1,024
IPv6)
•Number of Link Aggregation Groups (LAGs): 5 LAGs with up to 8 ports per
group. 802.3ad/802.1AX-2008
•Number of hardware queues for QoS: 8 queues
•Number of static routes: IPv4/32; IPv6/32
•RIP application route scaling: IPv4/32
•OSPF application route scaling: IPv4/512; IPv6/256
•Number of IP interfaces (port or VLAN): 64
•Jumbo frame suppor: up to 9KB packet size
L2 支援協定
•IEEE 802.1Q VLAN Tagging
•Protocol Based VLANs: IP subnet, ARP, IPX
•Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN,
Private VLAN
•IEEE 802.1x
•Double VLAN Tagging (QoQ)
•GARP with GVRP/GMRP
•Multiple Registration Protocol (MRP)
•Multicast VLAN Registration Protocol (MVRP)
•MVR (Multicast VLAN registration)
•IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG
•Storm Control
•IEEE 802.3x (Full Duplex and flow control)
•IEEE 802.1D Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree
•IEEE 802.1s Multiple Spanning Tree
•IGMP Snooping Support: v2, v3
•Multicast VLAN registration (MVR)
L3 支援協定
•DHCP IPv4 / DHCP IPv6 Client
•DHCP IPv4 Server
•DHCP Snooping IPv4
•DHCP Relay IPv4
•Static Routing / ECMP Static Routing: Multiple next hops to a given
destination; Load sharing, Redundancy; Default routes; Static Reject routes
•Port Based Routing
•VLAN Routing
•ICMP throttling
•Router Discovery Protocol
•DNS Client
•Proxy ARP
•ICMP
•802.1ab LLDP
•802.1ab LLDP – MED
•SNMP: V1, V2, V3
•RMON 1,2,3,9
•sFlow
安全協定
•Broadcast, Unicast, Multicast DoS Protection
•DoS Attacks Protection
•ICMP throttling
•Management ACL (MACAL)
•Radius accounting
•TACACS+
•Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
•IEEE 802.1x Radius Port Access Authentication
•802.1x MAC Address Authentication Bypass (MAB)
QUALITY OF SERVICE (QOS)
•Access Lists
•DiffServ QoS
•IEEE 802.1p COS
•Single Rate Policing
•Auto-VoIP
•iSCSI Flow Acceleration
體積與重量
•Width: 17.32 inches (44 cm); Height: 1U – 1.73 inches (4.4 cm); Depth: 3.94 inches (10 cm)
•Weight: 4.52 lb (2.05 kg)
使用與保存環境
•Operating Temperature: 32° to 122°F (0° to 50°C)
•Operating Humidity: 90% maximum relative humidity, non-condensing
•Operating Altitude: 10,000 ft (3,000 m) maximum
•Storage Temperature: – 4° to 158°F (–20° to 70°C)
•Storage Humidity: 95% maximum relative humidity, non-condensing
•Storage Altitude: 10,000 ft (3,000 m) maximum
包裝內容物
•Power cord(s)
•RJ45 straight-through wiring serial console cable to DB9
•Mini-USB console cable
•Rubber caps for the SFP+ sockets
•Rack-mounting kit
•Rubber footpads for tabletop installation
•Installation guide
保固年限
• 全機五年保固,故障更換新品免維修
GSM4210P 規格
網路介面
•Auto-sensing RJ45 100/1000/2.5G BASE-T: 6
•Auto-sensing RJ45 100/1000/2.5G/5G BASE-T: 2
•Auto-sensing SFP+ ports 1000/10GBASE-X: 2
•Console ports: Serial RS232 RJ45 (front): Mini-USB (front)
•Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)
•Storage port: 1 x USB (front)
PoE規格
•PoE+ ports: 8
•PoE Budget @ 110V-220V AC in: 240 Watts (8 x 30W full power)
•IEEE 802.3af, IEEE 802.3at
•IEEE 802.3at Layer 2 (LLDP) method
•IEEE 802.3at 2-event classification
•PoE timer / schedule (week, days, hours)
硬體規格
•Processor (CPU): Integrated 800Mhz CPU in switching silicon
•System memory (RAM): 1 GB
•Code storage (flash): 256 MB
•Packet Buffer Memory: 16 Mb
效能表現
•Switching fabric: 90 Gbps Line-rate (non blocking fabric)
•Throughput: 66.9Mpps
•Latency – 10G Fiber: 64-byte frames/0.849μs
•Latency – 5G Copper: 64-byte frames/5.697μs
•Latency – 2.5G Copper: 64-byte frames/7.174μs
•Latency – 1G Fiber: 64-byte frames/2.775μs
•Latency – 1G Copper: 64-byte frames/2.784μs
•Forwarding mode: Store-and-forward
•Address database size: 16K MAC addresses
•Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
•Number of multicast groups filtered (IGMP): 2K total (1,024 IPv4 and 1,024
IPv6)
•Number of Link Aggregation Groups (LAGs): 5 LAGs with up to 8 ports per
group. 802.3ad/802.1AX-2008
•Number of hardware queues for QoS: 8 queues
•Number of static routes: IPv4/32; IPv6/32
•RIP application route scaling: IPv4/32
•OSPF application route scaling: IPv4/512; IPv6/256
•Number of IP interfaces (port or VLAN): 64
•Jumbo frame suppor: up to 9KB packet size
L2 支援協定
•IEEE 802.1Q VLAN Tagging
•Protocol Based VLANs: IP subnet, ARP, IPX
•Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN,
Private VLAN
•IEEE 802.1x
•Double VLAN Tagging (QoQ)
•GARP with GVRP/GMRP
•Multiple Registration Protocol (MRP)
•Multicast VLAN Registration Protocol (MVRP)
•MVR (Multicast VLAN registration)
•IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG
•Storm Control
•IEEE 802.3x (Full Duplex and flow control)
•IEEE 802.1D Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree
•IEEE 802.1s Multiple Spanning Tree
•IGMP Snooping Support: v2, v3
•Multicast VLAN registration (MVR)
L3 支援協定
•DHCP IPv4 / DHCP IPv6 Client
•DHCP IPv4 Server
•DHCP Snooping IPv4
•DHCP Relay IPv4
•Static Routing / ECMP Static Routing: Multiple next hops to a given
destination; Load sharing, Redundancy; Default routes; Static Reject routes
•Port Based Routing
•VLAN Routing
•ICMP throttling
•Router Discovery Protocol
•DNS Client
•Proxy ARP
•ICMP
•802.1ab LLDP
•802.1ab LLDP – MED
•SNMP: V1, V2, V3
•RMON 1,2,3,9
•sFlow
安全協定
•Broadcast, Unicast, Multicast DoS Protection
•DoS Attacks Protection
•ICMP throttling
•Management ACL (MACAL)
•Radius accounting
•TACACS+
•Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
•IEEE 802.1x Radius Port Access Authentication
•802.1x MAC Address Authentication Bypass (MAB)
QUALITY OF SERVICE (QOS)
•Access Lists
•DiffServ QoS
•IEEE 802.1p COS
•Single Rate Policing
•Auto-VoIP
•iSCSI Flow Acceleration
體積與重量
•Width: 17.32 inches (44 cm); Height: 1U – 1.73 inches (4.4 cm); Depth: 3.94 inches (10 cm)
•Weight: 4.52 lb (2.05 kg)
使用與保存環境
•Operating Temperature: 32° to 122°F (0° to 50°C)
•Operating Humidity: 90% maximum relative humidity, non-condensing
•Operating Altitude: 10,000 ft (3,000 m) maximum
•Storage Temperature: – 4° to 158°F (–20° to 70°C)
•Storage Humidity: 95% maximum relative humidity, non-condensing
•Storage Altitude: 10,000 ft (3,000 m) maximum
包裝內容物
•Power cord(s)
•RJ45 straight-through wiring serial console cable to DB9
•Mini-USB console cable
•Rubber caps for the SFP+ sockets
•Rack-mounting kit
•Rubber footpads for tabletop installation
•Installation guide
保固年限
• 全機五年保固,故障更換新品免維修
ProSAFE SWITCHES WITH 5速交換器 | ||||||
Model | 連接埠口 PORTS | PoE Budget | ||||
100M / 1G Multi-Gig埠口 | 100M / 1G /2.5G | 100M / 1G /2.5G /5G Multi-Gig埠口 | 100M / 1G /2.5G /5G /10G | 光纖 | ||
無網管 5速交換器 | ||||||
XS505M | - | - | - | 4 | 1x 10G SFP+光纖 | - |
XS508M | - | - | - | 7 | 1x 10G SFP+光纖 | - |
GS110MX | 8 | - | - | 2 | - | - |
簡易網管型 5速交換器 | ||||||
GS110EMX | 8 | - | - | 2 | - | - |
XS512EM | - | - | - | 12 | 2x 10G SFP+光纖(Shared) | - |
XS724EM | - | - | 24 | 2x 10G SFP+光纖(Shared) | - | |
智能網管型5速交換器 | ||||||
XS508TM | - | - | - | 8 | 2x 10G SFP+光纖 | - |
XS516TM | - | - | - | 16 | 2x 10G SFP+光纖 | - |
MS510TX | 4 | 2 | 2 | 1 | 1 x 1G/10G SFP+光纖 | - |
MS510TXPP | 4(PoE+) | 2(PoE+) | 2(PoE+) | 1 | 1 x 1G/10G SFP+光纖 | 180W |
MS510TXM | - | 4 | - | 4 | 2 x 1G/10G SFP+光纖 | - |
MS510TXUP | - | 4(PoE++) | - | 4(PoE++) | 2 x 1G/10G SFP+光纖 | 295W |
M4200 系列全網管五速交換器 | ||||||
M4200-10MG-PoE+ (GSM4210P) | - | 6(PoE+) | 2(PoE+) | - | 2 x 10G SFP+ | 240W |
M4250 系列全網管五速交換器 | ||||||
M4250-12M2XF (MSM4214X) | - | 12 | - | - | - | |
M4300 系列全網管五速交換器 | ||||||
M4300-16X (XSM4316PA) | - | - | - | 16(PoE+) | - | 199W with APS299W PSU |
M4300-16X (XSM4316PB) | - | - | - | 16(PoE+) | - | 500W with APS600W PSU |
M4300-96X PoE Module- APM408C | - | - | - | 8 | - | - |
M4300-96X PoE Module- APM408P | - | - | - | 8(PoE+) | - | up to 30W Per Port |
