★ 5速交換器
★ 自動為您的設備提供100Mb,1G, 2.5G, 5G, 10G 的網路
★ 線路無需升級到Cat6，可降低換線成本
★ 提供8個PoE連接埠,總瓦數達180瓦
★ 提供4個 10M/100M/1G 連接埠口
★ 提供2個 100M/1G/2.5G 連接埠口
★ 提供2個 100M/1G/2.5G/5G 連接埠口
★ 提供1個 100M/1G/2.5G/5G/10GBASE-T 連接埠口
★ 提供1個 1G/10GBASE-X SFP+ 連接埠口,可以長距離連接
★ 可以桌面、機架安裝

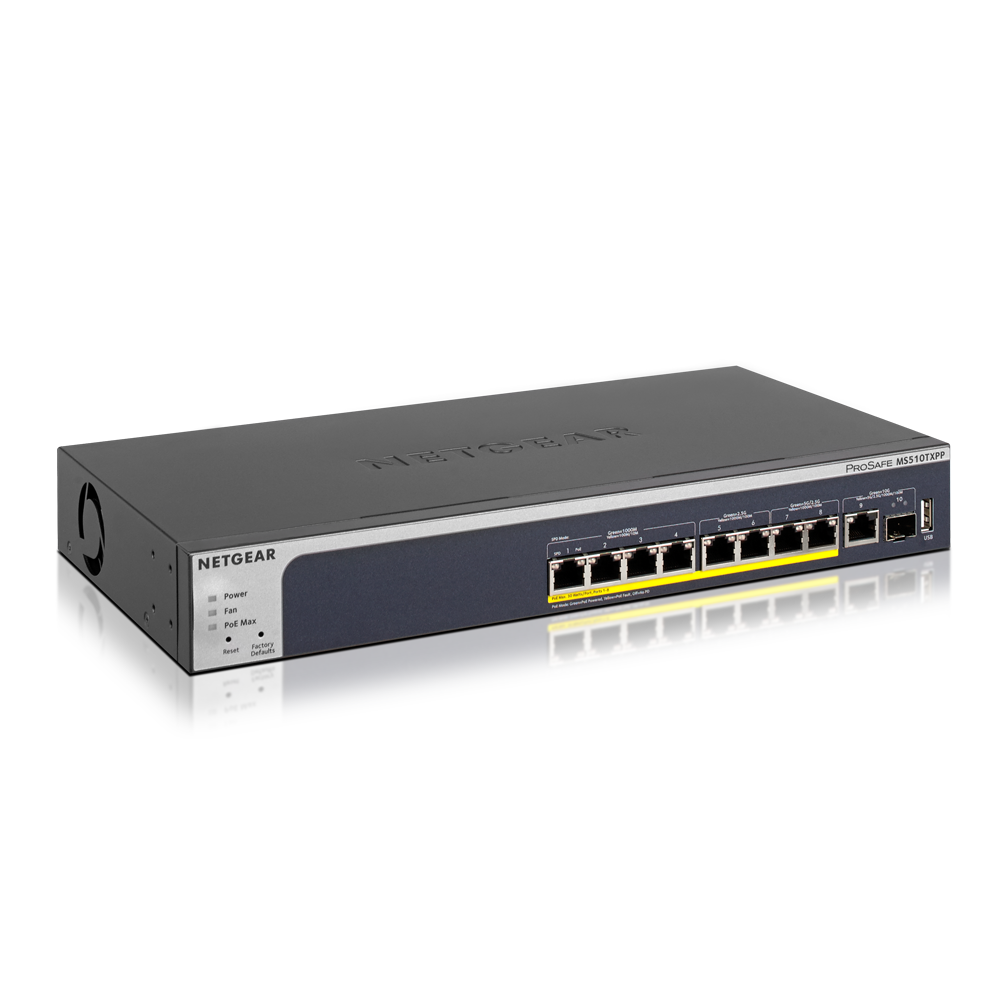

智能網管 Multi-Gig PoE５速交換器
可為PoE設備提供不同網路頻寬
(100Mb / 1G / 2.5G / 5G)
中小企業的最佳選擇
1.自動為您的設備提供100Mb,1G 2.5G,5G,10G 的網路
2.線路無需升級到Cat6，可降低換線成本
3.提供8個PoE連接埠,總瓦數達180瓦
4.提供1個SFP+連接埠口,可以長距離連接
5.可以桌面、機架安裝
相同的佈線5倍的速度
MS510TXPP 具有100M / 1G / 2.5G / 5G / 10G RJ-45埠口,
以及1個 10G SFP+ 連接埠口。智能埠口,
依該埠口最高速度可以向下相容。
埠口可以自動檢測連接的設備需要的速度並提供足夠的網速。
NETGEAR 5速交換器埠口可以用普通的 Cat 5e 乙太網路線連接，
不需升級到Cat6，可以降低接線成本。
可以提供設備所需的各種網速
可以靈活應用在不同需求
▶ 想要快速升級網路
▶ 施工不便,無法更換線路
▶ 降低線路汰換成本
技術規格
| Features | MS510TXPP |
| 10M/100M/1G RJ-45 copper ports | 4 |
| 100M/1G/2.5G RJ-45 copper ports | 2 |
| 100M/1G/2.5G/5G RJ-45 copper ports | 2 |
| 100M/1G/2.5G/5G/10G RJ-45 copper ports | 1 (dedicated) |
| 1G/10G SFP+ (fiber) ports | 1 (dedicated) |
| USB port (for config file upload/backup & firmware updates) | Yes |
| PERFORMANCE SPECIFICATION | |
| Packet buffer memory (Dynamically shared across only used ports) | 1.5 MB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 78Gbps |
| 1G Copper Latency (64 byte packet size) | <2.60 µs |
| 2.5G Copper Latency (64 byte packet size) | <19.42 µs |
| 5G Copper Latency (64 byte packet size) | <13.4 µs |
| 10G Copper Latency (64 byte packet size) | <2.36 µs |
| 10G Fiber Latency (64 byte packet size) | <2.61 µs |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) and Strict Priority |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Multicast groups | 512 |
| Number of IPv4 static routes | 32 |
| Number of IPv6 static routes | 32 |
| Number of VLANs | 256 |
| Number of ARP cache entries | 512 |
| Number of DHCP snooping bindings | 1K |
| Access Control Lists (ACLs) | 164 shared for MAC, IP and IPv6 ACLs |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 58 |
| Jumbo frame support | Up to 10K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 28.8 dBA |
| Mean Time Between Failures (MTBF) @ 25°C | 376,434 hours |
| L2 SERVICES - VLANS | |
| IEEE 802.1Q VLAN tagging | Yes |
| IP-based VLANs | Yes |
| MAC-based VLANs | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag |
| Auto-VoIP | Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue |
| Voice VLAN | Yes |
| Auto-Video VLAN | Yes |
| Private VLAN | Yes |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes |
| IEEE 802.1D Spanning Tree Protocol | Yes |
| IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
| IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2 and v3) | Yes |
| MLD snooping support (v1 and v2) | Yes |
| IGMP snooping queries | Yes |
| Block unknown multicast | Yes |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| DHCP snooping | Yes |
| L3 SERVICES - ROUTING | |
| IPv4 static routing | 32 |
| IPv6 static routing | 32 |
| VLAN routing | Yes |
| Host ARP table (number of entries) | 512 |
| Number of IP VLAN interfaces (routed VLANs) | 32 |
| LINK AGGREGATION | |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| Manual Static LAG | Yes |
| # of Static or LACP LAGs # of members in each LAG | 8 LAGs with max 8 members in each LAG |
| NETWORK MONITORING AND DISCOVERY SERVICES | |
| 802.1ab LLDP | Yes |
| SNMP | v1, v2c, v3 |
| RMON group 1,2,3,9 | Yes |
| NETWORK SECURITY | |
| IEEE 802.1x | Yes |
| Guest VLAN | Yes |
| RADIUS-based VLAN assignment via .1x | Yes |
| MAC-based .1x | Yes |
| RADIUS accounting | Yes |
| Access Control Lists (ACLs) | L2 / L3 / L4 ingress |
| IP-based ACLs (IPv4 and IPv6) | Yes |
| MAC-based ACLs | Yes |
| TCP/UPD-based ACLs | Yes |
| MAC lockdown | Yes |
| MAC lockdown by the number of MACs | Yes |
| Control MAC # Dynamic learned entries | 600 |
| Control MAC # static entries | 600 |
| IEEE 802.1x RADIUS port access authentication | Yes |
| Port-based security by locked MAC addresses | Yes |
| Dynamic ARP inspection | Yes |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| QUALITY OF SERVICE (QOS) | |
| Port-based rate limiting | Ingress and egress |
| Port-based QoS | Yes |
| Support for IPv6 fields | Yes |
| DiffServ QoS | Yes |
| IEEE 802.1p COS | Yes |
| Destination MAC and IP | Yes |
| IPv4 and v6 DSCP | Yes |
| IPv4 and IPv6 ToS | Yes |
| TCP/UDP-based | Yes |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user- based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag |
| Auto-VoIP | Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue |
| Voice VLAN | Yes |
| Auto-Video VLAN | Yes |
| IEEE NETWORK PROTOCOLS | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-LX4) - All models • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.3ad Trunking (LACP) • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning Tree (RSTP) • IEEE 802.1x RADIUS Network Access Control • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| MANAGEMENT | |
| Password management | Yes |
| Configurable management VLAN | Yes |
| Admin access control via RADIUS and TACACS+ | Yes |
| IPv6 management | Yes |
| SNTP client over UDP port 123 | Yes |
| SNMP v1/v2c | Yes |
| SNMP v3 with multiple IP addresses | Yes |
| RMON group 1,2,3,9 | Yes |
| Port mirroring | Yes |
| Many-to-one port mirroring | 8 |
| Web browser-based graphical user interface (GUI) | Yes |
| Smart Control Center (SCC) for multi-switch management | Yes |
| Dual software (firmware) image | Yes |
| Dual configuration file | Yes |
| Cable test utility | Yes |
| SSL/HTTPS Web-based access (version) | Yes (v2) |
| TLS Web-based access (version) | Yes (v1.0 ~ v1.2) |
| File transfers (uploads, downloads) | TFTP / HTTP |
| HTTP upload/download (firmware) | Yes |
| Syslog (RFC 3164) | Yes |
| USB port for firmware and config upload / download | Yes |
| LEDS | |
| Per port | Speed, Link, Activity, PoE Mode |
| Per device | Power, Fan, Max PoE |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (W x D x H) | 328 x 169 x 43 mm (12.9 x 6.7 x 1.7 in) |
| Weight | 1.9 kg (4.19 lb) |
| POWER CONSUMPTION | |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 234.31 W |
| Min power (link-down standby) (Watts) | 19.39 W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 799.50 BTU/hr Min: 66.16 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
| Power back-off | Drops power consumption by 15% to 20% when short copper cables are detected |
| Auto power down | Drops power consumption when no connection |
| Fan | 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating | |
| Operating temperature | 0° to 50°C (32° to 122°F) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000ft (3,000m) maximum |
| Storage | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000ft (3,000m) maximum |
| ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
| Certifications | CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010 VCCI : VCCI-CISPR 32:2016, Class A RCM: AS/NZS CISPR 32:2013 Class A CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014 ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014 BSMI: CNS 13438 Class A |
| SAFETY | |
| Certifications | CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 UL listed (UL 1950)/cUL IEC 950/EN 60950 CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 RCM (AS/NZS) 60950.1:2015 CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) BSMI: CNS 14336-1 |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
