MS510TXUP

★ 5速交換器
★ 自動為您的設備提供100Mb,1G, 2.5G, 5G, 10G 的網路
★ 線路無需升級到Cat6,可降低換線成本
★ 提供4個 100M/1G/2.5G 連接埠口
★ 提供4個 100M/1G/2.5G/5G/10GBASE-T 連接埠口
★ 提供2個 1G/10GBASE-X SFP+ 連接埠口,可以長距離連接
★ 可以機架安裝
★ 可以雲端控管

8埠Multi-Gig
2埠SFP+10G光纖
智能網管5速交換器

具有8個UPoE連接埠 2個SFP+連接埠
總供電瓦數 295W 輸出

4 個 1G/2.5G UPoE(PoE++) 連接埠

4 個 1G/2.5G/5G/10G UPoE(PoE++) 連接埠

2 個 10G 光纖連接埠

5速交換器

提供設備所需的各種網速

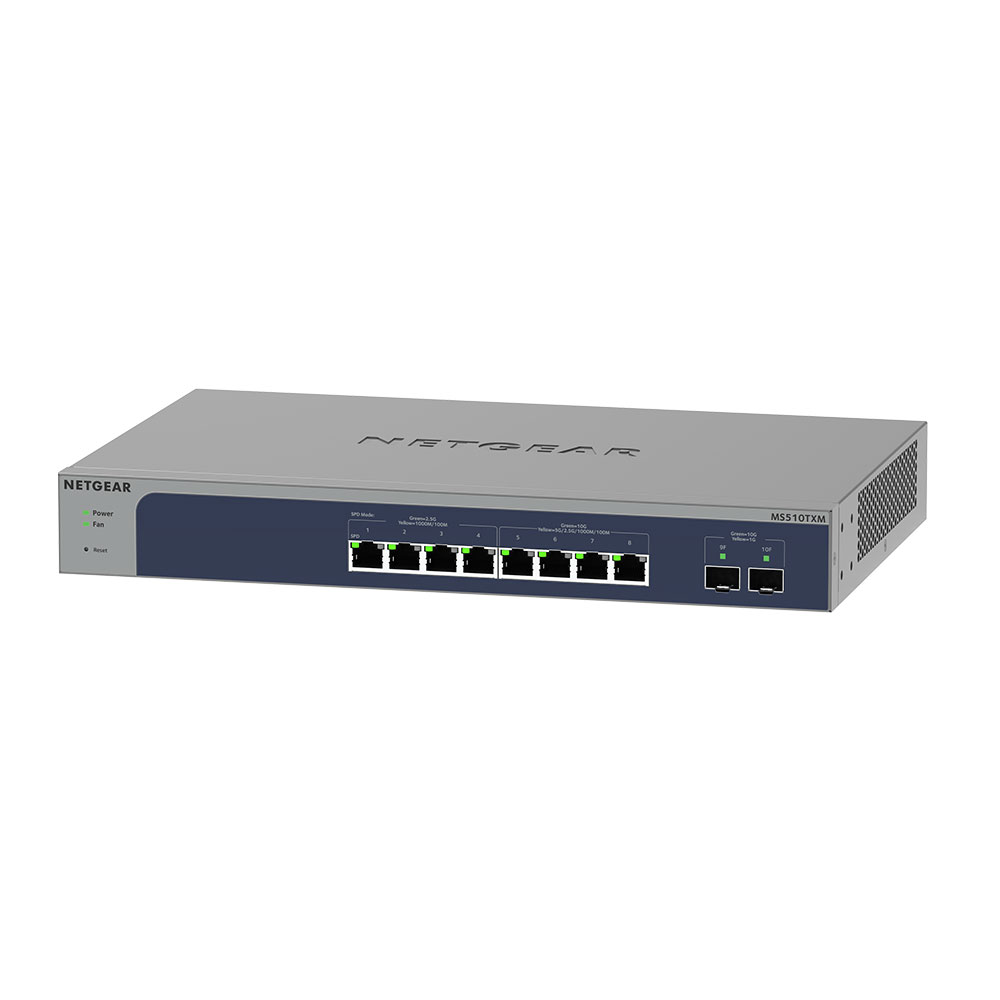

MS510TXM 具有 100M / 1G /

2.5G / 5G / 10G RJ-45埠口,以及2

個 10G SFP+ 連接埠口。

Multi-Gig連接埠口,會依該埠口最

高速度可以向下相容。

埠口可以自動檢測連接的設備需要

的速度並提供足夠的網速。

支援Insight 雲管理

產品贈送1年的Insight訂閱服務

讓您可以遠程隨時管理你的網路

IT人員休假也沒關係

技術規格

型號

MS510TXM

MS510TXUP

1G / 2.5G 連接埠數量

4

1G / 2.5G / 5G / 10G 連接埠數量

4

PoE+ + power (802.3bt)

-

8(60W/port)

10G 光纖埠數量

2

電源供應

內部電源

正面燈號

電源、風扇、LED模式

端口燈號

速度鏈接

雲管理

可用手機裝置、電腦 WEB做控管

雲端設定

可設定VLAN、ACL、QoS、LAG

雲端設備加入

自動套用雲網管設定

雲端端點設備管理

加入雲端管理可以同時檢視不同地方的設備及控管

在雲端同時設定多台交換器

可同時針對多台交換器做ACL、VLAN、QoS等設定

CPU

1GHz dual core 256MB RAM 64MB SPI FLASH

緩衝記憶體

2 MB

Forwarding modes

Store-and-forward

頻寬

140 Gbps

Priority queues

8

Priority queuing

Weighted Round Robin (WRR) and Strict Priority

MAC位址表大小

32K

Multicast groups

256

Number of VLANs

256

Number of DHCP snooping bindings

256

Access Control Lists (ACLs)

100 shared for MAC, IP and IPv6 ACLs (ingress)

Packet forwarding rate

14.8

2.5G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 5.903 µsec 1518-bye: 6.040 µsec 9216-byte: 6.079 µsec

64-byte: 5.903 µsec 1518-bye: 6.040 µsec 9216-byte: 6.079 µsec

10G Copper Uplink latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 2.420 µsec 1518-bye: 2.501 µsec 9216-byte: 2.499 µsec

64-byte: 2.420 µsec 1518-bye: 2.501 µsec 9216-byte: 2.499 µsec

10G SFP+ Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 1.257 µsec 1518-bye: 1.337 µsec 9216-byte: 1.348 µsec

64-byte: 1.257 µsec 1518-bye: 1.337 µsec 9216-byte: 1.348 µsec

巨型封包

10K

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

25 dBA

33 dBA

Mean Time Between Failures (MTBF) @ 25° C

1,059,519 hrs (121 yrs)

848,553 hrs (97 yrs)

POE供電類型

-

8 PoE++

最大供電

-

295W

Advanced per-port PoE controls (enable/disable/power limit)

-

Yes

Advanced per-port PoE scheduling/timers

-

Yes

Broadcast, multicast, unknown unicast storm control

Yes

IEEE 802.3ad - LAGs (LACP)

Yes

IEEE 802.3x (full duplex and flow control)

Yes

IEEE 802.1D Spanning Tree Protocol

Yes

IEEE 802.1w Rapid Spanning Tree Protocol

Yes

IEEE 802.1s Multiple Spanning Tree Protocol

Yes

IGMP snooping (v1, v2 and v3)

Yes

MLD snooping support (v1 and v2)

Yes

IGMP snooping querier

Yes

Block unknown multicast

Yes

Multicast groups

256

DHCP client

Yes

DHCP snooping

Yes

Number of DHCP snooping bindings

256

IEEE 802.3ad - LAGs (LACP)

Yes

Manual Static LAG

Yes

# of Static or LACP LAGs # of members in each LAG

8 LAGs with max 8 members in each LAG

802.1ab LLDP

Yes

LLDP-MED

Yes

SNMP

Yes, v1/v2c/v3

RMON group 1, 2 ,3 ,9

Yes

IEEE 802.1x

Yes

Guest VLAN

Yes

 RADIUS-based VLAN assignment via .1x

Yes

MAC-based .1x

Yes

RADIUS accounting

Yes

Access Control Lists (ACLs)

L2 / L3 / L4

IP-based ACLs (IPv4 and IPv6)

Yes

MAC-based ACLs

Yes

TCP/UPD-based ACLs

Yes

MAC lockdown

Yes

MAC lockdown by the number of MACs

Yes

Control MAC # Dynamic learned entries (per port)

4096

Control MAC # static entries

48

IEEE 802.1x RADIUS port access authentication/type

Yes

Port-based security by locked MAC addresses

Yes

Broadcast, multicast, unknown unicast storm control

Yes

DoS attacks prevention

Yes

Protected ports

Yes

Port-based rate limiting

Yes, ingress and egress

Port-based QoS

Yes

Support for IPv6 fields

Yes

DiffServ QoS

Yes, ingress

IEEE 802.1p COS

Yes

Destination MAC and IP

Yes

IPv4 and v6 DSCP

IPv4 and IPv6

TCP/UDP-based

Yes

Weighted Round Robin (WRR)

Yes

Strict priority queue technology

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters

Advanced per-port PoE controls (enable/disable/power limit)

Yes

Advanced per-port PoE scheduling

Yes

Loop detection & prevention

Yes

DNS Client

Yes

Option to enable/disable BPDU flooding when STP is disabled

Yes

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Yes

Cloud/Remote management

Yes

Insight mobile app & Insight Cloud Portal management

Yes

uPnP Discovery

Yes, activated by default

Networking monitoring

Yes

Data/performance logs

Yes

Centralized network configuration/policies (network-centric management)

Yes

Device auto-join and configure (zero-touch provisioning)

Yes

Multi-site, multi-network single pane-of-glass view

Yes

Multi-switch, multi-port concurrent configuration

Yes

Network/global password (for all Insight Managed devices on a network)

Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)

Password management

Yes

IP Access List

Yes

Configurable management VLAN

Yes

Admin access control via RADIUS and TACACS+

Yes

IPv6 management

Yes

SNTP client over UDP port 123

Yes

Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal)

Yes

SNMP v1/v2c

Yes

SNMP v3 with multiple IP addresses

Yes

RMON group 1, 2, 3, 9

Yes

Smart Control Center (SCC) for multi-switch management

Yes

Port mirroring

Yes

Many-to-one port mirroring

Yes

Cable test utility

Yes

Ping and tracerout client

Yes

Local-only web browser-based management GUI

Yes

HTTP/TLS Web-based access (version)

Yes (v1.2)

HTTP firmware upload/download

Yes

Dual software (firmware) image

Yes

Memory and flash log

Yes

Syslog (Server

Yes

Max power (worst case, all ports used, line-rate traffic) (Watts)

47.0 W

-

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)

-

380.00 W

Min power (link-down standby) (Watts)

23.90 W

31.50 W

Heat Dissipation (min w/o PoE and max with full PoE) (BTU/hr)

Max: 160.458 BTU/hr Min: 81.5946 BTU/hr

Max: 1294.5888 BTU/hr Min: 107.541 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Auto power down

Fan(s) (temperature- and load-based speed control)

2

3

外觀尺寸 (W x D x H)

330 x 206 x 43 mm ( 13.0 x 8.12 x 1.7 in)

330 x 206 x 43 mm ( 13.0 x 8.12 x 1.7 in)

重量

2.08 kg (4.25 lb)

2.51 kg (5.53 lb)

架設方式

可放桌上 或 機架安裝

可放桌上 或 機架安裝

操作

運作環境溫度

0° to 50°C (32° to 122°F)

運作環境濕度

95%最大相對溼度,無冷凝

運作環境高度

10,000 ft (3,000 m) maximum

Storage

Storage Temperature

–20° to 70°C (– 4° to 158°F)

運作環境濕度

95%最大相對溼度,無冷凝

運作環境高度

10,000 ft (3,000 m) maximum

保固

5年

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
