★提供16個100M/1G/2.5G/5G/10G PoE+連接埠
★低延遲:10G Copper: 64-byte frames/2.470μs
★PoE供電瓦數高達500W
★Full L3 全網管功能
★搭載Chassis交換器等級的Spine-Leaf技術,結合Trunking/Redundant/Stacking等應用
★半機架寬度設計,可隨需求而搭配其他半寬M4300系列交換器(XSM4316S、XSM4324S、XSM4324CS)使用
★台灣公司貨,五年保固

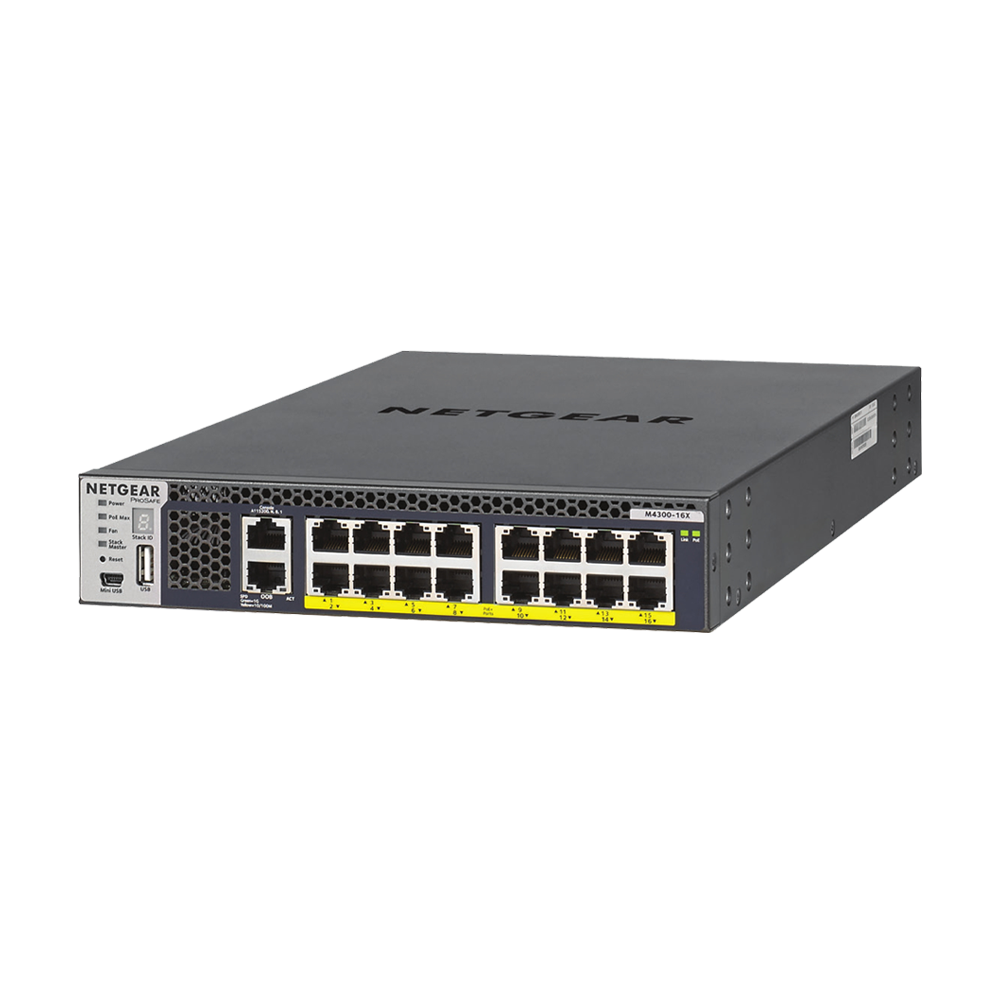

M4300-16X
堆疊式10G全網管5速PoE交換器

型號: M4300-16X

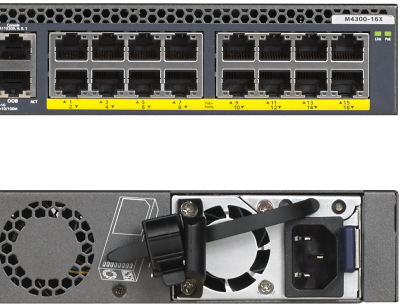

  • 提供16個100M/1G/2.5G/5G/10G PoE+連接埠。
  • PoE供電瓦數高達500W
  • Full L3 全網管功能。
  • 搭載Chassis交換器等級的Spine-Leaf技術,
    結合Trunking/Redundant/Stacking等應用。
  • 半機架寬度設計,可隨需求而搭配其他半寬M4300系列交換器
    (XSM4316S、XSM4324S、XSM4324CS)使用。

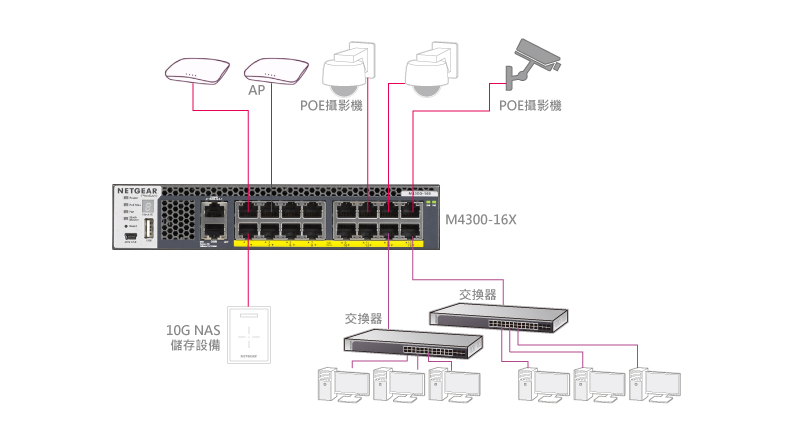

6個Multi-Giga連接埠口
提供5種速度(100M/1G/2.5G/5G/10G)
可連接Wave2 WiFi 無線設備使用

PoE供電瓦數高達500W

  M4300-16X 讓中小企業可輕鬆建置高備援的小型骨幹網路或小型IP SAN網路,半機架寬度設計,可隨需求而搭配其他半寬M4300系列交換器,機櫃空間不會浪費,並帶來速度升級的優勢。

   M4300系列搭載原本應用在Chassis交換器中的Spine-Leaf技術,混合Trunking、Redundant、Stacking等應用,可輕易的建置高備援的網路環境。不用再擔心線路斷線的問題。

產品規格

網路介面
•Auto-sensing RJ45 100/1G/2.5G/5G/10GBASE-T: 16
•Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)
•Storage port: 1 x USB (front)

硬體規格
•Processor (CPU): Integrated 800Mhz CPU in switching silicon
•System memory (RAM): 1 GB
•Code storage (flash): 256 MB
•Packet Buffer Memory: 16 Mb

VIRTUAL CHASSIS STACKING
•Max physical switches per stack: 8
•Max physical ports per stack: 384 x 1G ports or 384 x 10G ports  or a combination
•Mixed stacking between 1G models and 10G models
•Stacking ports (max number): 1G models: up to 4 ports per   switch 10G models: up to 16 ports per switch
•Distant stacking using fiber
•Non-stop forwarding (NSF)
•Automatic unit replacement (AUR)
•Distributed Link Aggregation (LAGs across the stack)

效能表現
•Switching fabric: 320 Gbps Line-rate (non blocking fabric)
•Throughput: 238 Mpps
•PoE bugget: 500 Watts@APS600W PSU
•Latency – 10G Copper: 64-byte frames/2.470μs
•Latency – 1G Copper: 64-byte frames/4.479μs
•Forwarding mode: Store-and-forward
•Address database size: 16K MAC addresses
•Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
•Number of multicast groups filtered (IGMP) : 4K total (2,048   IPv4 and 2,048 IPv6)
•Number of Link Aggregation Groups (LAGs): 128 LAGs with up  to 8 ports per Group; 802.3ad / 802.1AX-2008
•Number of hardware queues for QoS (Standalone): 8 queues
•Number of hardware queues for QoS (Stack): 7 queues
•Number of static routes: IPv4/64; IPv6/64
•RIP application route scaling: IPv4/512
•OSPF application route scaling: IPv4/512; IPv6/256
•Number of IP interfaces (port or VLAN): 128
•Jumbo frame suppor: up to 9KB packet size

Layer 2 支援協定
•IEEE 802.1Q VLAN Tagging
•Protocol Based VLANs: IP subnet, ARP, IPX
•Subnet based VLANs, MAC based VLANs, Voice VLAN, Private  Edge VLAN, Private VLAN
•IEEE 802.1x
•Double VLAN Tagging (QoQ)
•GARP with GVRP/GMRP
•Multiple Registration Protocol (MRP)
•Multicast VLAN Registration Protocol (MVRP)
•MVR (Multicast VLAN registration)
•IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per   LAG
•Distributed Link Aggregation
•Storm Control
•IEEE 802.3x (Full Duplex and flow control)
•IEEE 802.1D Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree
•IEEE 802.1s Multiple Spanning Tree
•IGMP Snooping Support: v2, v3
•Multicast VLAN registration (MVR)

Layer 3 支援協定
•IGMP Proxy
•MLD Proxy
•Any Source Multicast (ASM)
•Source Specific Multicast (SSM)
•DVMRP (Distance Vector Multicast Routing Protocol)
•DHCP IPv4 / DHCP IPv6 Client
•DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
•DHCP Snooping IPv4 / IPv6
•DHCP Relay IPv4 / IPv6
•Static Routing / ECMP Static Routing: Multiple next hops to a    given destination; Load sharing, Redundancy; Default routes;   Static Reject routes
•Port Based Routing
•VLAN Routing
•ICMP throttling
•Router Discovery Protocol
•DNS Client
•Proxy ARP
•ICMP
•Policy Based Routing (PBR)
•802.1ab LLDP
•802.1ab LLDP – MED
•SNMP: V1, V2, V3
•RMON 1,2,3,9
•sFlow

安全協定
•Broadcast, Unicast, Multicast DoS Protection
•DoS Attacks Protection
•ICMP throttling
•Management ACL (MACAL)
•Radius accounting
•TACACS+
•Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
•IEEE 802.1x Radius Port Access Authentication
•802.1x MAC Address Authentication Bypass (MAB)

QUALITY OF SERVICE (QOS)
•Access Lists
•DiffServ QoS
•IEEE 802.1p COS
•Single Rate Policing
•Auto-VoIP
•iSCSI Flow Acceleration

體積與重量
•Width: 8.35 inches (21.2 cm) (half-width); Height: 1U – 1.73 inches (4.4 cm);
Depth: 13.58 inches (34.5 cm)
•Weight: 7.11 lb (4.14 kg)

使用與保存環境
•Operating Temperature: 32° to 122°F (0° to 50°C)
•Operating Humidity: 90% maximum relative humidity, non-condensing
•Operating Altitude: 10,000 ft (3,000 m) maximum
•Storage Temperature: – 4° to 158°F (–20° to 70°C)
•Storage Humidity: 95% maximum relative humidity, non-condensing
•Storage Altitude: 10,000 ft (3,000 m) maximum

包裝內容物
•Power cord(s)
•RJ45 straight-through wiring serial console cable to DB9
•Mini-USB console cable
•Rubber caps for the SFP+ sockets
•Rubber footpads for tabletop installation
•Installation guide

保固年限
• 全機五年保固,故障更換新品免維修

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

產品規格

網路介面
•Auto-sensing RJ45 100/1G/2.5G/5G/10GBASE-T: 16
•Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)
•Storage port: 1 x USB (front)

硬體規格
•Processor (CPU): Integrated 800Mhz CPU in switching silicon
•System memory (RAM): 1 GB
•Code storage (flash): 256 MB
•Packet Buffer Memory: 16 Mb

VIRTUAL CHASSIS STACKING
•Max physical switches per stack: 8
•Max physical ports per stack: 384 x 1G ports or 384 x 10G ports  or a combination
•Mixed stacking between 1G models and 10G models
•Stacking ports (max number): 1G models: up to 4 ports per  switch 10G models: up to 16 ports per switch
•Distant stacking using fiber
•Non-stop forwarding (NSF)
•Automatic unit replacement (AUR)
•Distributed Link Aggregation (LAGs across the stack)

效能表現
•Switching fabric: 320 Gbps Line-rate (non blocking fabric)
•Throughput: 238 Mpps
•PoE bugget: 500 Watts@APS600W PSU
•Latency – 10G Copper: 64-byte frames/2.470μs
•Latency – 1G Copper: 64-byte frames/4.479μs
•Forwarding mode: Store-and-forward
•Address database size: 16K MAC addresses
•Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
•Number of multicast groups filtered (IGMP) : 4K total (2,048 IPv4 and 2,048 IPv6)
•Number of Link Aggregation Groups (LAGs): 128 LAGs with up to 8 ports per Group; 802.3ad / 802.1AX-2008
•Number of hardware queues for QoS (Standalone): 8 queues
•Number of hardware queues for QoS (Stack): 7 queues
•Number of static routes: IPv4/64; IPv6/64
•RIP application route scaling: IPv4/512
•OSPF application route scaling: IPv4/512; IPv6/256
•Number of IP interfaces (port or VLAN): 128
•Jumbo frame suppor: up to 9KB packet size

Layer 2 支援協定
•IEEE 802.1Q VLAN Tagging
•Protocol Based VLANs: IP subnet, ARP, IPX
•Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN, Private VLAN
•IEEE 802.1x
•Double VLAN Tagging (QoQ)
•GARP with GVRP/GMRP
•Multiple Registration Protocol (MRP)
•Multicast VLAN Registration Protocol (MVRP)
•MVR (Multicast VLAN registration)
•IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG
•Distributed Link Aggregation
•Storm Control
•IEEE 802.3x (Full Duplex and flow control)
•IEEE 802.1D Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree
•IEEE 802.1s Multiple Spanning Tree
•IGMP Snooping Support: v2, v3
•Multicast VLAN registration (MVR)

Layer 3 支援協定
•IGMP Proxy
•MLD Proxy
•Any Source Multicast (ASM)
•Source Specific Multicast (SSM)
•DVMRP (Distance Vector Multicast Routing Protocol)
•DHCP IPv4 / DHCP IPv6 Client
•DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
•DHCP Snooping IPv4 / IPv6
•DHCP Relay IPv4 / IPv6
•Static Routing / ECMP Static Routing: Multiple next hops to a given destination; Load sharing, Redundancy; Default routes; Static Reject routes
•Port Based Routing
•VLAN Routing
•ICMP throttling
•Router Discovery Protocol
•DNS Client
•Proxy ARP
•ICMP
•Policy Based Routing (PBR)
•802.1ab LLDP
•802.1ab LLDP – MED
•SNMP: V1, V2, V3
•RMON 1,2,3,9
•sFlow

安全協定
•Broadcast, Unicast, Multicast DoS Protection
•DoS Attacks Protection
•ICMP throttling
•Management ACL (MACAL)
•Radius accounting
•TACACS+
•Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
•IEEE 802.1x Radius Port Access Authentication
•802.1x MAC Address Authentication Bypass (MAB)

QUALITY OF SERVICE (QOS)
•Access Lists
•DiffServ QoS
•IEEE 802.1p COS
•Single Rate Policing
•Auto-VoIP
•iSCSI Flow Acceleration

體積與重量
•Width: 8.35 inches (21.2 cm) (half-width); Height: 1U – 1.73 inches (4.4 cm);
Depth: 13.58 inches (34.5 cm)
•Weight: 7.11 lb (4.14 kg)

使用與保存環境
•Operating Temperature: 32° to 122°F (0° to 50°C)
•Operating Humidity: 90% maximum relative humidity, non-condensing
•Operating Altitude: 10,000 ft (3,000 m) maximum
•Storage Temperature: – 4° to 158°F (–20° to 70°C)
•Storage Humidity: 95% maximum relative humidity, non-condensing
•Storage Altitude: 10,000 ft (3,000 m) maximum

包裝內容物
•Power cord(s)
•RJ45 straight-through wiring serial console cable to DB9
•Mini-USB console cable
•Rubber caps for the SFP+ sockets
•Rubber footpads for tabletop installation
•Installation guide

保固年限
• 全機五年保固,故障更換新品免維修



如規格有異動,恕不另行通知。NETGEAR保有所有權利。

ProSAFE SWITCHES WITH 5速交換器

Model

連接埠口 PORTS

PoE Budget

100M / 1G Multi-Gig埠口

100M / 1G /2.5G
Multi-Gig埠口

100M / 1G /2.5G /5G Multi-Gig埠口

100M / 1G /2.5G /5G /10G
Multi-Gig 埠口

光纖

無網管 5速交換器

XS505M

-

-

-

4

1x 10G SFP+光纖

-

XS508M

-

-

-

7

1x 10G SFP+光纖

-

GS110MX

8

-

-

2

-

-

簡易網管型 5速交換器

GS110EMX

8

-

-

2

-

-

XS512EM

-

-

-

12

2x 10G SFP+光纖(Shared)

-

XS724EM

-

-

24

2x 10G SFP+光纖(Shared)

-

智能網管型5速交換器

XS508TM

-

-

-

8

2x 10G SFP+光纖

-

XS516TM

-

-

-

16

2x 10G SFP+光纖

-

MS510TX

4

2

2

1

1 x 1G/10G SFP+光纖

-

MS510TXPP

4(PoE+)

2(PoE+)

2(PoE+)

1

1 x 1G/10G SFP+光纖

180W

MS510TXM

-

4

-

4

2 x 1G/10G SFP+光纖

-

MS510TXUP

-

4(PoE++)

-

4(PoE++)

2 x 1G/10G SFP+光纖

295W

M4200 系列全網管五速交換器

M4200-10MG-PoE+ (GSM4210P)

-

6(PoE+)

2(PoE+)

-

2 x 10G SFP+

240W

M4250 系列全網管五速交換器

M4250-12M2XF (MSM4214X)

-

12

-

-

-

M4300 系列全網管五速交換器

M4300-16X (XSM4316PA)

-

-

-

16(PoE+)

-

199W with APS299W PSU

M4300-16X (XSM4316PB)

-

-

-

16(PoE+)

-

500W with APS600W PSU

M4300-96X PoE Module- APM408C

-

-

-

8

-

-

M4300-96X PoE Module- APM408P

-

-

-

8(PoE+)

-

up to 30W Per Port
