★5速交換器
★ 24 個10-Gig/Multi-Gig Copper RJ-45連接埠
★ 2 個SFP+ 連接埠 (shared)
★ 線路無需升級到Cat6,可降低換線成本
★ 提供QoS, VLAN網管功能
★ 台灣公司貨,五年保固
符合各種
網路環境應用
的交換器
10G Multi-Giga 交換器
5速交換器
XS512EM / XS724EM
Multi-Giga交換器
中小企業的最佳選擇
隨插即用 / 桌面或機架式安裝

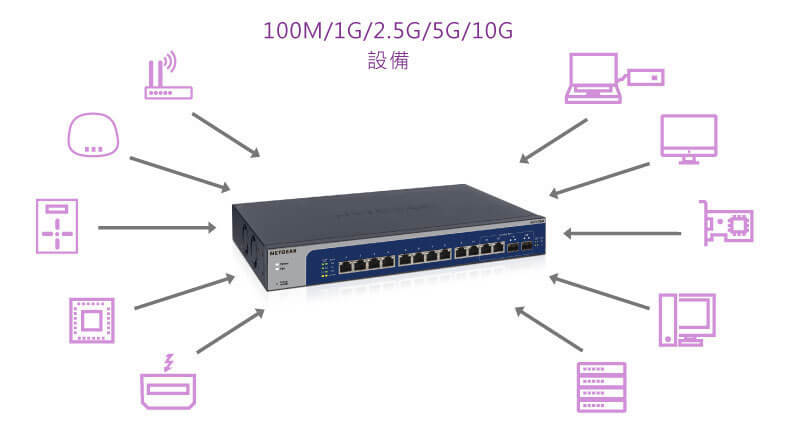

自動為您的設備提供100Mb,1G,2.5G,5G,10G的網路
線路無需升級到Cat6,可以降低換線成本
Why Multi-Gigabit?
XS512EM具有100M/1G/2.5G/5G/10G RJ-45埠口,以及2個10G SPF+連接埠口。NETGEAR 5速交換器埠口可以用普通的Cat5E乙太網路線連接,不需升級到Cat6,可以降低接線成本。

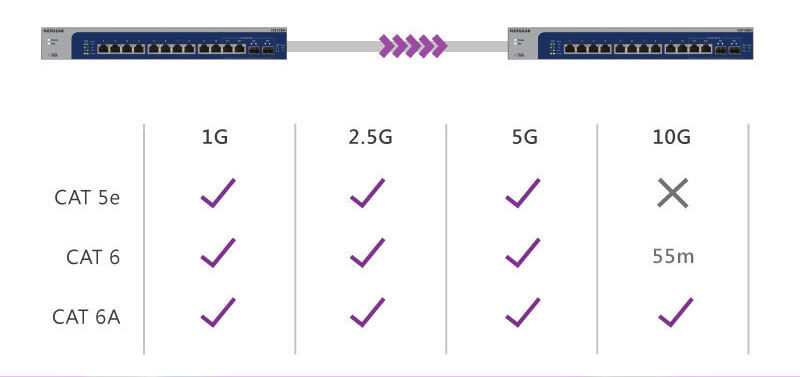

相同的佈線 5倍的速度
簡易網管功能
XS512EM/XS724EM除了L2網管功能外,
10G / Multi-Giga交換器還提供即插即用連接
可以提供設備所需的各種網速
全系列首創的Multi-Gigbit交換器
將帶來一波網路升級浪潮
NETGEAR 交換器高效穩定耐用的印象深植人心,並且持續提供符合市場需求的最新產品,完整的產品線且易機多用,提供能滿足各式各樣的網路環境。
技術規格
Features | XS724EM |
100M/1G/2.5G/5G/10G RJ-45 copper ports | 24 |
10G SFP+ ports | 2 (shared) |
Form Factor | Desktop/Rackmount |
效能規格 | |
Packet buffer memory (Dynamically shared across only used ports) | 3MB |
Forwarding modes | Store-and-forward |
Bandwidth | 480 Gbps |
MAC Address database size (48-bit MAC addresses) | 32K |
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 240 |
Speed / Latency | 10G : 4.16us 5G: AVG 5.3us 2.5G : AVG 7.53us 1G : AVG 3.77us 100M: AVG 13.4us |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | Idle : 35.91dB@25dC Full load :56.87dB@50dC |
Mean Time Between Failures (MTBF) @ 25° C | 830,493Hrs |
L2 SERVICES - VLANs | |
VLAN (# Supported) | 64 |
Port-based VLANs (physical) | Yes |
IEEE 802.1Q VLAN Tagging | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
Static Manual LAGs (Port Trunking) | Yes |
LACP | Yes |
IEEE 802.3x (full duplex and flow control) | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2, and v3) | Yes |
IGMP snooping querier | No |
Block unknown multicast | Yes |
Static multicast router port | Yes |
L3 SERVICES - DHCP | |
DHCP client | Yes |
LINK AGGREGATION | |
Static Manual LAGs (Port Trunking) | Yes |
LACP | Yes |
# of Static LAGs / # of members in each LAG | 12 LAGS with max 8 member in each LAG |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Ingress and egress |
Port-based QoS | Yes |
IEEE 802.1p COS | Yes |
IPv4 DSCP | Yes |
IPv4 ToS | Yes |
TCP/UDP-based | No |
Weighted Round Robin (WRR) | Yes |
Strict priority queue technology | No |
網路標準與協定 | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1p Class of Service • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3an 10GBASE-T • IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX |
管理 | |
Password management | Yes |
Web browser-based graphical user interface (GUI) | Yes |
ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
Config file transfers (backup, restore) | Plus Utility or Web GUI |
Firmware upgrade through Plus Utility (TFTP) | Yes |
Config download (to switch) through Plus Utility | Yes |
Config upload (to server) through Plus Utility | Yes |
Firmware upgrade through web GUI (HTTP) | Yes |
Config download (to switch) through web GUI (HTTP) | Yes |
Config upload (to server) through web GUI (HTTP) | Yes |
Cable test utility | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity |
Per device | Power, Fan |
體積與重量 | |
Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in) |
Weight | 3.72kg (8.21 lb) |
功耗 | |
Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 2A max Power cord localized to country of sale |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 150.52W |
Min power (link-down standby) (Watts) | 59.27W |
Heat Dissipation (max and min) (BTU/hr) | Max: 513.88 BTU/hr Min: 202.35 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | No |
Auto power-down | No |
Fan(s) | 3 |
環境需求 | |
運作環境 | |
Operating temperature | ‘0° to 50°C (32° to 122°F) |
Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
儲藏環境 | |
Storage temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, Class A ICES-003:2016 Issue 6, Class A ANSI C63.4:2014 EN55032:2012+AC:2013, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013 AS/NZS CISPR 32:2013, Class A VCCI-CISPR32:2016 Korea KC mark CNS 13438 |
Electromagnetic Compliance (Class A or B) | Class A |
安全認證 | |
Certifications | CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 CNS14336-1 Russia EAC mark |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。

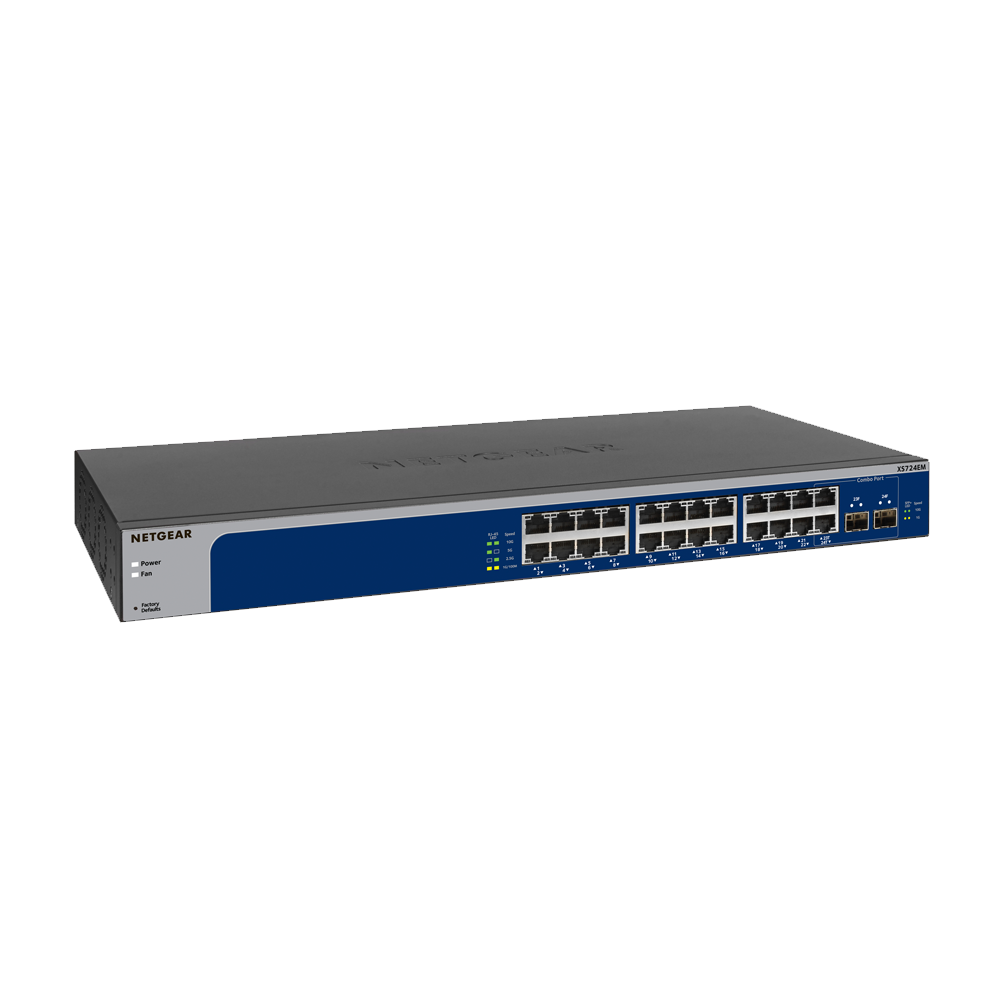

XS724EM 硬體規格
Features | XS724EM |
100M/1G/2.5G/5G/10G RJ-45 copper ports | 24 |
10G SFP+ ports | 2 (shared) |
Form Factor | Desktop/Rackmount |
效能規格 | |
Packet buffer memory (Dynamically shared across only used ports) | 3MB |
Forwarding modes | Store-and-forward |
Bandwidth | 480 Gbps |
MAC Address database size (48-bit MAC addresses) | 32K |
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 240 |
Speed / Latency | 10G : 4.16us 5G: AVG 5.3us 2.5G : AVG 7.53us 1G : AVG 3.77us 100M: AVG 13.4us |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | Idle : 35.91dB@25dC Full load :56.87dB@50dC |
Mean Time Between Failures (MTBF) @ 25° C | 830,493Hrs |
L2 SERVICES - VLANs | |
VLAN (# Supported) | 64 |
Port-based VLANs (physical) | Yes |
IEEE 802.1Q VLAN Tagging | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
Static Manual LAGs (Port Trunking) | Yes |
LACP | Yes |
IEEE 802.3x (full duplex and flow control) | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2, and v3) | Yes |
IGMP snooping querier | No |
Block unknown multicast | Yes |
Static multicast router port | Yes |
L3 SERVICES - DHCP | |
DHCP client | Yes |
LINK AGGREGATION | |
Static Manual LAGs (Port Trunking) | Yes |
LACP | Yes |
# of Static LAGs / # of members in each LAG | 12 LAGS with max 8 member in each LAG |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Ingress and egress |
Port-based QoS | Yes |
IEEE 802.1p COS | Yes |
IPv4 DSCP | Yes |
IPv4 ToS | Yes |
TCP/UDP-based | No |
Weighted Round Robin (WRR) | Yes |
Strict priority queue technology | No |
網路標準與協定 | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1p Class of Service • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3an 10GBASE-T • IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX |
管理 | |
Password management | Yes |
Web browser-based graphical user interface (GUI) | Yes |
ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
Config file transfers (backup, restore) | Plus Utility or Web GUI |
Firmware upgrade through Plus Utility (TFTP) | Yes |
Config download (to switch) through Plus Utility | Yes |
Config upload (to server) through Plus Utility | Yes |
Firmware upgrade through web GUI (HTTP) | Yes |
Config download (to switch) through web GUI (HTTP) | Yes |
Config upload (to server) through web GUI (HTTP) | Yes |
Cable test utility | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity |
Per device | Power, Fan |
體積與重量 | |
Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in) |
Weight | 3.72kg (8.21 lb) |
功耗 | |
Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 2A max Power cord localized to country of sale |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 150.52W |
Min power (link-down standby) (Watts) | 59.27W |
Heat Dissipation (max and min) (BTU/hr) | Max: 513.88 BTU/hr Min: 202.35 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | No |
Auto power-down | No |
Fan(s) | 3 |
環境需求 | |
運作環境 | |
Operating temperature | ‘0° to 50°C (32° to 122°F) |
Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
儲藏環境 | |
Storage temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, Class A ICES-003:2016 Issue 6, Class A ANSI C63.4:2014 EN55032:2012+AC:2013, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013 AS/NZS CISPR 32:2013, Class A VCCI-CISPR32:2016 Korea KC mark CNS 13438 |
Electromagnetic Compliance (Class A or B) | Class A |
安全認證 | |
Certifications | CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 CNS14336-1 Russia EAC mark |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。

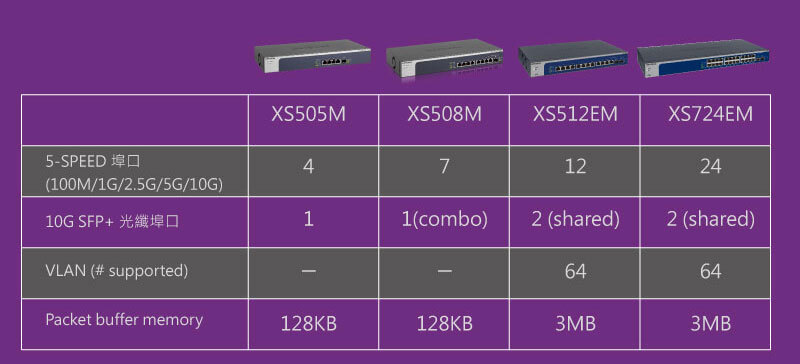

ProSAFE SWITCHES WITH 5速交換器 | ||||||
Model | 連接埠口 PORTS | PoE Budget | ||||
100M / 1G Multi-Gig埠口 | 100M / 1G /2.5G | 100M / 1G /2.5G /5G Multi-Gig埠口 | 100M / 1G /2.5G /5G /10G | 光纖 | ||
無網管 5速交換器 | ||||||
XS505M | - | - | - | 4 | 1x 10G SFP+光纖 | - |
XS508M | - | - | - | 7 | 1x 10G SFP+光纖 | - |
GS110MX | 8 | - | - | 2 | - | - |
簡易網管型 5速交換器 | ||||||
GS110EMX | 8 | - | - | 2 | - | - |
XS512EM | - | - | - | 12 | 2x 10G SFP+光纖(Shared) | - |
XS724EM | - | - | 24 | 2x 10G SFP+光纖(Shared) | - | |
智能網管型5速交換器 | ||||||
XS508TM | - | - | - | 8 | 2x 10G SFP+光纖 | - |
XS516TM | - | - | - | 16 | 2x 10G SFP+光纖 | - |
MS510TX | 4 | 2 | 2 | 1 | 1 x 1G/10G SFP+光纖 | - |
MS510TXPP | 4(PoE+) | 2(PoE+) | 2(PoE+) | 1 | 1 x 1G/10G SFP+光纖 | 180W |
MS510TXM | - | 4 | - | 4 | 2 x 1G/10G SFP+光纖 | - |
MS510TXUP | - | 4(PoE++) | - | 4(PoE++) | 2 x 1G/10G SFP+光纖 | 295W |
M4200 系列全網管五速交換器 | ||||||
M4200-10MG-PoE+ (GSM4210P) | - | 6(PoE+) | 2(PoE+) | - | 2 x 10G SFP+ | 240W |
M4250 系列全網管五速交換器 | ||||||
M4250-12M2XF (MSM4214X) | - | 12 | - | - | - | |
M4300 系列全網管五速交換器 | ||||||
M4300-16X (XSM4316PA) | - | - | - | 16(PoE+) | - | 199W with APS299W PSU |
M4300-16X (XSM4316PB) | - | - | - | 16(PoE+) | - | 500W with APS600W PSU |
M4300-96X PoE Module- APM408C | - | - | - | 8 | - | - |
M4300-96X PoE Module- APM408P | - | - | - | 8(PoE+) | - | up to 30W Per Port |
