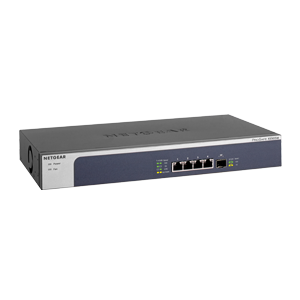

★5速交換器
★4個10-Gig/Multi-Gig Copper RJ-45連接埠
★1個SFP+ 連接埠
★提供100Gbps背板頻寬
★台灣公司貨,五年保固,0800技術客服



技術規格

FeaturesXS505M
100M/1G/2.5G/5G/10G RJ-45 copper ports4
10G SFP+ ports1
Form FactorDesktop/Rackmount
效能規格
Packet buffer memory (Dynamically shared across only used ports)128KBMB
Forwarding modesStore-and-forward
Bandwidth100Gbps
MAC Address database size (48-bit MAC addresses)2K
Packet forwarding rate (64 byte packet size) (Mpps)10Gbps: 14,880,952fps
5Gbps: 7,440,476fps
2500Mbps: 3,720,238fps
1000Mbps: 1,488,095fps
100Mbps: 148,810fps
Speed / Latency100Mbps: <6µs
1Gbps: <4µs
2.5Gbps: TBD
5Gbps: TBD
10Gbps : TBD
Jumbo frame supportUp to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)22.5
Mean Time Between Failures (MTBF) @ 25°C1093237 hours
POWER/ENERGY EFFICIENCY
802.1p-based QoS/CoS SupportedYes
Auto Power DownYes
Short Cable Detection/Power SavingYes
QUALITY OF SERVICE (QOS)
IEEE 802.3az (Energy Efficient Ethernet)Yes
Honors DSCP (DiffServ) TagsYes
Weighted Round Robin (WRR)Yes
Priority Queues8
網路通訊協定• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1p Class of Service
• IEEE 802.3az Energy Efficient Ethernet (EEE
• IEEE 802.3an 10GBASE-T
• IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
• IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
LEDs提示燈
Per portSpeed, Link, Activity
Per devicePower and Fan
體積與重量
Dimensions (W x D x H)328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight1.38kg
功耗
Power SupplyFixed internal PSU, 100-240VAC, 50-60Hz, 1A max Power cord localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts)22.5W
Min power (link-down standby) (Watts)12.25
Heat Dissipation (max and min) (BTU/hr)85.3/46.4
Fan(s)x1
環境需求
運作環境
Operating temperature0° to 50°C (32° to 122°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
儲藏環境
Storage temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
電磁輻射干擾與耐受性
Certifications47 CFR FCC Part 15, SubpartB, ClassB
ICES-003:2016 Issue 6, ClassB
ANSI C63.4:2014
EN 55022:2010 + AC:2011, Class A
EN 55024:2010
EN 61000-3-2:2014, Class A
EN 6100-3-3:2013
AS/NZS CISPR 22:2009 + A1:2010, Class B
VCCI V-3/2015.04, Class A
V-4/2012.4
Russia EAC mark
Korea KC mark
CNS 13438
Electromagnetic Compliance (Class A or B)Class B
安全認證
CertificationsCB mark, commercial
IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AS/NZS 60950.1:2015
Russia EAC mark
保固台灣公司貨享5年保固



如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。
