NETGEAR 10G /全網管交換器 – M4300-48XF(XSM4348FS)

★提供48個10G SFP+連接埠
★低延遲:10G Fiber: 64-byte frames/0.9μs
★2個100M/1G/10G RJ-45連接埠
★Full L3 全網管功能
★搭載Chassis交換器等級的Spine-Leaf技術,
結合Trunking/Redundant/Stacking等應用。
★可與M4300系列交換器做堆疊
★台灣公司貨,五年保固

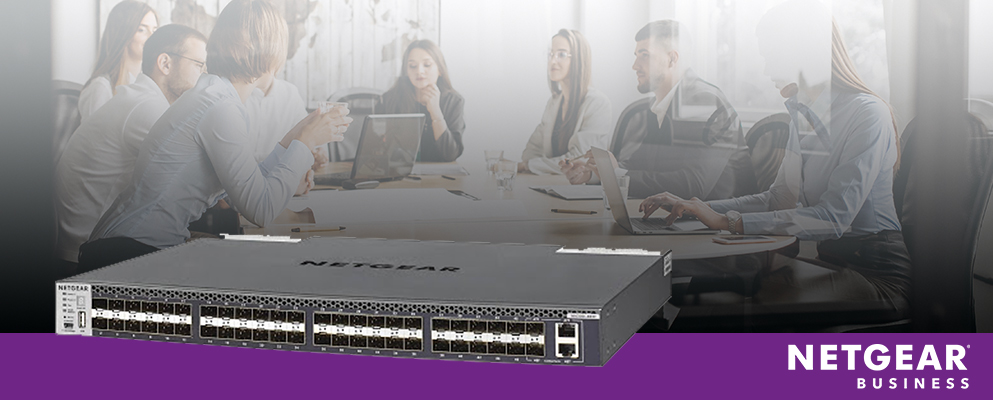

M4300-48XF
堆疊式10G 光纖全網管交換器

型號: M4300-48XF

  • 提供48個1G/10G 光纖SFP+連接埠。
  • 2個共享的10G RJ-45 連接埠
  • Full L3 全網管功能。
  • 搭載Chassis交換器等級的Spine-Leaf技術,
    結合Trunking/Redundant/Stacking等應用。

48個SFP+連接埠口
提供1G/10G的速度

2個共享的
10G RJ-45 連接埠

M4300系列10G交換器全面支援SDVoE

  M4300-48XF全網管交換器48個10G SFP+連接埠口,提供全光介面(1G/10G)。

   M4300系列搭載原本應用在Chassis交換器中的Spine-Leaf技術,混合Trunking、Redundant、Stacking等應用,可輕易的建置高備援的網路環境。不用再擔心線路斷線的問題。

產品規格

網路介面

  • Auto-sensing RJ45 100/1000/10GBASE-T: 2 (shared, back)
  • Auto-sensing SFP+ ports 1000/10GBASE-X
  • Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (back)
  • Storage port: 1 x USB (front)

硬體規格

  • Processor (CPU): Integrated 800Mhz CPU in switching silicon
  • System memory (RAM): 1 GB
  • Code storage (flash): 256 MB
  • Packet Buffer Memory: 56 Mb



VIRTUAL CHASSIS STACKING

  • Max physical switches per stack: 8
  • Max physical ports per stack: 384 x 1G ports or768 x 10G ports or a combination
  • Mixed stacking between 1G models and 10G models
  • Stacking ports (max number): 1G models: up to 4 ports per switch 10G models: up to 16 ports per switch
  • Distant stacking using fiber
  • Non-stop forwarding (NSF)
  • Automatic unit replacement (AUR)
  • Distributed Link Aggregation (LAGs across the stack)

效能表現

  • Switching fabric: 960 Gbps Line-rate (non blocking fabric)
  • Throughput: 714 Mpps
  • Latency – 10G Fiber: 64-byte frames/0.9μs
  • Latency – 1G Fiber: 64-byte frames/2.153μs
  • Forwarding mode: Store-and-forward
  • Address database size: 128K MAC addresses
  • Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
  • Number of multicast groups filtered (IGMP): 4K total (2,048 IPv4 and 2,048 IPv6)
  • Number of Link Aggregation Groups (LAGs): 128 LAGs with up to 8 ports per Group; 802.3ad / 802.1AX-2008
  • Number of hardware queues for QoS (Standalone): 8 queues
  • Number of hardware queues for QoS (Stack): 7 queues
  • Number of static routes: IPv4/64; IPv6/64
  • RIP application route scaling: IPv4/512
  • OSPF application route scaling: IPv4/12,288; IPv6/4,096
  • Number of IP interfaces (port or VLAN): 128
  • Jumbo frame suppor: up to 9KB packet size

L2 支援協定

  • IEEE 802.1Q VLAN Tagging
  • Protocol Based VLANs: IP subnet, ARP, IPX
  • Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN, Private VLAN
  • IEEE 802.1x
  • Double VLAN Tagging (QoQ)
  • GARP with GVRP/GMRP
  • Multiple Registration Protocol (MRP)
  • Multicast VLAN Registration Protocol (MVRP)
  • MVR (Multicast VLAN registration)
  • IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG
  • Distributed Link Aggregation
  • Storm Control
  • IEEE 802.3x (Full Duplex and flow control)
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree
  • IGMP Snooping Support: v2, v3
  • Multicast VLAN registration (MVR)

L3 支援協定

  • IGMP Proxy
  • MLD Proxy
  • Any Source Multicast (ASM)
  • Source Specific Multicast (SSM)
  • DVMRP (Distance Vector Multicast Routing Protocol)
  • DHCP IPv4 / DHCP IPv6 Client
  • DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
  • DHCP Snooping IPv4 / IPv6
  • DHCP Relay IPv4 / IPv6
  • Static Routing / ECMP Static Routing: Multiple next hops to a given destination; Load sharing, Redundancy; Default routes; Static Reject routes
  • Port Based Routing
  • VLAN Routing
  • ICMP throttling
  • Router Discovery Protocol
  • DNS Client
  • Proxy ARP
  • ICMP
  • Policy Based Routing (PBR)
  • 802.1ab LLDP
  • 802.1ab LLDP – MED
  • SNMP: V1, V2, V3
  • RMON 1,2,3,9
  • sFlow

安全協定

  • Broadcast, Unicast, Multicast DoS Protection
  • DoS Attacks Protection
  • ICMP throttling
  • Management ACL (MACAL)
  • Radius accounting
  • TACACS+
  • Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
  • IEEE 802.1x Radius Port Access Authentication
  • 802.1x MAC Address Authentication Bypass (MAB)

QUALITY OF SERVICE (QOS)

  • Access Lists
  • DiffServ QoS
  • IEEE 802.1p COS
  • Single Rate Policing
  • Auto-VoIP
  • iSCSI Flow Acceleration

體積與重量

  • Width: 44 cm ; Height: 1U 4.4 cm; Depth: 34.5 cm
  • Weight: 5.86 kg



使用與保存環境

  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Operating Humidity: 90% maximum relative humidity, non-condensing
  • Operating Altitude: 10,000 ft (3,000 m) maximum
  • Storage Temperature: – 4° to 158°F (–20° to 70°C)
  • Storage Humidity: 95% maximum relative humidity, non-condensing
  • Storage Altitude: 10,000 ft (3,000 m) maximum

包裝內容物

  • Power cord(s)
  • RJ45 straight-through wiring serial console cable to DB9
  • Mini-USB console cable
  • Rubber caps for the SFP+ sockets
  • Rubber footpads for tabletop installation
  • Installation guide

保固年限

• 全機五年保固,故障更換新品免維修

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
