協助商辦場所建置高速、高備援的10G脊葉(Spine-Leaf)網路

8個SFP+與8個RJ45網路埠口，同時收納10G光纖與RJ45線路

搭載Chassis交換器等級的Spine-Leaf技術，結合Trunking/
Redundant/Stacking等應用

半機架寬度設計，可隨需求而搭配其他半機架寬度的M4300系列
(XSM4324S.XSM4324CS)

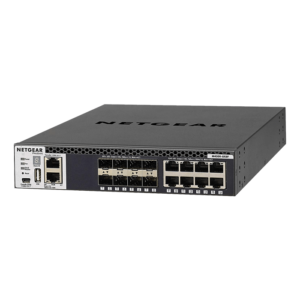

M4300-8X8F全網管交換器是市面首創的堆疊式10G交換器

擁有8個SFP+與8個RJ45網路埠口，讓中小企業可輕鬆建置高備援的小型骨
幹網路或小型IP SAN網路，例如 : 光纖連接到需要高速頻寬的網路儲存，
或使用RJ45線路連接多台伺服器，如此一來便可降低伺服器10G網路卡
的採購成本。只需使用一台交換器即可同時收納10G的光纖與RJ45連線，
大量降低成本，並帶來速度升級的優勢。

M4300系列

搭載原本應用在Chassis交換器中的Spine-Leaf技術，混合Trunking、
Redundant、Stacking等應用，可輕易的建置高備援的網路環境。不
用再擔心線路斷線的問題。

產品規格

網路介面

• Auto-sensing RJ45 100/1000/10GBASE-T: 8

• Auto-sensing SFP+ ports 1000/10GBASE-X: 8

• Service port (Out-of-band Ethernet): 1 x RJ45 10/100/1000BASE-T (front)

• Storage port: 1 x USB (front)

硬體規格

• Processor (CPU): Integrated 800Mhz CPU in switching silicon

• System memory (RAM): 1 GB

• Code storage (flash): 256 MB

• Packet Buffer Memory: 16 Mb

VIRTUAL CHASSIS STACKING

• Max physical switches per stack: 8

• Max physical ports per stack: 384 x 1G ports or 384 x 10G ports or a combination

• Mixed stacking between 1G models and 10G models

• Stacking ports (max number): 1G models: up to 4 ports per switch 10G models: up to 16 ports per switch

• Distant stacking using fiber

• Non-stop forwarding (NSF)

• Automatic unit replacement (AUR)

• Distributed Link Aggregation (LAGs across the stack)

效能表現

• Switching fabric: 320 Gbps Line-rate (non blocking fabric)

• Throughput: 238 Mpps

• Latency – 10G Fiber: 64-byte frames/0.889μs

• Latency – 10G Copper: 64-byte frames/2.432μs

• Latency – 1G Fiber: 64-byte frames/2.622μs

• Latency – 1G Copper: 64-byte frames/2.572μs

• Forwarding mode: Store-and-forward

• Address database size: 16K MAC addresses

• Number of VLANs: 4,093 VLANs (802.1Q) simultaneously

• Number of multicast groups filtered (IGMP): 4K total (2,048 IPv4 and 2,048

IPv6)

• Number of Link Aggregation Groups (LAGs): 128 LAGs with up to 8 ports per

Group; 802.3ad / 802.1AX-2008

• Number of hardware queues for QoS (Standalone): 8 queues

• Number of hardware queues for QoS (Stack): 7 queues

• Number of static routes: IPv4/64; IPv6/64

• RIP application route scaling: IPv4/512

• OSPF application route scaling: IPv4/512; IPv6/256

• Number of IP interfaces (port or VLAN): 128

• Jumbo frame suppor: up to 9KB packet size

L2 支援協定

• IEEE 802.1Q VLAN Tagging

• Protocol Based VLANs: IP subnet, ARP, IPX

• Subnet based VLANs, MAC based VLANs, Voice VLAN, Private Edge VLAN,

Private VLAN

• IEEE 802.1x

• Double VLAN Tagging (QoQ)

• GARP with GVRP/GMRP

• Multiple Registration Protocol (MRP)

• Multicast VLAN Registration Protocol (MVRP)

• MVR (Multicast VLAN registration)

• IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per LAG

• Distributed Link Aggregation

• Storm Control

• IEEE 802.3x (Full Duplex and flow control)

• IEEE 802.1D Spanning Tree Protocol

• IEEE 802.1w Rapid Spanning Tree

• IEEE 802.1s Multiple Spanning Tree

• IGMP Snooping Support: v2, v3

• Multicast VLAN registration (MVR)

L3 支援協定

• IGMP Proxy

• MLD Proxy

• Any Source Multicast (ASM)

• Source Specific Multicast (SSM)

• DVMRP (Distance Vector Multicast Routing Protocol)

• DHCP IPv4 / DHCP IPv6 Client

• DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)

• DHCP Snooping IPv4 / IPv6

• DHCP Relay IPv4 / IPv6

• Static Routing / ECMP Static Routing: Multiple next hops to a given

destination; Load sharing, Redundancy; Default routes; Static Reject routes

• Port Based Routing

• VLAN Routing

• ICMP throttling

• Router Discovery Protocol

• DNS Client

• Proxy ARP

• ICMP

• Policy Based Routing (PBR)

• 802.1ab LLDP

• 802.1ab LLDP – MED

• SNMP: V1, V2, V3

• RMON 1,2,3,9

• sFlow

安全協定

• Broadcast, Unicast, Multicast DoS Protection

• DoS Attacks Protection

• ICMP throttling

• Management ACL (MACAL)

• Radius accounting

• TACACS+

• Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP

• IEEE 802.1x Radius Port Access Authentication

• 802.1x MAC Address Authentication Bypass (MAB)

QUALITY OF SERVICE (QOS)

• Access Lists

• DiffServ QoS

• IEEE 802.1p COS

• Single Rate Policing

• Auto-VoIP

• iSCSI Flow Acceleration

體積與重量

• Width: 8.35 inches (21.2 cm) (half-width); Height: 1U – 1.73 inches (4.4 cm); Depth: 13.58 inches (34.5 cm)

• Weight: 8.14 lb (3.69 kg)

使用與保存環境

• Operating Temperature: 32° to 122°F (0° to 50°C)

• Operating Humidity: 90% maximum relative humidity, non-condensing

• Operating Altitude: 10,000 ft (3,000 m) maximum

• Storage Temperature: – 4° to 158°F (–20° to 70°C)

• Storage Humidity: 95% maximum relative humidity, non-condensing

• Storage Altitude: 10,000 ft (3,000 m) maximum

包裝內容物

• Power cord(s)

• RJ45 straight-through wiring serial console cable to DB9

• Mini-USB console cable

• Rubber caps for the SFP+ sockets

• Rubber footpads for tabletop installation

• Installation guide

保固年限

• 全機五年保固，故障更換新品免維修

如規格有異動，恕不另行通知。NETGEAR保有所有權利。
