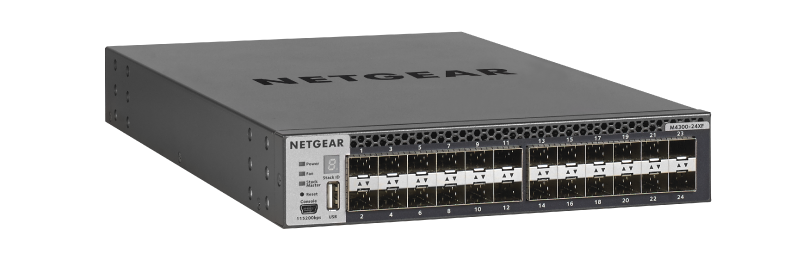

M4300-24XF
堆疊式10G 光纖全網管交換器

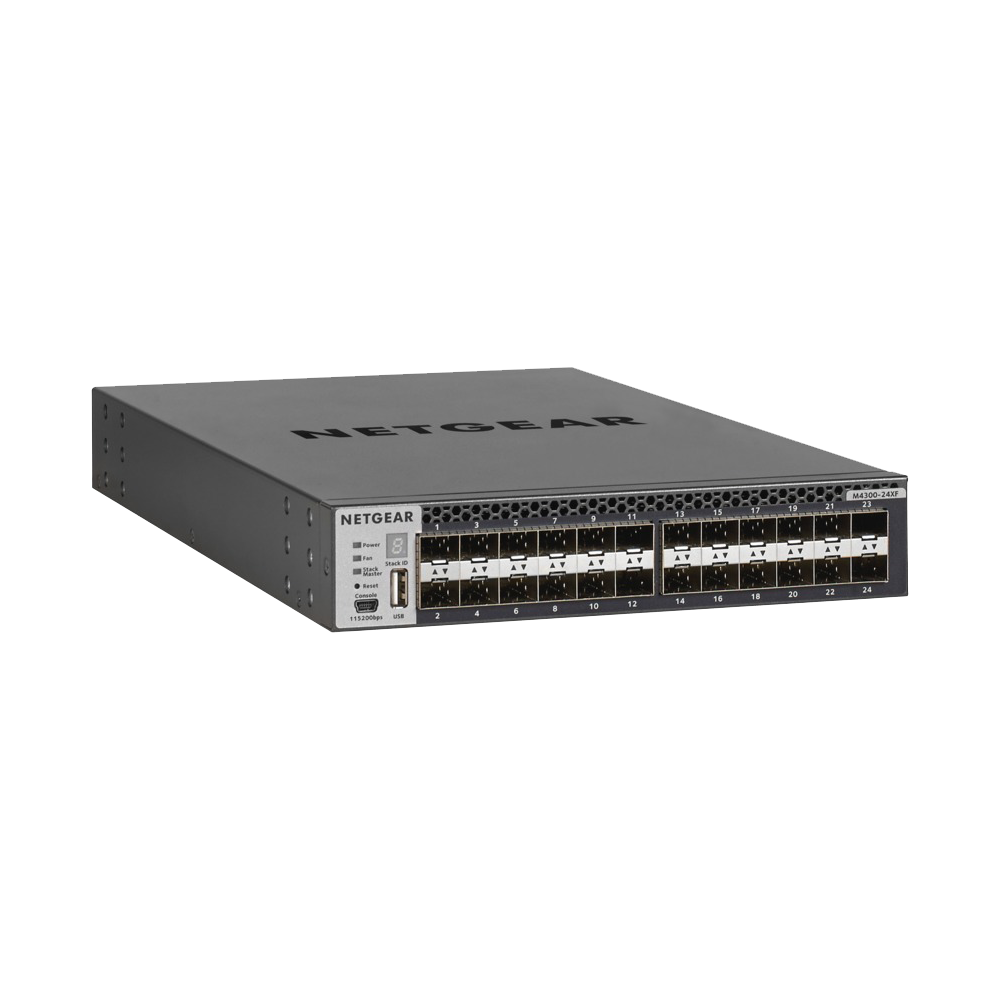

型號: M4300-24XF

2個共享的
10G RJ-45 連接埠

24個SFP+連接埠口
提供1G/10G的速度

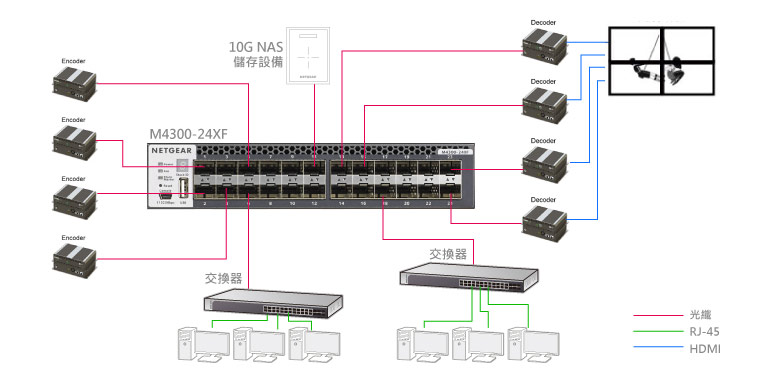

M4300系列10G交換器全面支援SDVoE

　　M4300-24XF 讓中小企業可輕鬆建置高備援的小型骨幹網路或小型IP SAN網路，半機架寬度設計，可隨需求而搭配其他半寬M4300系列交換器，機櫃空間不會浪費，並帶來速度升級的優勢。

　　 M4300系列搭載原本應用在Chassis交換器中的Spine-Leaf技術，混合Trunking、Redundant、Stacking等應用，可輕易的建置高備援的網路環境。不用再擔心線路斷線的問題。

產品規格

網路介面
•Auto-sensing SFP+ ports 1000/10GBASE-X
•Auto-sensing RJ45 100/1000/10GBASE-T: 2 (shared, back)
•Service port (Out-of-band Ethernet): 1　x RJ45 10/100/1000BASE-T (front)
•Storage port: 1 x USB (front)

硬體規格
•Processor (CPU): Integrated 800Mhz CPU in switching silicon
•System memory (RAM): 1 GB
•Code storage (flash): 256 MB
•Packet Buffer Memory: 32 Mb

VIRTUAL CHASSIS STACKING
•Max physical switches per stack: 8
•Max physical ports per stack: 384 x 1G ports or 768 x 10G ports
or a combination
•Mixed stacking between 1G models and 10G models
•Stacking ports (max number): 1G models: up to 4 ports per
switch 10G models: up to 16 ports per switch
•Distant stacking using fiber
•Non-stop forwarding (NSF)
•Automatic unit replacement (AUR)
•Distributed Link Aggregation (LAGs across the stack)

效能表現
•Switching fabric: 480 Gbps Line-rate (non blocking fabric)
•Throughput: 357 Mpps
•Latency – 10G Fiber: 64-byte frames/1.323μs
•Latency – 1G Fiber: 64-byte frames/2.333μs
•Forwarding mode: Store-and-forward
•Address database size: 16K MAC addresses
•Number of VLANs: 4,093 VLANs (802.1Q) simultaneously
•Number of multicast groups filtered (IGMP): 4K total (2,048
IPv4 and 2,048 IPv6)
•Number of Link Aggregation Groups (LAGs): 128 LAGs with up 　to 8 ports per Group; 802.3ad / 802.1AX-2008
•Number of hardware queues for QoS (Standalone): 8 queues
•Number of hardware queues for QoS (Stack): 7 queues
•Number of static routes: IPv4/64; IPv6/64
•RIP application route scaling: IPv4/512
•OSPF application route scaling: IPv4/512; IPv6/256
•Number of IP interfaces (port or VLAN): 128
•Jumbo frame suppor: up to 9KB packet size

Layer 2 支援協定
•IEEE 802.1Q VLAN Tagging
•Protocol Based VLANs: IP subnet, ARP, IPX
•Subnet based VLANs, MAC based VLANs, Voice VLAN, Private
Edge VLAN, Private VLAN
•IEEE 802.1x
•Double VLAN Tagging (QoQ)
•GARP with GVRP/GMRP
•Multiple Registration Protocol (MRP)
•Multicast VLAN Registration Protocol (MVRP)
•MVR (Multicast VLAN registration)
•IEEE 802.3ad – LAGs: LACP; Static LAGs; Local Preference per
LAG
•Distributed Link Aggregation
•Storm Control
•IEEE 802.3x (Full Duplex and flow control)
•IEEE 802.1D Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree
•IEEE 802.1s Multiple Spanning Tree
•IGMP Snooping Support: v2, v3
•Multicast VLAN registration (MVR)

Layer 3 支援協定
•IGMP Proxy
•MLD Proxy
•Any Source Multicast (ASM)
•Source Specific Multicast (SSM)
•DVMRP (Distance Vector Multicast Routing Protocol)
•DHCP IPv4 / DHCP IPv6 Client
•DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
•DHCP Snooping IPv4 / IPv6
•DHCP Relay IPv4 / IPv6
•Static Routing / ECMP Static Routing: Multiple next hops to a
given destination; Load sharing, Redundancy; Default routes;
Static Reject routes
•Port Based Routing
•VLAN Routing
•ICMP throttling
•Router Discovery Protocol
•DNS Client
•Proxy ARP
•ICMP
•Policy Based Routing (PBR)
•802.1ab LLDP
•802.1ab LLDP – MED
•SNMP: V1, V2, V3
•RMON 1,2,3,9
•sFlow

安全協定
•Broadcast, Unicast, Multicast DoS Protection
•DoS Attacks Protection
•ICMP throttling
•Management ACL (MACAL)
•Radius accounting
•TACACS+
•Access Control Lists (ACLs): L2 / L3 / L4; MAC, IPv4, IPv6, TCP, UDP
•IEEE 802.1x Radius Port Access Authentication
•802.1x MAC Address Authentication Bypass (MAB)

QUALITY OF SERVICE (QOS)
•Access Lists
•DiffServ QoS
•IEEE 802.1p COS
•Single Rate Policing
•Auto-VoIP
•iSCSI Flow Acceleration

體積與重量
•Width: 8.35 inches (21.2 cm) (half-width);
Height: 1U – 1.73 inches (4.4 cm);
Depth: 13.58 inches (34.5 cm)
•Weight: 7.85 lb (3.56 kg)

使用與保存環境
•Operating Temperature: 32° to 122°F (0° to 50°C)
•Operating Humidity: 90% maximum relative humidity, non-con
densing
•Operating Altitude: 10,000 ft (3,000 m) maximum
•Storage Temperature: – 4° to 158°F (–20° to 70°C)
•Storage Humidity: 95% maximum relative humidity, non-con
densing
•Storage Altitude: 10,000 ft (3,000 m) maximum

包裝內容物
•Power cord(s)
•RJ45 straight-through wiring serial console cable to DB9
•Mini-USB console cable
•Rubber caps for the SFP+ sockets
•Rubber footpads for tabletop installation
•Installation guide

保固年限
• 全機五年保固，故障更換新品免維修

如規格有異動，恕不另行通知。NETGEAR保有所有權利。
