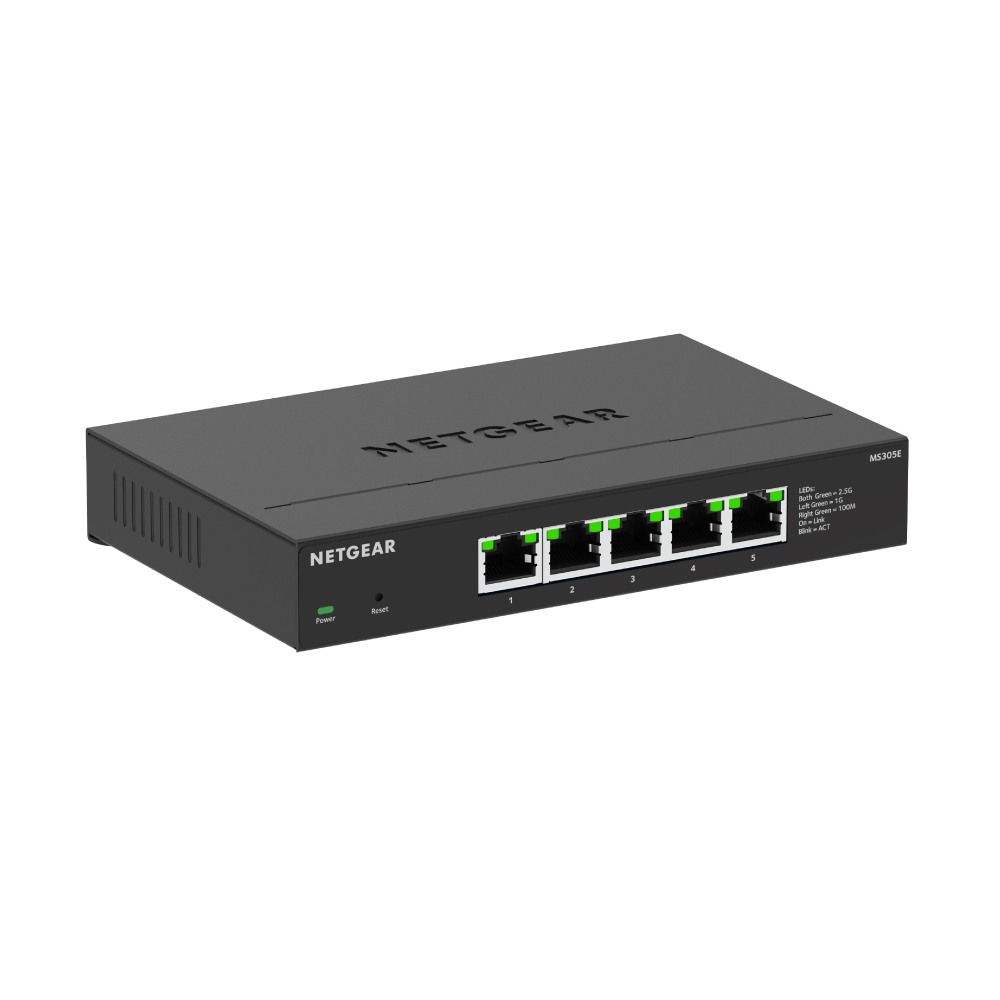

NETGEAR 簡易網管交換器 / Multi-Giga交換器 – MS305E

MS305E

★五個1G/2.5G Multi-G 乙太網路口
★金屬外殼散熱佳，無風扇設計
★支援IGMP Snooping可連接MOD
★支援Port Mirror鏡像監測
★台灣公司貨，享五年保固

直接購買
經銷商洽詢

產品規格

GS308E 規格

Features

MS305E

MS308E

100M/1G/2.5G ports

5

8

Max MAC entries

4K

4K

Buffer Size

1MB

1MB

Energy Efficient Ethernet (IEEE 802.3az) compliant

Yes

Yes

效能規格

Forwarding modes

Store-and-forward

Store-and-forward

Bandwidth

25Gbps

40Gbps

Priority queuing

Weighted Round Robin (WRR)

Weighted Round Robin (WRR)

Jumbo frame support

Up to 12K packet size

Up to 12K packet size

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

0

0

Mean Time Between Failures (MTBF) @ 25° C

4,273,003 hrs (487 yrs)

3,309,911 hrs

L2 SERVICES - VLANS

VLAN (# Supported)

64

64

IEEE 802.1Q VLAN Tagging

Yes

Yes

Port-based VLANs

Yes

Yes

L2 Services - AVAILABILITY

Link Aggregation/ Port Trunking

Yes

Yes

Number of Static Manual LAGs and # of members

2 LAG with max 4 members in each LAG

4 LAG with max 4 members in each LAG

L2 SERVICES - MULTICAST FILTERING

IGMP snooping (v1, v2, and v3)

Yes

Yes

Block unknown multicast

Yes

Yes

Supported Multicast groups

256

256

L3 SERVICES - DHCP

DHCP client

Yes

Yes

QUALITY OF SERVICE (QOS)

Rate Limiting

Yes

Yes

DSCP

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Port-based VLAN

Yes

Yes

TOS

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Strict Priority queue technology

Yes

Yes

網路標準與協定

EEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T EEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.3x Full-duplex Flow Control IEEE 802.3bz 2.5GBASE-T IEEE 802.3az Energy Efficient Ethernet (deactivated by default) IEEE 802.3ad Dynamic Link Aggregation (LACP)

EEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T EEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.3x Full-duplex Flow Control IEEE 802.3bz 2.5GBASE-T IEEE 802.3az Energy Efficient Ethernet (deactivated by default) IEEE 802.3ad Dynamic Link Aggregation (LACP)

管理

System Password

Yes

Yes

Web browserbased management GUI

Yes

Yes

PC Utility

Yes

Yes

Port Mirroring

Yes

Yes

Max number of source ports allowed (many-to-one port mirroring)

4

7

Many-to-one Port Mirroring

Yes

Yes

Cable Test Utility

Yes

Yes

FW Upgrade Thru Plus Utility (TFTP)

NO

NO

Config download through Web GUI

Yes

Yes

Config upload to switch

Yes

Yes

LEDs提示燈

Per port

Speed, Link, Activity

Speed, Link, Activity

Per device

Power, system

Power, system

體積與重量

尺寸 (W x D x H)

158 x 101 x 27 mm((6.2 x 4 x 1.1 in))

158 x 101 x 27 mm(6.2 x 4 x 1.1 in)

重量

0.45kg

0.43kg

環境需求

運作環境

Operating temperature

32°F to 104°F (0° to 40°C)

32°F to 104°F (0° to 40°C)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

儲藏環境

Storage temperature

– 4° to 158°F (–20° to 70°C)

– 4° to 158°F (–20° to 70°C)

Storage Humidity

95% maximum relative humidity

95% maximum relative humidity

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

電磁輻射干擾與耐受性

安全認證

CE Class A (EN55032+EN55035) UKCA Class A FCC Part 15 Class A ISED Class A VCCI Class A RCM KC BSMI

CE Class A (EN55032+EN55035) UKCA Class A FCC Part 15 Class A ISED Class A VCCI Class A RCM KC BSMI

包裝內容物

簡易網管交換器MS305E x1 AC電源供應器x1 快速安裝指南

簡易網管交換器MS308E x1 AC電源供應器x1 快速安裝指南

保固

台灣公司貨，享5年保固

台灣公司貨，享5年保固

如規格有異動，恕不另行通知。NETGEAR保有所有權利。
