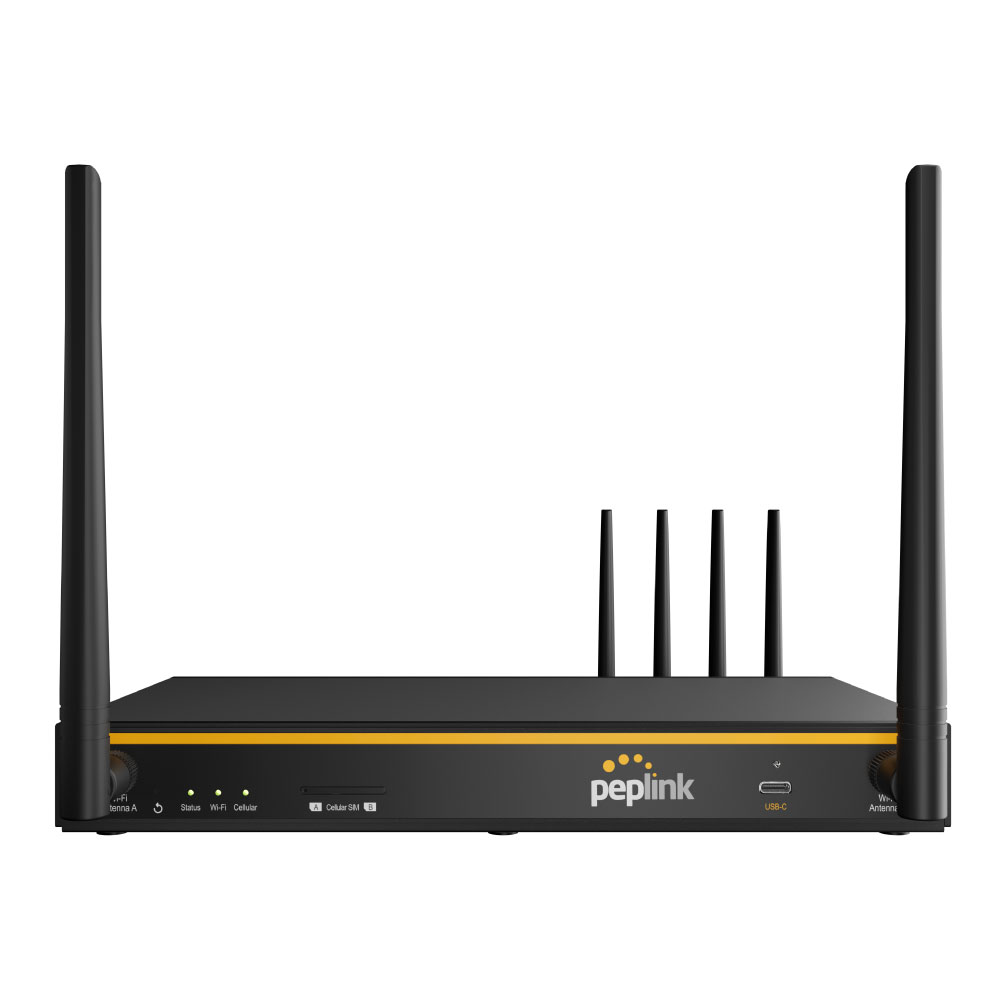

Peplink B One 5G

peplink b_one_5g

★可透過5G、4G/LTE(USB WAN)、有線、FWA 進行線路備援
★每年度的服務訂閱(Prime Care)可提供範圍廣泛的服務
★適用於小型企業和家庭辦公室、分支機構、露營車
★提供兩個5G SIM 卡槽及兩個eSIM，使網路更加穩定

經銷採購
經銷商洽詢

產品介紹

Peplink 的 eSIM 共享計劃允許企業無限新增門號，且免除月租費，讓車隊管理、遊艇通信和其他移動應用變得更加便捷。多門號共享流量數據方案，讓流量資源最大化利用，適合車隊、輪船等需要跨地域、不間斷連網的應用場景。

將深受喜愛的 Balance 20 的優勢
大升級一款功能強大的設備

peplink b_one_5g

B One 5G 的優勢

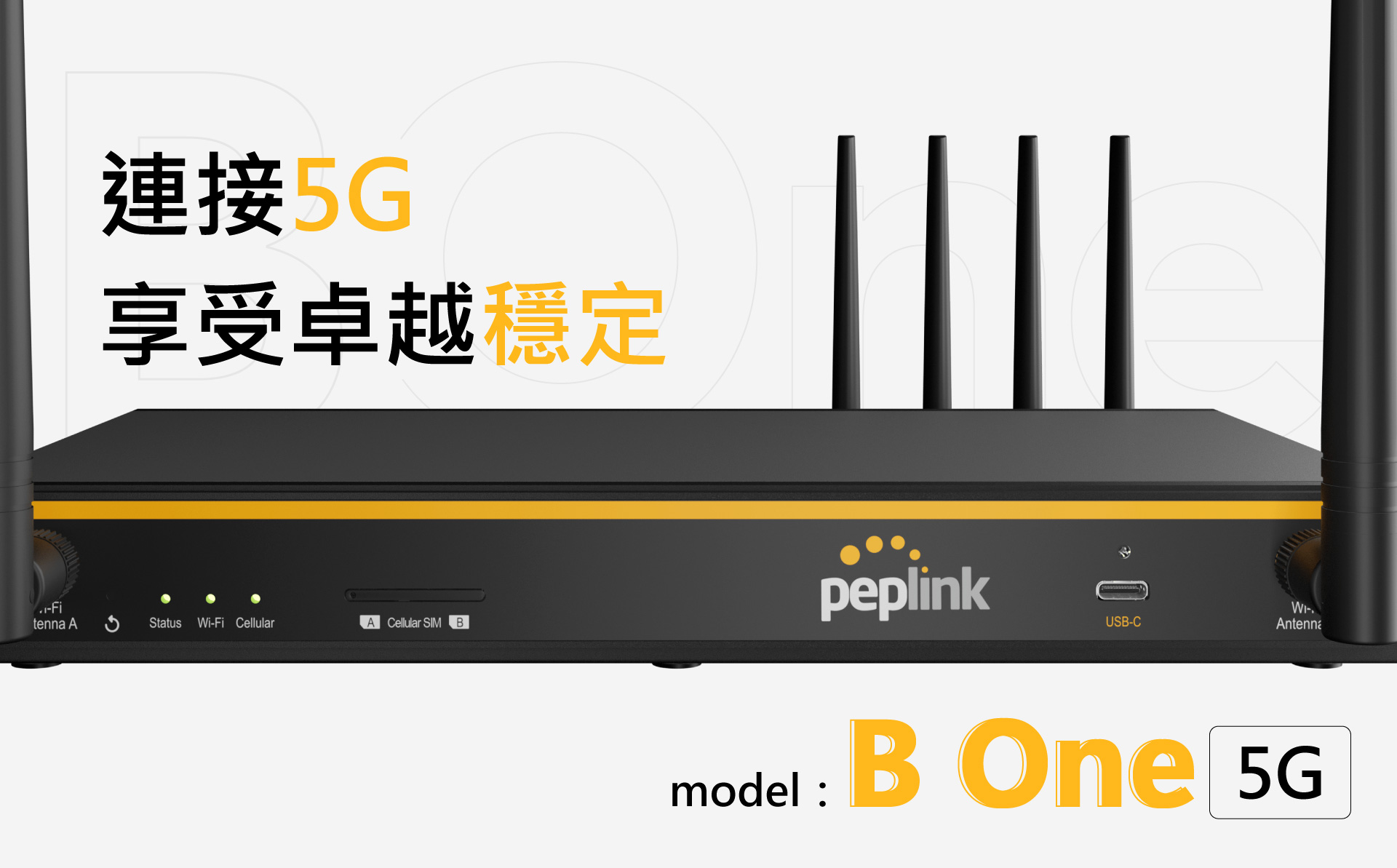

peplink b_one_5g-使用eSIM或SIM卡實現5G

peplink b_one_5g-添加5G提高網路可靠度

peplink b_one_5g-物超所值

使用SpeedFusion Connect
應用程序輕鬆進行網路管理

SpeedFusion

雙網路連接架構讓您在一條
互聯網線路故障時仍然保持連接

Peplink-B One 支援 Dual WAN

支援多元行動數據來源，提升備援網路設計靈活性，並可作為高速主要無線連接的可靠選擇。

peplink b_one_5g

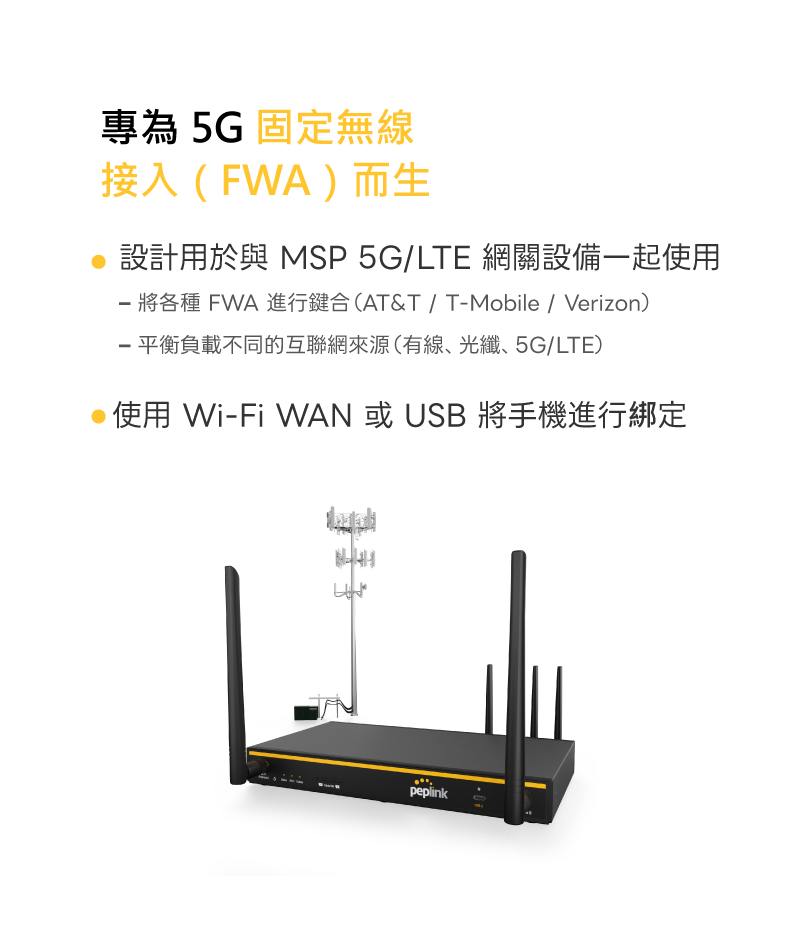

peplink b_one_5-FWA

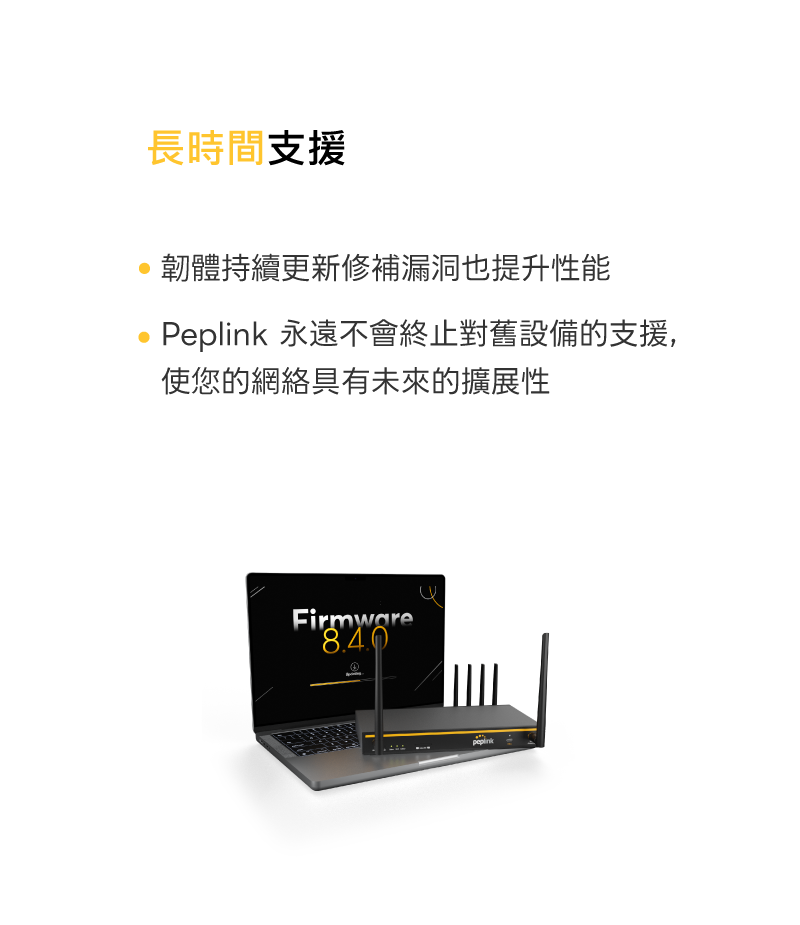

peplink b_one_5g-長時間支援

附載平衡你的低軌衛星與其他互聯網服務 (5G/LTE、有線、光纖、FWA)

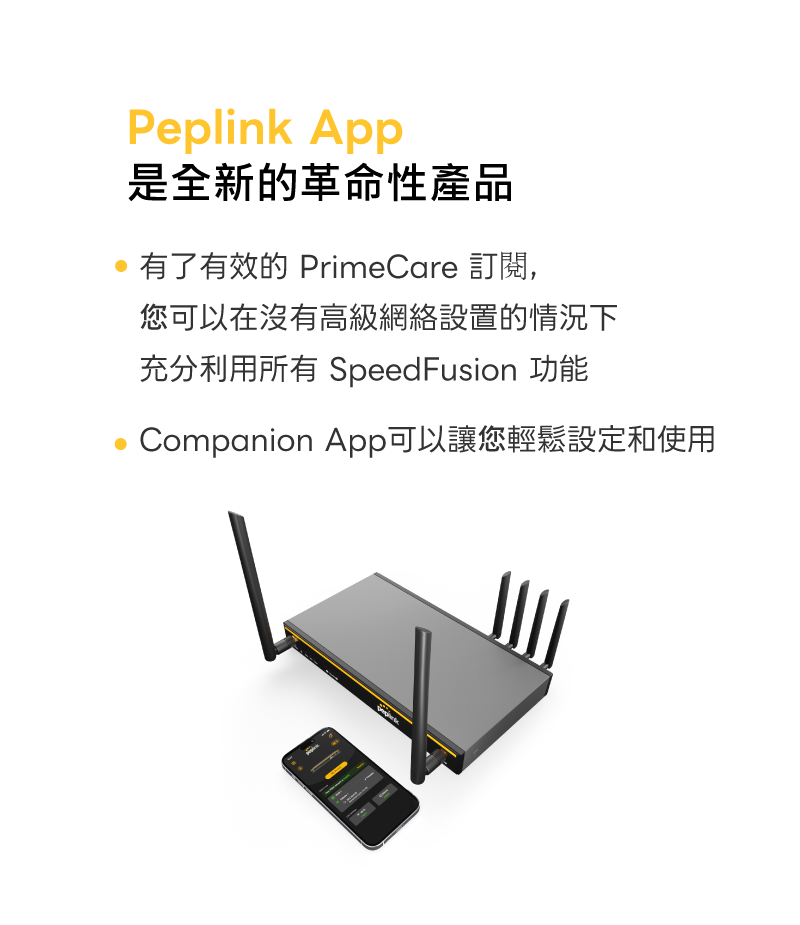

peplink b_one_5g-APP

Peplink 5G eSIM 方案

準備好進行任何部署

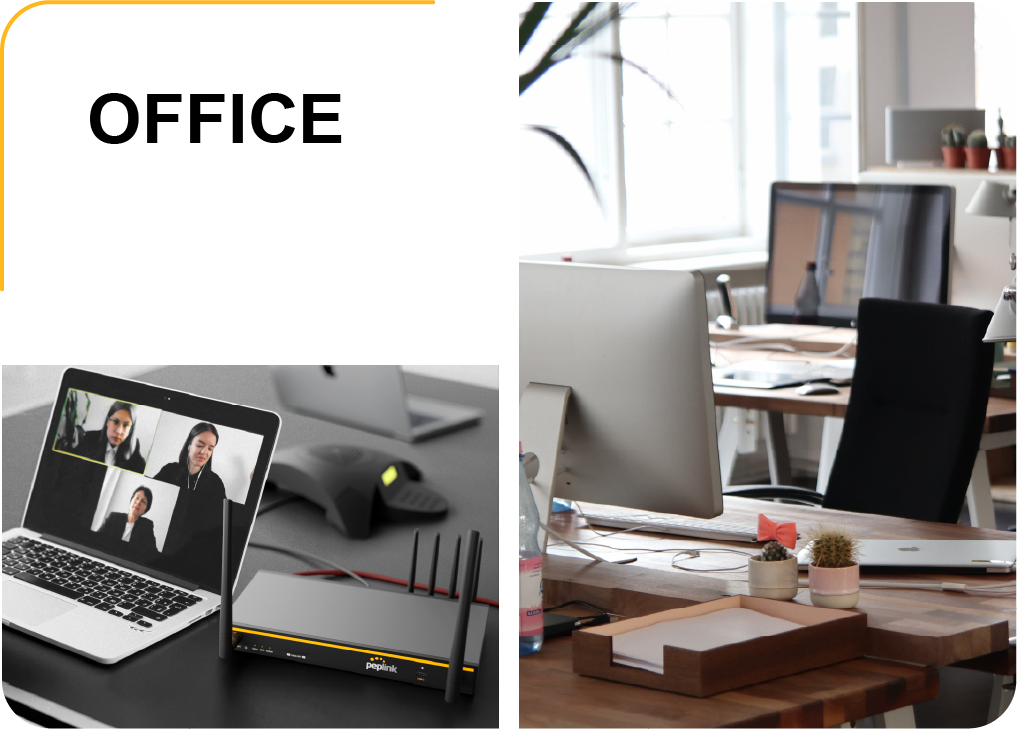

peplink b_one_5g-中小企業

小型企業和家庭辦公室

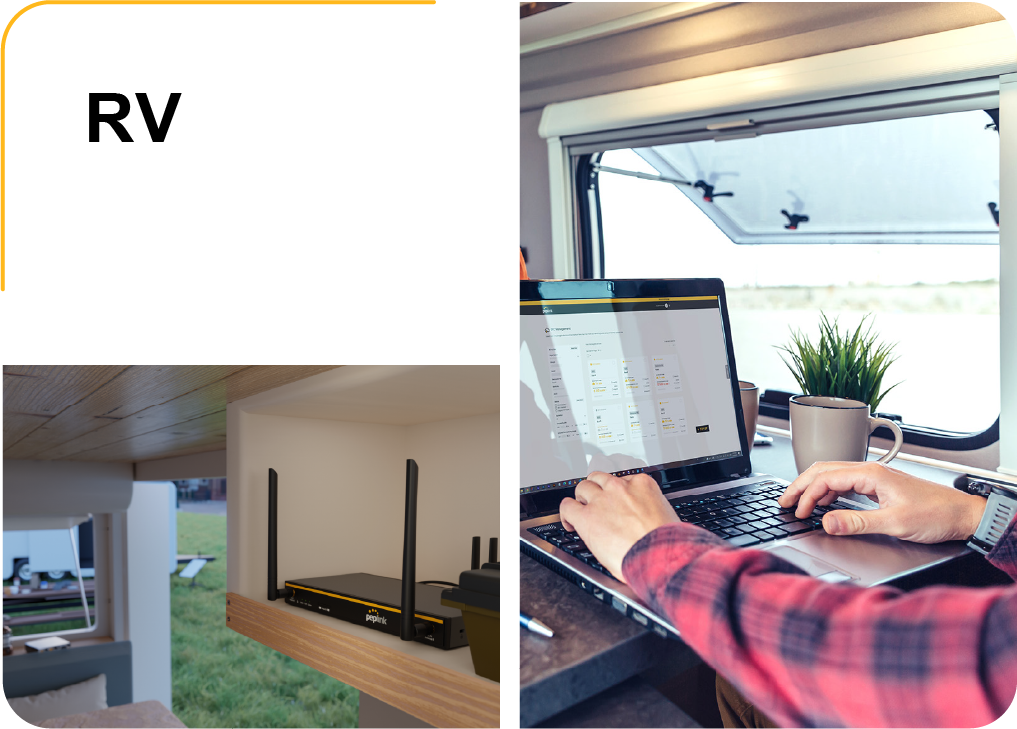

peplink b_one_5g-露營車

露營車（移動環境）

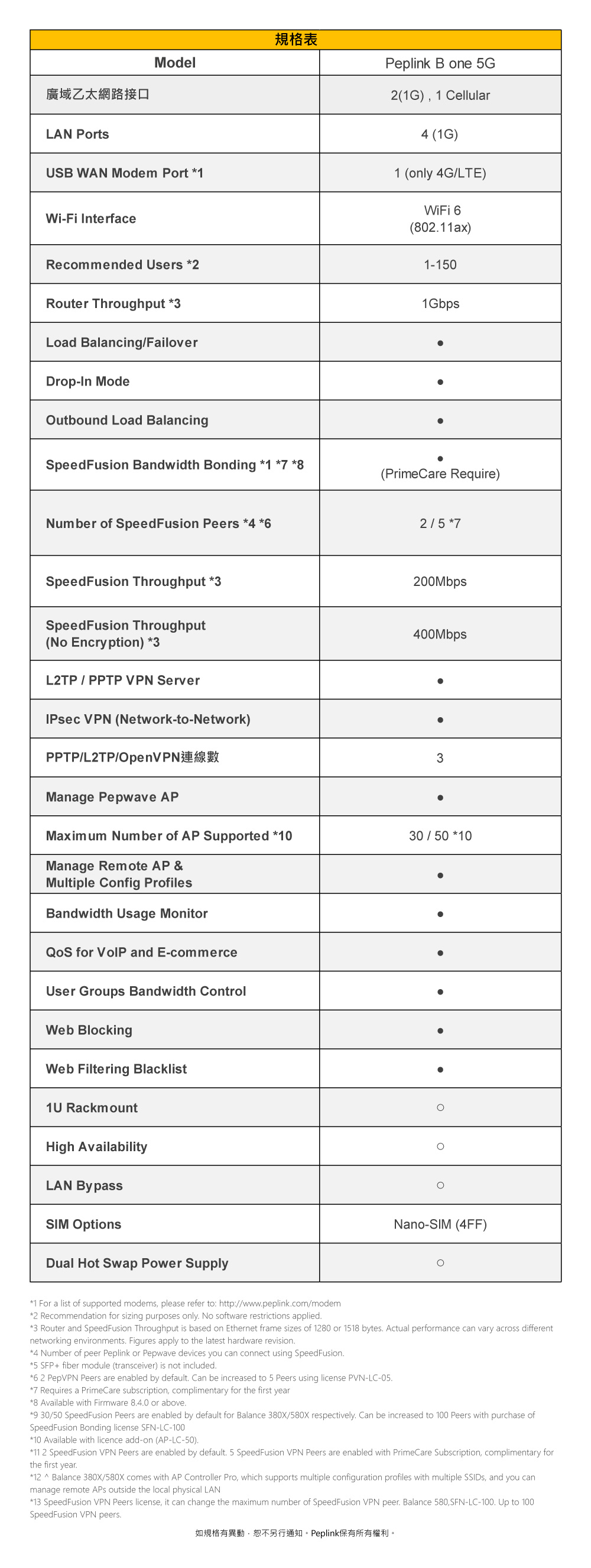

產品規格

規格表

Model

Peplink B one 5G

適用對象

高端用戶&小型工作室&移動環境

廣域乙太網路接口

2(1G) , 1 Cellular

LAN Ports

4 (GE)

USB WAN Modem Port*1

1(Type C)

4G LTE Module Built-in

○

5G LTE Module Built-in

●

Wi-Fi Interface

802.11ax

Recommended Users *2

1-150

Router Throughput*3

1Gbps

Load Balancing & Failover

●

Drop-In Mode

●

Outbound Load Balancing

●

SpeedFusion Bandwidth Bonding*7 *17

●*6

Number of SpeedFusion VPN Peers*4

2 / 5*10

SpeedFusion VPN Throughput (No Encryption)*3

400Mbps

SpeedFusion VPN Throughput*3

200Mbps

PPTP VPN Server

●

IPsec VPN (Network-to-Network) *18

●

Maximum PPTP / L2TP / OpenVPNUsers

3

Peplink AP Series Management

●

Maximum Number of AP Supported

30 / 50*9

Remote AP & Multiple ConfigProfiles Management

○

Bandwidth Usage Monitoring

●

QoS for VoIP and E-Commerce

●

User Groups Bandwidth Control

●

Application and Web Blocking

●

Web Content Filtering

Lite

1U Rackmount

○

High Availability

●

LAN Bypass

○

Dual Hot Swap Power Supply

○

*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

如規格有異動，恕不另行通知。Peplink保有所有權利。
