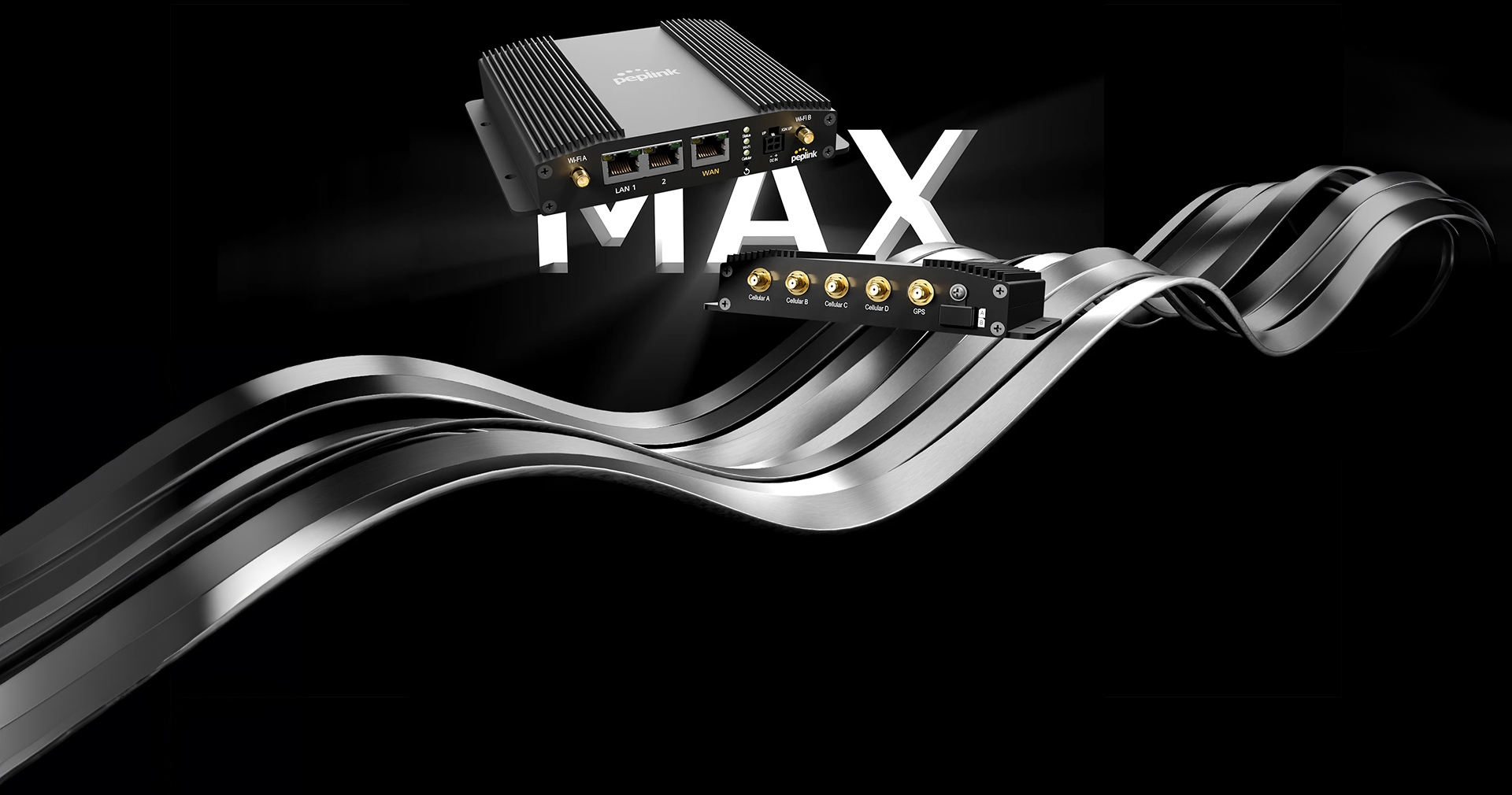

MAX BR1 Pro 5G
BR1 Pro 5G 結合新一代多核心處理器，
提供高於BR1 classic 的八倍傳輸速度。
想找適合的轉接器?
BR1 Pro 5G 立即擁有所有功能
準備好進行任何佈署
規格表 | |
Model | Peplink MAX BR1 Pro 5G |

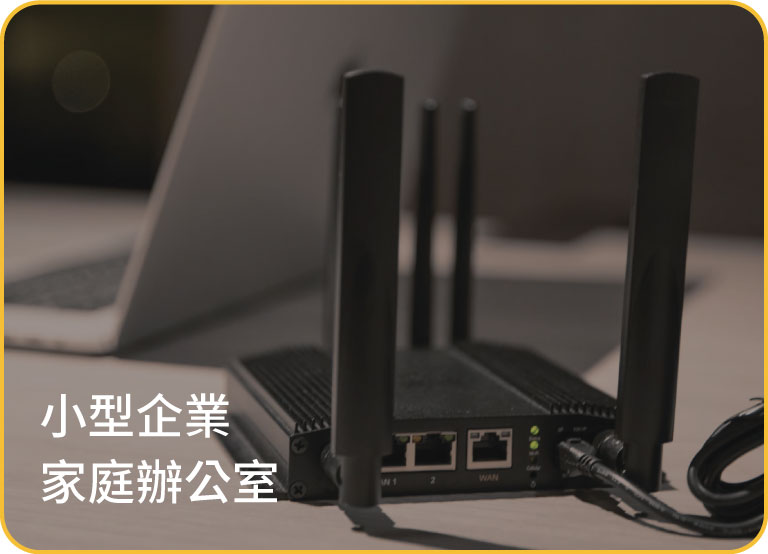

適用對象 | 高端用戶&小型工作室&移動環境 |

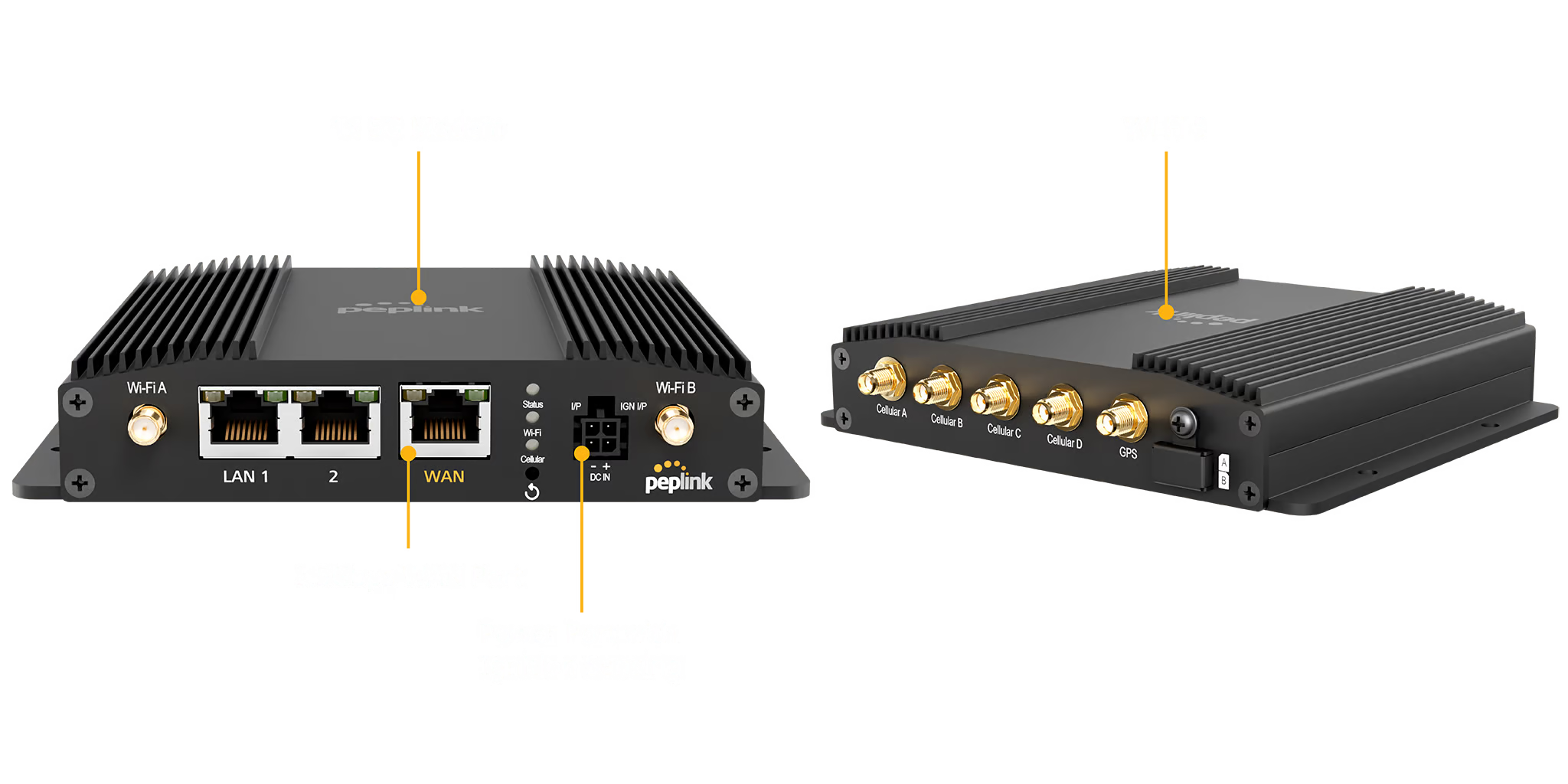

廣域乙太網路接口 | 1(1G/2.5GE) , 1 Cellular |
LAN Ports | 2 (GE) |
USB WAN Modem Port*1 | ○ |
4G LTE Module Built-in | ○ |
5G LTE Module Built-in | ● |

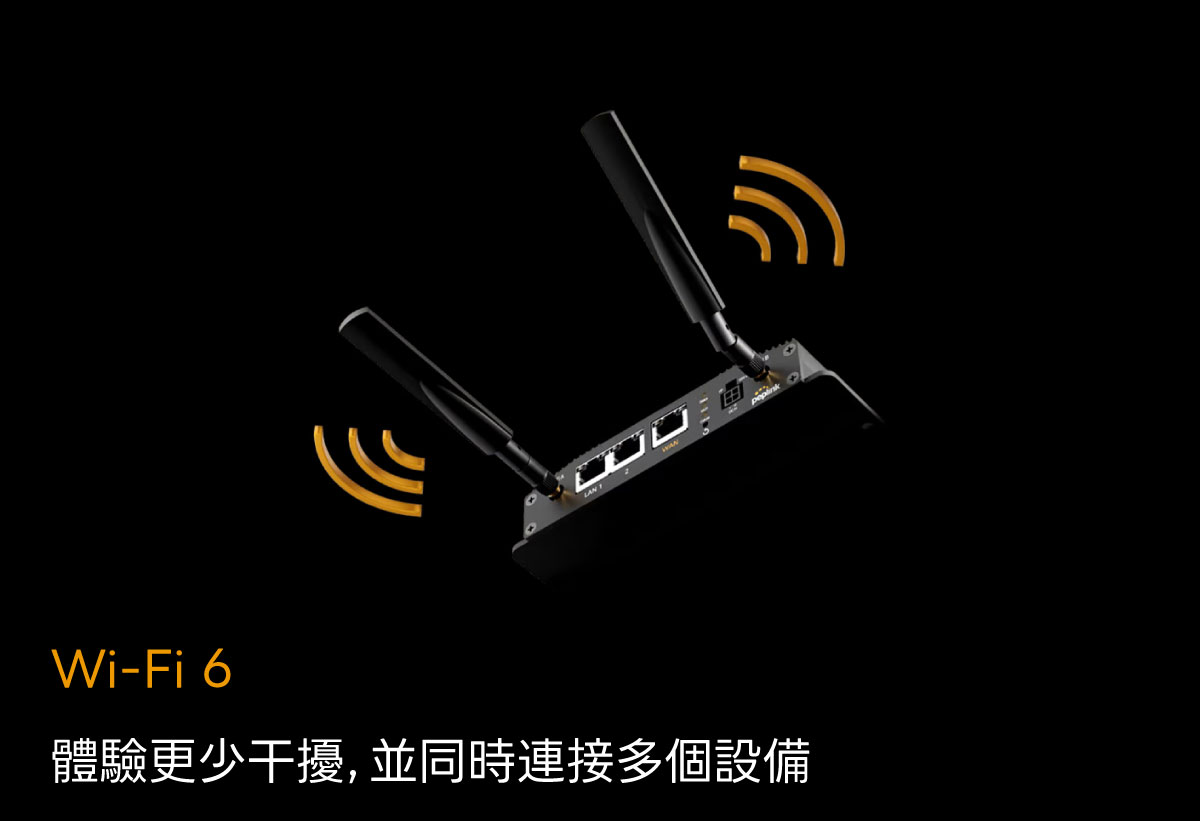

Wi-Fi Interface | 802.11ax |
Recommended Users *2 | 1-150 |
Router Throughput*3 | 1 Gbps |
Load Balancing & Failover | ● |
Drop-In Mode | ● |
Outbound Load Balancing | ● |
SpeedFusion Bandwidth Bonding*7 *17 | ● |
Number of SpeedFusion VPN Peers*4 | 2 / 5*10 |
SpeedFusion VPN Throughput (No Encryption)*3 | 400 Mbps |
SpeedFusion VPN Throughput*3 | 200 Mbps |
PPTP VPN Server | ● |
IPsec VPN (Network-to-Network) *18 | ● |
Maximum PPTP / L2TP / OpenVPNUsers | 3 |
Peplink AP Series Management | ● |
Maximum Number of AP Supported | 30 / 50*9 |
Remote AP & Multiple ConfigProfiles Management | ○ |
Bandwidth Usage Monitoring | ● |
QoS for VoIP and E-Commerce | ● |
User Groups Bandwidth Control | ● |
Application and Web Blocking | ● |
Web Content Filtering | Lite |
1U Rackmount | ○ |
High Availability | ● |
LAN Bypass | ○ |
Dual Hot Swap Power Supply | ○ |
耗電 | 8W (nominal), 19W (max.) |

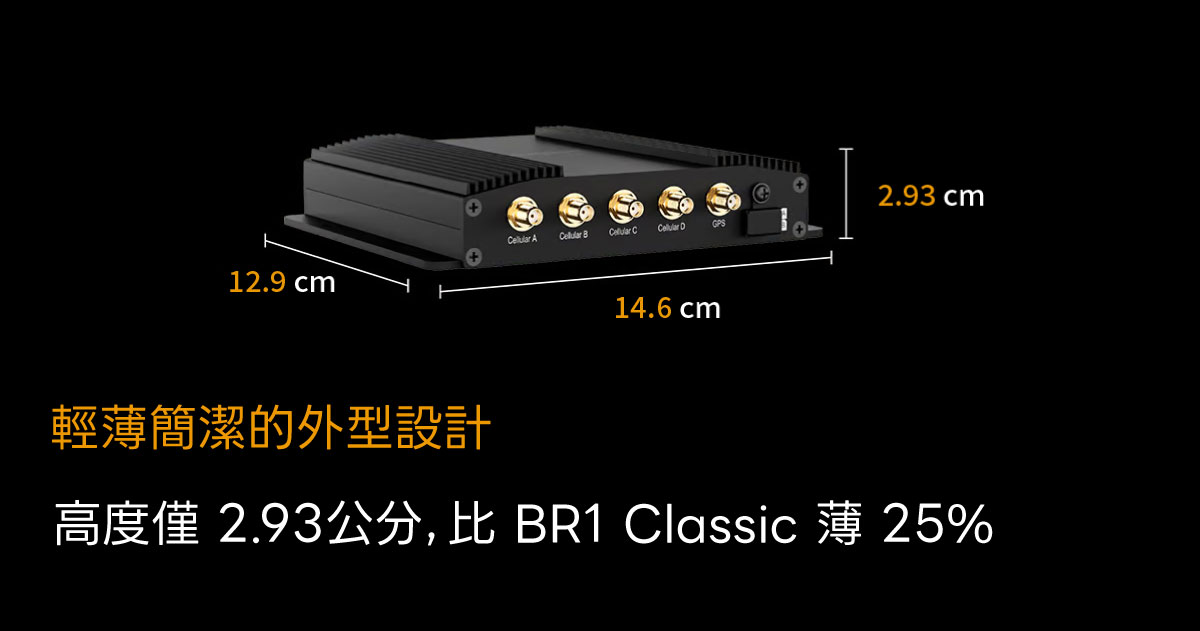

尺寸 | 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm |
重量 | 1.5 磅 / 680 公克 |
操作溫度 | 40° – 149°F / -40° – 65°C |
濕度 | 15% – 95%(non-condensing) |
認證 | FCC, CE, RoHS, E-Mark EN61373 Shock and Vibration Resistance EN50155 Railway Applications Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility EN45545-2 Railway applications - Fire protection |
保固 | 1年保固 |
包裝內容 | 1 台 BR1 Pro 5G 4 條 LTE/5G 天線 (ACW-235) 2 個 Wi-Fi 雙頻天線 (ACW-341) 1 個 GPS 天線 (ACW-232) 1 個 12V2A 電源供應器 (ACW-632) |
SIM 選擇 | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) |
*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
如規格有異動，恕不另行通知。Peplink保有所有權利。
