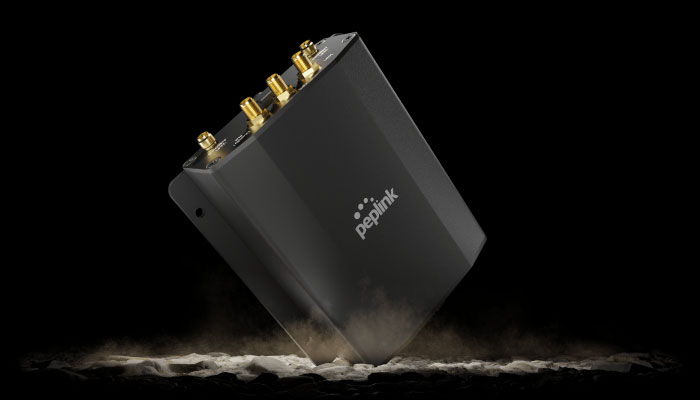

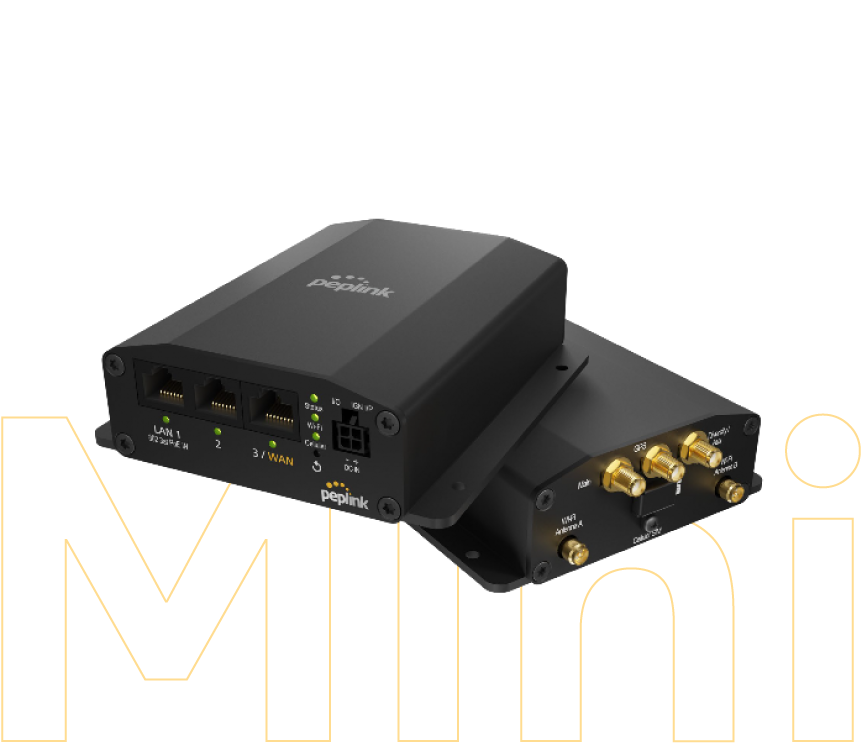

只需一臺卓越的設備
這款設備精心打造，外觀時尚，內部堅固，專為應對各種部署環境而設計。無論你面臨什麼挑戰，它都能輕鬆應對。

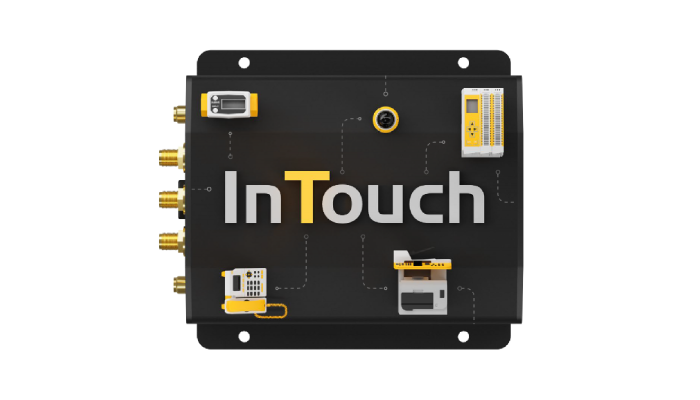

隨時掌控 InTouch
透過 InTouch 功能，您可以在 InControl 2 的環境中遠端查看、配置或排除第三方設備的故障，無需額外的 OOBM（Out-of-Band Management）基礎設施，節省成本。

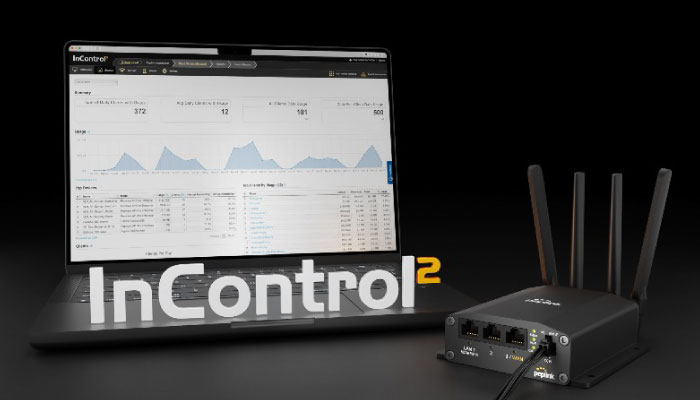

安心管理
使用 InControl 2 雲端端點管理系統，您可以輕鬆掌控 BR1 Mini。產出多種報告、推送配置，並遠端管理任何 Peplink 設備，實現靈活運營。

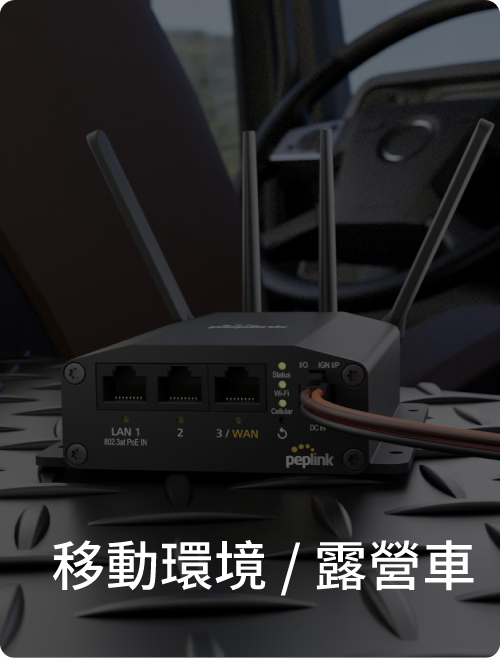

準備好進行任何部署
為什麼選擇 BR1 Mini？

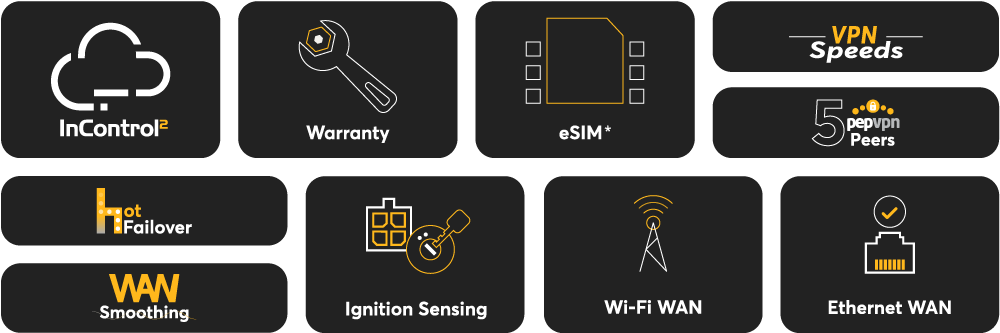

BR1 Mini 現已支持 PrimeCare，提供 InControl 2、eSIM 相容性、增強 VPN 吞吐量、更多 PepVPN 節點、WAN、Wi-Fi WAN、Hot Failover、平滑技術及保固的全面支持。
* eSIM available with Firmware 8.4.0 or above.
^ With Firmware 8.3.1, PrimeCare includes all feature pack features (WAN Activation, Wi-Fi WAN, Hot Failover & Smoothing).
使用SpeedFusion Connect
應用程序輕鬆進行網路管理

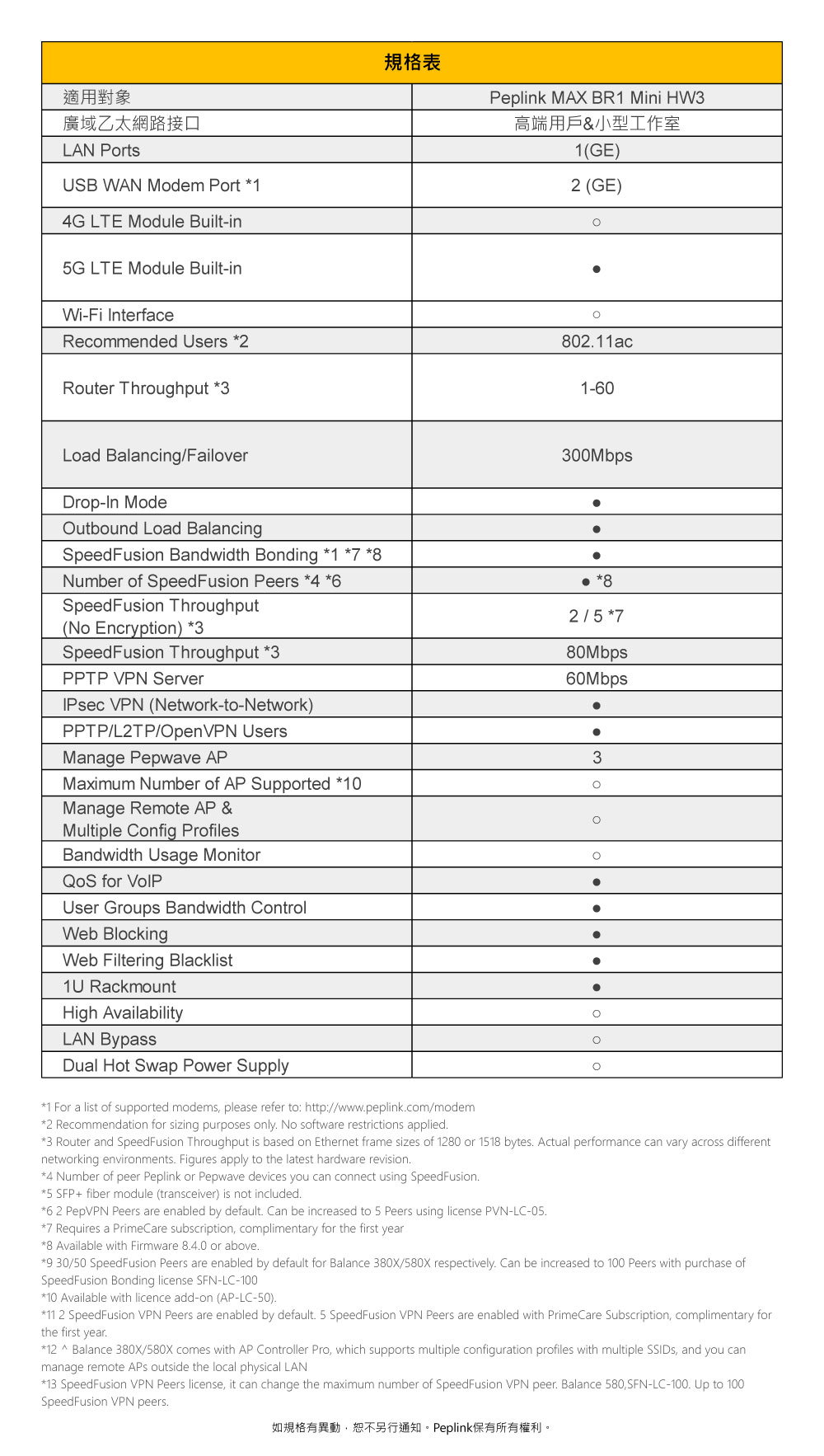

規格表 | |

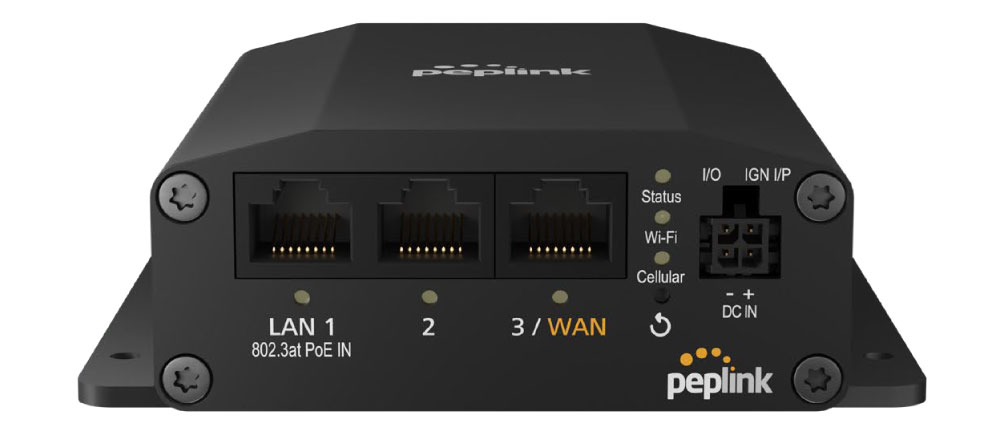

型號 | Peplink MAX BR1 Mini HW3 |
適用對象 | 高端用戶&小型工作室 |
廣域乙太網路接口 | 1(GE)*6*15 , 1 Cellular |
LAN Ports | 2 (GE) |
USB WAN Modem Port*1 | ○ |
4G LTE Module Built-in | ● |
5G LTE Module Built-in | ○ |
Wi-Fi Interface | 802.11ac |
Recommended Users *2 | 1-60 |
Router Throughput*3 | 300Mbps |
Load Balancing & Failover | ● |
Drop-In Mode | ● |
Outbound Load Balancing | ● |
SpeedFusion Bandwidth Bonding*7 *17 | ●*6 |
Number of SpeedFusion VPN Peers*4 | 2 / 5*10 |
SpeedFusion VPN Throughput (No Encryption)*3 | 80Mbps |
SpeedFusion VPN Throughput*3 | 60Mbps |
PPTP VPN Server | ● |
IPsec VPN (Network-to-Network) *18 | ● |
Maximum PPTP / L2TP / OpenVPNUsers | 3 |
Peplink AP Series Management | ○ |
Maximum Number of AP Supported | ○ |
Remote AP & Multiple ConfigProfiles Management | ○ |
Bandwidth Usage Monitoring | ● |
QoS for VoIP and E-Commerce | ● |
User Groups Bandwidth Control | ● |
Application and Web Blocking | ● |
Web Content Filtering | Lite |
1U Rackmount | ○ |
High Availability | ● |
LAN Bypass | ○ |
Dual Hot Swap Power Supply | ○ |
*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
如規格有異動，恕不另行通知。Peplink保有所有權利。
