★最大支援2000個使用者
★24Gb雙向傳輸速度(上傳+下載)
★提供 2 x FlexModules(10Gx4 SFP+ /GEx8 Port(PoE+) / SIM injector) (*需加購擴充模組)
★FlexModules : 10Gx4 SFP+ / GEx8 Port(PoE+) 可 WAN/LAN 切換
★可支援4G/5G 網路進行線路備援 (*需加購擴充模組)
★支援 Peplink 獨家 eSIM Data Plans方案

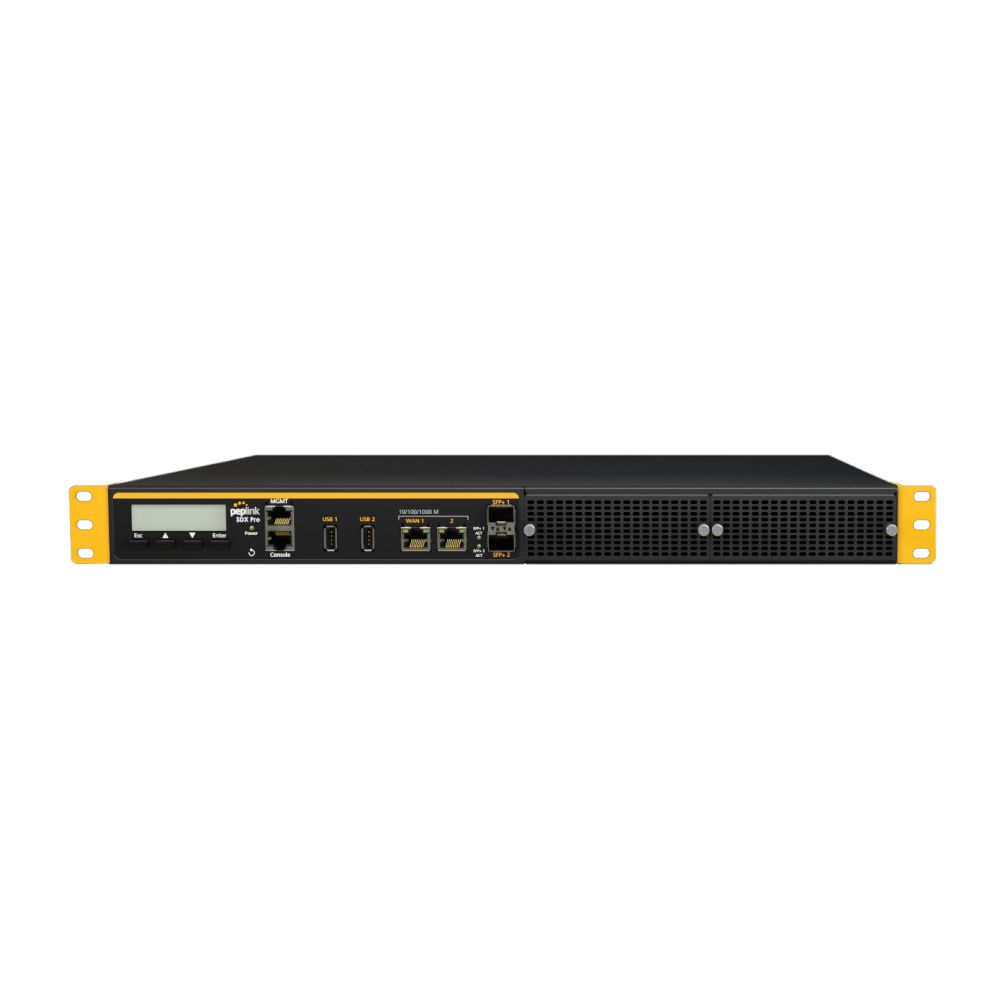

除了 SDX 的強大功能外，SDX Pro 還提供更大的靈活性和功能性。
SDX 支援 FlexModule，讓您能夠根據自己的選擇自訂路由器，
支援邊緣運算，因此可以將網站、應用程式和 Docker 容器傳送到連接的裝置。

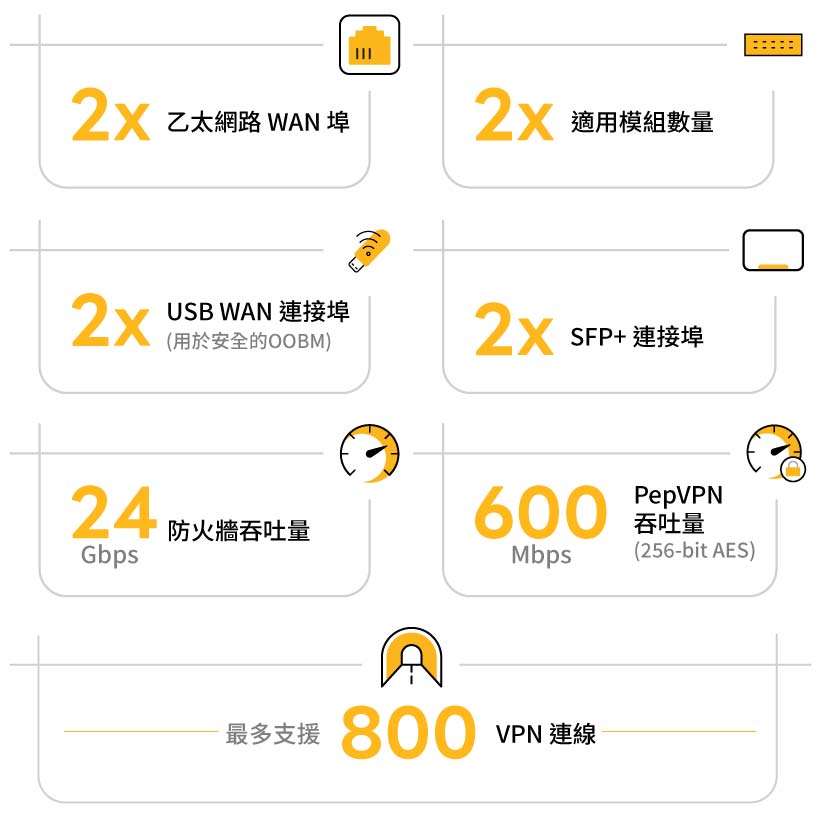

產品特色一覽

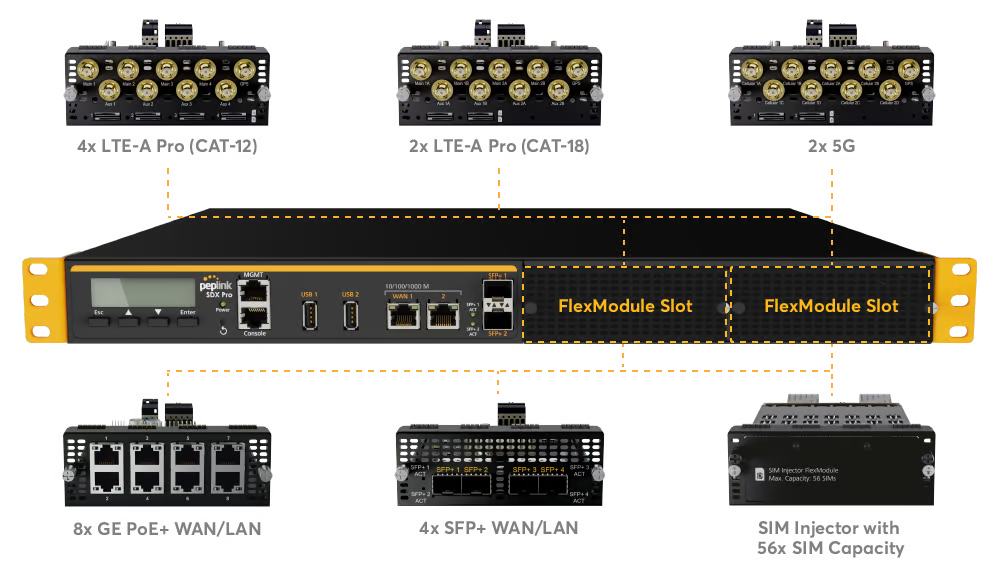

多模組設計，靈活擴展
4G/5G 蜂巢 WAN
為企業網路新增4G/5G備份。添加多個蜂窩 FlexModules，以便在任何地方實現快速、牢不可破的連接。
8x copper WAN/LAN
在 WAN 上連接支援 PoE 的數據機，或在 LAN 上連接攝影機、IP 電話和 Wi-Fi AP 等 PoE 設備。
4x 光纖 WAN/LAN
透過光纖 WAN 和 LAN 交換器，打造全光纖網路環境。
支援最多 56x SIM 卡
將 SIM 卡從 FlexModule 傳送到任何地方的 Peplink 蜂窩路由器。最多支援 56 張 SIM 卡。

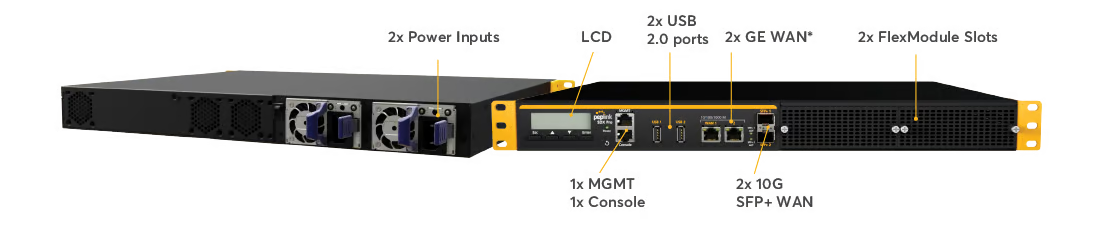

SDX Pro 具有足夠的吞吐量來處理任何高頻寬企業分公司或行動部署。
邊緣運算能力
網站
虛擬機
Docker 容器
應用程式
SDX Pro 是一種一體化託管解決方案，可將 Docker 容器、應用程式和網站傳送到其本機網路。透過在網路邊緣附近託管資源，您可以減少延遲並提高應用程式的回應速度。

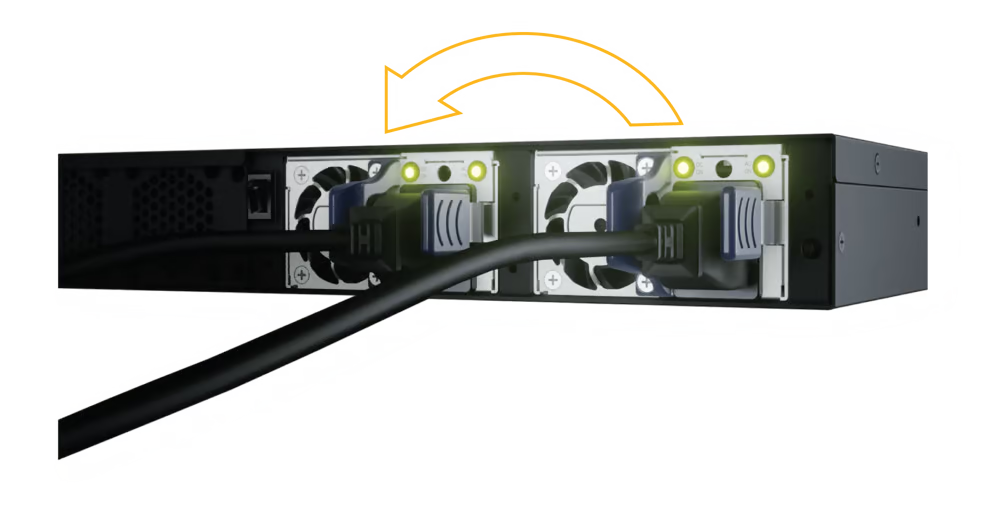

不間斷電源
SDX Pro 配備兩個電源輸入和兩個熱插拔電源。只需一個即可運行，即使電纜斷開或電源因任何原因斷電，也能確保持續供電。
規格表 | |
Model | Peplink SDX Pro |
適用對象 | 中大型企業 |
廣域乙太網路接口 | 2(10G SFP+) *5 & 2(GE) |
LAN Ports | 2 (GE) -wan*16 |
USB WAN Modem Port*1 | 2 |
4G LTE Module Built-in | ● |
5G LTE Module Built-in | ● |
Wi-Fi Interface | ○ |
Recommended Users *2 | 500-2000 |
Router Throughput*3 | 24 Gbps |
Load Balancing & Failover | ● |
Drop-In Mode | ● |
Outbound Load Balancing | ● |
SpeedFusion Bandwidth Bonding*7 *17 | ● |
Number of SpeedFusion VPN Peers*4 | 800 |
SpeedFusion VPN Throughput (No Encryption)*3 | 1Gbps |
SpeedFusion VPN Throughput*3 | 600Mbps |
PPTP VPN Server | ● |
IPsec VPN (Network-to-Network) *18 | ● |
Maximum PPTP / L2TP / OpenVPNUsers | 500 |
Peplink AP Series Management | ● |
Maximum Number of AP Supported | 2000 |
Remote AP & Multiple ConfigProfiles Management | ● |
Bandwidth Usage Monitoring | ● |
QoS for VoIP and E-Commerce | ● |
User Groups Bandwidth Control | ● |
Application and Web Blocking | ● |
Web Content Filtering | Full |
1U Rackmount | ● |
High Availability | ● |
LAN Bypass | ○ |
Dual Hot Swap Power Supply | ● |
電源輸入 | AC input 100V-240V |
耗電 | 140W System , 420W PoE+ Power Budget |
尺寸 | 17.2 x 13.3 x 1.7 inches / 438 x 340 x 44 mm |
重量 | 15.9 pounds / 7.2 kg |
操作溫度 | 32° – 104°F / 0° – 40°C |
濕度 | 5% – 90% (non-condensing) |
認證 | FCC, IC, CE |
保固 | 1-Year Limited Warranty |
包裝內容 | Balance SDX Pro SDX Pro 底座機殼 1U 19″ 英寸機架安裝支架 (ACW-752) L型安裝支架 (ACW-750) 2x 電源線 (ACW-614) 橡膠防滑墊 |
SIM 選擇 | Mini-SIM (2FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM |
*1 For a list of supported USB modems, please refer to: http://www.peplink.com/modem
*2 Recommendation for sizing purposes only. No software restrictions applied.
*3 Router and SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
*4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion.
*5 SFP+ fiber module (transceiver) is not included.
*6 Requires a PrimeCare subscription, complimentary for the first year.
*7 Available with Firmware 8.4.0 or above.
*8 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100
*9 Available with licence add-on (AP-LC-50).
*10 2 Speed Fusion VPN Peers are enabled by default. 5 Speed Fusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
*11 Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN
*12 SpeedFusion VPN Peers license, it can change the maximum number of SpeedFusion VPN peer. Balance 580,SFN-LC-100. Up to 100 SpeedFusion VPN peers.
*13 optional flexmodule include : 8x GE PoE+ Module , 4x SFP+ Module , SIM Injector Module others SIM functions.
*14 optional flexmodule include : 4G/5G SIM and DSL functions.
*15 Available with PrimeCare subscription or a feature pack add-on license.
*16 WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin
*17 Available with PrimeCare Subscription, complimentary for the first year.PrimeCare Enables Ethernet WAN, Wi-Fi WAN, Hot Failover, andSmoothing. Alternatively, without a PrimeCare Subscription, Feature packlicense (MAX-BR1-MINI-FP) is required to activate the perpetual license forthe aforementioned features.
*18 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
如規格有異動，恕不另行通知。Peplink保有所有權利。
