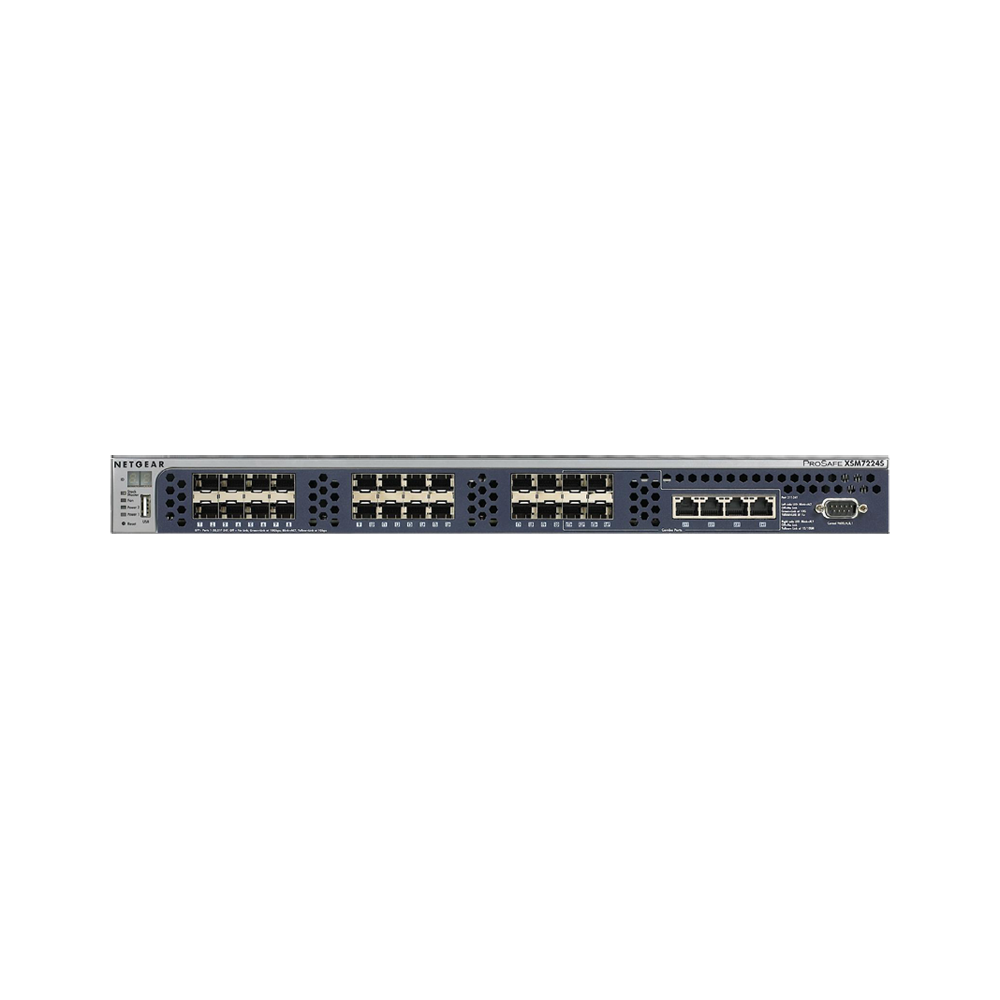

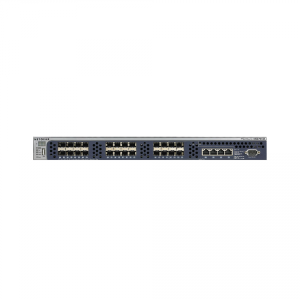

XSM7224S

產品規格

FeaturesXSM7224S
IEEE Network Protocol and Standards compatibility· 802.3i 10BASE-T
· 802.3u 100BASE-TX
· 802.3z 1000BASE-X
· 802.3ab 1000BASE-T
· 802.3ae 10000BASE-Ethernet
· 802.3an 10GBASE-T
· 802.3aq 10GBASE-LRM
· 802.3az EEE
· 802.3x flow control
Switch management· Port mirroring support
· SNMP v1, v2c, v3
· RFC1757 RMON 1 groups 1, 2, 3, and 9 , RFC1213 MIB II
· RFC1643 Ethernet Interface MIB
· RFC1493 bridge MIB
· RFC2131 DHCP client (and BootP)
· RFC2138 RADIUS client
· Broadcast storm control
· Telnet sessions for management CPU (5)
· Ping support
· ARP support
· Private enterprise MIB
· Configuration file upload, download (TFTP)
· Runtime image download (TFTP)
· Command Line Interface
· Web-based graphic user interface
· Simple Network Time Protocol (SNTP)
· Syslog
· SSLv3/TLSv1.0 Web security
· Secured Shell (SSHv1, v2)
Layer 2 services· 802.1Q Static VLAN (Up to 1k)
· 802.1p Class of Service (CoS)
· 802.1D Spanning Tree Protocol (STP)
· 802.1w Rapid Spanning Tree Protocol (RSTP)
· 802.1s Multiple Spanning Tree Protocol (MSTP)
· 802.3ad Link Aggregation (LACP)
· IGMP v1, v2 Snooping Support
· DHCP L2 Relay
· UDP relay
· SNTP
· SNMP v1/v2/v3
· LLDP
· ISDP
· MLD snooping
Layer 3 services· VLAN routing
· Port routing
QoS· DiffServ QoS
System Service· DHCP, BOOTP Relay
· DHCP server
Security· Radius
· TACACS+
· 802.1x
· MAC filter
· Port Security
· Protected Port
· Private Group
· Storm Control
· DHCP Snooping
· IP Source Guard
· Dynamic ARP Inspection
· Captive Portal
· MAC ACL(inbound/outbound)
· IP ACL(inbound/outbound)
Interface (Auto Uplink on all RJ-45 ports)· 4 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T
· 24 SFP/SFP+ for SFP/SFP+ modules
· 2 NETGEAR APS300W Slots
· 1 USB Type A Connector
· 2 NETGEAR AFT200 Slots
· RS-232 console port
Bandwidth480 Gbps
Address database size32K MAC addresses per system
10/100/1000 buffer memoryMax support 2-MB buffer memory
Mean time between failure (MTBF)180,178 hours @ 25°C
68,419 hours @ 55° C
Performance· Forwarding modes: Store-and-forward
· Network latency:
- Less than 80 microseconds for 64-byte frames in store-and-forward mode for 10 Mbps to 100 Mbps transmission
- 3.245 us for 64-byte frames for 1000 Mbps to 1000 Mbps transmission
- 1.59 us for 64-byte frames for 10G to 10G transmission
· Addressing: 48-bit MAC address
· Acoustic noise: (ANSI-S10.12): <60 dB @ 25°C ambient temperature
· Heat dissipation: 666.42 Btu/hr
Power consumption300 W maximum 100–240VAC, 50 –60 Hz universal input when PoE output 384W
Dimensions (W x D x H)17.32 x 16.92 x 1.7 inch (440 x 430 x 43 mm)
EnvironmentOperating:
· Temperature: 32° to 122°F (0° to 50°C)
· Humidity: 90% maximum relative humidity, noncondensing
· Altitude: 10,000 ft (3,000 m) maximum
Storage:
· Temperature: – 4° to 158°F (–20° to 70°C)
· Humidity: 95% maximum relative humidity, noncondensing
· Altitude: 10,000 ft (3,000 m) maximum
Electromagnetic emissions and immunityCE mark, commercial, FCC Part 15 Class A, VCCI Class A, Class A EN 55022 (CISPR 22) Class A, Class A C-Tick , EN 50082-1, EN 55024
SafetyCE mark, commercial, CSA certified (CSA 22.2 #950), UL listed (UL 1950)/cUL IEC950/EN60950
保固台灣公司貨享5年保固
