型號

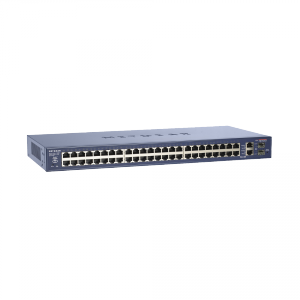

FS750T2

10/100Mbps 連接埠數量

48 port

1G 連接埠(combo)

2 (combo)

1G 光纖埠 (combo)

2 (combo)

MAC位址表大小

8K

緩衝記憶體

512KB

風扇

無風扇

Acoustic Noise Level @25C (dBA)

0

MTBF

59,800 hrs

L2 Services - VLANS

VLAN

64

IEEE 802.1Q VLAN Tagging

Yes

Port- based VLAN

Yes

IP based VLANs

No

MAC based VLANs

No

Voice VLAN

No

Network Security

IEEE 802.1x Radius Port Access Authentication

No

Guest VLAN

No

RADIUS Accounting

No

MAC lockdown by the number of MACs

No

Network Storm Protection, DoS

No

Broadcast, Unicast, Multicast DoS Protection

No

DoS attacks

No

IP-based ACLs

No

MAC (Trusted MAC)

No

L4 ACL

No

Protected Port

No

L2 Services - Availability

IEEE 802.3ad - LAGs

No

LACP

6 Static LAGs with max of 8

members in each LAG

Broadcast Storm Contro

No

IEEE 802.3x (Full Duplex and Flow Control)

Yes

IEEE 802.1D Spanning Tree Protocol

No

IEEE 802.1w Rapid Spanning Tree

No

IEEE 802.1s Multiple Spanning Tree

No

BPDU Guard

No

DoS Prevention

No

L2 Services - Multicast Filtering

IGMP Snooping (v1, v2c and v3)

No

IGMP Snooping?queries

No

Block unknown Multicast

No

L3 Services - DHCP

DHCP Filter

No

DHCP Client

Yes

Network Monitoring and Discovery Services

802.1ab LLDP and LLDP-MED

No

SNMP

v1 and v2c

RMON 1,2,3,9

No

ifTable

Yes

Quality of Service

Number of Priority Queues

4

TCP/UDP-baesd QoS

No

Rate limiting

No

DiffServ QoS

No

IEEE 802.1p COS

Yes

Dst MAC and IP

No

IPv4 DSCP

No

IPv4 TOS

No

Strick, or WRR (Weighted Round Robin)

WRR

Auto-VoIP

No

Auto Video

No

Port Mirroring (ingress and egress)

Yes

IEEE Network Protocols

• IEEE 802.3 Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3x Full-duplex Flow Control
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.3 af (PoE)
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)

Management

Password management

Yes

Configurable Management VLAN

No

Admin access control via Radius

No

Admin access control via TACACS+

No

Web browser-based graphical user interface (GUI)

Yes

Smart Control Center (SCC) for multi-switch management

SmartWizard

Dual Software (firmware) image

No

Dual Configuration file

No

Cable Test utility

No

File transfers (uploads, downloads)

TFTP only

HTTP Download (firmware)

No

LEDs

Per port

Speed, Link, Activity

Per device

Power

硬體規格

外觀尺寸

440x205x43 mm

重量

3.2 kg

架設方式

機架式

Power Consumption

Worst case, all ports used, line-rate traffic,

max PoE

19.65w

Environmental Specifications

操作

運作環境溫度

32° to 104°F (0° to 40°C)

運作環境濕度

90%最大相對溼度，無冷凝

運作環境高度

10,000 ft (3,000 m) maximum

Storage

Storage Temperature

– 4° to 158°F (–20° to 70°C)

運作環境濕度

95%最大相對溼度，無冷凝

運作環境高度

10,000 ft (3,000 m) maximum

Electromagnetic Emissions and Immunity

Certifications

CE mark, commercial

FCC Part 15 Class A, VCCI Class A

Class A EN 55022 (CISPR 22) Class A

Class A C-Tick

EN 61000

EN 55024

CCC (except FS526T)

Safety Certifications

Certifications

CE mark, commercial

CSA certified (CSA 22.2 #950)

UL listed (UL 1950)/cUL IEC 950/EN 60950

保固
