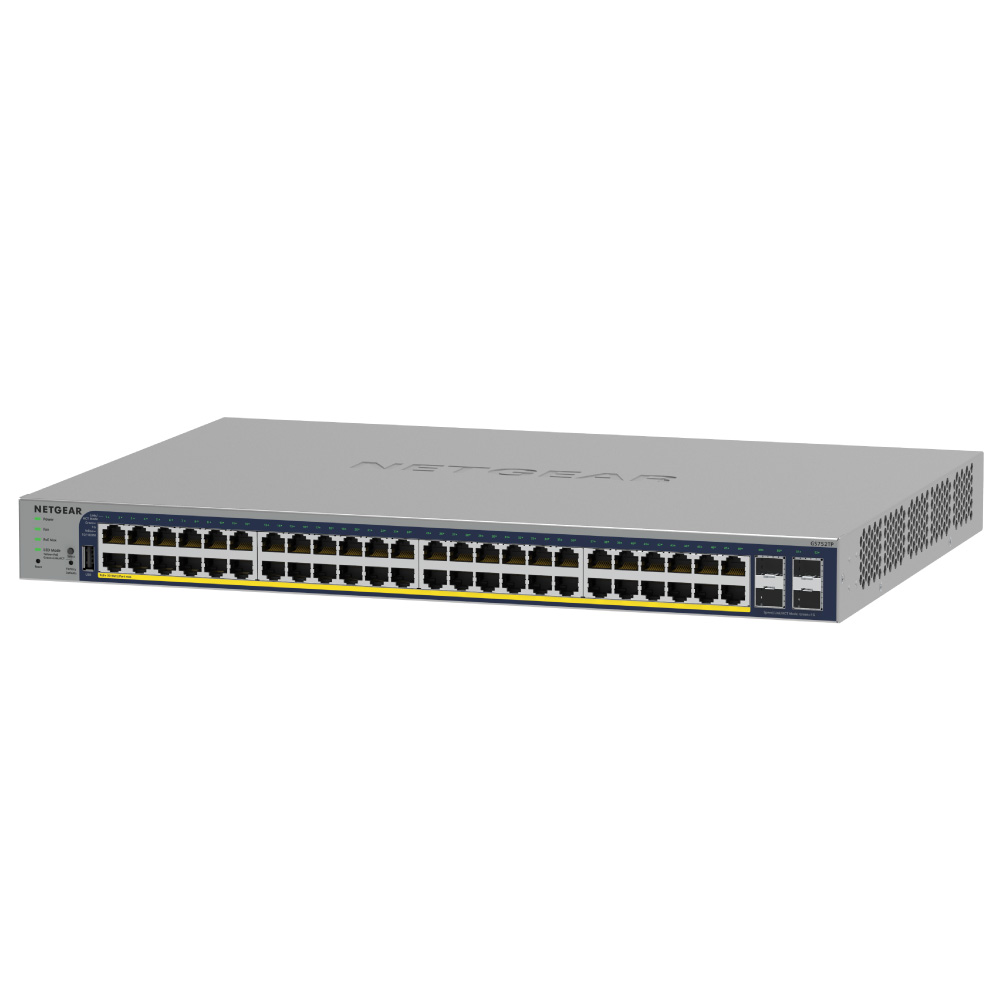

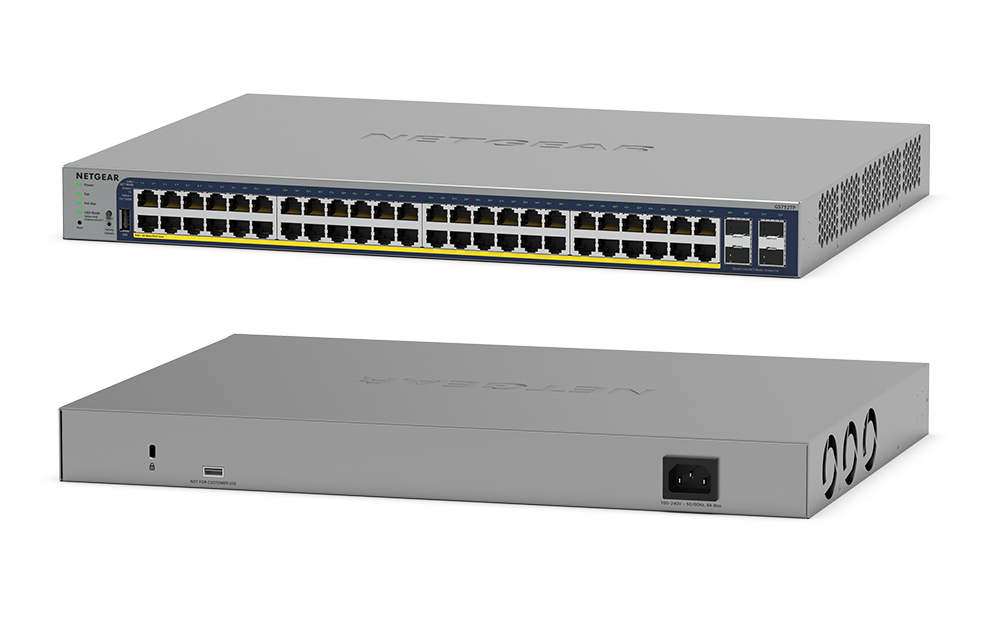

PoE交換器-GS752TP
48個GbE RJ-45 PoE/PoE+ 連接埠
金屬外殼
有效提高散熱及穩定度
智能網管功能,隨插即用
支援NETGEAR Insight 遠程監控管理網路
現在購買就贈送一年 Insight Pro 訂閱服務
支援雲管理、智能網管功能
經過嚴格測試十分耐用
5年保固,故障換機
NETGEAR Insight 安裝步驟
Features | GS752TPv2 |
10M/100M/1G RJ-45 copper ports | 48 |
PoE / PoE+ ports | 48 PoE+ (380W PoE budget) |
1G SFP (fiber) ports | 4 (dedicated) |
USB port (for config file upload/backup & firmware updates) | Yes |
UNIFIED NETWORK MANAGEMENT (DISCOVERY, SETUP, MONITORING, AND MANAGEMENT) THROUGH NETGEAR INSIGHT CLOUD MANAGEMENT | |
Discovery, setup, monitoring and management | NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser |
Remote/Cloud management | Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal |
Centralized network configuration (policies) | Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs |
Device auto-join and configure (zero-touch provisioning) | Additional Insight Managed devices added to the network automatically inherit the network configuration |
Multi-site, multi-network single pane-of-glass view | Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal |
Multi-switch, multi-port concurrent configu - ration for ACLs, VLANs, QoS, PoE, etc | Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard |
PERFORMANCE SPECIFICATION | |
CPU | MIPS-34Kc 700MHz Single Core |
Packet buffer memory (Dynamically shared across only used ports) | 1.5 MB |
Forwarding modes | Store-and-forward |
Bandwidth | 104 Gbps |
Priority queues | 8 |
Priority queuing | Weighted Round Robin (WRR) |
MAC address database size (48-bit MAC addresses) | 16K |
Multicast groups | 512 |
Number of IPv4 static routes | 32 |
Number of IPv6 static routes | 32 |
Number of VLANs | 256 |
Number of ARP cache entries | 512 ARP |
Number of DHCP snooping bindings | 256 |
Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs (ingress) |
Packet forwarding rate (64 byte packet size) (Mpps) | 77.38 |
Jumbo frame support (bytes) | Up to 10K packet size |
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 36.94dBA |
Mean Time Between Failures (MTBF) @ 25°C | 1,737,411 hours |
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames) | 8.314µs; 8.612µs; 8.451µs |
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) | 3.614µs; 3.545µs; 3.628µs |
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) | 2.980µs; 3.101µs; 3.179µs |
L2 SERVICES - VLANS | |
IEEE 802.1Q VLAN tagging | Yes |
IP-based VLANs | Yes |
MAC-based VLANs | Yes |
Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED. |
Auto-Video VLAN | Yes |
GARP with GVRP | Yes |
Private VLAN | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
IEEE 802.3ad - LAGs (LACP) | Yes |
IEEE 802.3x (full duplex and flow control) | Yes |
IEEE 802.1D Spanning Tree Protocol | Yes |
IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
Layer 2 DHCP Relay | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2 and v3) | Yes |
MLD snooping support (v1 and v2) | Yes |
IGMP snooping querier (v2) | Yes |
MLD snooping querier (v1) | Yes |
Multicast VLAN Registration (MVR) | Yes |
L3 SERVICES - DHCP | |
DHCP client | Yes |
DHCP snooping | Yes |
L3 SERVICES - ROUTING | |
IPv4 static routing | 32 |
IPv6 static routing | 32 |
VLAN routing | Yes |
Host ARP table (number of entries) | 512 ARP |
ICMP Router Discovery Protocol (IRDP) | Yes |
Number of IP VLAN interfaces (routed VLANs) | 15 |
LINK AGGREGATION | |
IEEE 802.3ad - LAGs (LACP) | Yes |
Manual Static LAG | Yes |
# of Static or LACP LAGs # of members in each LAG | 16 LAGs with max 8 ports in each LAG |
NETWORK MONITORING AND DISCOVERY SERVICES | |
802.1ab LLDP | Yes |
SNMP | v1, v2c, v3 |
RMON group 1,2,3,9 | Yes |
NETWORK SECURITY | |
IEEE 802.1x | Yes |
Guest VLAN | Yes |
RADIUS-based VLAN assignment via .1x | Yes |
MAC-based .1x | Yes |
RADIUS accounting | Yes |
Access Control Lists (ACLs) | L2 / L3 / L4 ingress |
IP-based ACLs (IPv4 and IPv6) | Yes |
MAC-based ACLs | Yes |
TCP/UDP-based ACLs | Yes |
MAC lockdown | Yes |
MAC lockdown by the number of MACs | Yes |
Control MAC # Dynamic learned entries | 4096 |
Control MAC # static entries | 48 |
IEEE 802.1x RADIUS port access authentication | Yes |
Port-based security by locked MAC addresses | Yes |
Dynamic ARP inspection | Yes |
Broadcast, unicast, multicast DoS protection | Yes |
DoS attacks prevention | Yes |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Yes ingress and egress |
Port-based QoS | Yes |
Support for IPv6 fields | Yes |
DiffServ QoS | Yes ingress |
IEEE 802.1p COS | Yes |
Destination MAC and IP | Yes |
IPv4 and v6 DSCP | Yes |
IPv4 and IPv6 ToS | Yes |
TCP/UDP-based | Yes |
Weighted Round Robin (WRR) | Yes |
Strict priority queue technology | Yes |
Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED |
Auto-Video VLAN | Yes |
IEEE NETWORK PROTOCOLS | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning Tree (RSTP) • IEEE 802.1x RADIUS Network Access Control |
MANAGEMENT, MONITORING & TROUBLESHOOTING | |
Cloud/Remote management | Yes |
Insight mobile app & Insight Cloud Portal management | Yes |
uPnP Discovery | Yes |
Bonjour Discovery | Yes |
Networking monitoring | Yes |
Data/performance logs | Yes |
Centralized network configuration/policies (network-centric management) | Yes |
Device auto-join and configure (zero-touch provisioning) | Yes |
Multi-site, multi-network single pane-of-glass view | Yes |
Multi-switch, multi-port concurrent configuration | Yes |
Network/global password (for all Insight Managed devices on a network) | Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal) |
Password management | Yes |
Configurable management VLAN | Yes |
Admin access control via RADIUS and TACACS+ | Yes |
IPv6 management | Yes |
SNTP client over UDP port 123 | Yes |
SNMP v1/v2c | Yes |
SNMP v3 with multiple IP addresses | Yes |
RMON group 1,2,3,9 | Yes |
Port mirroring | Yes ingress and egress |
Many-to-one port mirroring | 52 |
Web browser-based graphical user interface (GUI) | Yes |
Smart Control Center (SCC) for multi-switch management | Yes |
Dual software (firmware) image | Yes |
Cable test utility | Yes |
TLS/HTTPS Web-based access (version) | Yes (v1.2) |
File transfers (uploads, downloads) | TFTP / HTTP |
HTTP upload/download (firmware) | Yes |
Syslog (RFC 3164) | Yes |
USB port for firmware and config upload/ download | Yes |
LEDS | |
Per port | Speed, Link, Activity; or PoE in different mode |
Per device | Power, Fan, PoE Max |
PHYSICAL SPECIFICATIONS | |
Dimensions (W x D x H) | 440 x 310 x 43.2 mm (17.3 x 12.2 x 1.7 in) |
Weight | 4.93 kg (10.86 lb) |
POWER CONSUMPTION | |
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) | 446W |
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) | 66W |
Iddle power consumption (all ports link-down standby) (Watts) | 28W |
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) | 1,525.32 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
Fan | 2 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating | |
Operating temperature | 0° to 50°C (32° to 122°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
Storage | |
Storage temperature | –20° to 70°C (– 4° to 158°F) |
Humidity | 95% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
Certifications | CE mark, commercial FCC Part 15 Class A, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 55024 CCC 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS CISPR 22:2009+A1:2010 CLASS A |
SAFETY | |
Certifications | CB mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS 60950.1:2015 CCC (China Compulsory Certificate) |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
GS752TP 規格
Features | GS752TPv2 |
10M/100M/1G RJ-45 copper ports | 48 |
PoE / PoE+ ports | 48 PoE+ (380W PoE budget) |
1G SFP (fiber) ports | 4 (dedicated) |
USB port (for config file upload/backup & firmware updates) | Yes |
UNIFIED NETWORK MANAGEMENT (DISCOVERY, SETUP, MONITORING, AND MANAGEMENT) THROUGH NETGEAR INSIGHT CLOUD MANAGEMENT | |
Discovery, setup, monitoring and management | NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser |
Remote/Cloud management | Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal |
Centralized network configuration (policies) | Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs |
Device auto-join and configure (zero-touch provisioning) | Additional Insight Managed devices added to the network automatically inherit the network configuration |
Multi-site, multi-network single pane-of-glass view | Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal |
Multi-switch, multi-port concurrent configu - ration for ACLs, VLANs, QoS, PoE, etc | Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard |
PERFORMANCE SPECIFICATION | |
CPU | MIPS-34Kc 700MHz Single Core |
Packet buffer memory (Dynamically shared across only used ports) | 1.5 MB |
Forwarding modes | Store-and-forward |
Bandwidth | 104 Gbps |
Priority queues | 8 |
Priority queuing | Weighted Round Robin (WRR) |
MAC address database size (48-bit MAC addresses) | 16K |
Multicast groups | 512 |
Number of IPv4 static routes | 32 |
Number of IPv6 static routes | 32 |
Number of VLANs | 256 |
Number of ARP cache entries | 512 ARP |
Number of DHCP snooping bindings | 256 |
Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs (ingress) |
Packet forwarding rate (64 byte packet size) (Mpps) | 77.38 |
Jumbo frame support (bytes) | Up to 10K packet size |
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 36.94dBA |
Mean Time Between Failures (MTBF) @ 25°C | 1,737,411 hours |
100M Copper Latency (64-byte; 1518-byte; 9216-byte frames) | 8.314µs; 8.612µs; 8.451µs |
1G Copper Latency (64-byte; 1518-byte; 9216-byte frames) | 3.614µs; 3.545µs; 3.628µs |
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames) | 2.980µs; 3.101µs; 3.179µs |
L2 SERVICES - VLANS | |
IEEE 802.1Q VLAN tagging | Yes |
IP-based VLANs | Yes |
MAC-based VLANs | Yes |
Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED. |
Auto-Video VLAN | Yes |
GARP with GVRP | Yes |
Private VLAN | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
IEEE 802.3ad - LAGs (LACP) | Yes |
IEEE 802.3x (full duplex and flow control) | Yes |
IEEE 802.1D Spanning Tree Protocol | Yes |
IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
Layer 2 DHCP Relay | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2 and v3) | Yes |
MLD snooping support (v1 and v2) | Yes |
IGMP snooping querier (v2) | Yes |
MLD snooping querier (v1) | Yes |
Multicast VLAN Registration (MVR) | Yes |
L3 SERVICES - DHCP | |
DHCP client | Yes |
DHCP snooping | Yes |
L3 SERVICES - ROUTING | |
IPv4 static routing | 32 |
IPv6 static routing | 32 |
VLAN routing | Yes |
Host ARP table (number of entries) | 512 ARP |
ICMP Router Discovery Protocol (IRDP) | Yes |
Number of IP VLAN interfaces (routed VLANs) | 15 |
LINK AGGREGATION | |
IEEE 802.3ad - LAGs (LACP) | Yes |
Manual Static LAG | Yes |
# of Static or LACP LAGs # of members in each LAG | 16 LAGs with max 8 ports in each LAG |
NETWORK MONITORING AND DISCOVERY SERVICES | |
802.1ab LLDP | Yes |
SNMP | v1, v2c, v3 |
RMON group 1,2,3,9 | Yes |
NETWORK SECURITY | |
IEEE 802.1x | Yes |
Guest VLAN | Yes |
RADIUS-based VLAN assignment via .1x | Yes |
MAC-based .1x | Yes |
RADIUS accounting | Yes |
Access Control Lists (ACLs) | L2 / L3 / L4 ingress |
IP-based ACLs (IPv4 and IPv6) | Yes |
MAC-based ACLs | Yes |
TCP/UDP-based ACLs | Yes |
MAC lockdown | Yes |
MAC lockdown by the number of MACs | Yes |
Control MAC # Dynamic learned entries | 4096 |
Control MAC # static entries | 48 |
IEEE 802.1x RADIUS port access authentication | Yes |
Port-based security by locked MAC addresses | Yes |
Dynamic ARP inspection | Yes |
Broadcast, unicast, multicast DoS protection | Yes |
DoS attacks prevention | Yes |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Yes ingress and egress |
Port-based QoS | Yes |
Support for IPv6 fields | Yes |
DiffServ QoS | Yes ingress |
IEEE 802.1p COS | Yes |
Destination MAC and IP | Yes |
IPv4 and v6 DSCP | Yes |
IPv4 and IPv6 ToS | Yes |
TCP/UDP-based | Yes |
Weighted Round Robin (WRR) | Yes |
Strict priority queue technology | Yes |
Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
Auto-VoIP | Yes, based on protocols (SIP). Prioritzes traffic to a higher queue |
Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED |
Auto-Video VLAN | Yes |
IEEE NETWORK PROTOCOLS | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning Tree (RSTP) • IEEE 802.1x RADIUS Network Access Control |
MANAGEMENT, MONITORING & TROUBLESHOOTING | |
Cloud/Remote management | Yes |
Insight mobile app & Insight Cloud Portal management | Yes |
uPnP Discovery | Yes |
Bonjour Discovery | Yes |
Networking monitoring | Yes |
Data/performance logs | Yes |
Centralized network configuration/policies (network-centric management) | Yes |
Device auto-join and configure (zero-touch provisioning) | Yes |
Multi-site, multi-network single pane-of-glass view | Yes |
Multi-switch, multi-port concurrent configuration | Yes |
Network/global password (for all Insight Managed devices on a network) | Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal) |
Password management | Yes |
Configurable management VLAN | Yes |
Admin access control via RADIUS and TACACS+ | Yes |
IPv6 management | Yes |
SNTP client over UDP port 123 | Yes |
SNMP v1/v2c | Yes |
SNMP v3 with multiple IP addresses | Yes |
RMON group 1,2,3,9 | Yes |
Port mirroring | Yes ingress and egress |
Many-to-one port mirroring | 52 |
Web browser-based graphical user interface (GUI) | Yes |
Smart Control Center (SCC) for multi-switch management | Yes |
Dual software (firmware) image | Yes |
Cable test utility | Yes |
TLS/HTTPS Web-based access (version) | Yes (v1.2) |
File transfers (uploads, downloads) | TFTP / HTTP |
HTTP upload/download (firmware) | Yes |
Syslog (RFC 3164) | Yes |
USB port for firmware and config upload/ download | Yes |
LEDS | |
Per port | Speed, Link, Activity; or PoE in different mode |
Per device | Power, Fan, PoE Max |
PHYSICAL SPECIFICATIONS | |
Dimensions (W x D x H) | 440 x 310 x 43.2 mm (17.3 x 12.2 x 1.7 in) |
Weight | 4.93 kg (10.86 lb) |
POWER CONSUMPTION | |
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) | 446W |
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts) | 66W |
Iddle power consumption (all ports link-down standby) (Watts) | 28W |
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr) | 1,525.32 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
Fan | 2 |
ENVIRONMENTAL SPECIFICATIONS | |
Operating | |
Operating temperature | 0° to 50°C (32° to 122°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
Storage | |
Storage temperature | –20° to 70°C (– 4° to 158°F) |
Humidity | 95% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
Certifications | CE mark, commercial FCC Part 15 Class A, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 55024 CCC 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS CISPR 22:2009+A1:2010 CLASS A |
SAFETY | |
Certifications | CB mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS 60950.1:2015 CCC (China Compulsory Certificate) |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
瀚錸科技粉絲專頁
