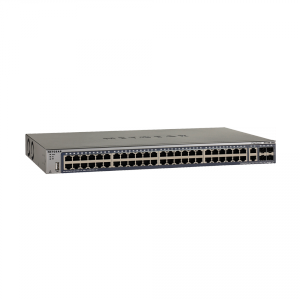

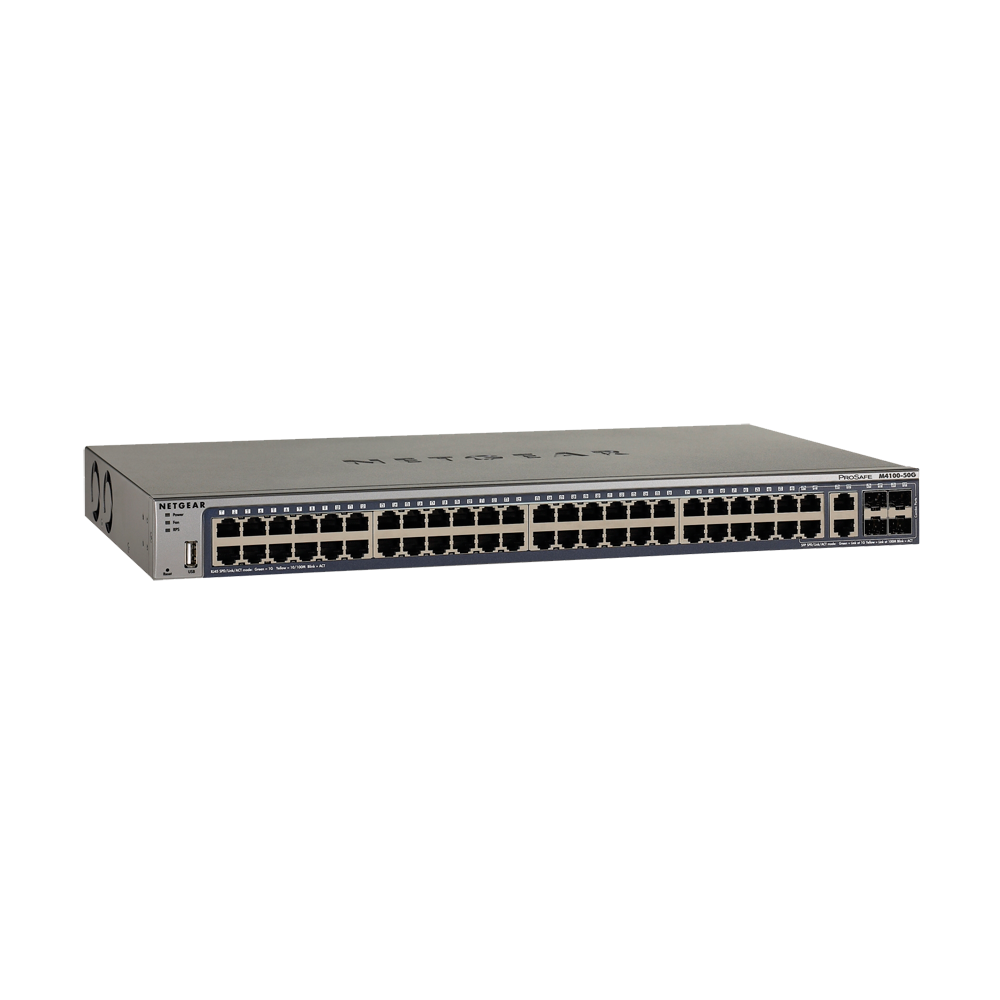

Specification | M4100-50G(GSM7248v2h2) |
Interface (Auto Uplink on all RJ-45 ports) | 50 RJ-45 ports, 10/100/1000 Mbps 4 SFP ports for 100/1000 Mbps 1 USB type A connector RS-232 console port 1 USB mini B console port |
Bandwidth | 100 Gbps |
Weight (Kg) | 3.63 |
Dimensions(W x D x H) (mm) | 440 x 257 x 43.2 |
Mean time between failure (MTBF) | 489,311.0 hrs |
Heat dissipation (Btu/hr) | 168.99 |
Acoustic noise (dB) (ANSI-S10.12) | 37.2 dB @ 25°C |
Maximum power consumption (W) (100–240V AC, 50–60 Hz) | 49.5 |
Specification | M4100-D12G-POE + (GSM5212P) |
Interface (Auto Uplink on all RJ-45 ports) | 12 RJ-45 ports for 10/100/1000 Mbps 2 SFP ports for 100/1000 Mbps 10 IEEE802.3at PoE port (ports 3–12) 2 IEEE802.3at PD port (ports 1–2) 1 USB type A connector RS-232 console port 1 USB mini B console port |
Bandwidth | 24 Gbps |
Weight (Kg) | 2.596 |
Dimensions (W x D x H) (mm) | 328 x 169 x 43.2 |
Mean time between failure (MTBF) | 766,618 hrs |
Heat dissipation (Btu/hr) | 569 |
Acoustic noise (dB) (ANSI-S10.12) | 35.1 dB @ 25dC with AC mode 0dB with PD mode |
Maximum power consumption (W) (100–240V AC, 50–60 Hz) | 167 |
Fast Ethernet Switches | M4100-50-POE (FSM7250P) |
Interface (AutoUplink on all RJ-45 ports) | 48 RJ-45 ports for 10/100 Mbps 2 RJ-45 ports for 10/100/1000 Mbps 2 SFP ports for 100/1000 Mbps 48 IEEE802.3af PoE ports 1 USB type A connector RS-232 console port 1 USB mini B console port |
Bandwidth | 9 Gbps |
Weight (Kg) | 4.96 |
Dimensions (W x D x H) mm | 440 x 310 x 43.2 |
Mean time between failure (MTBF) | 163,019.5 hrs |
Heat dissipation (Btu/hr) | 1,661.39 hrs |
Acoustic noise (dB) (ANSI-S10.12) | 38.9 dB @ 25°C |
Maximum power consumption (W) (100–240V AC, 50–60 Hz) | 486.64 |
Feature | Description |
IEEE Network Protocol and Standards compatibility | · 802.3i 10BASE-T · 802.3u 100BASE-TX · 802.3z 1000BASE-X · 802.3ab 1000BASE-T · 802.3az EEE · 802.3x flow control · 802.3af power over Ethernet · 802.3at power over Ethernet |
Switch management | · Port mirroring support · SNMP v1, v2c, v3 · RFC1757 RMON 1 groups 1, 2, 3, and 9, RFC1213 MIB II · RFC1643 Ethernet Interface MIB · RFC1493 bridge MIB · RFC2131 DHCP client (and BootP) · RFC2138 RADIUS client · Broadcast storm control · Telnet sessions for management CPU (5) · Ping support · ARP support · Private enterprise MIB · Configuration file upload, download · Runtime image download · Command-line interface · Web-based graphic user interface · Simple Network Time Protocol (SNTP) · Syslog · SSLv3/TLSv1.0 web security · Secured Shell (SSHv1, v2) |
Layer 2 services | · 802.1Q Static VLAN (Up to 1 K) · 802.1 p Class of Service (CoS) · 802.1D Spanning Tree Protocol (STP) · 802.1w Rapid Spanning Tree Protocol (RSTP) · 802.1 s Multiple Spanning Tree Protocol (MSTP) · 802.3ad link aggregation (LACP) · IGMP v1, v2 snooping support · MLD snooping · DHCP L2 relay · UDP relay · SNTP · SNMP v1/v2/v3 · LLDP · ISDP |
Layer 3 services | · Static routing |
QoS | · DiffServ QoS |
System Service | · DHCP, BOOTP Relay · DHCP server |
Security | · Radius · TACACS+ · 802.1x · MAC filter · Port security · Protected port · Private group · Storm control · DHCP snooping · IP source guard · Dynamic ARP inspection · MAC ACL (inbound) · IP ACL (inbound) |
Address database size | 16 K MAC addresses per system |
10/100/1000 buffer memory | Max support 1.5 MB buffer memory |
Performance | · Forwarding modes: Store-and-forward · Network latency: < 3.91 us for 64 bytes for 1000 Mbps transmission < 10.194 us for 64 bytes for 100 Mbps transmission |
Addressing | 48-bit MAC address |
Environment | Operating: · Temperature: 32° to 122°F (0° to 50°C) · Humidity: 90% maximum relative humidity, noncondensing · Altitude: 10,000 ft (3,000 m) maximum Storage: · Temperature: –4° to 158°F (–20° to 70°C) · Humidity: 95% maximum relative humidity, noncondensing · Altitude: 10,000 ft (3,000 m) maximum |
Electromagnetic emissions and immunity | CE mark, FCC Part 15 Class A, VCCI Class A, Class A EN 55022 (CISPR 22) Class A, Class A C-Tick, EN 50082-1, EN 55024 |
Safety | CE mark, UL listed (UL 1950)/cUL, CB, CCC |
Security | · Radius · TACACS+ · 802.1x · MAC filter · Port security · Protected port · Private group · Storm control · DHCP snooping · IP source guard · Dynamic ARP inspection · MAC ACL (inbound) · IP ACL (inbound) |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
