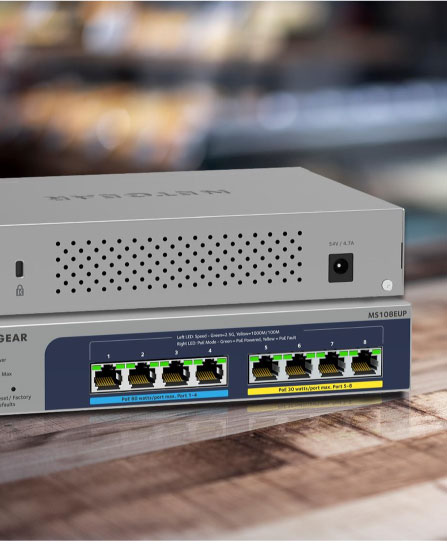

8埠 2.5G Ultra60 PoE++簡易網管交換器
型號 : MS108EUP
具有4個UPoE連接埠 4個PoE+連接埠
總供電瓦數 230W 輸出
✔ 4 個 1G/2.5G PoE+連接埠口
✔ 4 個 1G/2.5G UPoE(PoE++)
連接埠
✔ 無風扇設計，安靜不入塵，
可以安裝在桌面
總供電達 230W

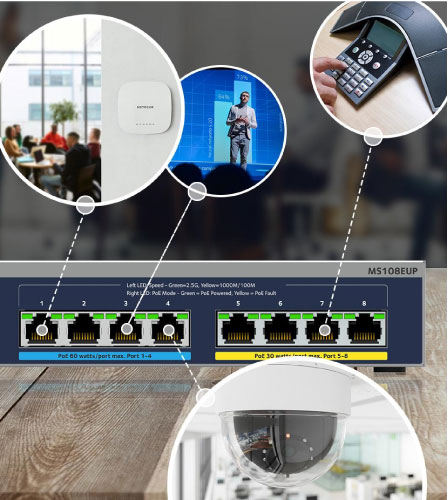

可以連接VoIP電話 / 高速旋轉監視攝影機 / WiFi 6 AP…等設備

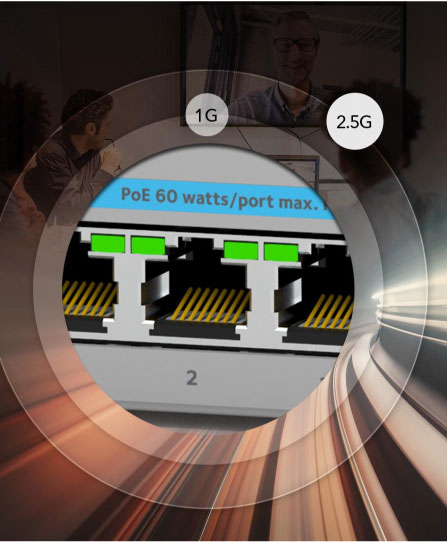

支援
1G or 2.5G
埠口可以依連接設備的需要，自動切換適合的1G/2.5G速度
隨插即用
設定很簡單

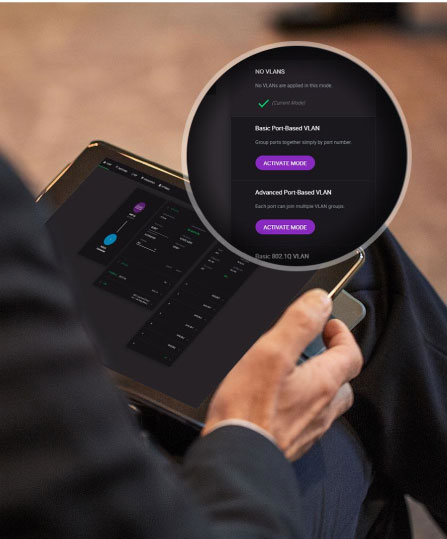

全新的web GUI管理介面
管理 PoE 優先級、調度、每個埠口的功率限制等，以便對所有 PoE 供電設備進行控制。
技術規格
| Features | MS108EUP |
| 100M / 1G / 2.5G RJ-45埠 | 5 |
| 光纖埠 | 0 |
| 外殼 | 金屬 |
| 連接介面 | 金屬 |
| PoE | |
| PoE+ 802.3at Ports (30W/Port) | 4 |
| PoE++ 802.3bt Ports(60W/Port) | 4 |
| 總瓦數 | 230W |
| Advanced PoE 控制 | Yes |
| PoE 排程 | Yes |
| 性能規格 | |
| Forwarding modes | Store-and-forward |
| 背板頻寬 | 40Gbps |
| Max MAC entries | 16K |
| Buffer Size | 1.5MB |
| Energy Efficient Ethernet (IEEE 802.3az)compliant | Yes |
| Priority queuing | WRR |
| Jumbo frame support | 12,000 bytes |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 373,644 hours |
| L2 Services - VLANS | |
| VLAN (# Supported) | 64 |
| IEEE 802.1Q VLAN Tagging | Yes |
| Port-based VLANs | Yes |
| L2 Services - Availability | |
| Link Aggregation/Port Trunking | Yes |
| Number of Static Manual LAGs and # of members | 4 組LAG，每組最大4埠 |
| L2 Services - Multicast Filtering | |
| IGMP snooping (v1, v2, and v3) | Yes |
| Block unknown multicast | Yes |
| Supported Multicast groups | 128 |
| L3 Services - DHCP | |
| DHCP client | Yes |
| Quality of Service | |
| Rate Limiting | Yes |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Port-based VLAN | Yes |
| WRR (Weighted Round Robin) | Yes |
| Strict Priority queue technology | No |
| IEEE Network Protocols | IEEE 802.3 Ethernet |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3u 100BASE-T | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.1p Class of Service | |
| IEEE 802.3az EEE(Energy Effcient Ethernet) | |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.3x Full-duplex Flow Control | |
| IEEE 802.3af PoE | |
| IEEE 802.3at PoE+ | |
| IEEE 802.3bt PoE++ | |
| 管理功能 | |
| 系統密碼 | Yes |
| Web browserbased management GUI | Yes |
| PC Utility | No |
| Port Mirroring | Yes |
| Max number of source ports allowed (one-to-one Port Mirroring) | 1 |
| Many-to-one Port Mirroring | No, 1-to-1 Only |
| Cable Test Utility | Yes |
| 透過Plus Utility (TFTP) 進行韌體更新 | No |
| 透過 Plus Utility 備份設定檔案(Config) | No |
| 設定檔(Config) 匯入 | Yes |
| LEDs 燈號 | |
| Per port | Speed, Link, Activity, PoE |
| Per device | Power, PoE Max |
| 物理規格 | |
| 尺寸(W x D x H) | 210 x 140 x 40 mm |
| 重量 | 0.9 kg |
| 環境規格 | |
| 運作環境 | |
| 運作溫度 | 32° to 104°F (0° to 40°C) |
| 運作濕度(相對) | 90% maximum relative humidity (RH), non-condensing |
| 高度 | 10,000 ft (3,000 m) maximum |
| 儲存環境 | |
| 儲存溫度 | – 4° to 158°F (–20° to 70°C) |
| 儲存濕度(相對) | 95% maximum relative humidity (RH), non-condensing |
| 儲存高度 | 10,000 ft (3,000 m) maximum |
| Electromagnetic Emissions and Immunity | |
| 認證 | CE mark, commercial |
| FCC Part 15 class B | |
| CE/EN55032/24 | |
| VCCI | |
| ACMA | |
| CSA safety | |
| KC | |
| BSMI | |
| 包裝內容物 | 簡易網管交換器x1 |
| AC電源供應器x1 | |
| 牆壁安裝套件 | |
| 橡膠腳 | |
| 快速安裝指南 | |
| 保固 | 5年 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
