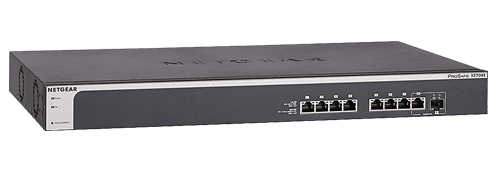

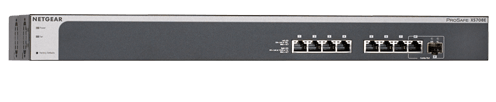

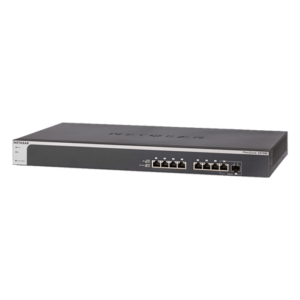

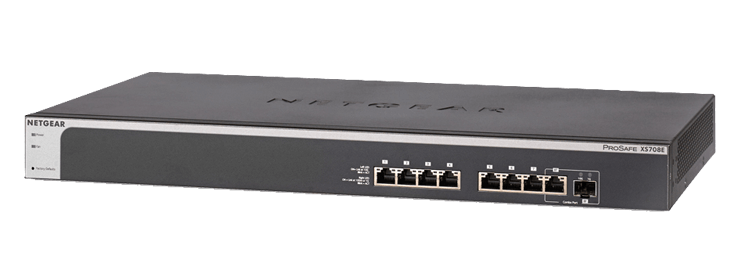

10GbE簡易網管交換器-XS708E
8個10G Base-T Port
1個
10G SFP+ combo Port
隨插即用
市面上唯一的8埠10G交換器
XS708E是NETGEAR ProSAFE簡易網管交換器系列的成員，提供了8個隨插即用的10Gb乙太網路連接埠，並具備基礎的網路管理功能，如：VLAN、QoS、IGMP Snooping、鏈路聚合、速率限制與流量監控等網路優化性能。
使用者可採用標準的RJ45乙太網路介面和現有網路中廣泛使用的Cat6或Cat7線材達到10GbE的連線速率，以最小的改動規模將頻寬從GbE提升到10GbE的網路環境。
NETGEAR ProSAFE XS708E簡易網管交換器是中小型企業、校園實驗室、影音圖像輸出工作室等用戶的理想選擇！
| Features | XS708Ev2 |
|---|---|
| 100M/1G/10G RJ-45 copper ports | 8 |
| 1G/10G SFP+ (fiber) ports | 1 shared (combo) |
| 效能規格 | |
| Packet buffer memory (Dynamically shared across only used ports) | 2MB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 160Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Multicast groups | 128 |
| Number of VLANs | 128 |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 119.0 Mfps |
| Speed / Latency (copper ports) | 100Mbps: <7.38 μs 1Gbps: <3.04 μs 10Gbps: <3.70 μs |
| Speed / Latency (SFP+ fiber port) | 10Gbps: <3.67 μs |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 36.7 dBA |
| Mean Time Between Failures (MTBF) @ 25°C | 397,731 hours |
| L2 SERVICES - VLANS | |
| IEEE 802.1Q VLAN tagging | Yes |
| Port-based VLANs (physical) | Yes |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| Static Manual LAGs (Port Trunking) | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | Yes (IGMP v3 source filtering not supported) |
| IGMP snooping querier | No |
| Block unknown multicast | Yes |
| Static multicast router port | No |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| LINK AGGREGATION | |
| Static Manual LAGs (Port Trunking) | Yes |
| # of Static LAGs / # of members in each LAG | 4 LAGs with max 8 members in each LAG |
| 網路安全性 | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| QUALITY OF SERVICE (QOS) | |
| Port-based rate limiting | Ingress and egress |
| Port-based QoS | Yes |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| IPv4 ToS | Yes |
| TCP/UDP-based | No |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | No |
| 網路通訊協定 | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-LX4) • IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1p Class of Service • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| 管理 | |
| Password management | Yes |
| Web browser-based graphical user interface (GUI) | Yes |
| ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
| Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
| Config file transfers (backup, restore) | Plus Utility or Web GUI |
| Cable test utility | Yes |
| Port mirroring | Yes |
| Max number of source ports allowed (many-to-one port mirroring) | 7 |
| Mirroring port can still work normally? | Yes |
| LEDs提示燈 | |
| Per port | Speed, Link, Activity |
| Per device | Power and Fan |
| 體積與重量 | |
| Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in) |
| Weight | 2.80 kg (6.17 lb) |
| 功耗 | |
| Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 2A max Power cord localized to country of sale |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 43.4 W |
| Min power (link-down standby) (Watts) | 13.7 W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 148.39 BTU Min:: 46.85 BTU |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
| Short cable power reduction | Yes |
| Auto power-down | Yes |
| Fan(s) | 2 |
| 環境需求 | |
| 運作環境 | |
| Operating temperature | 0° to 50°C (32° to 122°F) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications | CE mark, commercial 47 CFR FCC Part 15, SubpartB, Class A; ANSI C63.4: 2014 EN 55022:2010 + AC:2011, Class A EN 55024:2010 AS/NZS CISPR 22:2009 + A1:2010, Class A V-3/2015.04, Class A V-4/2012.04 ICES-003:2012 Issue 5, Class A Russia EAC mark Korea KC mark CCC (China Compulsory Certificate) CNS 13438 CNS 13438 |
| Electromagnetic Compliance (Class A or B) | Class A |
| 安全認證 | |
| Certifications | CB mark, commercial UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS 60950.1:2011/Amdt 1: 2012 Russia EAC mark CCC (China Compulsory Certificate) |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
XS708E 規格
| Features | XS708Ev2 |
|---|---|
| 100M/1G/10G RJ-45 copper ports | 8 |
| 1G/10G SFP+ (fiber) ports | 1 shared (combo) |
| 效能規格 | |
| Packet buffer memory (Dynamically shared across only used ports) | 2MB |
| Forwarding modes | Store-and-forward |
| Bandwidth | 160Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Multicast groups | 128 |
| Number of VLANs | 128 |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 119.0 Mfps |
| Speed / Latency (copper ports) | 100Mbps: <7.38 μs 1Gbps: <3.04 μs 10Gbps: <3.70 μs |
| Speed / Latency (SFP+ fiber port) | 10Gbps: <3.67 μs |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | 36.7 dBA |
| Mean Time Between Failures (MTBF) @ 25°C | 397,731 hours |
| L2 SERVICES - VLANS | |
| IEEE 802.1Q VLAN tagging | Yes |
| Port-based VLANs (physical) | Yes |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| Static Manual LAGs (Port Trunking) | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | Yes (IGMP v3 source filtering not supported) |
| IGMP snooping querier | No |
| Block unknown multicast | Yes |
| Static multicast router port | No |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| LINK AGGREGATION | |
| Static Manual LAGs (Port Trunking) | Yes |
| # of Static LAGs / # of members in each LAG | 4 LAGs with max 8 members in each LAG |
| 網路安全性 | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| QUALITY OF SERVICE (QOS) | |
| Port-based rate limiting | Ingress and egress |
| Port-based QoS | Yes |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| IPv4 ToS | Yes |
| TCP/UDP-based | No |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | No |
| 網路通訊協定 | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable • IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-LX4) • IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1p Class of Service • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| 管理 | |
| Password management | Yes |
| Web browser-based graphical user interface (GUI) | Yes |
| ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
| Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
| Config file transfers (backup, restore) | Plus Utility or Web GUI |
| Cable test utility | Yes |
| Port mirroring | Yes |
| Max number of source ports allowed (many-to-one port mirroring) | 7 |
| Mirroring port can still work normally? | Yes |
| LEDs提示燈 | |
| Per port | Speed, Link, Activity |
| Per device | Power and Fan |
| 體積與重量 | |
| Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in) |
| Weight | 2.80 kg (6.17 lb) |
| 功耗 | |
| Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 2A max Power cord localized to country of sale |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 43.4 W |
| Min power (link-down standby) (Watts) | 13.7 W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 148.39 BTU Min:: 46.85 BTU |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
| Short cable power reduction | Yes |
| Auto power-down | Yes |
| Fan(s) | 2 |
| 環境需求 | |
| 運作環境 | |
| Operating temperature | 0° to 50°C (32° to 122°F) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications | CE mark, commercial 47 CFR FCC Part 15, SubpartB, Class A; ANSI C63.4: 2014 EN 55022:2010 + AC:2011, Class A EN 55024:2010 AS/NZS CISPR 22:2009 + A1:2010, Class A V-3/2015.04, Class A V-4/2012.04 ICES-003:2012 Issue 5, Class A Russia EAC mark Korea KC mark CCC (China Compulsory Certificate) CNS 13438 CNS 13438 |
| Electromagnetic Compliance (Class A or B) | Class A |
| 安全認證 | |
| Certifications | CB mark, commercial UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AN/NZS 60950.1:2011/Amdt 1: 2012 Russia EAC mark CCC (China Compulsory Certificate) |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
