CP值最高的簡易網管交換器
適合SOHO、中小型企業使用
Web GUI 介面
管理容易

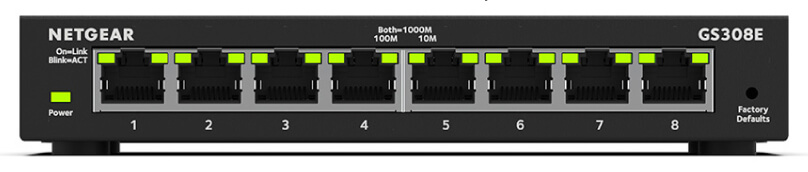

八個10/100/1000 Mbps乙太網路口
支援IGMP Snooping可連接MOD
支援 Port Mirror 鏡像監測
的超平價的交換器
可以收集最多7 Port的封包訊息

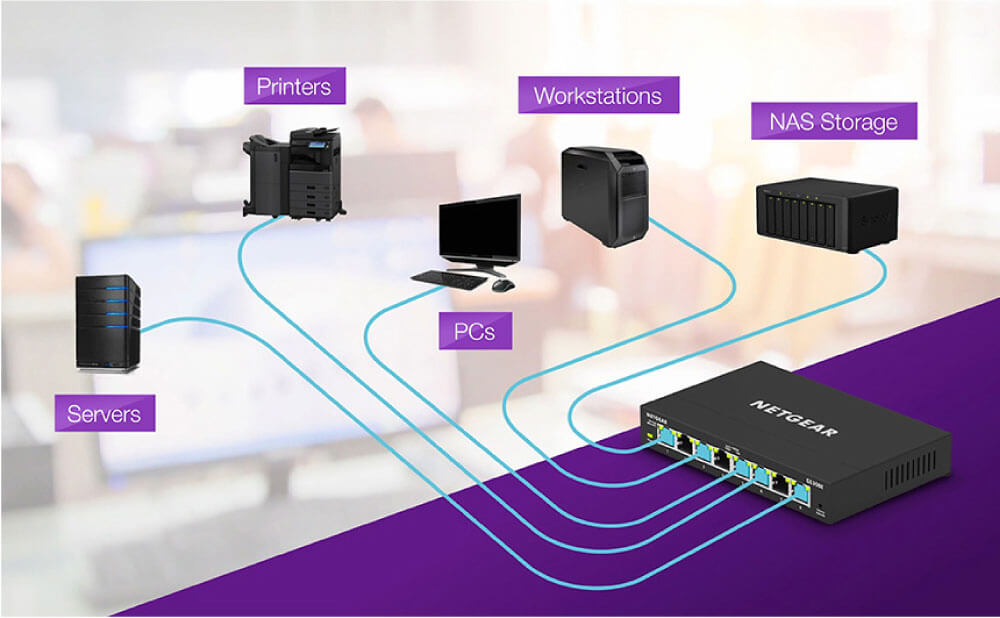

電腦、印表機、伺服器、NAS…等等
都可以連接使用
Plug-N-Play隨插即用
Features | GS308E |
---|---|
Gigabit ports | 8 |
Max MAC entries | 4K |
Buffer Size | 192KB |
Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
效能規格 | |
Forwarding modes | Store-and-forward |
Bandwidth | 16Gbps |
Priority queuing | Weighted Round Robin (WRR), Strict Priority, or both |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
Mean Time Between Failures (MTBF) @ 25° C | 1,638,156 hours |
L2 SERVICES - VLANS | |
VLAN (# Supported) | 32 |
IEEE 802.1Q VLAN Tagging | Yes |
Port-based VLANs | Yes |
L2 Services - AVAILABILITY | |
Link Aggregation/ Port Trunking | No |
Number of Static Manual LAGs and # of members | N/A |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2, and v3) | Yes |
Block unknown multicast | Yes |
Supported Multicast groups | 128 |
L3 SERVICES - DHCP | |
DHCP client | Yes |
QUALITY OF SERVICE (QOS) | |
Rate Limiting | Yes |
DSCP | No |
IEEE 802.1p COS | Yes |
Port-based VLAN | Yes |
TOS | No |
WRR (Weighted Round Robin) | Yes |
Strict Priority queue technology | Yes |
網路標準與協定 | • IEEE 802.3 Ethernet • IEEE 802.3ab 1000BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • EEE 802.1p Class of Service • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-duplex Flow Control |
管理 | |
System Password | Yes |
Web browserbased management GUI | Yes |
PC Utility | Yes |
Port Mirroring | Yes |
Max number of source ports allowed (many-to-one port mirroring) | 7 |
Many-to-one Port Mirroring | Yes |
Cable Test Utility | Yes |
FW Upgrade Thru Plus Utility (TFTP) | Yes |
Config download (to Switch) thru Plus Utility | Yes |
Config upload (to server) | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity |
Per device | Power, system |
體積與重量 | |
尺寸 (W x D x H) | 158 x 101 x 29 mm (6.2 x 4 x 1.1 in) |
重量 | 0.5kg |
環境需求 | |
運作環境 | |
Operating temperature | 0° to 40°C |
Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
儲藏環境 | |
Storage temperature | – 4° to 158°F (–20° to 70°C) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |
安全認證 | CE mark, commercial FCC Part 15 class B CE/EN55032/24 VCCI ACMA |
包裝內容物 | 簡易網管交換器x1 AC電源供應器x1 快速安裝指南 |
保固 | 台灣公司貨,享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
GS308E 規格
Features | GS308E |
---|---|
Gigabit ports | 8 |
Max MAC entries | 4K |
Buffer Size | 192KB |
Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
效能規格 | |
Forwarding modes | Store-and-forward |
Bandwidth | 16Gbps |
Priority queuing | Weighted Round Robin (WRR), Strict Priority, or both |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
Mean Time Between Failures (MTBF) @ 25° C | 1,638,156 hours |
L2 SERVICES - VLANS | |
VLAN (# Supported) | 32 |
IEEE 802.1Q VLAN Tagging | Yes |
Port-based VLANs | Yes |
L2 Services - AVAILABILITY | |
Link Aggregation/ Port Trunking | No |
Number of Static Manual LAGs and # of members | N/A |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2, and v3) | Yes |
Block unknown multicast | Yes |
Supported Multicast groups | 128 |
L3 SERVICES - DHCP | |
DHCP client | Yes |
QUALITY OF SERVICE (QOS) | |
Rate Limiting | Yes |
DSCP | No |
IEEE 802.1p COS | Yes |
Port-based VLAN | Yes |
TOS | No |
WRR (Weighted Round Robin) | Yes |
Strict Priority queue technology | Yes |
網路標準與協定 | • IEEE 802.3 Ethernet • IEEE 802.3ab 1000BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • EEE 802.1p Class of Service • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-duplex Flow Control |
管理 | |
System Password | Yes |
Web browserbased management GUI | Yes |
PC Utility | Yes |
Port Mirroring | Yes |
Max number of source ports allowed (many-to-one port mirroring) | 7 |
Many-to-one Port Mirroring | Yes |
Cable Test Utility | Yes |
FW Upgrade Thru Plus Utility (TFTP) | Yes |
Config download (to Switch) thru Plus Utility | Yes |
Config upload (to server) | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity |
Per device | Power, system |
體積與重量 | |
尺寸 (W x D x H) | 158 x 101 x 29 mm (6.2 x 4 x 1.1 in) |
重量 | 0.5kg |
環境需求 | |
運作環境 | |
Operating temperature | 0° to 40°C |
Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
儲藏環境 | |
Storage temperature | – 4° to 158°F (–20° to 70°C) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |
安全認證 | CE mark, commercial FCC Part 15 class B CE/EN55032/24 VCCI ACMA |
包裝內容物 | 簡易網管交換器x1 AC電源供應器x1 快速安裝指南 |
保固 | 台灣公司貨,享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
無網管系列 | ||||
GS308PP | 8 x GbE | 8(PoE +) | 83W | 3年 |
GS316P | 16 x GbE | 16(PoE +) | 115W | 3年 |
GS316PP | 16 x GbE | 16(PoE +) | 183W | 3年 |
GS324P | 24 x GbE | 16(PoE +) | 190W | 3年 |
GS324PP | 24 x GbE | 24(PoE +) | 380W | 3年 |
GS348PP | 48 x GbE | 24(PoE +) | 380W | 3年 |
簡易網管系列 | ||||
GS305E | 5 x GbE | - | - | 5年 |
GS305EP | 5 x GbE | 4(PoE) | 63W | 5年 |
GS305EPP | 5 x GbE | 4(PoE +) | 120W | 5年 |
GS308E | 8 x GbE | - | - | 5年 |
GS308EP | 8 x GbE | 8(PoE) | 62W | 5年 |
GS308EPP | 8 x GbE | 8(PoE +) | 123W | 5年 |
GS316EP | 15 x GbE + 1 SFP | 15(PoE +) | 180W | 5年 |
GS316EPP | 15 x GbE + 1 SFP | 15(PoE +) | 231W | 5年 |
智能網管系列 | ||||
GS308T | 8 x GbE | - | - | 3年 |
GS324T | 24 x GbE + 2 SFP | - | - | 3年 |
GS348T | 48 x GbE + 4 SFP | - | - | 3年 |
GS310TP | 8 x GbE + 2 SFP | 8(PoE +) | 55W | 3年 |
GS324TP | 24 x GbE + 2 SFP | 24(PoE +) | 190W | 3年 |
