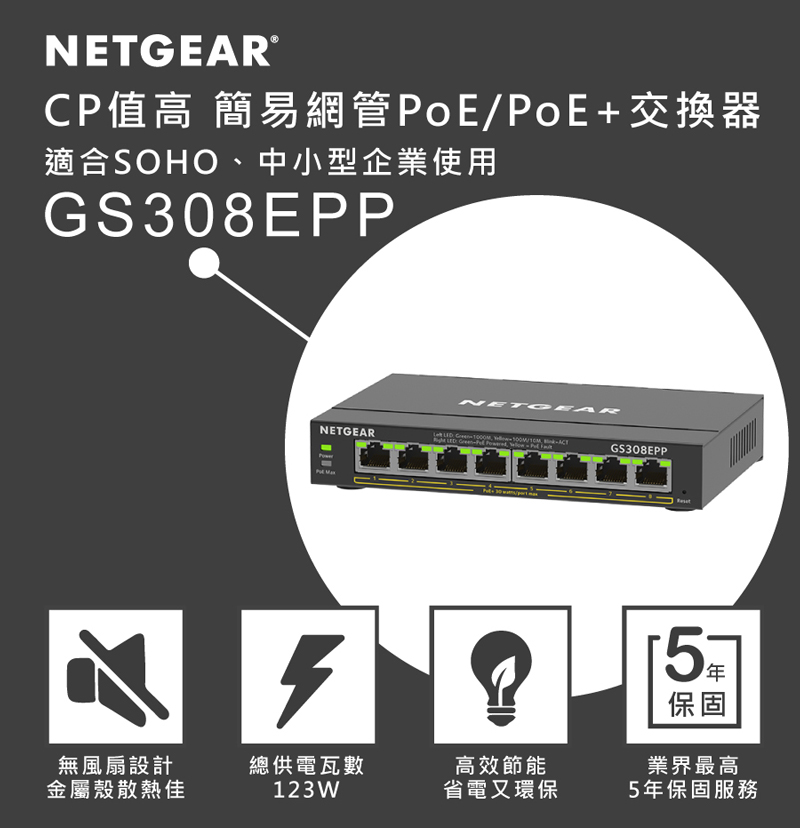

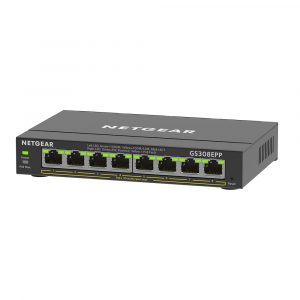

NETGEAR GS308EPP

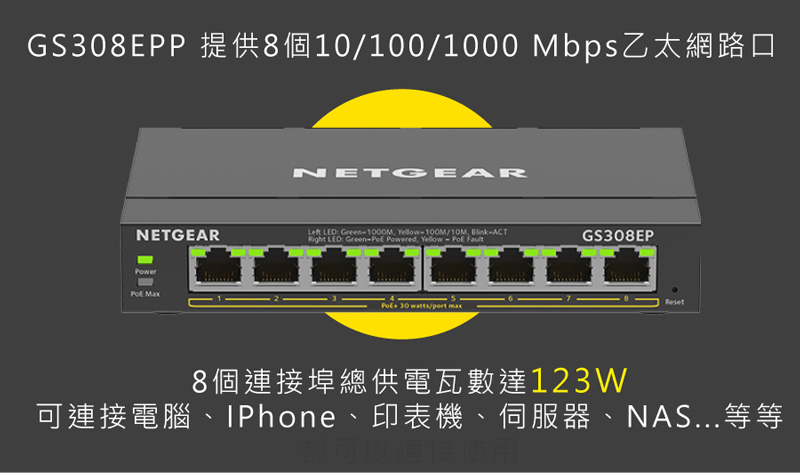

★8個10/1000/1000 Mbps乙太網路口
★8個連接埠總供電瓦數達123瓦
★金屬外殼散熱佳,無風扇設計

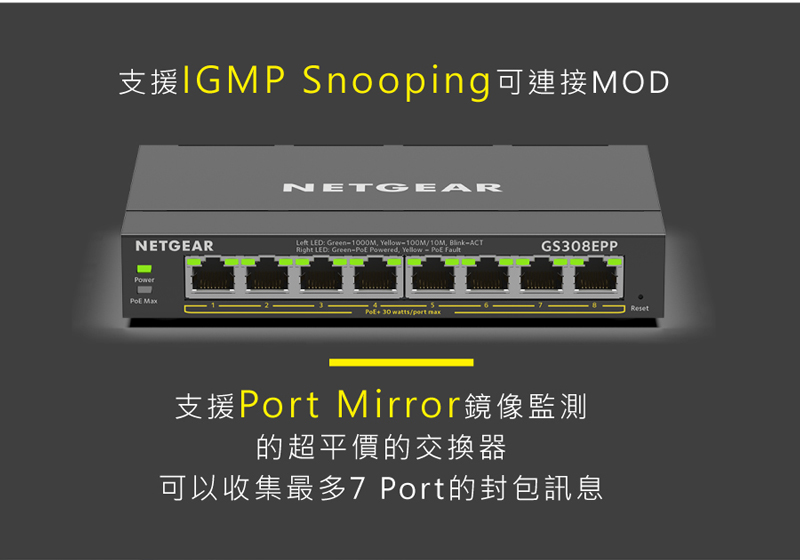

★支援IGMP Snooping可連接MOD
★支援Port Mirror鏡像監測
★台灣公司貨,享五年保固

Features

GS305EPP

GS308EPP

GS316EPP

RJ45 Gigabit ports

5

8

15

SFP Port

0

0

1

Enclosure

Metal

Metal

Metal

Connector Type

Metal

Metal

Metal

PoE

PoE+ 802.3at Ports

4

8

15

總瓦數

120W

123W

231W

Uninterrupted PoE

Yes

Yes

Yes

Performance Specification

Forwarding modes

Store-and-forward

Bandwidth

10Gbps

16Gbps

28Gbps

Max MAC entries

4K

4K

4K

Buffer Size

192KB

192KB

192KB

Energy Efficient Ethernet (IEEE 802.3az)compliant

Yes

Yes

Yes

Priority queuing

WRR

WRR

WRR

Jumbo frame support

9,216 bytes

9,216 bytes

10,000 bytes

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

0

0

0

Mean Time Between Failures (MTBF) @ 25° C

853,770 hours

842,428 hours

570,435 hours

L2 Services - VLANS

VLAN (# Supported)

64

64

64

IEEE 802.1Q VLAN Tagging

Yes

Yes

Yes

Port-based VLANs

Yes

Yes

Yes

L2 Services - Availability

Link Aggregation/Port Trunking

Yes

Yes

Yes

Number of Static Manual LAGs and # of members

2/4

2/4

8/8

L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)

Yes

Yes

Yes

Block unknown multicast

Yes

Yes

Yes

Supported Multicast groups

128

128

128

L3 Services - DHCP

DHCP client

Yes

Yes

Yes

Rate Limiting

Yes

Yes

Yes

DSCP

Yes

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Yes

Strict Priority queue technology

No

No

No

IEEE Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.3x Full-duplex Flow Control

IEEE 802.3af PoE

IEEE 802.3at PoE+

Management

System Password

Yes

Yes

Yes

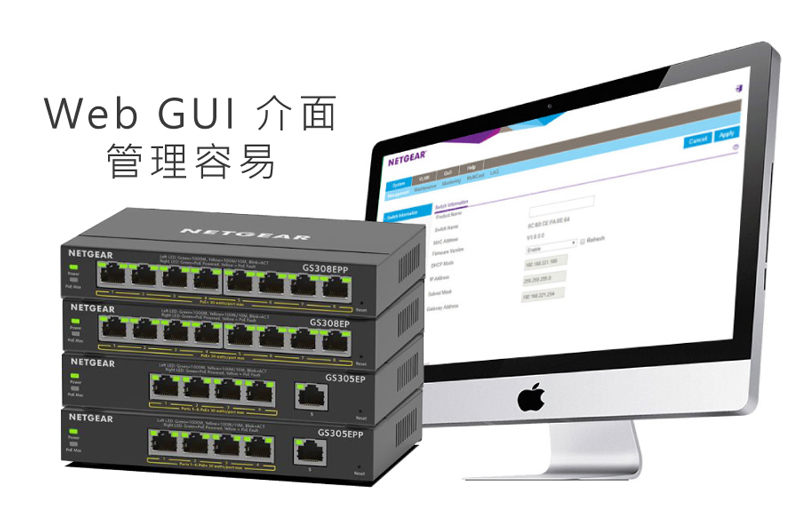

Web browserbased management GUI

Yes

Yes

Yes

PC Utility

No

No

No

Port Mirroring

Yes

Yes

Yes

Max number of source ports allowed (one-to-one Port Mirroring)

1

1

1

Many-to-one Port Mirroring

Yes

Yes

Yes

Cable Test Utility

Yes

Yes

Yes

FW Upgrade Thru Plus Utility (TFTP)

No

No

No

Config download (to Switch) thru Plus Utility

No

No

No

Config upload (to server)

Yes

Yes

Yes

LEDs

Per port

Speed, Link, Activity, PoE

Per device

Power, system, PoE Max

Physical Specifications

尺寸(W x D x H)

158 x 101 x 27 mm

重量

0.40 kg

0.49 kg

0.883 kg

Environmental Specifications

Operating

Operating temperature

32° to 104°F (0° to 40°C)

Humidity (relative)

90% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

– 4° to 158°F (–20° to 70°C)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Electromagnetic Emissions and Immunity

Certifications

CE mark, commercial

FCC Part 15 class B

CE/EN55032/24

VCCI

ACMA

CSA safety

KC

BSMI

包裝內容物

簡易網管交換器x1

AC電源供應器x1

牆壁安裝套件

橡膠腳

快速安裝指南

保固

5年

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

GS308EPP 規格

Features

GS305EPP

GS308EPP

GS316EPP

RJ45 Gigabit ports

5

8

15

SFP Port

0

0

1

Enclosure

Metal

Metal

Metal

Connector Type

Metal

Metal

Metal

PoE

PoE+ 802.3at Ports

4

8

15

總瓦數

120W

123W

231W

Uninterrupted PoE

Yes

Yes

Yes

Performance Specification

Forwarding modes

Store-and-forward

Bandwidth

10Gbps

16Gbps

28Gbps

Max MAC entries

4K

4K

4K

Buffer Size

192KB

192KB

192KB

Energy Efficient Ethernet (IEEE 802.3az)compliant

Yes

Yes

Yes

Priority queuing

WRR

WRR

WRR

Jumbo frame support

9,216 bytes

9,216 bytes

10,000 bytes

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

0

0

0

Mean Time Between Failures (MTBF) @ 25° C

853,770 hours

842,428 hours

570,435 hours

L2 Services - VLANS

VLAN (# Supported)

64

64

64

IEEE 802.1Q VLAN Tagging

Yes

Yes

Yes

Port-based VLANs

Yes

Yes

Yes

L2 Services - Availability

Link Aggregation/Port Trunking

Yes

Yes

Yes

Number of Static Manual LAGs and # of members

2/4

2/4

8/8

L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)

Yes

Yes

Yes

Block unknown multicast

Yes

Yes

Yes

Supported Multicast groups

128

128

128

L3 Services - DHCP

DHCP client

Yes

Yes

Yes

Rate Limiting

Yes

Yes

Yes

DSCP

Yes

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Yes

Strict Priority queue technology

No

No

No

IEEE Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.3x Full-duplex Flow Control

IEEE 802.3af PoE

IEEE 802.3at PoE+

Management

System Password

Yes

Yes

Yes

Web browserbased management GUI

Yes

Yes

Yes

PC Utility

No

No

No

Port Mirroring

Yes

Yes

Yes

Max number of source ports allowed (one-to-one Port Mirroring)

1

1

1

Many-to-one Port Mirroring

Yes

Yes

Yes

Cable Test Utility

Yes

Yes

Yes

FW Upgrade Thru Plus Utility (TFTP)

No

No

No

Config download (to Switch) thru Plus Utility

No

No

No

Config upload (to server)

Yes

Yes

Yes

LEDs

Per port

Speed, Link, Activity, PoE

Per device

Power, system, PoE Max

Physical Specifications

尺寸(W x D x H)

158 x 101 x 27 mm

重量

0.40 kg

0.49 kg

0.883 kg

Environmental Specifications

Operating

Operating temperature

32° to 104°F (0° to 40°C)

Humidity (relative)

90% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

– 4° to 158°F (–20° to 70°C)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Electromagnetic Emissions and Immunity

Certifications

CE mark, commercial

FCC Part 15 class B

CE/EN55032/24

VCCI

ACMA

CSA safety

KC

BSMI

包裝內容物

簡易網管交換器x1

AC電源供應器x1

牆壁安裝套件

橡膠腳

快速安裝指南

保固

5年

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

型號

PORTS

PoE Ports

PoE Budget

保固

無網管系列

GS308PP

8 x GbE

8(PoE +)

83W

3年

GS316P

16 x GbE

16(PoE +)

115W

3年

GS316PP

16 x GbE

16(PoE +)

183W

3年

GS324P

24 x GbE

16(PoE +)

190W

3年

GS324PP

24 x GbE

24(PoE +)

380W

3年

GS348PP

48 x GbE

24(PoE +)

380W

3年

簡易網管系列

GS305E

5 x GbE

-

-

5年

GS305EP

5 x GbE

4(PoE)

63W

5年

GS305EPP

5 x GbE

4(PoE +)

120W

5年

GS308E

8 x GbE

-

-

5年

GS308EP

8 x GbE

8(PoE)

62W

5年

GS308EPP

8 x GbE

8(PoE +)

123W

5年

GS316EP

15 x GbE + 1 SFP

15(PoE +)

180W

5年

GS316EPP

15 x GbE + 1 SFP

15(PoE +)

231W

5年

智能網管系列

GS308T

8 x GbE

-

-

3年

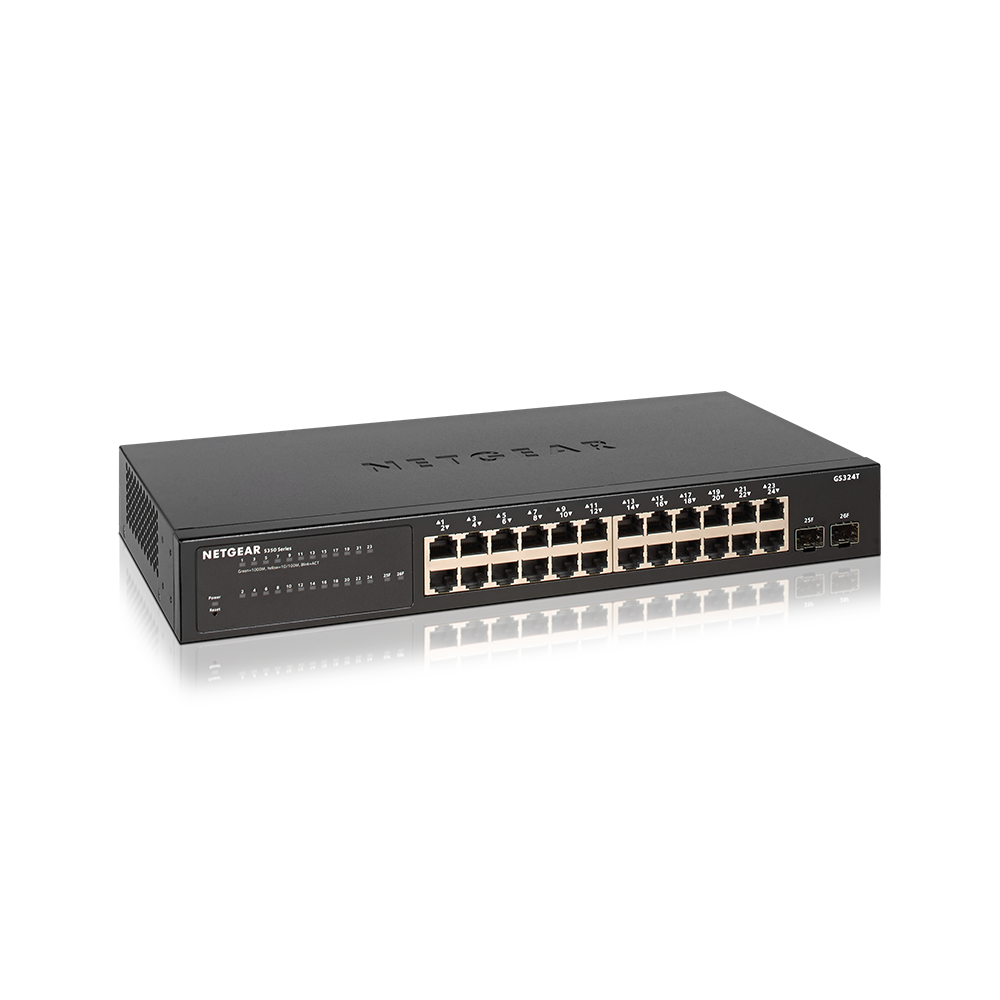

GS324T

24 x GbE + 2 SFP

-

-

3年

GS348T

48 x GbE + 4 SFP

-

-

3年

GS310TP

8 x GbE + 2 SFP

8(PoE +)

55W

3年

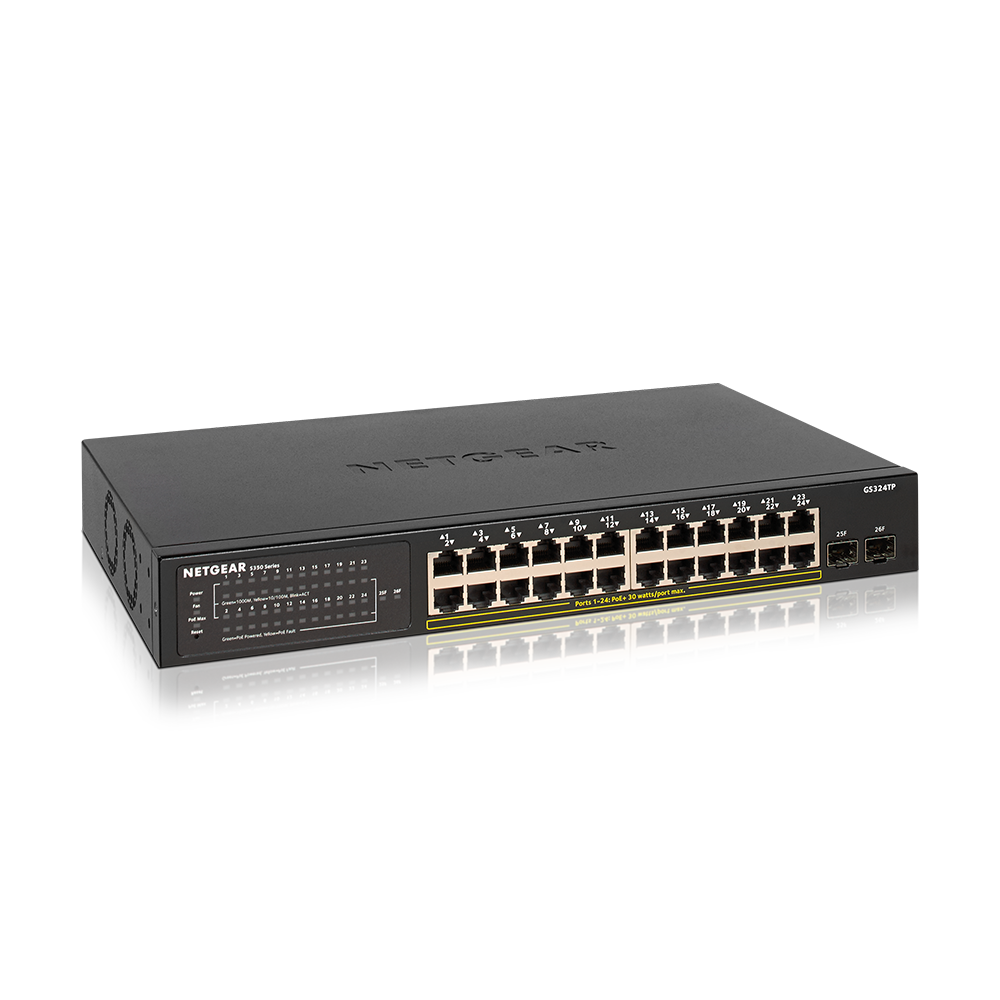

GS324TP

24 x GbE + 2 SFP

24(PoE +)

190W

3年
