CP值最高的簡易網管交換器
適合SOHO、中小型企業使用
Web GUI 介面
管理容易
五個10/100/1000 Mbps乙太網路口
支援IGMP Snooping可連接MOD
支援 Port Mirror 鏡像監測
的超平價的交換器
可以收集最多4 Port的封包訊息

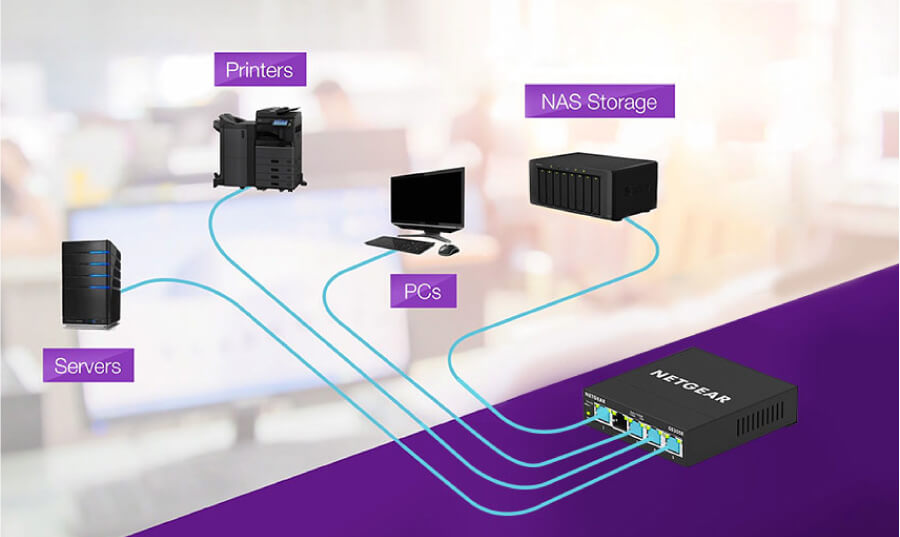

電腦、印表機、伺服器、NAS…等等
都可以連接使用
Plug-N-Play隨插即用

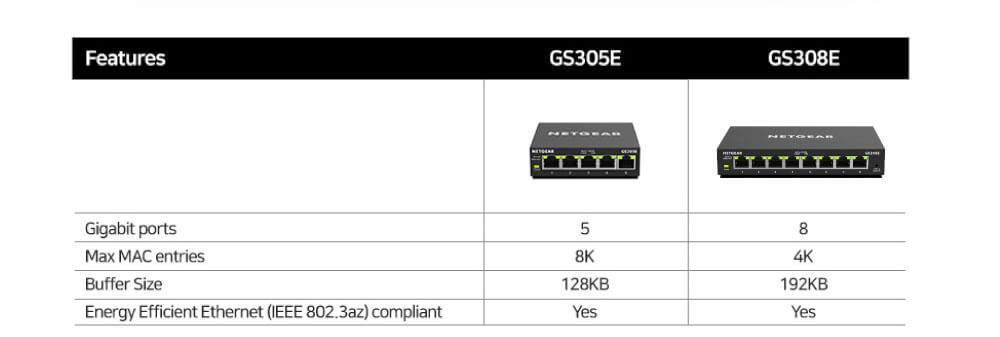

| Features | GS305E |
|---|---|
| Gigabit ports | 5 |
| Max MAC entries | 8K |
| Buffer Size | 128KB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
| PERFORMANCE SPECIFICATIONS | |
| Forwarding modes | Store-and-forward |
| Bandwidth | 10Gbps |
| Priority queuing | Weighted Round Robin (WRR), Strict Priority, or both |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 2,531,294 hours |
| L2 SERVICES - VLANS | |
| VLAN (# Supported) | 64 |
| IEEE 802.1Q VLAN Tagging | Yes |
| Port-based VLANs | Yes |
| L2 Services - AVAILABILITY | |
| Link Aggregation/ Port Trunking | No |
| Number of Static Manual LAGs and # of members | N/A |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | Yes |
| Block unknown multicast | Yes |
| Supported Multicast groups | 128 |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| QUALITY OF SERVICE (QOS) | |
| Rate Limiting | Yes |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Port-based VLAN | Yes |
| TOS | Yes |
| WRR (Weighted Round Robin) | Yes |
| Strict Priority queue technology | Yes |
| IEEE STANDARDS SUPPORTED | • IEEE 802.3 Ethernet • IEEE 802.3ab 1000BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • EEE 802.1p Class of Service • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-duplex Flow Control |
| MANAGEMENT | |
| System Password | Yes |
| Web browserbased management GUI | Yes |
| PC Utility | Yes |
| Port Mirroring | Yes |
| Max number of source ports allowed (many-to-one port mirroring) | 4 |
| Many-to-one Port Mirroring | Yes |
| Cable Test Utility | Yes |
| FW Upgrade Thru Plus Utility (TFTP) | Yes |
| Config download (to Switch) thru Plus Utility | Yes |
| Config upload (to server) | Yes |
| LEDS | |
| Per port | Speed, Link, Activity |
| Per device | Power, system |
| PHYSICAL SPECIFICATIONS | |
| 尺寸(W x D x H) | 94 x 100 x 27 mm (3.7 x 3.9 x 1.1 in) |
| 重量 | 0.25kg |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating | |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| Storage | |
| Storage temperature | – 4° to 158°F (–20° to 70°C) |
| Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
| Certifications | CE mark, commercial FCC Part 15 class B CE/EN55032/24 VCCI ACMA |
| 包裝內容物 | 簡易網管交換器x1 AC電源供應器x1 快速安裝指南 |
| 保固 | 台灣公司貨享3年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
GS305E 規格
| Features | GS305E |
|---|---|
| Gigabit ports | 5 |
| Max MAC entries | 8K |
| Buffer Size | 128KB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes |
| PERFORMANCE SPECIFICATIONS | |
| Forwarding modes | Store-and-forward |
| Bandwidth | 10Gbps |
| Priority queuing | Weighted Round Robin (WRR), Strict Priority, or both |
| Jumbo frame support | Up to 9K packet size |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 2,531,294 hours |
| L2 SERVICES - VLANS | |
| VLAN (# Supported) | 64 |
| IEEE 802.1Q VLAN Tagging | Yes |
| Port-based VLANs | Yes |
| L2 Services - AVAILABILITY | |
| Link Aggregation/ Port Trunking | No |
| Number of Static Manual LAGs and # of members | N/A |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | Yes |
| Block unknown multicast | Yes |
| Supported Multicast groups | 128 |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| QUALITY OF SERVICE (QOS) | |
| Rate Limiting | Yes |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Port-based VLAN | Yes |
| TOS | Yes |
| WRR (Weighted Round Robin) | Yes |
| Strict Priority queue technology | Yes |
| IEEE STANDARDS SUPPORTED | • IEEE 802.3 Ethernet • IEEE 802.3ab 1000BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • EEE 802.1p Class of Service • IEEE 802.1Q VLAN Tagging • IEEE 802.3x Full-duplex Flow Control |
| MANAGEMENT | |
| System Password | Yes |
| Web browserbased management GUI | Yes |
| PC Utility | Yes |
| Port Mirroring | Yes |
| Max number of source ports allowed (many-to-one port mirroring) | 4 |
| Many-to-one Port Mirroring | Yes |
| Cable Test Utility | Yes |
| FW Upgrade Thru Plus Utility (TFTP) | Yes |
| Config download (to Switch) thru Plus Utility | Yes |
| Config upload (to server) | Yes |
| LEDS | |
| Per port | Speed, Link, Activity |
| Per device | Power, system |
| PHYSICAL SPECIFICATIONS | |
| 尺寸(W x D x H) | 94 x 100 x 27 mm (3.7 x 3.9 x 1.1 in) |
| 重量 | 0.25kg |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating | |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| Storage | |
| Storage temperature | – 4° to 158°F (–20° to 70°C) |
| Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| ELECTROMAGNETIC EMISSIONS AND IMMUNITY | |
| Certifications | CE mark, commercial FCC Part 15 class B CE/EN55032/24 VCCI ACMA |
| 包裝內容物 | 簡易網管交換器x1 AC電源供應器x1 快速安裝指南 |
| 保固 | 台灣公司貨享3年保固 |
