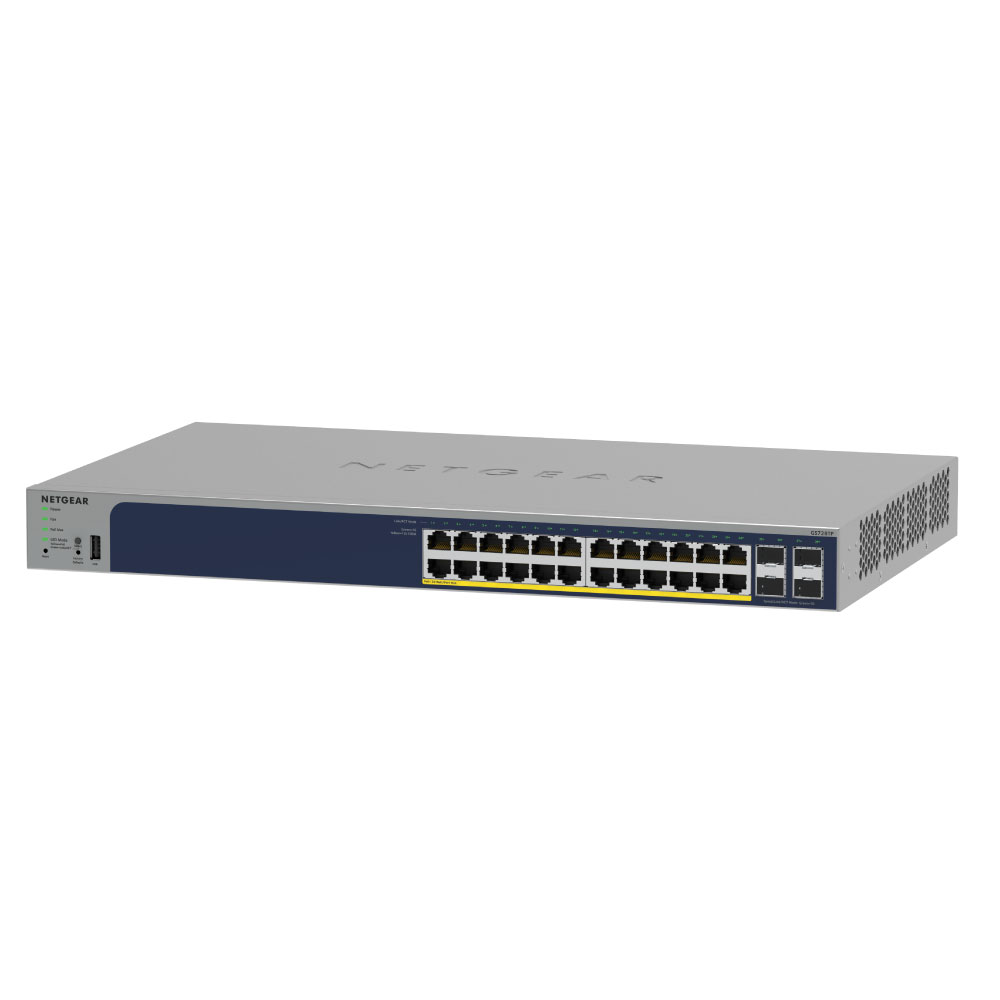

GS728TPv3

★贈送一年的Insight服務(免申請)
★提供24個PoE+連接埠
★提供4個專用的SFP光纖連接埠
★總PoE瓦數可達190W
★提供56Gbps背板頻寬
★金屬外殼散熱佳,運作高穩定度
★節能省電,支援EEE綠能規章

雲管理/智能網管交換器

[ GS728TPv3 ]

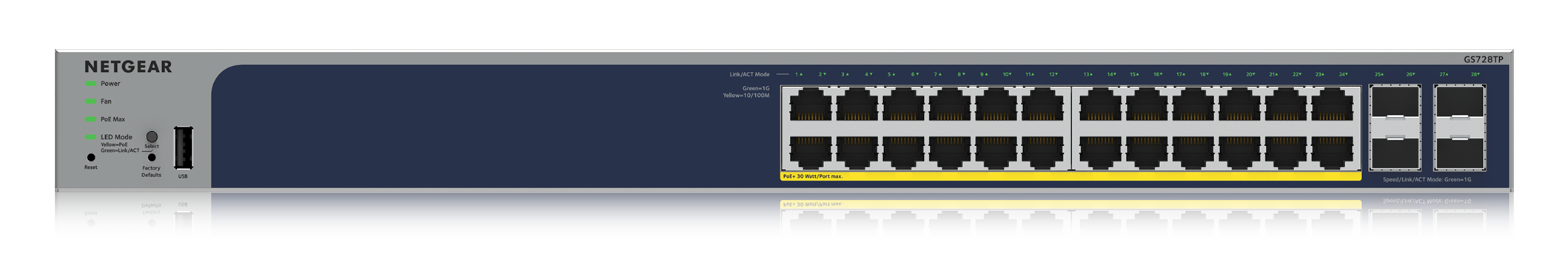

GS728TPv3

24個PoE+連接埠 + 4埠光纖
總供電瓦數 190W

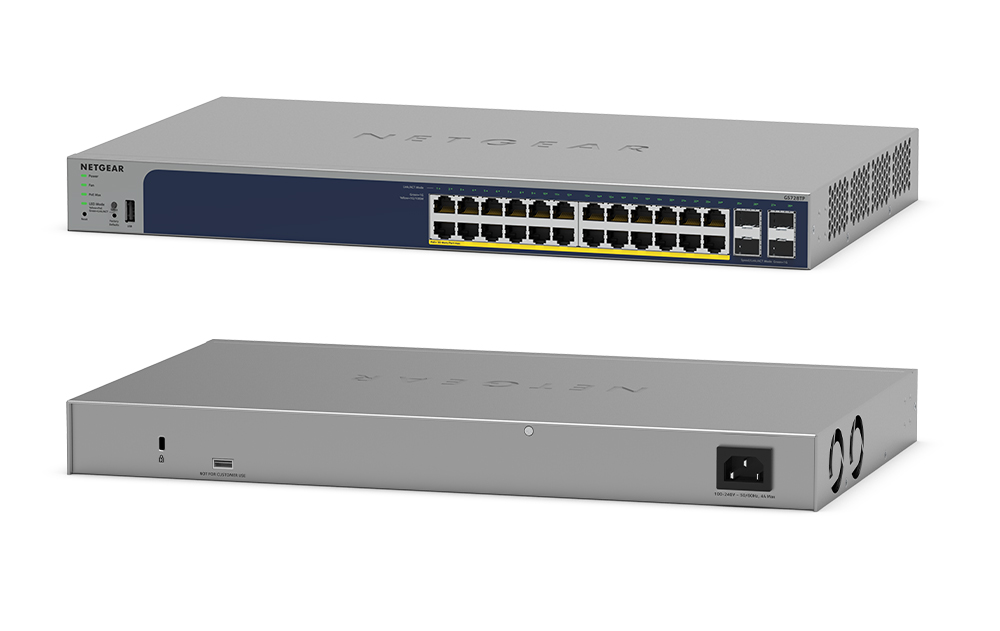

GS728TPv3

金屬外殼
有效提高散熱及穩定度

智能網管+雲管理
使用Insight APP進行遠端管理

GS724Tv6

支援NETGEAR Insight 遠程監控管理網路

現在購買就贈送一年 Insight 訂閱服務

支援雲管理、智能網管
交換器功能

經過嚴格測試十分耐用
5
年保固,故障換機

NETGEAR Insight 安裝步驟

GS728TP 規格

Features

GS728TPv3

10M/100M/1G RJ-45 copper ports

24

PoE / PoE+ ports

24 PoE+ (190W PoE budget)

1G SFP (fiber) ports

4 (dedicated)

USB port (for config file upload/backup & firmware updates)

Yes

UNIFIED NETWORK MANAGEMENT (DISCOVERY, SETUP, MONITORING, AND MANAGEMENT) THROUGH NETGEAR INSIGHT CLOUD MANAGEMENT

Discovery, setup, monitoring and management

NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser

Remote/Cloud management

Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal

Centralized network configuration (policies)

Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs

Device auto-join and configure (zero-touch provisioning)

Additional Insight Managed devices added to the network automatically inherit the network configuration

Multi-site, multi-network single pane-of-glass view

Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal

Multi-switch, multi-port concurrent configu - ration for ACLs, VLANs, QoS, PoE, etc

Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard

PERFORMANCE SPECIFICATION

CPU

800MHz ARM A55 Single Core

Packet buffer memory (Dynamically shared across only used ports)

1.5 MB

Forwarding modes

Store-and-forward

Bandwidth

56 Gbps

Priority queues

8

Priority queuing

Weighted Round Robin (WRR)

MAC address database size (48-bit MAC addresses)

16K

Multicast groups

512

Number of IPv4 static routes

32

Number of IPv6 static routes

32

Number of VLANs

256

Number of ARP cache entries

512 ARP

Number of DHCP snooping bindings

256

Access Control Lists (ACLs)

100 shared for MAC, IP and IPv6 ACLs (ingress)

Packet forwarding rate (64 byte packet size) (Mpps)

41.67

Jumbo frame support (bytes)

Up to 10K packet size

Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)

26.80dBA

Mean Time Between Failures (MTBF) @ 25°C

1,751,613 hours

100M Copper Latency (64-byte; 1518-byte; 9216-byte frames)

8.376μs;8.655μs;8.864μs

1G Copper Latency (64-byte; 1518-byte; 9216-byte frames)

4.004μs;4.394μs;4.691μs

1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)

4.074μs;4.245μs;4.551μs

L2 SERVICES - VLANS

IEEE 802.1Q VLAN tagging

Yes

IP-based VLANs

Yes

MAC-based VLANs

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address

Auto-VoIP

Yes, based on protocols (SIP). Prioritzes traffic to a higher queue

Voice VLAN

Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED.

Auto-Video VLAN

Yes

GARP with GVRP

Yes

Private VLAN

Yes

L2 SERVICES - AVAILABILITY

Broadcast, multicast, unknown unicast storm control

Yes

IEEE 802.3ad - LAGs (LACP)

Yes

IEEE 802.3x (full duplex and flow control)

Yes

IEEE 802.1D Spanning Tree Protocol

Yes

IEEE 802.1w Rapid Spanning Tree Protocol

Yes

IEEE 802.1s Multiple Spanning Tree Protocol

Yes

Layer 2 DHCP Relay

Yes

L2 SERVICES - MULTICAST FILTERING

IGMP snooping (v1, v2 and v3)

Yes

MLD snooping support (v1 and v2)

Yes

IGMP snooping querier (v2)

Yes

MLD snooping querier (v1)

Yes

Multicast VLAN Registration (MVR)

Yes

L3 SERVICES - DHCP

DHCP client

Yes

DHCP snooping

Yes

L3 SERVICES - ROUTING

IPv4 static routing

32

IPv6 static routing

32

VLAN routing

Yes

Host ARP table (number of entries)

512 ARP

ICMP Router Discovery Protocol (IRDP)

Yes

Number of IP VLAN interfaces (routed VLANs)

15

LINK AGGREGATION

IEEE 802.3ad - LAGs (LACP)

Yes

Manual Static LAG

Yes

# of Static or LACP LAGs

16 LAGs with max 8 ports in each LAG

# of members in each LAG

NETWORK MONITORING AND DISCOVERY SERVICES

802.1ab LLDP

Yes

SNMP

v1, v2, v3

RMON group 1,2,3,9

Yes

NETWORK SECURITY

IEEE 802.1x

Yes

Guest VLAN

Yes

RADIUS-based VLAN assignment via .1x

Yes

MAC-based .1x

Yes

RADIUS accounting

Yes

Access Control Lists (ACLs)

L2 / L3 / L4 ingress

IP-based ACLs (IPv4 and IPv6)

Yes

MAC-based ACLs

Yes

TCP/UDP-based ACLs

Yes

MAC lockdown

Yes

MAC lockdown by the number of MACs

Yes

Control MAC # Dynamic learned entries

16384

Control MAC # static entries

256

IEEE 802.1x RADIUS port access authentication

Yes

Port-based security by locked MAC addresses

Yes

Dynamic ARP inspection

Yes

Broadcast, unicast, multicast DoS protection

Yes

DoS attacks prevention

Yes

Network storm protection, DoS

Yes

QUALITY OF SERVICE (QOS)

Port-based rate limiting

Yes ingress and egress

Port-based QoS

Yes

Support for IPv6 fields

Yes

DiffServ QoS

Yes ingress

IEEE 802.1p COS

Yes

Destination MAC and IP

Yes

IPv4 and v6 DSCP

Yes

IPv4 and IPv6 ToS

Yes

TCP/UDP-based

Yes

Weighted Round Robin (WRR)

Yes

Strict priority queue technology

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address

Auto-VoIP

Yes, based on protocols (SIP). Prioritzes traffic to a higher queue

Voice VLAN

Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED

Auto-Video VLAN

Yes

IEEE NETWORK PROTOCOLS

• IEEE 802.3 Ethernet

• IEEE 802.3u 100BASE-T

• IEEE 802.3ab 1000BASE-T

• IEEE 802.3af PoE

• IEEE 802.3at PoE+

• IEEE 802.3az Energy Efficient Ethernet (EEE)

• IEEE 802.3ad Trunking (LACP)

• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

• IEEE 802.3x Full-Duplex Flow Control

• IEEE 802.1Q VLAN Tagging

• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)

• IEEE 802.1p Class of Service

• IEEE 802.1D Spanning Tree (STP)

• IEEE 802.1s Multiple Spanning Tree (MSTP)

• IEEE 802.1w Rapid Spanning Tree (RSTP)

• IEEE 802.1x RADIUS Network Access Control

MANAGEMENT, MONITORING & TROUBLESHOOTING

Cloud/Remote management

Yes

Insight mobile app & Insight Cloud Portal management

Yes

uPnP Discovery

Yes

Lite Command-line Interface (CLI)

Yes

Networking monitoring

Yes

Data/performance logs

Yes

Centralized network configuration/policies (network-centric management)

Yes

Device auto-join and configure (zero-touch provisioning)

Yes

Multi-site, multi-network single pane-of-glass view

Yes

Multi-switch, multi-port concurrent configuration

Yes

Network/global password (for all Insight Managed devices on a network)

Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)

Password management

Yes

Configurable management VLAN

Yes

Admin access control via RADIUS and TACACS+

Yes

IPv6 management

Yes

SNTP client over UDP port 123

Yes

SNMP v1/v2c

Yes

SNMP v3 with multiple IP addresses

Yes

RMON group 1,2,3,9

Yes

Port mirroring

Yes ingress and egress

Many-to-one port mirroring

28

Web browser-based graphical user interface (GUI)

Yes

Dual software (firmware) image

Cable test utility

TLS/HTTPS Web-based access (version)

Yes (v1.2 and v1.3)

File transfers (uploads, downloads)

TFTP / HTTP

HTTP upload/download (firmware)

Yes

Syslog (RFC 3164)

Yes

USB port for firmware and config upload/ download

Yes

LEDS

Per port

Speed, Link, Activity; or PoE in different mode

Per device

Power, Fan, PoE Max

PHYSICAL SPECIFICATIONS

Dimensions (W x D x H)

440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)

Weight

3.78 kg (8.32 lb)

POWER CONSUMPTION

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)

226W

Max power without PoE (worst case, all ports used, line-rate traffic) (Watts)

24W

Iddle power consumption (all ports link-down standby) (Watts)

13W

Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)

772.9 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Fan

2

ENVIRONMENTAL SPECIFICATIONS

Operating

Operating temperature

0° to 50°C (32° to 122°F)

Humidity

90% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

–20° to 70°C (– 4° to 158°F)

Humidity

95% maximum relative humidity, non-condensing

Altitude

10,000 ft (3,000 m) maximum

ELECTROMAGNETIC EMISSIONS AND IMMUNITY

Certifications

CE

FCC

Class A

RCM

ICES Class A

VCCI

KC

BSMI

UKCA

SAFETY

Certifications

CB

CE

CSA

RCM

KC

BSMI

保固

台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
