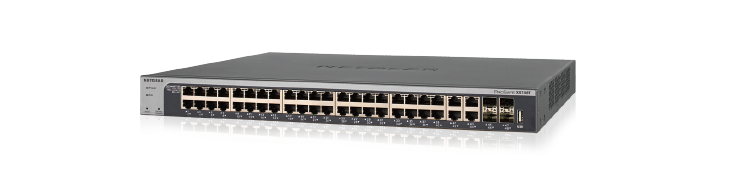

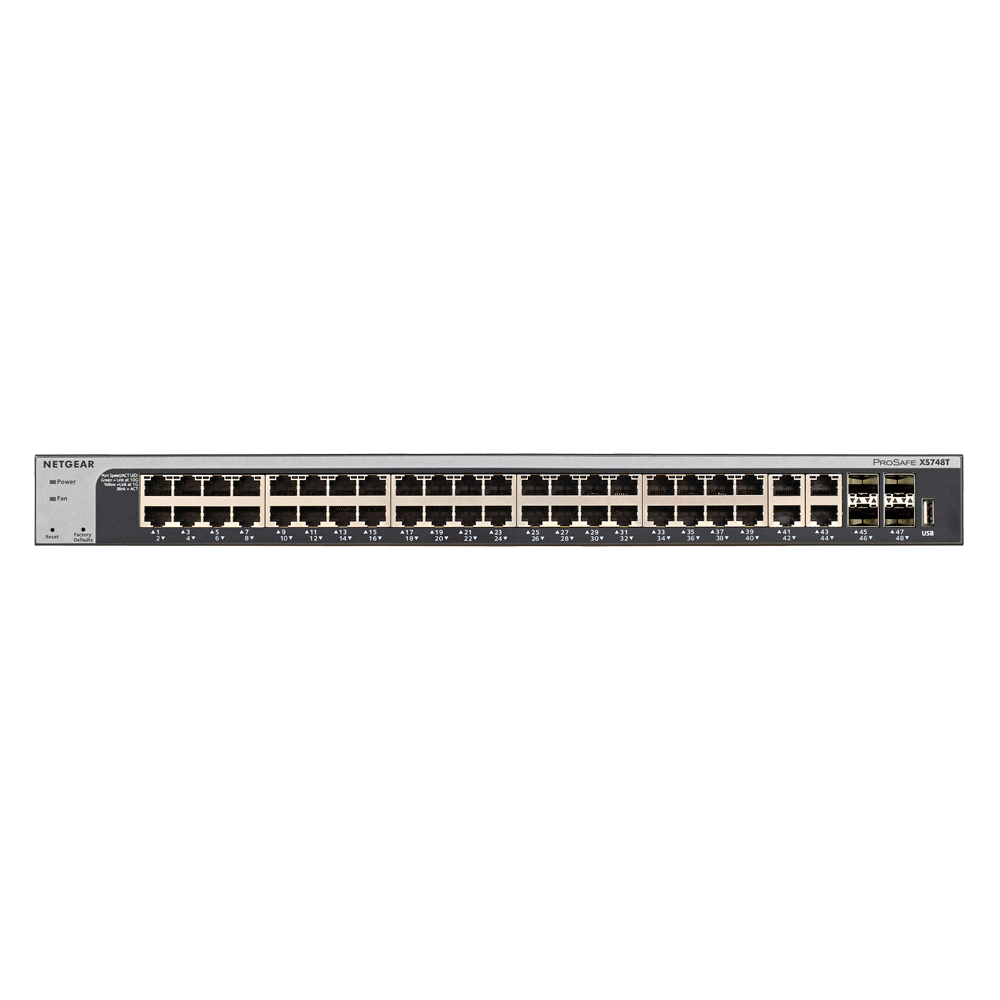

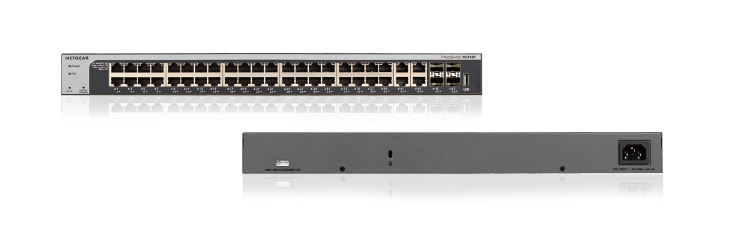

NETGEAR 10G交換器  – XS748T

★四十四個1G/10G RJ-45埠
★四個1G/10G SFP+光纖埠 (dedicated)
★連接高頻寬網路儲存(NAS),或強化伺服器連線頻寬
★協助中小企業建置高速10G網路
★L2+智能網管功能
★台灣公司貨,五年保固,0800技術客服

商品規格
■ 尺寸 : 440x310x43 mm
■ 重量 : 6.25 kg



技術規格

FeaturesXS748T
100M/1G/10G RJ-45 copper portsn/a
1G/10G copper ports44
1G/10G SFP+ (fiber) ports4 (dedicated)
USB port (for config file upload/backup & firmware updates)Yes
PERFORMANCE SPECIFICATION
Packet buffer memory (Dynamically shared across only used ports)3MB
Forwarding modesStore-and-forward
Bandwidth960Gbps
Priority queues8
Priority queuingWeighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses)16K
Multicast groups512
Number of IPv4 static routes64
Number of IPv6 static routes64
Number of VLANs512
Number of ARP cache entries1024
Number of DHCP snooping bindings1K
Access Control Lists (ACLs)164 shared for MAC, IP and IPv6 ACLs
Packet forwarding rate (64 byte packet size) (Mfps or Mpps)714.2
Jumbo frame supportUp to 10K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)47.8 dBA
Mean Time Between Failures (MTBF) @ 25°C483,808 hours
L2 SERVICES - VLANS
IEEE 802.1Q VLAN taggingYes
IP-based VLANsYes
MAC-based VLANsYes
Auto-VoIP VLAN / Auto-Voice VLANYes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag
Auto-VoIPYes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue
Voice VLANNo
Auto-Video VLANYes
Private VLANYes
L2 SERVICES - AVAILABILITY
Broadcast, multicast, unknown unicast storm controlYes
IEEE 802.3ad - LAGs (LACP)Yes
IEEE 802.3x (full duplex and flow control)Yes
IEEE 802.1D Spanning Tree ProtocolYes
IEEE 802.1w Rapid Spanning Tree ProtocolYes
IEEE 802.1s Multiple Spanning Tree ProtocolYes
L2 SERVICES - MULTICAST FILTERING
IGMP snooping (v1, v2 and v3)Yes
MLD snooping support (v1 and v2)Yes
IGMP snooping queriesYes
Block unknown multicastYes
Multicast VLAN Registration (MVR)No
L3 SERVICES - DHCP
DHCP clientYes
DHCP snoopingYes
L3 SERVICES - ROUTING
IPv4 static routing64
IPv6 static routing64
VLAN routingYes
Host ARP table (number of entries)1024
ICMP Router Discovery Protocol (IRDP)No
Number of IP VLAN interfaces (routed VLANs)32
LINK AGGREGATION
IEEE 802.3ad - LAGs (LACP)Yes
Manual Static LAGYes
# of Static or LACP LAGs
# of members in each LAG
24 LAGs with max 8 members in each LAG
NETWORK MONITORING AND DISCOVERY SERVICES
802.1ab LLDPYes
SNMPv1, v2c, v3
RMON group 1,2,3,9Yes
NETWORK SECURITY
IEEE 802.1xYes
Guest VLANYes
RADIUS-based VLAN assignment via .1xYes
MAC-based .1xYes
RADIUS accountingYes
Access Control Lists (ACLs)L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6)Yes
MAC-based ACLsYes
TCP/UPD-based ACLsYes
MAC lockdownYes
MAC lockdown by the number of MACsYes
Control MAC # Dynamic learned entries600
Control MAC # static entries600
IEEE 802.1x RADIUS port access authenticationYes
Port-based security by locked MAC addressesYes
Dynamic ARP inspectionNo
Broadcast, multicast, unknown unicast storm controlYes
DoS attacks preventionNo
QUALITY OF SERVICE (QOS)
Port-based rate limitingIngress and egress
Port-based QoSYes
Support for IPv6 fieldsYes
DiffServ QoSYes
IEEE 802.1p COSYes
Destination MAC and IPYes
IPv4 and v6 DSCPYes
IPv4 and IPv6 ToSYes
TCP/UDP-basedYes
Weighted Round Robin (WRR)Yes
Strict priority queue technologyYes
Auto-VoIP VLAN / Auto-Voice VLANYes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, voice packets must have 802.1Q VLAN tag
Auto-VoIPYes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue
Voice VLANNo
Auto-Video VLANYes
IEEE NETWORK PROTOCOLS• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T (XS708T/XS716T only)
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-LRM) - XS708T, XS712Tv2, XS716T only
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4) - All models
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3x Full-Duplex Flow Control
MANAGEMENT
Password managementYes
Configurable management VLANYes
Admin access control via RADIUS and TACACS+Yes
IPv6 managementYes
SNTP client over UDP port 123Yes
SNMP v1/v2cYes
SNMP v3 with multiple IP addressesYes
RMON group 1,2,3,9Yes
Port mirroringYes
Many-to-one port mirroring8
Web browser-based graphical user interface (GUI)Yes
Smart Control Center (SCC) for multi-switch managementYes
Dual software (firmware) imageYes
Dual configuration fileYes
Cable test utilityYes
SSL/HTTPS Web-based access (version)Yes (v2)
TLS Web-based access (version)Yes (v1.0 ~ v1.2)
File transfers (uploads, downloads)
HTTP upload/download (firmware)Yes
Syslog (RFC 3164)Yes
USB port for firmware and config upload / downloadYes
LEDS
Per portSpeed, Link, Activity
Per devicePower and Fan
PHYSICAL SPECIFICATIONS
Dimensions (W x D x H)440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in)
Weight6.25 kg (13.78 lb)
POWER CONSUMPTION
Max power (worst case, all ports used, line-rate traffic) (Watts)262.8 W
Min power (link-down standby) (Watts)97.6 W
Heat Dissipation (max and min) (BTU/hr)Max: 897.17 BTU Min: 333.14 BTU
Energy Efficient Ethernet (EEE) IEEE 802.3azYes (deactivated by default)
Power back-offDrops power consumption by 15% to 20% when short copper cables are detected
Fan4
ENVIRONMENTAL SPECIFICATIONS
Operating
Operating temperature0° to 50°C (32° to 122°F)
Humidity (relative)90% maximum relative humidity (RH), non-condensing
Altitude10,000ft (3,000m) maximum
Storage
Storage temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity, non-condensing
Altitude10,000ft (3,000m) maximum
ELECTROMAGNETIC EMISSIONS AND IMMUNITY
CertificationsCE mark, commercial
FCC Part 15 Class A, VCCI Class A
Class A EN 55022 (CISPR 22) Class A
Class A C-Tick
EN 55024
CCC
47 CFR FCC Part 15, SubpartB, Class A
ICES-003: 2016 Issue 6, Class A
ANSI C63.4:2014
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AN/NZS CISPR 22:2009+A1:2010 CLASS A
SAFETY
CertificationsCB mark, commercial
CSA certified (CSA 22.2 #950)
UL listed (UL 1950)/cUL IEC 950/EN 60950
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AN/NZS 60950.1:2015
CCC (China Compulsory Certificate)
保固台灣公司貨享5年保固



如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。
