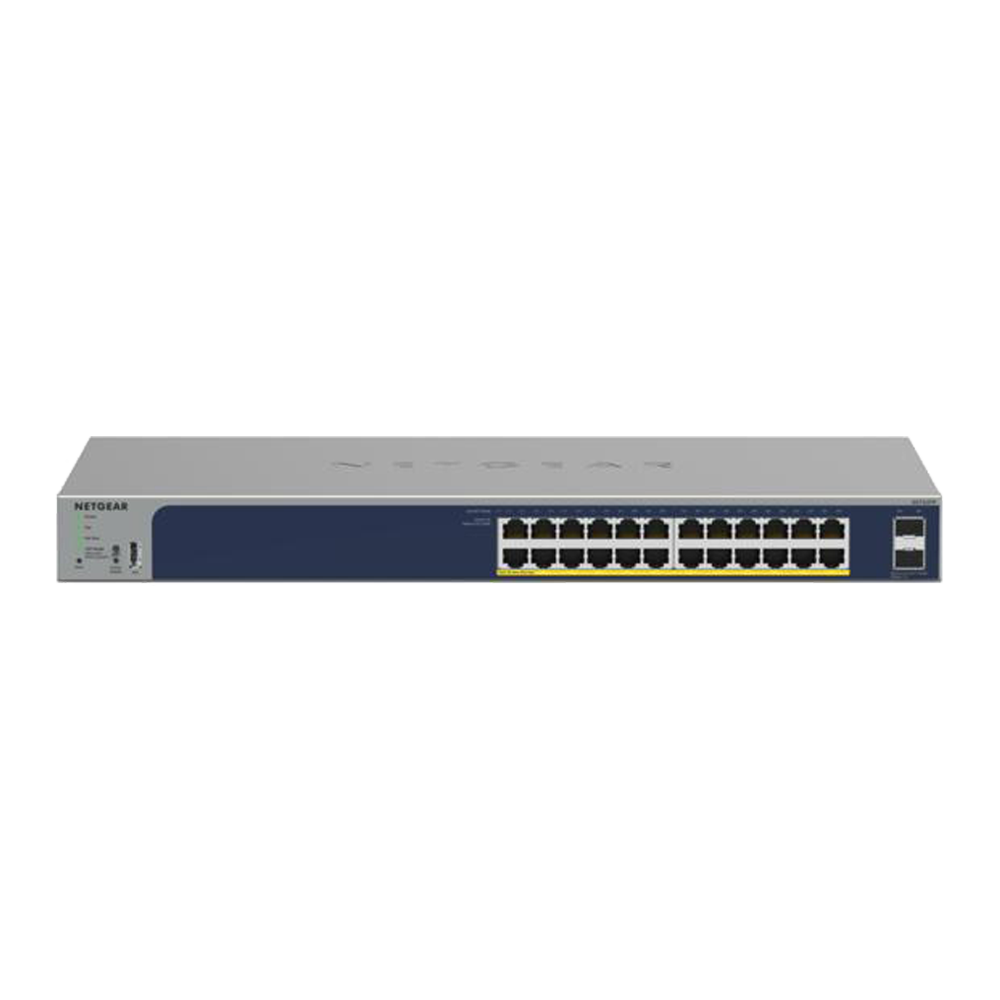

★ 提供24個PoE+連接埠
★ 提供2個專用的SFP光纖連接埠
★ 容易操作的UI管理介面
★ 總PoE瓦數可達190W
★ 提供52Gbps背板頻寬



技術規格

FeaturesGS724TPv2
10M/100M/1G RJ-45 copper ports24
PoE / PoE+ ports24 PoE+ (190W PoE budget)
1G SFP (fiber) ports2 (dedicated)
PERFORMANCE SPECIFICATION
CPU500 Mhz MIPS-4KEc CPU 128MB RAM 32MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports)0.5 MB
Forwarding modesStore-and-forward
Bandwidth52 Gbps
Priority queues8
Priority queuingWeighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses)8K
Multicast groups128
Number of VLANs64
Number of DHCP snooping bindings256
Access Control Lists (ACLs)100 shared for MAC, IP and UDP/TCP ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mpps)38.68
Jumbo frame supportUp to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)32.4 dBA
Mean Time Between Failures (MTBF) @ 25°C1,051,375 hours
100M Copper Latency(64-byte; 1518-byte; 9216-byte frames)6.38µs ; 6.267µs ; 6.059µs
1G Copper Latency(64-byte; 1518-byte; 9216-byte frames)3.749µs ; 4.675µs ; 3.762µs
1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)3.129µs ; 4.213µs ; 4.197µs
L2 SERVICES - VLANS
IEEE 802.1Q VLAN taggingYes
Auto-VoIP VLAN / Auto-Voice VLANYes, manuel or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
L2 SERVICES - AVAILABILITY
Broadcast, multicast, unknown unicast storm controlYes
IEEE 802.3ad - LAGs (LACP)Yes
IEEE 802.3x (full duplex and flow control)Yes
IEEE 802.1D Spanning Tree ProtocolYes
IEEE 802.1w Rapid Spanning Tree ProtocolYes
IEEE 802.1s Multiple Spanning Tree ProtocolYes
L2 SERVICES - MULTICAST FILTERING
IGMP snooping (v1, v2 and v3)Yes
IGMP snooping querierYes
DHCP SERVICES
DHCP clientYes
DHCP snoopingYes
LINK AGGREGATION
IEEE 802.3ad - LAGs (LACP)Yes
Manual Static LAGYes
# of Static or LACP LAGs
# of Members in each LAG
8 LAGs with max 8 members in each LAG
NETWORK MONITORING AND DISCOVERY SERVICES
802.1ab LLDPYes
SNMPv1, v2c, v3
RMON group 1,2,3,9Yes
NETWORK SECURITY
IEEE 802.1xYes (EAP)
Guest VLANYes
RADIUS-based VLAN assignment via .1xYes
RADIUS accountingYes
Access Control Lists (ACLs)L2 / L3 / L4 ingress
IP-based ACLs (IPv4)Yes
MAC-based ACLsYes
TCP/UDP-based ACLsYes
MAC lockdownYes
MAC lockdown by the number of MACsYes
Control MAC # Dynamic learned entries600
Control MAC # Static entries20
IEEE 802.1x RADIUS port access authenticationYes
Port-based security by locked MAC addressesYes
Broadcast, multicast, unknown unicast storm controlYes
DoS attacks preventionYes
QUALITY OF SERVICE (QOS)
Port-based rate limitingYes egress
Port-based QoSYes
DiffServ QoSYes ingress
IEEE 802.1p COSYes
Destination MAC and IPYes
IPv4 DSCPYes
IPv4 ToSYes
TCP/UDP-basedYes
Weighted Round Robin (WRR)Yes
Strict priority queue technologyYes
Auto-VoIP VLAN / Auto-Voice VLANYes, manuel or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
IEEE NETWORK PROTOCOLS• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple Spanning Tree (MSTP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)
• IEEE 802.1x RADIUS Network Access Control
MANAGEMENT
Password managementYes
Configurable management VLANYes
Admin access control via RADIUS and TACACS+Yes
SNTP client over UDP port 123Yes
SNMP v1/v2cYes
SNMP v3 with multiple IP addressesYes
RMON group 1,2,3,9Yes
Port mirroringYes
Many-to-one port mirroring25
Web browser-based graphical user interface (GUI)Yes
Smart Control Center (SCC) for multi-switch managementYes
Dual software (firmware) imageYes
Cable test utilityYes
HTTPS/TLS Web-based access (version)Yes (v1.0)
File transfers (uploads, downloads)TFTP / HTTP
HTTP upload/download (firmware)Yes
Syslog (RFC 3164)Yes
LEDS
Per portSpeed, Link, Activity
Per devicePower and Fan
PHYSICAL SPECIFICATIONS
Dimensions (W x D x H)440 x 204 x 43 mm (17.3 x 8 x 1.7 in)
Weight3.15 kg (6.96 lb)
POWER CONSUMPTION
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)228.53 W
Max power without PoE (worst case, all ports used, line-rate traffic) (Watts)21.62 W
Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)780.20 BTU/hr
Heat Dissipation without PoE (worst case, all ports used, line-rate traffic) (BTU/hr)73.8 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3azYes (deactivated by default)
Short Cable Power ReductionYes (deactivated by default)
Auto Power DownYes (deactivated by default)
Fan2
ENVIRONMENTAL SPECIFICATIONS
Operating
PowerInternal 100-240VAC 50-60Hz
Operating temperature0° to 50°C (32° to 122°F)
Humidity (relative)90% maximum relative humidity (RH), non-condensing
Altitude10,000ft (3,000m) maximum
Storage
Storage temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity, non-condensing
Altitude10,000ft (3,000m) maximum
ELECTROMAGNETIC EMISSIONS AND IMMUNITY
CertificationsCE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
VCCI : VCCI-CISPR 32:2016, Class A
RCM: AS/NZS CISPR 32:2013 Class A
CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
BSMI: CNS 13438 Class A
SAFETY
CertificationsCB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
UL listed (UL 1950)/cUL IEC 950/EN 60950
CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
RCM (AS/NZS) 60950.1:2015
CCC (China Compulsory Certificate): GB4943.1-2011; YD/ T993-1998; GB/T9254-2008 (Class A)
BSMI: CNS 14336-1
保固台灣公司貨享5年保固



如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。
