★ 提供24個PoE+連接埠
★ 提供2個專用的SFP光纖連接埠
★ 容易操作的UI管理介面
★ 總PoE瓦數可達380W
★ 提供52Gbps背板頻寬
★ 可另外加購NETGEAR Insight 雲端管理服務可遠程隨時管理您的網路

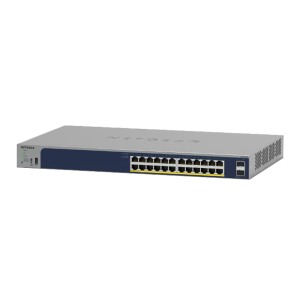

PoE+智能網管交換器-GS724TPP

提供24個PoE+(3at)連接埠
總PoE瓦數可達
380W

52Gbps背板頻寬

提供2個專用的SFP光纖連接埠
用於連接核心交換器

GS724TPP

GS724TPP智能網管交換器專為融合網路所設計,讓語音、視訊、無線AP、IoT設備都能在單一網路平臺傳輸,GS724TPP擁有24個PoE+連接埠與2個SFP光纖連接埠。

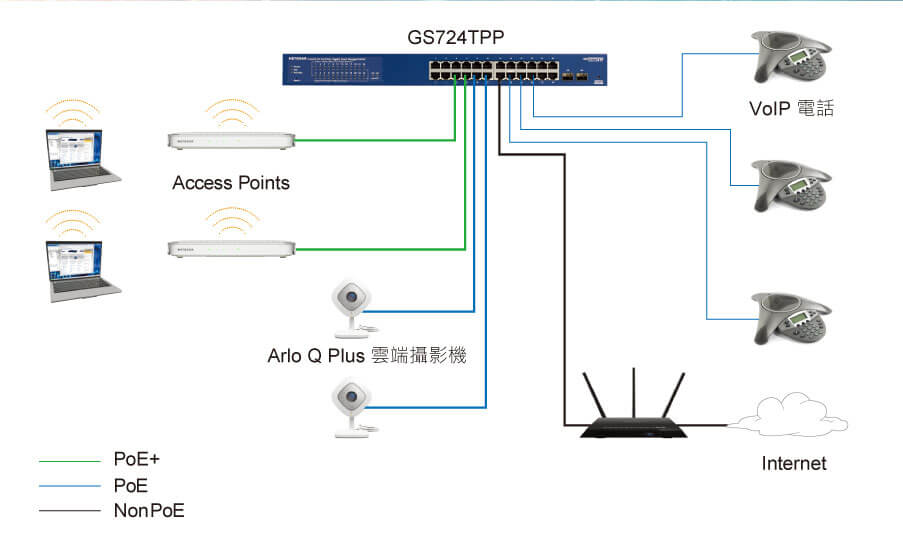

網路管理人員可以透過這台交換器連接24台高功耗的無線AP、IP Cam、LED照明,以及VoIP電話,以一條網路線纜同時提供電源和網路訊號連接。GS724TPP可提供高達380瓦的總供電瓦數,讓客戶可支援更高密度的PoE+設備部署,非常適合追求高性價比的中小型企業。

型號

GS724TPv3

GS724TPPv3

Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T

24

PoE/PoE+ ports

24

Gigabit SFP (fiber) ports (100M/1G) - 1000BASE-X

2 (dedicated)

Power Supply

Internal Power Supply

Kensington Lock

Yes (rear)

LEDs

Front (per device)

Power (with Cloud Mode Indicator), PoE Max, PoE Fault

Front (per port)

Speed/Link/Activity

Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management

Discovery, setup, monitoring and management

NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser

Remote/Cloud management

Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal

Centralized network configuration (policies)

Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs

Device auto-join and configure (zero-touch provisioning)

Additional Insight Managed devices added to the network automatically inherit the network configuration

Multi-site, multi-network single pane-of-glass view

Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal

Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc

Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard

Performance Specification

CPU

800MHz ARM A55 Single Core

512MB RAM 64MB SPI FLASH

Packet buffer memory (Dynamically shared across only used ports)

1.5MB

Forwarding modes

Store-and-forward

Bandwidth (non-blocking, full duplex)

52 Gbps

Priority queues

8

Priority queuing

Weighted Round Robin (WRR) or Strict Priority

MAC Address database size (48-bit MAC addresses)

8K

Multicast groups

512

Number of VLANs

256

Number of DHCP snooping bindings

256

Access Control Lists (ACLs)

100 shared for MAC, IP and IPv6 ACLs (ingress)

Packet forwarding rate (64 byte packet size) (Mfps or Mpps)

38.6

1G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 3.956 µsec 1518-bye: 4.394 µsec 9216-byte: 4.691µsec

64-byte: 4.001 µsec 1518-bye: 4.398µsec 9216-byte: 4.701 µsec

1G SFP Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 1.842 µsec 1518-bye: 1.878 µsec 9216-byte: 1.891 µsec

64-byte: 1.892 µsec 1518-bye: 1.914 µsec 9216-byte: 1.927 µsec

Jumbo frame support

Up to 10K packet

Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)

26.1 dBA

33.6 dBA

Mean Time Between Failures (MTBF) @ 25°C

1,784,610 hrs (142 yrs)

1,310,422 hrs (149 yrs)

POE Configuration

Number of PoE (802.3af) / PoE+ (802.3at) ports

24 PoE+

24 PoE+

Total PoE power budget (watts)

190W

380W

Advanced per-port PoE controls (enable/disable/power limit)

Yes

Advanced per-port PoE scheduling/timers

Yes

L2 Services - VLANs

IEEE 802.1Q VLAN tagging

Yes

Protocol-based VLANs

Yes

MAC-based VLANs

Yes

L2 Services - Availability

Broadcast, multicast, unknown unicast storm control

Yes

IEEE 802.3ad - LAGs (LACP)

Yes

IEEE 802.3x (full duplex and flow control)

Yes

IEEE 802.1D Spanning Tree Protocol

Yes

IEEE 802.1w Rapid Spanning Tree Protocol

Yes

IEEE 802.1s Multiple Spanning Tree Protocol

Yes

L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)

Yes

IGMP snooping querier

Yes

Block unknown multicast

Yes

Multicast groups

256

DHCP Services

DHCP client

Yes

DHCP snooping

Yes

Number of DHCP snooping bindings

256

Link Aggregation

IEEE 802.3ad - LAGs (LACP)

Yes

Manual Static LAG

Yes

# of Static or LACP LAGs # of Members in each LAG

16 LAGs with max 8 members in each LAG

Network Monitoring and Discovery Services

802.1ab LLDP

Yes

LLDP-MED

Yes

SNMP

v1, v2, v3

RMON group 1,2,3,9

Yes

Network Security

IEEE 802.1x

Yes (EAP)

Guest VLAN

Yes

RADIUS-based VLAN assignment via .1x

Yes

MAC-based .1x

Yes

RADIUS accounting

Yes

Access Control Lists (ACLs)

L2 / L3 / L4 ingress

   IP-based ACLs (IPv4 and IPv6)

Yes

 MAC-based ACLs

Yes

TCP/UDP-based ACLs

Yes

MAC lockdown

Yes

MAC lockdown by the number of MACs

Yes

Control MAC # Dynamic learned entries

16384

Control MAC # Static entries

256

IEEE 802.1x RADIUS port access authentication

Yes

Port-based security by locked MAC addresses

Yes

Broadcast, multicast, unknown unicast storm control

Yes

Protected ports

Yes

DoS attacks prevention

Yes

Quality of Service (QoS)

Port-based rate limiting

Yes egress

Port-based QoS

Yes

Support for IPv6 fields

Yes

DiffServ QoS

Yes ingress

IEEE 802.1p COS

Yes

Destination MAC and IP

Yes

IPv4 and IPv6 DSCP

Yes

TCP/UDP-based

Yes

Weighted Round Robin (WRR)

Yes

Strict priority queue technology

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters

Other Features

Advanced per-port PoE controls (enable/disable/power limit)

Yes

Advanced per-port PoE scheduling/timers

Yes

Loop detection & prevention

Yes, by STP

DNS Client

Yes

Option to enable/disable BPDU flooding when STP is disabled

Yes

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Yes

Management, Monitoring & Troubleshooting

Cloud/Remote management

Yes

Insight mobile app & Insight Cloud Portal management

Yes

uPnP Discovery

Yes

Bonjour Discovery

No

Networking monitoring

Yes

Data/performance logs

Yes

Centralized network configuration/policies (network-centric management)

Yes

Device auto-join and configure (zero-touch provisioning)

Yes

Multi-site, multi-network single pane-of-glass view

Yes

Multi-switch, multi-port concurrent configuration

Yes

Network/global password (for all Insight Managed devices on a network)

Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)

Password management

Yes

IP Access List

Yes

Configurable management VLAN

Yes

Admin access control via RADIUS and TACACS+

Yes

IPv6 management

Yes

SNTP client over UDP port 123

Yes

Firmware upgrade direct from Cloud (via mobile device or Insight Cloud portal)

Yes

SNMP v1/v2c

Yes

SNMP v3 with multiple IP addresses

Yes

RMON group 1,2,3,9

Yes

Smart Control Center (SCC) for multi-switch management

Yes

Port mirroring

Yes

Many-to-one port mirroring

Yes

Cable test utility

Yes

Ping and tracerout client

Yes

Management, Monitoring & Troubleshooting

Local-only web browser-based management GUI

Yes

HTTP/TLS Web-based access (version)

Yes (1.2)

HTTP firmware upload/download

Yes

Dual software (firmware) image

Yes

Memory and flash log

Yes

Syslog (Server)

Yes

Power Consumption

Max power (worst case, all ports used, line-rate traffic) (Watts)

20.69 W

21.59 W

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)

231.07 W

396.95 W

Min power (link-down standby) (Watts)

11.3 W

13.3 W

Heat Dissipation (max w/full PoE & standby) (BTU/hr)

Max: 739.42 BTU/hr Min: 36.16 BTU/hr

Max: 1270.24 BTU/hr Min: 42.56 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Auto Power Down

Yes (deactivated by default)

Fan(s) (temperature- and load-based speed control)

2

Physical Specifications

Dimensions (W x D x H)

440 x 257 x 43.2 mm

440 x 257 x 43.2 mm

Weight

3.15 kg

3.7 kg

Mounting options

Desktop, rack mount

Desktop, rack mount

Environmental Specifications

Operating

Operating temperature

0° to 50°C (32° to 122°F)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

–20° to 70°C (– 4° to 158°F)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

保固

台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

.如規格有異動,恕不另行通知。NETGEAR保有所有權利。
