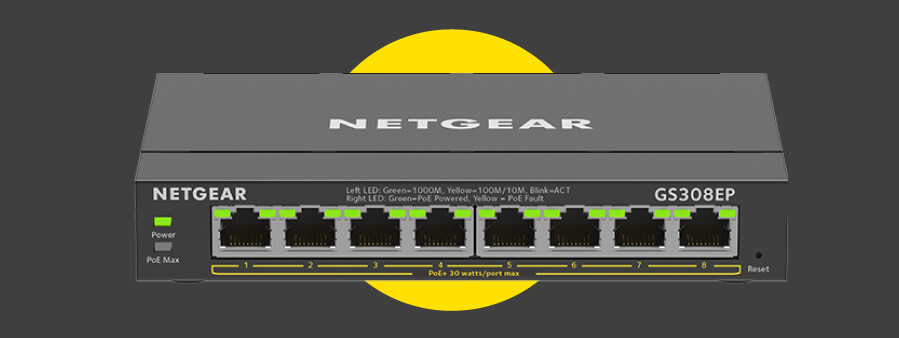

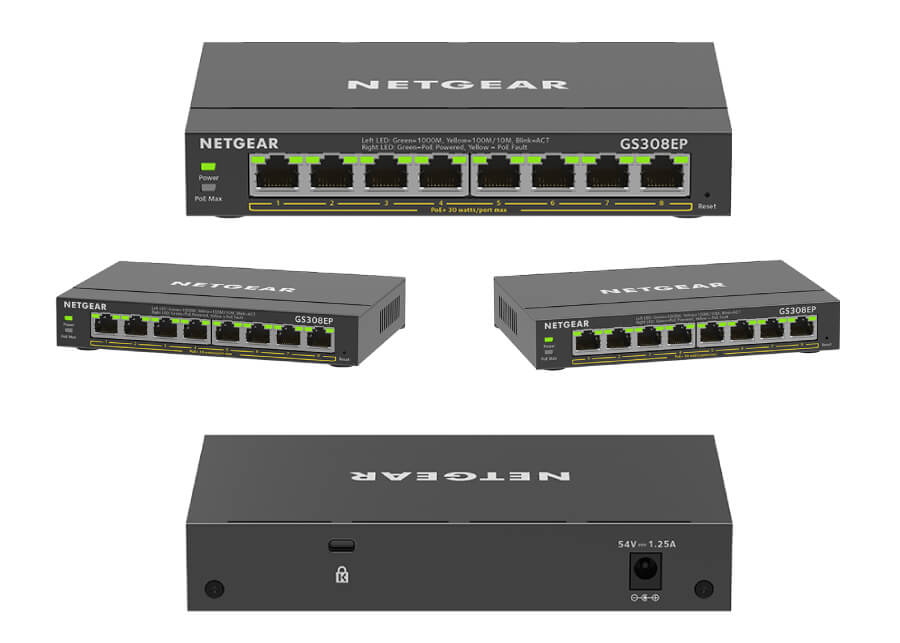

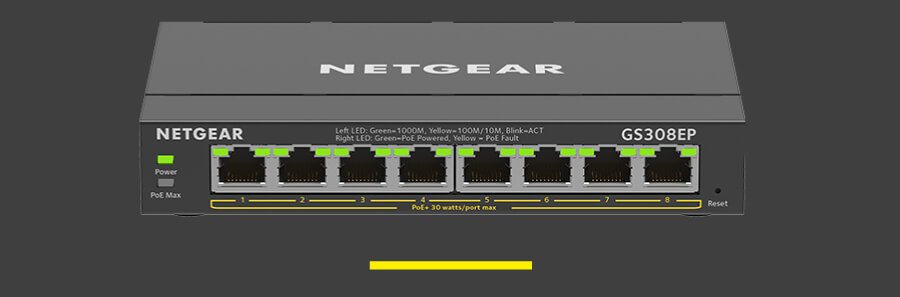

NETGEAR 簡易網管/ PoE 交換器 – GS308EP

GS308EP_1000x1000

★8個10/1000/1000 Mbps乙太網路口
★8個連接埠總供電瓦數達62瓦
★金屬外殼散熱佳，無風扇設計
★支援IGMP Snooping可連接MOD
★支援Port Mirror鏡像監測
★台灣公司貨，享五年保固

經銷商洽詢

產品介紹

CP值最高的簡易網管交換器

適合SOHO、中小型企業使用

GS308EP 提供8個10/100/1000 Mbps乙太網路口

GS308EP

8個連接埠總供電瓦數達62W
可連接電腦、IPhone、印表機、伺服器、NAS…等等

Web GUI 介面
管理容易

支援 IGMP Snooping 可連接MOD

GS308EP

支援 Port Mirror 鏡像監測
的超平價的交換器
可以收集最多7 Port的封包訊息

GS308EP

Plug-N-Play隨插即用

GS305EP

GS308EP

GS305EP

Features

GS305EP

GS308EP

Gigabit ports

5

8

Enclosure

Metal

Connector Type

Metal

PoE

PoE+ 802.3at Ports

4

8

總瓦數

63W

62W

Uninterrupted PoE

Yes

Performance Specification

Forwarding modes

Store-and-forward

Bandwidth

10Gbps

16Gbps

Max MAC entries

4K

Buffer Size

192KB

Energy Efficient Ethernet (IEEE 802.3az)compliant

Yes

Priority queuing

WRR

Jumbo frame support

9,216 bytes

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

0

Mean Time Between Failures (MTBF) @ 25° C

1,164,104 hours

859,126 hours

L2 Services - VLANS

VLAN (# Supported)

64

IEEE 802.1Q VLAN Tagging

Yes

Port-based VLANs

Yes

L2 Services - Availability

Link Aggregation/Port Trunking

Yes

Number of Static Manual LAGs and # of members

2/4

L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)

Yes

Block unknown multicast

Yes

Supported Multicast groups

128

L3 Services - DHCP

DHCP client

Yes

Rate Limiting

Yes

DSCP

Yes

IEEE 802.1p COS

Yes

Port-based VLAN

Yes

WRR (Weighted Round Robin)

Yes

IEEE Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN

IEEE 802.3x Full-duplex Flow Control

IEEE 802.3af PoE

IEEE 802.3at PoE+

Management

System Password

Yes

Web browserbased management GUI

Yes

One-to-one Port Mirroring

Yes

Cable Test Utility

Yes

Config upload (to server)

Yes

LEDs

Per port

Speed, Link, Activity, PoE

Per device

Power, system, PoE Max

Physical Specifications

尺寸(W x D x H)

158 x 101 x 27 mm

重量

0.39 kg

0.49 kg

Environmental Specifications

Operating

Operating temperature

32° to 104°F (0° to 40°C)

Humidity (relative)

90% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

– 4° to 158°F (–20° to 70°C)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Electromagnetic Emissions and Immunity

Certifications

CE mark, commercial

FCC Part 15 class B

CE/EN55032/24

VCCI

ACMA

CSA safety

KC

BSMI

包裝內容物

簡易網管交換器x1

AC電源供應器x1

牆壁安裝套件

橡膠腳

快速安裝指南

保固

5年

如規格有異動，恕不另行通知。NETGEAR保有所有權利。

產品規格

GS308EP 規格

Features

GS305EP

GS308EP

GS316EP

RJ45 Gigabit ports

5

8

15

SFP Port

0

0

1

Enclosure

Metal

Metal

Metal

Connector Type

Metal

Metal

Metal

PoE

PoE+ 802.3at Ports

4

8

15

總瓦數

63W

62W

180W

Uninterrupted PoE

Yes

Yes

Yes

Performance Specification

Forwarding modes

Store-and-forward

Bandwidth

10Gbps

16Gbps

28Gbps

Max MAC entries

4K

4K

4K

Buffer Size

192KB

192KB

192KB

Energy Efficient Ethernet (IEEE 802.3az)compliant

Yes

Yes

Yes

Priority queuing

WRR

WRR

WRR

Jumbo frame support

9,216 bytes

9,216 bytes

10,000 bytes

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

0

0

0

Mean Time Between Failures (MTBF) @ 25° C

1,164,104 hours

859,126 hours

784,742 hours

L2 Services - VLANS

VLAN (# Supported)

64

64

64

IEEE 802.1Q VLAN Tagging

Yes

Yes

Yes

Port-based VLANs

Yes

Yes

Yes

L2 Services - Availability

Link Aggregation/Port Trunking

Yes

Yes

Yes

Number of Static Manual LAGs and # of members

2/4

2/4

8/8

L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)

Yes

Yes

Yes

Block unknown multicast

Yes

Yes

Yes

Supported Multicast groups

128

128

128

L3 Services - DHCP

DHCP client

Yes

Yes

Yes

Rate Limiting

Yes

Yes

Yes

DSCP

Yes

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Yes

Strict Priority queue technology

No

No

No

IEEE Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.3x Full-duplex Flow Control

IEEE 802.3af PoE

IEEE 802.3at PoE+

Management

System Password

Yes

Yes

Yes

Web browserbased management GUI

Yes

Yes

Yes

PC Utility

No

No

No

Port Mirroring

Yes

Yes

Yes

Max number of source ports allowed (one-to-one Port Mirroring)

1

1

1

Many-to-one Port Mirroring

Yes

Yes

Yes

Cable Test Utility

Yes

Yes

Yes

FW Upgrade Thru Plus Utility (TFTP)

No

No

No

Config download (to Switch) thru Plus Utility

No

No

No

Config upload (to server)

Yes

Yes

Yes

LEDs

Per port

Speed, Link, Activity, PoE

Per device

Power, system, PoE Max

Physical Specifications

尺寸(W x D x H)

158 x 101 x 27 mm

286 x 102 x 27 mm

重量

0.39 kg

0.49 kg

0.883 kg

Environmental Specifications

Operating

Operating temperature

32° to 104°F (0° to 40°C)

Humidity (relative)

90% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Storage

Storage temperature

– 4° to 158°F (–20° to 70°C)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) maximum

Electromagnetic Emissions and Immunity

Certifications

CE mark, commercial

FCC Part 15 class B

CE/EN55032/24

VCCI

ACMA

CSA safety

KC

BSMI

包裝內容物

簡易網管交換器x1

AC電源供應器x1

牆壁安裝套件

橡膠腳

快速安裝指南

保固

5年

如規格有異動，恕不另行通知。NETGEAR保有所有權利。

電商限定型號規格比較

型號

PORTS

PoE Ports

PoE Budget

保固

無網管系列

GS308PP

瞭解更多

8 x GbE

8（PoE +）

83W

3年

GS316P

瞭解更多

16 x GbE

16（PoE +）

115W

3年

GS316PP

瞭解更多

16 x GbE

16（PoE +）

183W

3年

GS324P

瞭解更多

24 x GbE

16（PoE +）

190W

3年

GS324PP

瞭解更多

24 x GbE

24（PoE +）

380W

3年

GS348PP

瞭解更多

48 x GbE

24（PoE +）

380W

3年

簡易網管系列

GS305E

瞭解更多

5 x GbE

-

-

5年

GS305EP

瞭解更多

5 x GbE

4（PoE +）

63W

5年

GS305EPP

瞭解更多

5 x GbE

4（PoE +）

120W

5年

GS308E

瞭解更多

8 x GbE

-

-

5年

GS308EP

瞭解更多

8 x GbE

8（PoE +）

62W

5年

GS308EPP

瞭解更多

8 x GbE

8（PoE +）

123W

5年

GS316EP

瞭解更多

15 x GbE + 1 SFP

15（PoE +）

180W

5年

GS316EPP

瞭解更多

15 x GbE + 1 SFP

15（PoE +）

231W

5年

智能網管系列

GS308T

瞭解更多

8 x GbE

-

-

3年

GS324T

瞭解更多

24 x GbE + 2 SFP

-

-

3年

GS348T

瞭解更多

48 x GbE + 4 SFP

-

-

3年

GS310TP

瞭解更多

8 x GbE + 2 SFP

8（PoE +）

55W

3年

GS324TP

瞭解更多

24 x GbE + 2 SFP

24（PoE +）

190W

3年
