★5速交換器
★8個10-Gig/Multi-Gig Copper RJ-45連接埠
★1個SFP+ 連接埠(shared)
★提供100Gbps背板頻寬
★台灣公司貨,五年保固

全球首發 8埠10G交換器
XS508M

相容各種網路環境應用(100M/1G/2.5G/5G/10G))

中小企業的最佳選擇

隨插即用 / 桌面或機架式安裝
自動為您的設備提供100Mb,1G,2.5G,5G,10G的網路
線路無需升級到Cat6,可以降低換線成本

10G高速網路

XS508M提供8埠自動偵測
100M/1G/2.5G/5G/10G網速的埠口,
並外加1埠SPF+ 10G光纖埠,讓您無需
更換線路,立刻享有最高的網速。

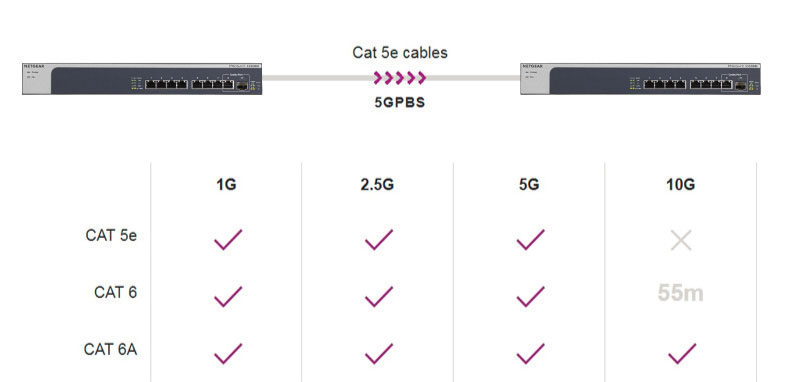

相同的佈線 5倍的速度

Multi-Giga vs 5速埠口

有什麼不同?

Multi-Giga 埠口:智能埠口,依該佈口最高速度可以向下相容。
5-SPEED埠口:10G智能埠口,網路速度不受限制,
可提供5種網路速度之一:100M/1G/2.5G/5G或10G。

可以提供設備所需的各種網速

NETGEAR XS508M
可以靈活應用在不同需求

✓想要快速升級網路

✓施工不方便,無法更換線路

✓降低更換線路成本

無網管Multi-Gigbit交換器功能

無需安裝軟體,設置簡單,除了節能,還經過嚴格測試十分耐用
5
年保固,故障換機
隨插即用/Multi-speed 連接埠口/SFP+光纖連接埠
自動連接/體積小,不占空間/桌面、機架式安裝

技術規格

FeaturesXS508M
100M/1G/2.5G/5G/10G RJ-45 copper ports7
10G SFP+ ports1 x 10G/1G SFP+ and Copper (combo)
Form FactorDesktop/Rackmount
效能規格
Packet buffer memory (Dynamically shared across only used ports)128KBMB
Forwarding modesStore-and-forward
Bandwidth160Gbps
MAC Address database size (48-bit MAC addresses)2K
Packet forwarding rate (64 byte packet size) (Mpps)10Gbps: 14,880,952fps
5Gbps: 7,440,476fps
2500Mbps: 3,720,238fps
1000Mbps: 1,488,095fps
100Mbps: 148,810fps
Speed / Latency100Mbps: <6µs
1Gbps: <4µs
2.5Gbps: TBD
5Gbps: TBD
10Gbps : TBD
Jumbo frame supportUp to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)22.5
Mean Time Between Failures (MTBF) @ 25°C1145157 hours
POWER/ENERGY EFFICIENCY
802.1p-based QoS/CoS SupportedYes
Auto Power DownYes
Short Cable Detection/Power SavingYes
QUALITY OF SERVICE (QOS)
IEEE 802.3az (Energy Efficient Ethernet)Yes
Honors DSCP (DiffServ) TagsYes
Weighted Round Robin (WRR)Yes
Priority Queues8
網路通訊協定• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1p Class of Service
• IEEE 802.3az Energy Efficient Ethernet (EEE
• IEEE 802.3an 10GBASE-T
• IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
• IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
LEDs提示燈
Per portSpeed, Link, Activity
Per devicePower and Fan
體積與重量
Dimensions (W x D x H)328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight1.49kg
功耗
Power SupplyFixed internal PSU, 100-240VAC, 50-60Hz, 1.5A max Power cord localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts)39W
Min power (link-down standby) (Watts)21.31
Heat Dissipation (max and min) (BTU/hr)147.86/80.8
Fan(s)x1
環境需求
運作環境
Operating temperature0° to 50°C (32° to 122°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
儲藏環境
Storage temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
電磁輻射干擾與耐受性
Certifications47 CFR FCC Part 15, SubpartB, ClassB
ICES-003:2016 Issue 6, ClassB
ANSI C63.4:2014
EN 55022:2010 + AC:2011, Class A
EN 55024:2010
EN 61000-3-2:2014, Class A
EN 6100-3-3:2013
AS/NZS CISPR 22:2009 + A1:2010, Class B
VCCI V-3/2015.04, Class A
V-4/2012.4
Russia EAC mark
Korea KC mark
CNS 13438
Electromagnetic Compliance (Class A or B)Class B
安全認證
CertificationsCB mark, commercial
IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AS/NZS 60950.1:2015
Russia EAC mark
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

XS508M 硬體規格

FeaturesXS508M
100M/1G/2.5G/5G/10G RJ-45 copper ports7
10G SFP+ ports1 x 10G/1G SFP+ and Copper (combo)
Form FactorDesktop/Rackmount
效能規格
Packet buffer memory (Dynamically shared across only used ports)128KBMB
Forwarding modesStore-and-forward
Bandwidth160Gbps
MAC Address database size (48-bit MAC addresses)2K
Packet forwarding rate (64 byte packet size) (Mpps)10Gbps: 14,880,952fps
5Gbps: 7,440,476fps
2500Mbps: 3,720,238fps
1000Mbps: 1,488,095fps
100Mbps: 148,810fps
Speed / Latency100Mbps: <6µs
1Gbps: <4µs
2.5Gbps: TBD
5Gbps: TBD
10Gbps : TBD
Jumbo frame supportUp to 9K packet size
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)22.5
Mean Time Between Failures (MTBF) @ 25°C1145157 hours
POWER/ENERGY EFFICIENCY
802.1p-based QoS/CoS SupportedYes
Auto Power DownYes
Short Cable Detection/Power SavingYes
QUALITY OF SERVICE (QOS)
IEEE 802.3az (Energy Efficient Ethernet)Yes
Honors DSCP (DiffServ) TagsYes
Weighted Round Robin (WRR)Yes
Priority Queues8
網路通訊協定• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.1p Class of Service
• IEEE 802.3az Energy Efficient Ethernet (EEE
• IEEE 802.3an 10GBASE-T
• IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber
• IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM)
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
LEDs提示燈
Per portSpeed, Link, Activity
Per devicePower and Fan
體積與重量
Dimensions (W x D x H)328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight1.49kg
功耗
Power SupplyFixed internal PSU, 100-240VAC, 50-60Hz, 1.5A max Power cord localized to country of sale
Max power (worst case, all ports used, line-rate traffic) (Watts)39W
Min power (link-down standby) (Watts)21.31
Heat Dissipation (max and min) (BTU/hr)147.86/80.8
Fan(s)x1
環境需求
運作環境
Operating temperature0° to 50°C (32° to 122°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
儲藏環境
Storage temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
電磁輻射干擾與耐受性
Certifications47 CFR FCC Part 15, SubpartB, ClassB
ICES-003:2016 Issue 6, ClassB
ANSI C63.4:2014
EN 55022:2010 + AC:2011, Class A
EN 55024:2010
EN 61000-3-2:2014, Class A
EN 6100-3-3:2013
AS/NZS CISPR 22:2009 + A1:2010, Class B
VCCI V-3/2015.04, Class A
V-4/2012.4
Russia EAC mark
Korea KC mark
CNS 13438
Electromagnetic Compliance (Class A or B)Class B
安全認證
CertificationsCB mark, commercial
IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AS/NZS 60950.1:2015
Russia EAC mark
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。

ProSAFE SWITCHES WITH 5速交換器

Model

連接埠口 PORTS

PoE Budget

100M / 1G Multi-Gig埠口

100M / 1G /2.5G
Multi-Gig埠口

100M / 1G /2.5G /5G Multi-Gig埠口

100M / 1G /2.5G /5G /10G
Multi-Gig 埠口

光纖

無網管 5速交換器

XS505M

-

-

-

4

1x 10G SFP+光纖

-

XS508M

-

-

-

7

1x 10G SFP+光纖

-

GS110MX

8

-

-

2

-

-

簡易網管型 5速交換器

GS110EMX

8

-

-

2

-

-

XS512EM

-

-

-

12

2x 10G SFP+光纖(Shared)

-

XS724EM

-

-

24

2x 10G SFP+光纖(Shared)

-

智能網管型5速交換器

XS508TM

-

-

-

8

2x 10G SFP+光纖

-

XS516TM

-

-

-

16

2x 10G SFP+光纖

-

MS510TX

4

2

2

1

1 x 1G/10G SFP+光纖

-

MS510TXPP

4(PoE+)

2(PoE+)

2(PoE+)

1

1 x 1G/10G SFP+光纖

180W

MS510TXM

-

4

-

4

2 x 1G/10G SFP+光纖

-

MS510TXUP

-

4(PoE++)

-

4(PoE++)

2 x 1G/10G SFP+光纖

295W

M4200 系列全網管五速交換器

M4200-10MG-PoE+ (GSM4210P)

-

6(PoE+)

2(PoE+)

-

2 x 10G SFP+

240W

M4250 系列全網管五速交換器

M4250-12M2XF (MSM4214X)

-

12

-

-

-

M4300 系列全網管五速交換器

M4300-16X (XSM4316PA)

-

-

-

16(PoE+)

-

199W with APS299W PSU

M4300-16X (XSM4316PB)

-

-

-

16(PoE+)

-

500W with APS600W PSU

M4300-96X PoE Module- APM408C

-

-

-

8

-

-

M4300-96X PoE Module- APM408P

-

-

-

8(PoE+)

-

up to 30W Per Port

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
