無風扇設計
符合各種網路環境應用
無網管 Multi-Gig 交換器
5速交換器
中小企業的最佳選擇
1.自動為您的設備提供100Mb,1G,2.5G,5G,10G 的網路
2.線路無需升級到Cat6，可降低換線成本
3.無風扇設計，安靜運作，桌面機架都可以安裝
相同的佈線5倍的速度

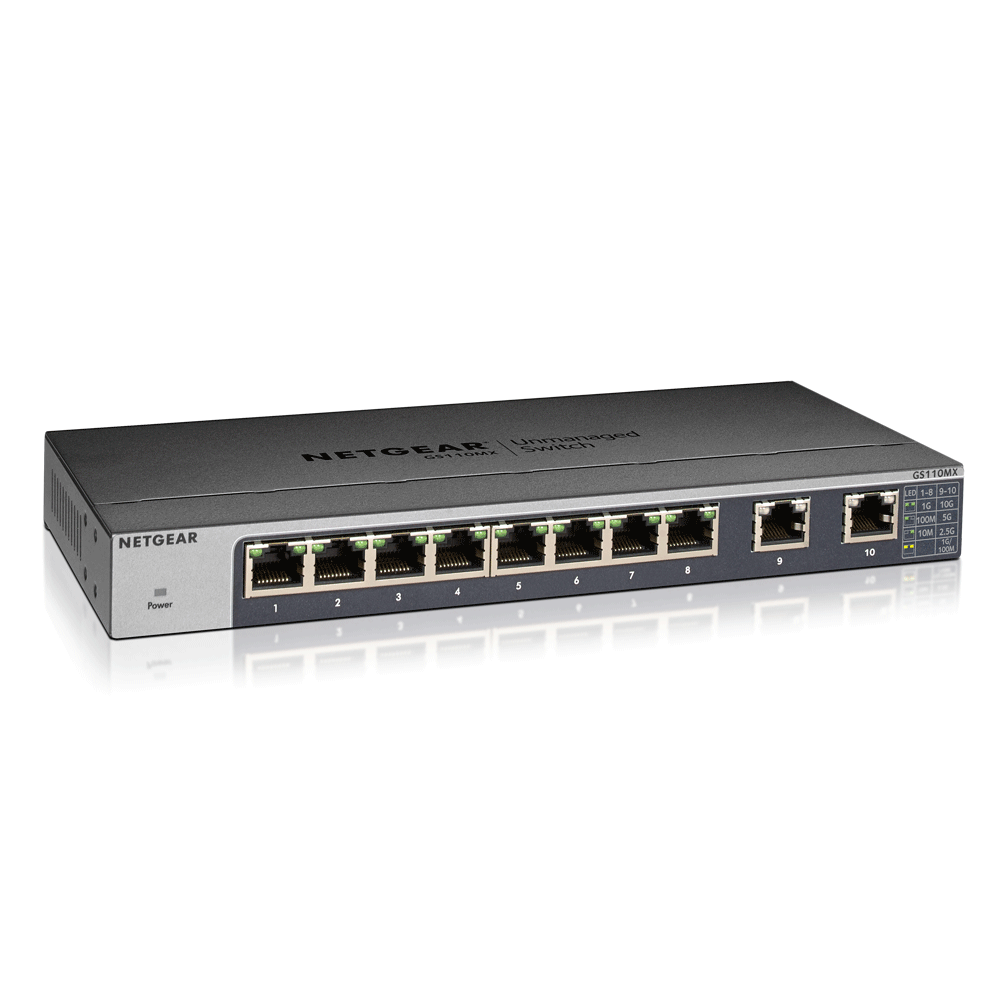

GS110MX 具有100M / 1G / 2.5G / 5G / 10G RJ-45埠口,
智能埠口,依該埠口最高速度可以向下相容。
埠口可以自動檢測連接的設備需要的速度並提供足夠的網速。
NETGEAR 5速交換器埠口可以用普通的 Cat 5e 乙太網路線連接，
不需升級到Cat6，可以降低接線成本。
可以提供設備所需的各種網速
可以靈活應用在不同需求
▶ 想要快速升級網路
▶ 施工不便,無法更換線路
▶ 降低線路汰換成本
技術規格
| PRODUCT | GS110MX |
| Gigabit ports | 8 |
| 100M/1G/2.5G/5G/10G RJ-45 copper ports | 2 |
| Form Factor | Desktop/Rackmount/Wallmount |
| 效能規格 | |
| Bandwidth | 56 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Multicast groups | N/A |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 41.664Mfps |
| Speed / Latency | 10Gbps: < 3µs 100Mbps: <7µs 1000Mbps: <4µs |
| Jumbo frame support | Up to 10240 bytes |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 dBA |
| 電源/能源運用效率 | |
| Energy-Efficient Ethernet | Yes |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 13.2 |
| QUALITY OF SERVICE (QOS) | |
| 802.1p-based QoS/CoS Supported | Yes |
| Port-based rate limiting | N/A |
| Port-based QoS | N/A |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| Pre-Defined Rate Limiting Rates | N/A |
| Pre-Defined Port Priority Queues | 8 |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | N/A |
| Voice VLAN | N/A |
| L2 SERVICES - VLANs | |
| VLAN (# Supported) | N/A |
| IEEE 802.1Q VLAN Tagging | N/A |
| Port-based VLAN | N/A |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | N/A |
| Static Manual LAGs (Port Trunking) | N/A |
| LACP | N/A |
| IEEE 802.3x (full duplex and flow control) | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | N/A |
| IGMP snooping querier | N/A |
| Block unknown multicast | N/A |
| Static multicast router port | N/A |
| L3 SERVICES - DHCP | |
| DHCP client | N/A |
| LINK AGGREGATION | |
| Static Manual LAGs (Port Trunking) | N/A |
| # of Static LAGs / # of members in each LAG | N/A |
| LEDS | |
| Per port | Speed, Link, Activity |
| Per device | Power |
| 體積與重量 | |
| Dimensions (W x D x H) | 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in) |
| Weight | 0.74 kg (1.63 lbs) |
| 電源功耗 | |
| Power Supply | MX: External Power Adapter 12V 1.5A EMX: External Power Adapter12V 2.5A |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 13.2v |
| Min power (link-down standby) (Watts) | MX: 4.8 EMX: 6.6 |
| Heat Dissipation (max and min) (BTU/hr) | Max: 45.14 BTU/hr Min: 16.42BTU/hr |
| Fan(s) | Fanless |
| 環境需求 | |
| 運作環境 | |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications | 47 CFR FCC Part 15, SubpartB, Class B ICES-003:2016 Issue 6, Class B ANSI C63.4:2014 EN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 +A1:2015 AS/NZS CISPR 32:2015, Class B VCCI-CISPR 32:2016, Class B Russia EAC mark Korea KC mark CNS 13438 |
| Electromagnetic Compliance (Class A or B) | Class B |
| 安全性 | |
| Certifications | CB mark, commercial UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 Russia EAC mark (GS110MX only) |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
GS110MX 硬體規格
| PRODUCT | GS110MX |
| Gigabit ports | 8 |
| 100M/1G/2.5G/5G/10G RJ-45 copper ports | 2 |
| Form Factor | Desktop/Rackmount/Wallmount |
| 效能規格 | |
| Bandwidth | 56 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) |
| MAC Address database size (48-bit MAC addresses) | 16K |
| Multicast groups | N/A |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 41.664Mfps |
| Speed / Latency | 10Gbps: < 3µs 100Mbps: <7µs 1000Mbps: <4µs |
| Jumbo frame support | Up to 10240 bytes |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 dBA |
| 電源/能源運用效率 | |
| Energy-Efficient Ethernet | Yes |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 13.2 |
| QUALITY OF SERVICE (QOS) | |
| 802.1p-based QoS/CoS Supported | Yes |
| Port-based rate limiting | N/A |
| Port-based QoS | N/A |
| IEEE 802.1p COS | Yes |
| IPv4 DSCP | Yes |
| Pre-Defined Rate Limiting Rates | N/A |
| Pre-Defined Port Priority Queues | 8 |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | N/A |
| Voice VLAN | N/A |
| L2 SERVICES - VLANs | |
| VLAN (# Supported) | N/A |
| IEEE 802.1Q VLAN Tagging | N/A |
| Port-based VLAN | N/A |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | N/A |
| Static Manual LAGs (Port Trunking) | N/A |
| LACP | N/A |
| IEEE 802.3x (full duplex and flow control) | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2, and v3) | N/A |
| IGMP snooping querier | N/A |
| Block unknown multicast | N/A |
| Static multicast router port | N/A |
| L3 SERVICES - DHCP | |
| DHCP client | N/A |
| LINK AGGREGATION | |
| Static Manual LAGs (Port Trunking) | N/A |
| # of Static LAGs / # of members in each LAG | N/A |
| LEDS | |
| Per port | Speed, Link, Activity |
| Per device | Power |
| 體積與重量 | |
| Dimensions (W x D x H) | 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in) |
| Weight | 0.74 kg (1.63 lbs) |
| 電源功耗 | |
| Power Supply | MX: External Power Adapter 12V 1.5A EMX: External Power Adapter12V 2.5A |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 13.2v |
| Min power (link-down standby) (Watts) | MX: 4.8 EMX: 6.6 |
| Heat Dissipation (max and min) (BTU/hr) | Max: 45.14 BTU/hr Min: 16.42BTU/hr |
| Fan(s) | Fanless |
| 環境需求 | |
| 運作環境 | |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Humidity (relative) | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications | 47 CFR FCC Part 15, SubpartB, Class B ICES-003:2016 Issue 6, Class B ANSI C63.4:2014 EN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 +A1:2015 AS/NZS CISPR 32:2015, Class B VCCI-CISPR 32:2016, Class B Russia EAC mark Korea KC mark CNS 13438 |
| Electromagnetic Compliance (Class A or B) | Class B |
| 安全性 | |
| Certifications | CB mark, commercial UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 Russia EAC mark (GS110MX only) |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知 © 2019著作權為NETGEAR所有。NETGEAR並保有所有權利。
ProSAFE SWITCHES WITH 5速交換器 | ||||||
Model | 連接埠口 PORTS | PoE Budget | ||||
100M / 1G Multi-Gig埠口 | 100M / 1G /2.5G | 100M / 1G /2.5G /5G Multi-Gig埠口 | 100M / 1G /2.5G /5G /10G | 光纖 | ||
無網管 5速交換器 | ||||||
XS505M | - | - | - | 4 | 1x 10G SFP+光纖 | - |
XS508M | - | - | - | 7 | 1x 10G SFP+光纖 | - |
GS110MX | 8 | - | - | 2 | - | - |
簡易網管型 5速交換器 | ||||||
GS110EMX | 8 | - | - | 2 | - | - |
XS512EM | - | - | - | 12 | 2x 10G SFP+光纖(Shared) | - |
XS724EM | - | - | 24 | 2x 10G SFP+光纖(Shared) | - | |
智能網管型5速交換器 | ||||||
XS508TM | - | - | - | 8 | 2x 10G SFP+光纖 | - |
XS516TM | - | - | - | 16 | 2x 10G SFP+光纖 | - |
XS724TM | - | - | - | 24 | 4x 10G SFP+光纖 | - |
MS510TX | 4 | 2 | 2 | 1 | 1 x 1G/10G SFP+光纖 | - |
MS510TXPP | 4(PoE+) | 2(PoE+) | 2(PoE+) | 1 | 1 x 1G/10G SFP+光纖 | 180W |
MS510TXM | - | 4 | - | 4 | 2 x 1G/10G SFP+光纖 | - |
MS510TXUP | - | 4(PoE++) | - | 4(PoE++) | 2 x 1G/10G SFP+光纖 | 295W |
M4200 系列全網管五速交換器 | ||||||
M4200-10MG-PoE+ (GSM4210P) | - | 6(PoE+) | 2(PoE+) | - | 2 x 10G SFP+ | 240W |
M4250 系列全網管五速交換器 | ||||||
M4250-12M2XF (MSM4214X) | - | 12 | - | - | - | |
M4300 系列全網管五速交換器 | ||||||
M4300-16X (XSM4316PA) | - | - | - | 16(PoE+) | - | 199W with APS299W PSU |
M4300-16X (XSM4316PB) | - | - | - | 16(PoE+) | - | 500W with APS600W PSU |
M4300-96X PoE Module- APM408C | - | - | - | 8 | - | - |
M4300-96X PoE Module- APM408P | - | - | - | 8(PoE+) | - | up to 30W Per Port |
