Features

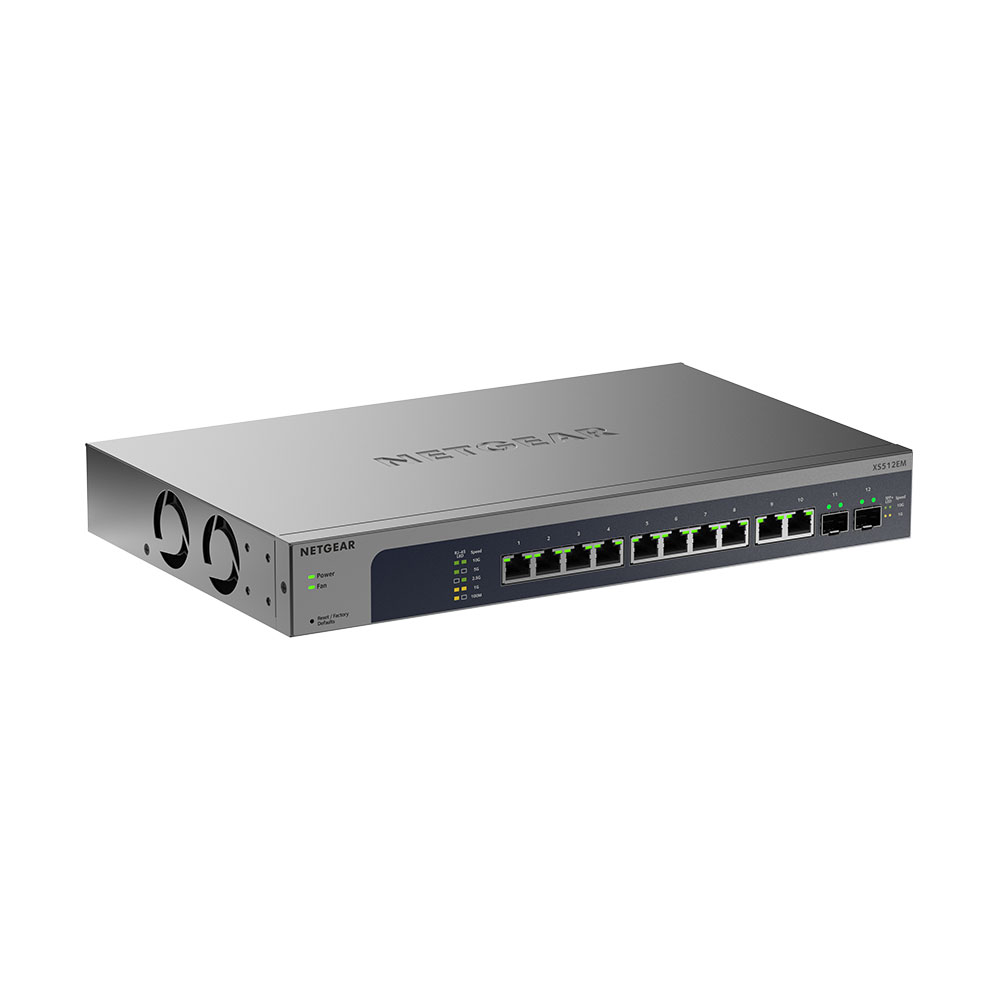

XS512EMv2

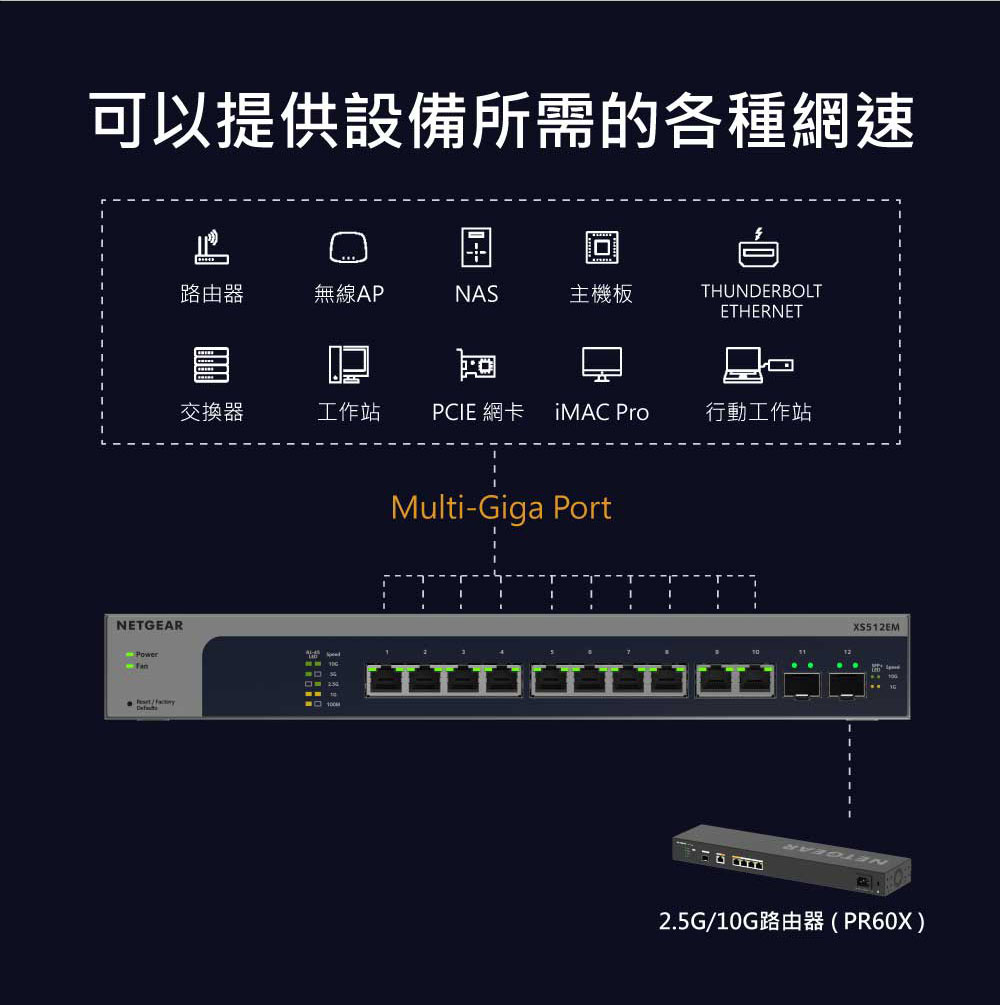

100M/1G/2.5G/5G/10G RJ-45 copper ports

10

10G SFP+ ports

2 (dedicated)

Form Factor

Desktop/Rackmount

效能規格

Packet buffer memory (Dynamically shared across only used ports)

2MB

Forwarding modes

Store-and-forward

Bandwidth

240 Gbps

MAC Address database size (48-bit MAC addresses)

32K

Packet forwarding rate (64 byte packet size) (Mfps or Mpps)

178.6

Speed / Latency

10Gbps: < 3.919µs

5Gbps: < 5.215µs

2.5Gbps: < 7.629µs

1Gbps: <4.714µs

100Mbps: <29.427µs

Jumbo frame support

Up to 12K packet size

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

Full load: 28.2dBA

@ 25 degree C

Mean Time Between Failures (MTBF) @ 25° C

420,709 hrs

L2 SERVICES - VLANs

VLAN (# Supported)

64

Port-based VLANs (physical)

Yes

IEEE 802.1Q VLAN Tagging

Yes

Auto-Voice VLAN

Yes

Auto-Video VLAN

Yes

Auto-WiFi VLAN

Yes

Auto-Camera VLAN

Yes

Management VLAN

Yes

L2 SERVICES - AVAILABILITY

Broadcast, multicast, unknown unicast storm control

Yes

Static Manual LAGs (Port Trunking)

Yes

LACP

Yes

IEEE 802.3x (full duplex and flow control)

Yes

L2 SERVICES - MULTICAST FILTERING

IGMP snooping (v1, v2, and v3)

Yes

IGMP snooping querier

Yes

Block unknown multicast

Yes

Static multicast router port

Yes

L3 SERVICES - DHCP

DHCP client

Yes

LINK AGGREGATION

Static Manual LAGs (Port Trunking)

Yes

LACP

Yes

# of Static LAGs / # of members in each LAG

6 LAGs with max 8 members in each LAG

QUALITY OF SERVICE (QOS)

Port-based rate limiting

Ingress and egress

Port-based QoS

Yes

IEEE 802.1p COS

Yes

IPv4 DSCP

Yes

IPv4 ToS

Yes

TCP/UDP-based

No

Weighted Round Robin (WRR)

Yes

Strict priority queue technology

No

網路標準與協定

• IEEE 802.3 Ethernet

• IEEE 802.3u 100BASE-TX

• IEEE 802.3ab 1000BASE-T

• IEEE 802.1Q VLAN Tagging

• IEEE 802.3x Full-Duplex Flow Control

• IEEE 802.1p Class of Service

• IEEE 802.3az Energy Efficient Ethernet (EEE)

• IEEE 802.3an 10GBASE-T

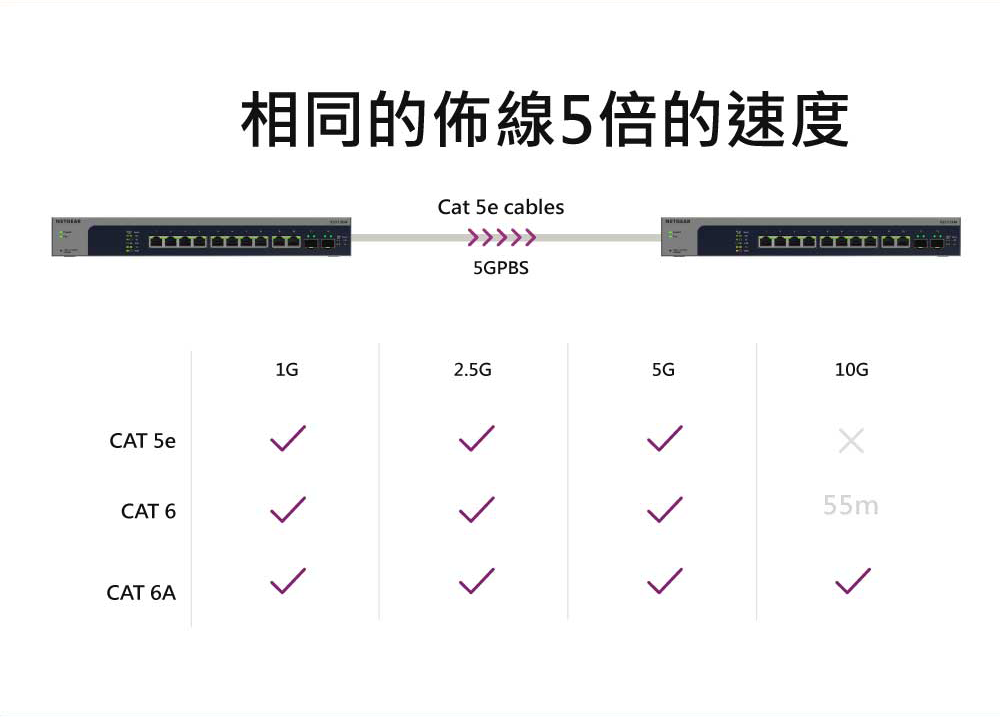

• IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet Over Copper Twisted Pair Cable

• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber

• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

管理

Password management

Yes

Web browser-based graphical user interface (GUI)

Yes

Firmware upgrade through web GUI (HTTP) and online

Yes

Config download (to switch) through web GUI (HTTP)

Yes

Config upload (to server) through web GUI (HTTP)

Yes

Cable test utility

Yes

LEDs提示燈

Per port

Speed, Link, Activity

Per device

Power, Fan

體積與重量

Dimensions (W x D x H)

330 x 208 x 43(12.9 x 8.2 x 1.7 in)

Weight

2.5kg (5.5 lb)

功耗

Power Supply

Fixed internal PSU, 100-240VAC,

50-60Hz, 1.5A max

Power cord localized to country of sale

Max power (worst case, all ports used, line-rate traffic) (Watts)

60W

Min power (link-down standby) (Watts)

21W

Heat Dissipation (max and min) (BTU/hr)

Max: 181.744 BTU/hr

Min: 72.672 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes

Auto power-down

Yes

Fan(s)

2

環境需求

運作環境

Operating temperature

‘0° to 50°C (32° to 122°F)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

儲藏環境

Storage temperature

–20° to 70°C (– 4° to 158°F)

Humidity (relative)

95% maximum relative humidity (RH), non-condensing

電磁輻射干擾與耐受性

Certifications

FCC

CAN ICES

CE

RCM

VCCI

KC

BSMI

Electromagnetic Compliance (Class A or B)

Class A

安全認證

Certifications

CB mark, commercial

CE LVD

CSA

RCM

BSMI

保固

台灣公司貨享5年保固
