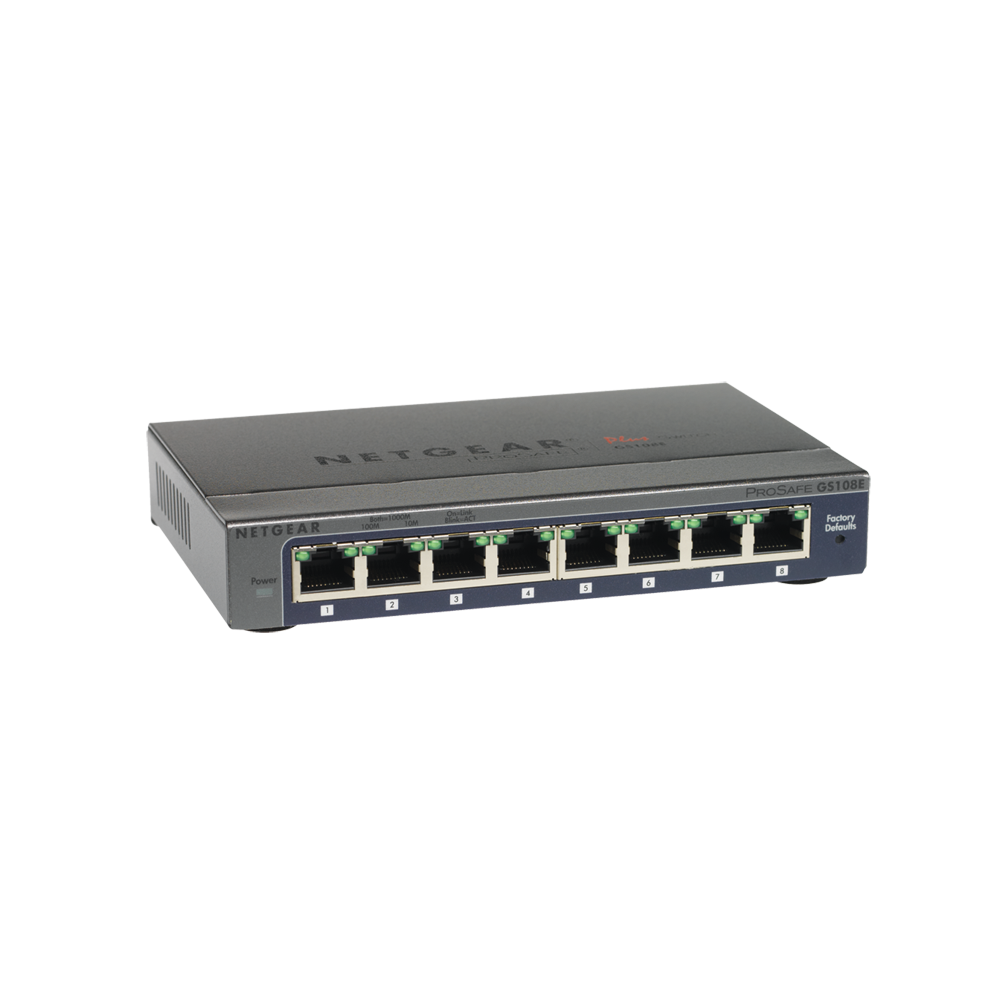

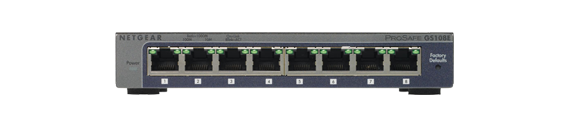

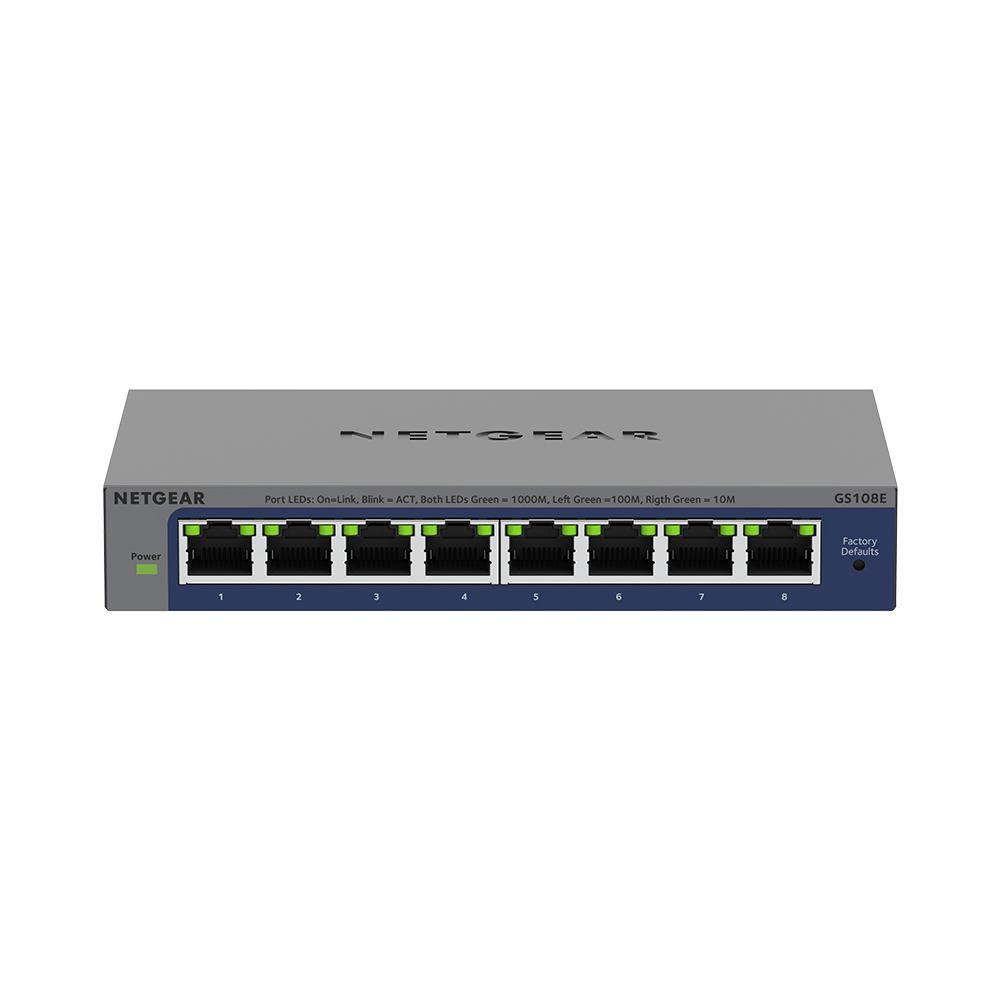

8埠 桌上型金屬外殼交換器 GS108E
8個10/100/1000 Mbps乙太網路孔
金屬外殼大幅提升散熱與穩定性
- 小巧體積設計，隨插即用
- 節能省電，支援EEE規章
- 無風扇式，安靜不入塵
小規模的高速網路、簡單管理並且提供Giga埠的GS108E桌面型交換器給予了家用網路最大的頻寬處理能力。簡易特性簡化了你的網路操作；合理的外型設計，無論你把它水平還是垂直放置，都能與桌面環境相稱。
GS108E能迅速傳輸非常大的檔通過你的網路（eq. 高頻寬的多媒體、遊戲、高速上網以及其他高速的應用）。基於標準的設計，使你無縫的集合了網路中現有的10、100、1000Mbps設備。無風扇設計使你的設備安靜的運行，讓你更專注在遊戲中或沉浸在音樂的享受中。
技術規格
Features | GS105Ev2 | GS105PE | GS108Ev3 |
Gigabit ports | 5 | 5 | 8 |
Fiber ports | 0 | 0 | 0 |
# of PoE ports | N/A | 2 | N/A |
Total PoE power budget (watts) | N/A | PoE pass-thru: 19W with 802.3at/ 7.9W with 802.3af input power | N/A |
Max MAC entries | 2K | 2K | 4K |
Buffer size | 128KB | 128KB | 192KB |
Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes | Yes | Yes |
效能規格 | |||
Forwarding modes | Store-and-forward | Store-and-forward | Store-and-forward |
Bandwidth | 10Gbps | 10Gbps | 16Gbps |
Priority queuing | Weighted Round Robin (WRR) | Weighted Round Robin (WRR) | Weighted Round Robin (WRR) |
Jumbo frame support | Up to 9K packet size | Up to 9K packet size | Up to 9720 bytes |
Acoustic noise (dB) (ANSI-S10.12) | 0 | 0 | 0 |
Mean Time Between Failures (MTBF) (hrs) | 2,531,294 | 1,685,972 | 2,525,259 |
L2 SERVICES - VLANS | |||
VLAN (# Supported) | 64 | 64 | 32 |
IEEE 802.1Q VLAN Tagging | Yes | Yes | Yes |
Port-based VLAN | Yes | Yes | Yes |
L2 SERVICES - AVAILABILITY | |||
Link Aggregation/ Port Trunking 2 | No | No | No |
Number of Static Manual LAGs and # of members | N/A | N/A | N/A |
L2 SERVICES - MULTICAST FILTERING | |||
IGMP Snooping (v1, v2 and v3) | Yes | Yes | Yes |
Block unknown Multicast | Yes | Yes | Yes |
Supported Mulitcast groups | 128 | 128 | 128 |
L3 SERVICES - DHCP | |||
DHCP client | Yes | Yes | Yes |
QUALITY OF SERVICE (QOS) | |||
Rate limiting | Yes | Yes | Yes |
DSCP | Yes | Yes | Yes |
IEEE 802.1p COS | Yes | Yes | Yes |
Port-based VLAN | Yes | Yes | Yes |
TOS | Yes | Yes | Yes |
WRR (Weighted Round Robin) | Yes | Yes | Yes |
Strict Priority Queue Technology | No | No | No |
網路通訊協定 | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) |
管理 | |||
System Password | Yes | Yes | Yes |
Web browser- based manage - ment GUI | Yes | Yes | Yes |
PC Utility | Yes | Yes | Yes |
Port Mirroring | Yes | Yes | Yes |
Multiple Language GUI | No | No | Yes English, German, Japanese |
Max number of source ports allowed (many to 1) | 4 | 4 | 7 |
Many-to-One Port Mirroring | Yes | Yes | Yes |
Cable Test utility | Yes | Yes | Yes |
FW upgrade thru Plus Utility (TFTP) | Yes | Yes | Yes |
Config download (to Switch) thru Plus Utility | Yes | Yes | Yes |
Config upload (to Server) | Yes | Yes | Yes |
其他功能 | |||
Loop Detection | Yes | Yes | Yes |
DoS Prevention | Yes | Yes | Yes |
Broadcast Storm Control | Yes | Yes | Yes |
Energy Efficient Ethernet (EEE) | Yes | Yes | Yes |
LEDs提示燈 | |||
Per port | Speed, Link, Activity | Speed, Link, Activity | Speed, Link, Activity |
Per device | Power, Fan and PoE Power Status | Power, Fan and PoE Power Status | Power, Fan and PoE Power Status |
體積與重量 | |||
Dimensions (mm) | 94x100x27 | 158x100x27 | 158x101x29 |
Weight (kg) | 0.25 | 0.47 | 0.5 |
Fan | 0 | 0 | 0 |
功耗(所有埠同時啟用，及最大PoE使用量時) | |||
Worst case, all ports used, line-rate traffic, max PoE (W) | 2.6 | 22 | 4.5 |
Heat Dissipation Max/Standby (BTU/hr) | Max: 8.9 Min: 2.2 | Max: 6.7 Min: 1.2 | Max: 15.2 Min: 4.9 |
環境需求 | |||
運作環境 | |||
Operating temperature | 32° to 122°F (0° to 50°C) | 32° to 122°F (0° to 50°C) | 32° to 104°F (0° to 40°C) |
Humidity | 90% maximum relative humidity, non-condensing | 90% maximum relative humidity, non-condensing | 90% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum |
儲藏環境 | |||
Storage temperature | – 4° to 158°F (–20° to 70°C) | – 4° to 158°F (–20° to 70°C) | – 4° to 158°F (–20° to 70°C) |
Humidity | 95% maximum relative humidity, non-condensing | 95% maximum relative humidity, non-condensing | 95% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |||
Certifications Class (including but not limited to CE, FCC Part 15, VCCI, RCM, KCC, EAC and CCC) | B | B | B |
安全認證 | |||
Certifications | CB, CE LVD, CCC, EAC | CE LVD,EAC | CB, CE LVD, CCC, EAC |
保固 | 台灣公司貨享5年保固 | 台灣公司貨享5年保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
技術規格
Features | GS105Ev2 | GS105PE | GS108Ev3 |
Gigabit ports | 5 | 5 | 8 |
Fiber ports | 0 | 0 | 0 |
# of PoE ports | N/A | 2 | N/A |
Total PoE power budget (watts) | N/A | PoE pass-thru: 19W with 802.3at/ 7.9W with 802.3af input power | N/A |
Max MAC entries | 2K | 2K | 4K |
Buffer size | 128KB | 128KB | 192KB |
Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes | Yes | Yes |
效能規格 | |||
Forwarding modes | Store-and-forward | Store-and-forward | Store-and-forward |
Bandwidth | 10Gbps | 10Gbps | 16Gbps |
Priority queuing | Weighted Round Robin (WRR) | Weighted Round Robin (WRR) | Weighted Round Robin (WRR) |
Jumbo frame support | Up to 9K packet size | Up to 9K packet size | Up to 9720 bytes |
Acoustic noise (dB) (ANSI-S10.12) | 0 | 0 | 0 |
Mean Time Between Failures (MTBF) (hrs) | 2,531,294 | 1,685,972 | 2,525,259 |
L2 SERVICES - VLANS | |||
VLAN (# Supported) | 64 | 64 | 32 |
IEEE 802.1Q VLAN Tagging | Yes | Yes | Yes |
Port-based VLAN | Yes | Yes | Yes |
L2 SERVICES - AVAILABILITY | |||
Link Aggregation/ Port Trunking 2 | No | No | No |
Number of Static Manual LAGs and # of members | N/A | N/A | N/A |
L2 SERVICES - MULTICAST FILTERING | |||
IGMP Snooping (v1, v2 and v3) | Yes | Yes | Yes |
Block unknown Multicast | Yes | Yes | Yes |
Supported Mulitcast groups | 128 | 128 | 128 |
L3 SERVICES - DHCP | |||
DHCP client | Yes | Yes | Yes |
QUALITY OF SERVICE (QOS) | |||
Rate limiting | Yes | Yes | Yes |
DSCP | Yes | Yes | Yes |
IEEE 802.1p COS | Yes | Yes | Yes |
Port-based VLAN | Yes | Yes | Yes |
TOS | Yes | Yes | Yes |
WRR (Weighted Round Robin) | Yes | Yes | Yes |
Strict Priority Queue Technology | No | No | No |
網路通訊協定 | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) | •IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE) |
管理 | |||
System Password | Yes | Yes | Yes |
Web browser- based manage - ment GUI | Yes | Yes | Yes |
PC Utility | Yes | Yes | Yes |
Port Mirroring | Yes | Yes | Yes |
Multiple Language GUI | No | No | Yes English, German, Japanese |
Max number of source ports allowed (many to 1) | 4 | 4 | 7 |
Many-to-One Port Mirroring | Yes | Yes | Yes |
Cable Test utility | Yes | Yes | Yes |
FW upgrade thru Plus Utility (TFTP) | Yes | Yes | Yes |
Config download (to Switch) thru Plus Utility | Yes | Yes | Yes |
Config upload (to Server) | Yes | Yes | Yes |
其他功能 | |||
Loop Detection | Yes | Yes | Yes |
DoS Prevention | Yes | Yes | Yes |
Broadcast Storm Control | Yes | Yes | Yes |
Energy Efficient Ethernet (EEE) | Yes | Yes | Yes |
LEDs提示燈 | |||
Per port | Speed, Link, Activity | Speed, Link, Activity | Speed, Link, Activity |
Per device | Power, Fan and PoE Power Status | Power, Fan and PoE Power Status | Power, Fan and PoE Power Status |
體積與重量 | |||
Dimensions (mm) | 94x100x27 | 158x100x27 | 158x101x29 |
Weight (kg) | 0.25 | 0.47 | 0.5 |
Fan | 0 | 0 | 0 |
功耗(所有埠同時啟用，及最大PoE使用量時) | |||
Worst case, all ports used, line-rate traffic, max PoE (W) | 2.6 | 22 | 4.5 |
Heat Dissipation Max/Standby (BTU/hr) | Max: 8.9 Min: 2.2 | Max: 6.7 Min: 1.2 | Max: 15.2 Min: 4.9 |
環境需求 | |||
運作環境 | |||
Operating temperature | 32° to 122°F (0° to 50°C) | 32° to 122°F (0° to 50°C) | 32° to 104°F (0° to 40°C) |
Humidity | 90% maximum relative humidity, non-condensing | 90% maximum relative humidity, non-condensing | 90% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum |
儲藏環境 | |||
Storage temperature | – 4° to 158°F (–20° to 70°C) | – 4° to 158°F (–20° to 70°C) | – 4° to 158°F (–20° to 70°C) |
Humidity | 95% maximum relative humidity, non-condensing | 95% maximum relative humidity, non-condensing | 95% maximum relative humidity, non-condensing |
Altitude | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |||
Certifications Class (including but not limited to CE, FCC Part 15, VCCI, RCM, KCC, EAC and CCC) | B | B | B |
安全認證 | |||
Certifications | CB, CE LVD, CCC, EAC | CE LVD,EAC | CB, CE LVD, CCC, EAC |
保固 | 台灣公司貨享5年保固 | 台灣公司貨享5年保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
FS108P | 8 x FE | 4(PoE) | 53W | 5年 |
FS116P | 16 x FE | 8(PoE) | 55W | 5年 |
GS108LP | 8 x GbE | 8(PoE+) | 60W | 5年 |
GS116LP | 16 x GbE | 16(PoE+) | 76W | 5年 |
GS108PP | 8 x GbE | 8(PoE+) | 123W | 5年 |
GS116PP | 16 x GbE | 16(PoE+) | 183W | 5年 |
GS116 | 16 x GbE | - | - | 5年 |
GS105 | 5 x GbE | - | - | 5年 |
GS108 | 8 x GbE | - | - | 5年 |
GS108X | 8 x GbE + 1 x 10G SFP+ | - | - | 5年 |
GS108MX | 8 x GbE + 1 x 10GbE/Multi-Gig | - | - | 5年 |
GS105E | 5 x GbE | - | - | 5年 |
GS108E | 8 x GbE | - | - | 5年 |
GS108PE | 8 x GbE | 4(PoE) | 53W | 5年 |
GS116E | 16 x GbE | - | - | 5年 |
GS105PE | 5 x GbE | 2(PoE) | 接30W POE : 總瓦19W 接15W POE : 總瓦7.9W | 5年 |
GS108Tv3 | 8 x GbE | - | - | 5年 |
GS110TP | 8 x GbE + 2 SFP | 8(PoE) | 46W | 5年 |
GS110TPP | 10 x GbE | 8(PoE+) | 120W | 5年 |
XS508TM | 8 x 10GbE/Multi-Gig | - | - | 5年 |
XS516TM | 16 x 10GbE/Multi-Gig | - | - | 5年 |
