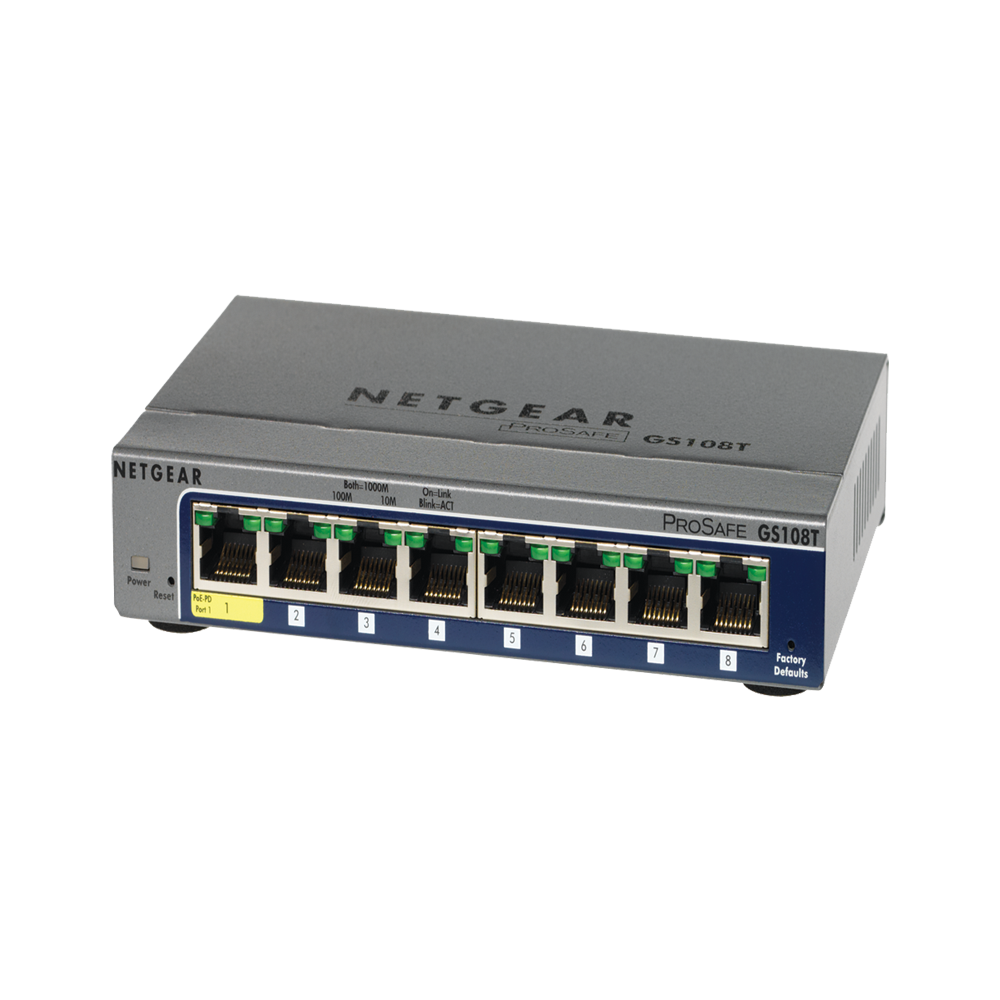

GS108Tv2

★8個 10/100/1000Mbps 自動偵測的RJ45連接埠
★智能型網管功能,提供Layer2等級的網管應用
★支援LACP鏈路聚合,加倍NAS傳輸頻寬
★金屬外殼、無風扇式設計,散熱佳,運作安靜無噪音
★適合中小企業、 SOHO族、實驗室,等辦公空間應用
★台灣公司貨,五年保固

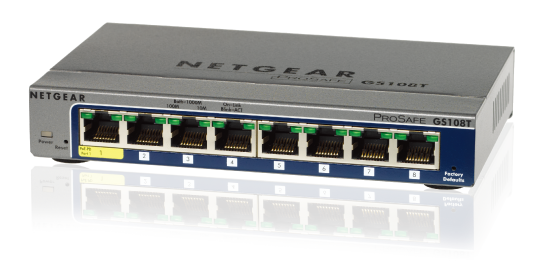

GS108T  8埠 桌上型智能網管交換器

8個 10/100/1000Mbps 自動偵測的RJ45連接埠
● 智能型網管功能,提供Layer2等級的網管應用
● 金屬外殼、無風扇式設計,散熱佳,運作安靜無噪音
● 適合中小企業、 SOHO族、實驗室,等辦公空間應用

NETGEAR GS108T 智能網管交換器
三大特點

提供Layer2的智能網管功能,讓中小型企業常見的各種辦公室網路應用更加易於整合管理

支援可透過Web瀏覽器登入的GUI介面讓網管人員易於操作管理

支援LACP(鏈路聚合)功能,加倍傳輸頻寬,增進工作效率。

產品規格

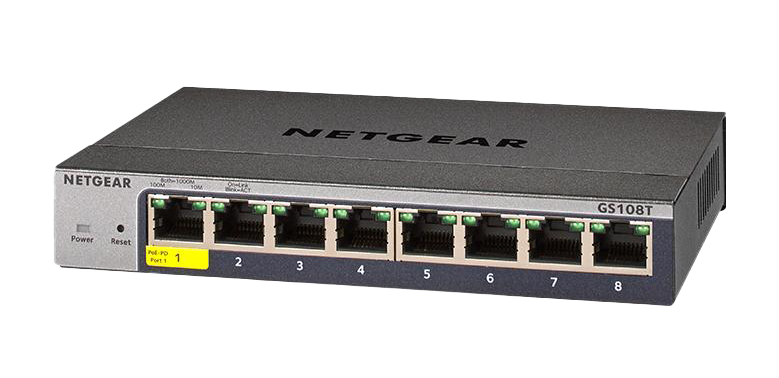

FeaturesGS108Tv3
網路標準與協定• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x full-duplex flow control
電力規範
Max power (worst case,all ports used, line-rate traffic)(Watts)5.5W
網路埠8 10/100/1000Mbps auto sensing Gigabit Ethernet
體積與重量
 Dimensions: (W x D x H)158 x 101 x 27mm (6.2 x 4.0 x 1.1in)
 Weight0.43kg (0.94 lb)
效能規格
 Forwarding modesStore-and-forward
 Bandwidth16Gbps full duplex
 Network latency 64-Byte Packet
 Buffer memory512KB embedded memory per unit
Mac Address database size (48-bit MAC addresses)8k
 per system
 Mean time between failures (MTBF)2,388,657 hrs (272 yrs)
 Acoustic noise0dB
電磁輻射干擾與耐受性• CE mark, commercial
• FCC Part 15 Class B
• VCCI Class B
• C-Tick
環境需求
 Operating temperature0° to 104°F (0° to 40°C)
 Storage temperature-4° to 158°F (-20° to 70°C)
 Operating humidity95% maximum relative humidity, non-condensing
 Storage humidity95% maximum relative humidity, non-condensing
 Operating altitude10,000ft (3,000m) maximum
 Storage altitude10,000ft (3,000m) maximum
LEDs提示燈
 Per portLink/activity, speed
 Per devicePower
電源供應• 12V, 1.0A power adapter, localized to country of sale
• Alternatively, unit can be powered by IEEE 802.3af PSE via Ethernet port
電磁耐受性• EN 55024
安全認證• CE mark, commercial
• cUL IEC 950/EN 60950
• CB
交換器技術規格• IEEE 802.1Q Static VLAN(64 groups, Static)
• Protected ports
• IEEE 802.1p Class of Service (CoS)
• Port-based QoS
• DSCP-based QoS
• DiffServ
• IEEE 802.3ad Link Aggregation(manual or LACP)
• IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
• IEEE 802.1s Multiple Spanning TreesProtocol (MSTP)
• IEEE 802.1ab Link Layer Discovery Protocol(LLDP)
• LLDP-MED
• SNMP v1, v2c, v3
• RFC 1213 MIB II
• RFC 1643 Ethernet Interface MIB
• RFC 1493 Bridge MIB
• RMON group 1, 2, 3, 9
• Auto voice VLAN
• DHCP Filtering
• Auto denial-of-service (DoS) protection
• HTTP and HTTPS
• Ping and traceroute
• Green features: Power saving by cablelength (<10 m)
• Power saving when link down
• RFC 2131 DHCP client
• DHCP filtering
• IEEE 802.1x with Guest VLAN
• Jumbo frame support
• Port-based security by locked MACaddresses
• MAC and IP-based ACL
• Storm control for broadcast, multicastand unknown unicast packets
• IGMP snooping v1/v2
• Port-based egress rate limiting
• SNTP
• Port mirroring support (Many to one)
• Web-based configuration
• Configuration backup/restore
• Password access control
• TACACS+ and RADIUS support
• Syslog
• Firmware upgradeable
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

FeaturesGS108Tv3
網路標準與協定• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x full-duplex flow control
電力規範
Max power (worst case,all ports used, line-rate traffic)(Watts)5.5W
網路埠8 10/100/1000Mbps auto sensing Gigabit Ethernet
體積與重量
 Dimensions: (W x D x H)158 x 101 x 27mm (6.2 x 4.0 x 1.1in)
 Weight0.43kg (0.94 lb)
效能規格
 Forwarding modesStore-and-forward
 Bandwidth16Gbps full duplex
 Network latency 64-Byte Packet
 Buffer memory512KB embedded memory per unit
Mac Address database size (48-bit MAC addresses)8k
 per system
 Mean time between failures (MTBF)2,388,657 hrs (272 yrs)
 Acoustic noise0dB
電磁輻射干擾與耐受性• CE mark, commercial
• FCC Part 15 Class B
• VCCI Class B
• C-Tick
環境需求
 Operating temperature0° to 104°F (0° to 40°C)
 Storage temperature-4° to 158°F (-20° to 70°C)
 Operating humidity95% maximum relative humidity, non-condensing
 Storage humidity95% maximum relative humidity, non-condensing
 Operating altitude10,000ft (3,000m) maximum
 Storage altitude10,000ft (3,000m) maximum
LEDs提示燈
 Per portLink/activity, speed
 Per devicePower
電源供應• 12V, 1.0A power adapter, localized to country of sale
• Alternatively, unit can be powered by IEEE 802.3af PSE via Ethernet port
電磁耐受性• EN 55024
安全認證• CE mark, commercial
• cUL IEC 950/EN 60950
• CB
交換器技術規格• IEEE 802.1Q Static VLAN(64 groups, Static)
• Protected ports
• IEEE 802.1p Class of Service (CoS)
• Port-based QoS
• DSCP-based QoS
• DiffServ
• IEEE 802.3ad Link Aggregation(manual or LACP)
• IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
• IEEE 802.1s Multiple Spanning TreesProtocol (MSTP)
• IEEE 802.1ab Link Layer Discovery Protocol(LLDP)
• LLDP-MED
• SNMP v1, v2c, v3
• RFC 1213 MIB II
• RFC 1643 Ethernet Interface MIB
• RFC 1493 Bridge MIB
• RMON group 1, 2, 3, 9
• Auto voice VLAN
• DHCP Filtering
• Auto denial-of-service (DoS) protection
• HTTP and HTTPS
• Ping and traceroute
• Green features: Power saving by cablelength (<10 m)
• Power saving when link down
• RFC 2131 DHCP client
• DHCP filtering
• IEEE 802.1x with Guest VLAN
• Jumbo frame support
• Port-based security by locked MACaddresses
• MAC and IP-based ACL
• Storm control for broadcast, multicastand unknown unicast packets
• IGMP snooping v1/v2
• Port-based egress rate limiting
• SNTP
• Port mirroring support (Many to one)
• Web-based configuration
• Configuration backup/restore
• Password access control
• TACACS+ and RADIUS support
• Syslog
• Firmware upgradeable
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

型號

PORTS

PoE Ports

PoE Budget

保固

FS108P

8 x FE

4(PoE)

53W

5年

FS116P

16 x FE

8(PoE)

55W

5年

GS108LP

8 x GbE

8(PoE+)

60W

5年


GS116LP

16 x GbE

16(PoE+)

76W

5年

GS108PP

8 x GbE

8(PoE+)

123W

5年

GS116PP

16 x GbE

16(PoE+)

183W

5年

GS116

16 x GbE

-

-

5年

GS105

5 x GbE

-

-

5年

GS108

8 x GbE

-

-

5年

GS108X

8 x GbE + 1 x 10G SFP+

-

-

5年

GS108MX

8 x GbE + 1 x 10GbE/Multi-Gig

-

-

5年

GS105E

5 x GbE

-

-

5年

GS108E

8 x GbE

-

-

5年

GS108PE

8 x GbE

4(PoE)

53W

5年

GS116E

16 x GbE

-

-

5年

GS105PE

5 x GbE

2(PoE)

接30W POE : 總瓦19W 接15W POE : 總瓦7.9W

5年

GS108Tv3

8 x GbE

-

-

5年

GS110TP

8 x GbE + 2 SFP

8(PoE)

46W

5年

GS110TPP

10 x GbE

8(PoE+)

120W

5年

XS508TM

8 x 10GbE/Multi-Gig
2 x 10G SFP+

-

-

5年

XS516TM

16 x 10GbE/Multi-Gig
2 x 10G SFP+

-

-

5年
