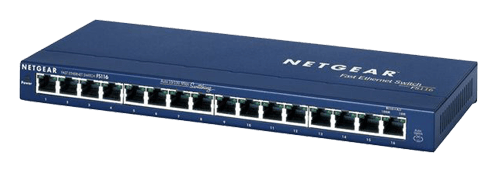

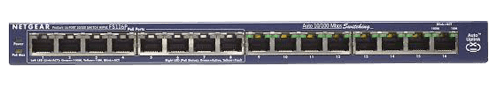

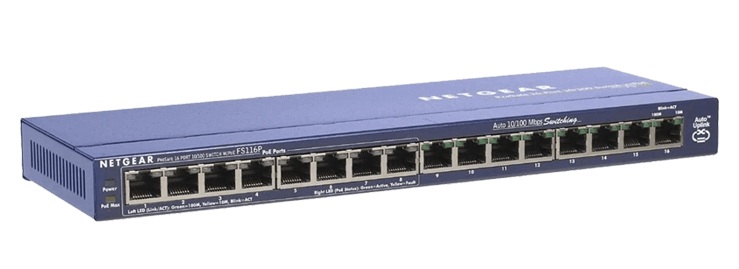

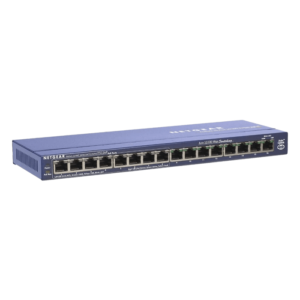

無網管交換器-FS116p
16個 10/100Mbps乙太網路口
操作簡單，隨插隨用
金屬外殼
有效提高散熱及穩定度
無風扇設計，寧靜不入塵
| Features | FS116Pv2 |
| 介面 | 16 auto speed-sensing 10/100 Mbps RJ-45 ports |
| 網路通訊協定 | · IEEE 802.3i 10BASE-T · EEE 802.3u 100BASE-TX · IEEE 802.1p priority tags · IEEE 802.3x Flow Control · IEEE 802.3af Power over Ethernet · IEEE802.3az Energy Efficient Ethernet |
| 性能規範 | |
| · Forwarding modes | Store-and-forward |
| · Bandwidth | 3.2 Gbps |
| · Address database size | 8,000 media access control (MAC) addresses per system |
| · Mean Time Between Failure (MTBF) | 546,673 hours (62 years) |
| · Acoustic noise | 0 dB |
| LEDs指示燈 | |
| System | Power, PoE Maximum Power |
| Per Port | Link, Activity, Speed, PoE Active, PoE Fault |
| 電力規範 | |
| · Total Power Consumption | 80W maximum |
| · Total PoE Power Budget | 70W maximum |
| · 48V DC, 1.66A; plug is localized to country of sale | |
| 體積與重量 | |
| Dimensions (H x W x D): | 11.3 x 4.0 x 1.1 in. (286 x 102 x 27 mm) |
| Weight | .83 kg (1.83 lbs) |
| 環境規範 | |
| Operating temperature | 32°F to 104°F (0°C to 40°C ) |
| Storage temperature | 14˚ to 158°F (-10˚ to 70°C) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| Operating altitude | 10,000 ft (3,000 m) maximum |
| Storage altitude: | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| · CE mark, commercial | |
| · FCC Part 15 Class A | |
| · VCCI Class A | |
| · EN 55022 (CISPR 22), Class A | |
| · C-Tick, Class A | |
| 電磁干擾 | |
| · EN 55024 | |
| 安全認證 | |
| · CE mark, commercial | |
| · CE/LVD EN60950 | |
| 保固 | 五年 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
FS116Pv2 規格
| Features | FS116Pv2 |
| 介面 | 16 auto speed-sensing 10/100 Mbps RJ-45 ports |
| 網路通訊協定 | · IEEE 802.3i 10BASE-T · EEE 802.3u 100BASE-TX · IEEE 802.1p priority tags · IEEE 802.3x Flow Control · IEEE 802.3af Power over Ethernet · IEEE802.3az Energy Efficient Ethernet |
| 性能規範 | |
| · Forwarding modes | Store-and-forward |
| · Bandwidth | 3.2 Gbps |
| · Address database size | 8,000 media access control (MAC) addresses per system |
| · Mean Time Between Failure (MTBF) | 546,673 hours (62 years) |
| · Acoustic noise | 0 dB |
| LEDs指示燈 | |
| System | Power, PoE Maximum Power |
| Per Port | Link, Activity, Speed, PoE Active, PoE Fault |
| 電力規範 | |
| · Total Power Consumption | 80W maximum |
| · Total PoE Power Budget | 70W maximum |
| · 48V DC, 1.66A; plug is localized to country of sale | |
| 體積與重量 | |
| Dimensions (H x W x D): | 11.3 x 4.0 x 1.1 in. (286 x 102 x 27 mm) |
| Weight | .83 kg (1.83 lbs) |
| 環境規範 | |
| Operating temperature | 32°F to 104°F (0°C to 40°C ) |
| Storage temperature | 14˚ to 158°F (-10˚ to 70°C) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| Operating altitude | 10,000 ft (3,000 m) maximum |
| Storage altitude: | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| · CE mark, commercial | |
| · FCC Part 15 Class A | |
| · VCCI Class A | |
| · EN 55022 (CISPR 22), Class A | |
| · C-Tick, Class A | |
| 電磁干擾 | |
| · EN 55024 | |
| 安全認證 | |
| · CE mark, commercial | |
| · CE/LVD EN60950 | |
| 保固 | 五年 |
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
FS108P | 8 x FE | 4(PoE) | 53W | 5年 |
FS116P | 16 x FE | 8(PoE) | 55W | 5年 |
GS108LP(Fanless) | 8 x FE | 8(PoE+) | 60W | 5年 |
GS116LP(Fanless) | 16 x FE | 16(PoE+) | 76W | 5年 |
GS108PP(Fanless) | 8 x FE | 8(PoE+) | 123W | 5年 |
GS116PP(Fanless) | 16 x FE | 16(PoE+) | 183W | 5年 |
FS116 | 16 x FE | - | - | 5年 |
GS116 | 16 x GbE | - | - | 5年 |
GS105 | 5 x GbE | - | - | 5年 |
GS108 | 8 x GbE | - | - | 5年 |
GS105E | 5 x GbE | - | - | 5年 |
GS108E | 8 x GbE | - | - | 5年 |
GS108PE | 8 x GbE | 4(PoE) | 53W | 5年 |
GS116E | 16 x GbE | - | - | 5年 |
GSS108EPP | 8 x GbE | 4(PoE+) | 47W | 5年 |
GSS108E | 8 x GbE | - | - | 5年 |
GSS116E | 16 x GbE | - | - | 5年 |
GS105PE | 5 x GbE | 2(PoE) | 接30W POE : 總瓦19W 接15W POE : 總瓦7.9W | 5年 |
GS108T | 8 x GbE | - | - | 5年 |
GS110TPP | 8 x GbE + 2 SFP | 8(PoE) | 46W | 5年 |
GS110TP | 10 x GbE | 8(PoE+) | 120W | 5年 |
