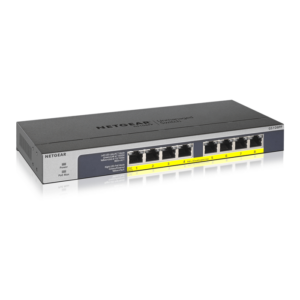

GS108PP

★ 提供8個GbE RJ-45 PoE+連接埠
★ 支援單埠15.4W 或30W 的供電瓦數
★ 總供電瓦數可達123W
★ 免設定隨插即用,安裝簡易
★ 無風扇設計,金屬外殼散熱性極佳

GS108PP

8埠PoE/PoE+交換器

產品特點

1. 8個GbE PoE/PoE+連接埠
(最多可同時連接4個PoE+設備)
2. 總PoE供電瓦數可達 120W
3. 無風扇設計,安靜不入塵機架、桌面,都可以安裝
無線AP、監控攝影機、IP電話…等都可以連接運用

FeaturesGS108PP
Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T8
PoE/PoE+ ports8 PoE+ (123W PoE budget)
Power SupplyExternal Input 54V 2.4A (130W)
Power Supply SupportedExternal Input 54V 2.4A (130W) Input 54V 1.66A (90W) Input 54V 1.25A (67.5W)
Form FactorDesktop/Rackmount/Wall-Mount
產品規格
Gigabit Ports8
Max MAC entries4K
Buffer Size192KB
Energy Efficient Enthernet (IEEE 802.3az complaint)Yes
PoE規格
802.3afPorts 1-8
802.3atPorts 1-8
PoE Max Power Per PortUp to 15.4w for 802.3af and 30W for 802.3at
Total PoE Power Budget123W
Forwarding modesStore-and-forward
Bandwidth16Gbps
Jumbo frame supportYes
Acoustic noise (ANSI-S10.12)0 (fanless)
Mean Time Between Failures (MTBF)2,752,476 hours
Quality of Service (QOS)
DSCPYes
IEEE 802.1p COSYes
Queue WRR Ratio1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ)
LEDs提示燈
Per portSpeed, Link, Activity, PoE
Per devicePower Status, PoE Max
網路通訊協定·IEEE 802.3 Ethernet
·IEEE 802.3u 100BASE-TX
·IEEE 802.3ab 1000BASE-T
·IEEE 802.1p Class of Service
·IEEE 802.3az Energy Efficient Ethernet (EEE)
·IEEE 802.3i 10BASE-T Ethernet
·IEEE 802.3x Flow Control
體積與重量
Dimensions (W x D x H)236 x 102 x 27 mm 9.29 x 4.02 x 1.06 in
Weight0.6 kg (1.32 lb)
總用電量(以全埠連接,最高線速交換速率,滿PoE負載為前提)
Power SupplyExternal Input 54V 2.4A (130W)
Power Supply SupportedExternal
Input 54V 2.4A (130W)
Input 54V 1.66A (90W)
Input 54V 1.25A (67.5W)
Max power (worst case, all ports used, line-rate traffic) (Watts)130W
Min power (link-down standby) (Watts)1.08W
Heat Dissipation (max and min) (BTU/hr)444.6 BTU/ 3.69 BTU
Energy Efficient Ethernet (EEE) IEEE 802.3azYes
Short cable power reductionYes
Auto power-downYes
Fan(s)0 (fanless)
環境需求
運作環境
Operating Temperature0° to 50°C (32° to 122°F)
Humidity90% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
運作環境
Storage Temperature–20° to 70°C (– 4° to 158°F)
Humidity (relative)95% maximum relative humidity (RH), non-condensing
Altitude10,000 ft (3,000 m) maximum
電磁輻射干擾與耐受性
Certifications47 CFR FCC Part 15, SubpartB, Class A
ICES-003:2016 Issue 6, Class A
ANSI C63.4:2014
55032:2012+AC:2013, Class A
EN 55024:2010
EN 61000-3-2:2014, Class A
EN 61000-3-3:2013
AS/NZS CISPR 32:2015, Class A
VCCI-CISPR 32:2016, Class A
KN 35
CNS 13438
Electromagnetic Compliance Class A
安全認證
CertificationsCB. IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
UL/cUL Listed; UL60950-1, 2nd Ed. 2014; CAN/CSA C22.2 No. 60950-1-07, 2nd Ed.2014
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
AS/NZS 60950.1:2015
KN 32
CNS 14336-1
保固台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。
