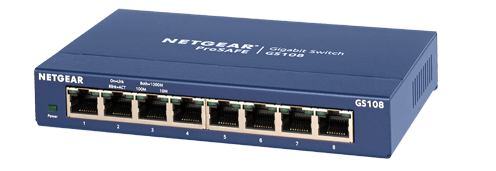

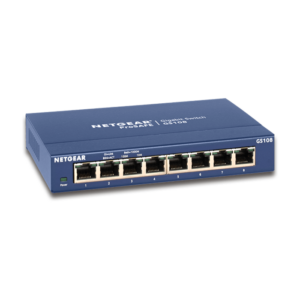

桌上型Giga交換器-GS108
8個10/100/1000Mbps乙太網口
金屬外殼
有效提高散熱及穩定度
無風扇設計寧靜不入塵
產品規格
| Features | GS108v4 |
|---|---|
| 產品規格 | |
| Gigabit ports | 8 |
| Max MAC entries | 4K |
| Buffer size | 192KB |
| Energy Efficient Enthernet(IEEE 802.3az compliant) | Yes |
| 效能規格 | |
| Forwarding modes | Store-and-forward |
| Bandwidth | 16 Gbps |
| Jumbo frame support (packet size) | Up to 9,720 bytes |
| Acoustic noise (ANSI-S10.12) | 0 dBA (fanless) |
| Mean Time Between Failures (MTBF) | 9,727,733 hrs (158 yrs) |
| QUALITY OF SERVICE (QOS) | |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Queue WRR Ratio | 1:2:4:8 |
| 網路通訊協定與標準相容 | |
| IEEE 802.3 Ethernet | IEEE 802.1p Class of Service |
| IEEE 802.3ab 1000BASE-T | IEEE 802.3x full-duplex flow control |
| 其他功能 | |
| IEEE 802.3az (Energy Efficient Ethernet) | Yes |
| LEDs提示燈 | |
| Per port | Speed, Link, Activity |
| Per device | Power Status |
| 體積與重量 | |
| 尺寸 (W x D x H) | 158 x 102 x 27 mm (6.2 x 4.0 x 1.1 in) |
| 重量 | 0.47 kg (1.04 lb) |
| 電源功耗 | |
| Power Consumption (when all ports used, line-rate traffic) | 4.9W |
| 環境需求 | |
| 運作環境 | |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 90% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage Temperature | – 4° to 158°F (–20° to 70°C) |
| Humidity | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications Class | B(CE, FCC Part 15, ICES-003,VCCI, RCM, BSMI) |
| 安全認證 | CE LVD, EAC |
| 保固 | 台灣公司貨，享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
| Features | GS108v4 |
|---|---|
| 產品規格 | |
| Gigabit ports | 8 |
| Max MAC entries | 4K |
| Buffer size | 192KB |
| Energy Efficient Enthernet(IEEE 802.3az compliant) | Yes |
| 效能規格 | |
| Forwarding modes | Store-and-forward |
| Bandwidth | 16 Gbps |
| Jumbo frame support (packet size) | Up to 9,720 bytes |
| Acoustic noise (ANSI-S10.12) | 0 dBA (fanless) |
| Mean Time Between Failures (MTBF) | 9,727,733 hrs (158 yrs) |
| QUALITY OF SERVICE (QOS) | |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Queue WRR Ratio | 1:2:4:8 |
| 網路通訊協定與標準相容 | |
| IEEE 802.3 Ethernet | IEEE 802.1p Class of Service |
| IEEE 802.3ab 1000BASE-T | IEEE 802.3x full-duplex flow control |
| 其他功能 | |
| IEEE 802.3az (Energy Efficient Ethernet) | Yes |
| LEDs提示燈 | |
| Per port | Speed, Link, Activity |
| Per device | Power Status |
| 體積與重量 | |
| 尺寸 (W x D x H) | 158 x 102 x 27 mm (6.2 x 4.0 x 1.1 in) |
| 重量 | 0.47 kg (1.04 lb) |
| 電源功耗 | |
| Power Consumption (when all ports used, line-rate traffic) | 4.9W |
| 環境需求 | |
| 運作環境 | |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 90% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 儲藏環境 | |
| Storage Temperature | – 4° to 158°F (–20° to 70°C) |
| Humidity | 95% maximum relative humidity, non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | |
| Certifications Class | B(CE, FCC Part 15, ICES-003,VCCI, RCM, BSMI) |
| 安全認證 | CE LVD, EAC |
| 保固 | 台灣公司貨，享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
