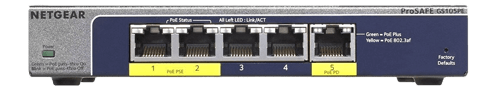

GS105PE

本產品需搭配PoE交換器使用,僅供PoE延伸
★1個PD埠,需經由PoE供電,
不可外接電源(變壓器)供電
★5個10/100/1000Mbps GIGA網路埠
★包含2個PoE供電網路埠
★簡易網管功能,隨插即用
★金屬外殼散熱佳,高穩定度
★無風扇靜音設計,節能省電,EEE綠能規章
★台灣公司貨,五年保固

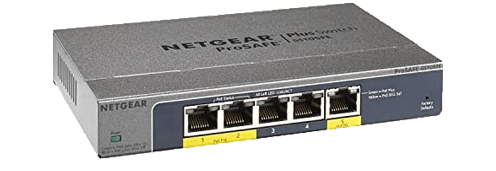

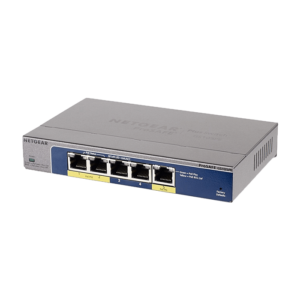

PoE交換器-GS105PE
(僅供PoE延伸)

GS105PE

5個 10/100Mbps乙太網路口
2個PoE供電乙太網路口

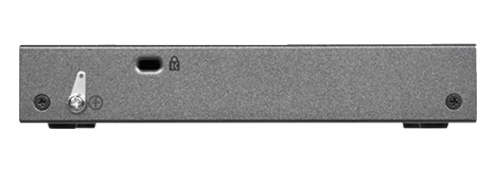

金屬外殼
有效提高散熱及穩定度

適合中小企業、SOHO族、實驗室,等辦公室應用

GS105PE

無風扇設計寧靜不入塵

GS105PE

GS105PE延伸交換器專門用於網點與網點之間的延伸連接之用,可作為超過100公尺以上有線網路連接的訊號交換延伸之用,並提供2個PoE供電埠口,用以連接IP攝影機、IP電話等設備,免去重新拉電源線的困擾。

GS105PE為金屬外殼,散熱效果極佳,並具備VLAN、QoS等簡單網管功能,讓使用者能快速管理網路設備。

Features

GS105Ev2

GS105PE

GS108Ev3

Gigabit ports

5

5

8

Fiber ports

0

0

0

# of PoE ports

N/A

2

N/A

Total PoE power budget (watts)

N/A

PoE pass-thru: 19W with 802.3at/ 7.9W with 802.3af input power

N/A

Max MAC entries

2K

2K

4K

Buffer size

128KB

128KB

192KB

Energy Efficient Ethernet (IEEE 802.3az) compliant

Yes

Yes

Yes

效能規格

Forwarding modes

Store-and-forward

Store-and-forward

Store-and-forward

Bandwidth

10Gbps

10Gbps

16Gbps

Priority queuing

Weighted Round Robin (WRR)

Weighted Round Robin (WRR)

Weighted Round Robin (WRR)

Jumbo frame support

Up to 9K packet size

Up to 9K packet size

Up to 9720 bytes

Acoustic noise (dB) (ANSI-S10.12)

0

0

0

Mean Time Between Failures (MTBF) (hrs)

2,531,294

1,685,972

2,525,259

L2 SERVICES - VLANS

VLAN (# Supported)

64

64

32

IEEE 802.1Q VLAN Tagging

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

L2 SERVICES - AVAILABILITY

Link Aggregation/ Port Trunking 2

No

No

No

Number of Static Manual LAGs and # of members

N/A

N/A

N/A

L2 SERVICES - MULTICAST FILTERING

IGMP Snooping (v1, v2 and v3)

Yes

Yes

Yes

Block unknown Multicast

Yes

Yes

Yes

Supported Mulitcast groups

128

128

128

L3 SERVICES - DHCP

DHCP client

Yes

Yes

Yes

QUALITY OF SERVICE (QOS)

Rate limiting

Yes

Yes

Yes

DSCP

Yes

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

TOS

Yes

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Yes

Strict Priority Queue Technology

No

No

No

網路通訊協定

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

管理

System Password

Yes

Yes

Yes

Web browser- based manage - ment GUI

Yes

Yes

Yes

PC Utility

Yes

Yes

Yes

Port Mirroring

Yes

Yes

Yes

Multiple Language GUI

No

No

Yes English, German, Japanese

Max number of source ports allowed (many to 1)

4

4

7

Many-to-One Port Mirroring

Yes

Yes

Yes

Cable Test utility

Yes

Yes

Yes

FW upgrade thru Plus Utility (TFTP)

Yes

Yes

Yes

Config download (to Switch) thru Plus Utility

Yes

Yes

Yes

Config upload (to Server)

Yes

Yes

Yes

其他功能

Loop Detection

Yes

Yes

Yes

DoS Prevention

Yes

Yes

Yes

Broadcast Storm Control

Yes

Yes

Yes

Energy Efficient Ethernet (EEE)

Yes

Yes

Yes

LEDs提示燈

Per port

Speed, Link, Activity

Speed, Link, Activity

Speed, Link, Activity

Per device

Power, Fan and PoE Power Status

Power, Fan and PoE Power Status

Power, Fan and PoE Power Status

體積與重量

Dimensions (mm)

94x100x27

158x100x27

158x101x29

Weight (kg)

0.25

0.47

0.5

Fan

0

0

0

功耗(所有埠同時啟用,及最大PoE使用量時)

Worst case, all ports used, line-rate traffic, max PoE (W)

2.6

22

4.5

Heat Dissipation Max/Standby (BTU/hr)

Max: 8.9 Min: 2.2

Max: 6.7 Min: 1.2

Max: 15.2 Min: 4.9

環境需求

運作環境

Operating temperature

32° to 122°F (0° to 50°C)

32° to 122°F (0° to 50°C)

32° to 104°F (0° to 40°C)

Humidity

90% maximum relative humidity, non-condensing

90% maximum relative humidity, non-condensing

90% maximum relative humidity, non-condensing

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

儲藏環境

Storage temperature

– 4° to 158°F (–20° to 70°C)

– 4° to 158°F (–20° to 70°C)

– 4° to 158°F (–20° to 70°C)

Humidity

95% maximum relative humidity, non-condensing

95% maximum relative humidity, non-condensing

95% maximum relative humidity, non-condensing

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

電磁輻射干擾與耐受性

Certifications Class (including but not limited to CE, FCC Part 15, VCCI, RCM, KCC, EAC and CCC)

B

B

B

安全認證

Certifications

CB, CE LVD, CCC, EAC

CE LVD,EAC

CB, CE LVD, CCC, EAC

保固

台灣公司貨享5年保固

台灣公司貨享5年保固

台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

GS105PE 規格

Features

GS105Ev2

GS105PE

GS108Ev3

Gigabit ports

5

5

8

Fiber ports

0

0

0

# of PoE ports

N/A

2

N/A

Total PoE power budget (watts)

N/A

PoE pass-thru: 19W with 802.3at/ 7.9W with 802.3af input power

N/A

Max MAC entries

2K

2K

4K

Buffer size

128KB

128KB

192KB

Energy Efficient Ethernet (IEEE 802.3az) compliant

Yes

Yes

Yes

效能規格

Forwarding modes

Store-and-forward

Store-and-forward

Store-and-forward

Bandwidth

10Gbps

10Gbps

16Gbps

Priority queuing

Weighted Round Robin (WRR)

Weighted Round Robin (WRR)

Weighted Round Robin (WRR)

Jumbo frame support

Up to 9K packet size

Up to 9K packet size

Up to 9720 bytes

Acoustic noise (dB) (ANSI-S10.12)

0

0

0

Mean Time Between Failures (MTBF) (hrs)

2,531,294

1,685,972

2,525,259

L2 SERVICES - VLANS

VLAN (# Supported)

64

64

32

IEEE 802.1Q VLAN Tagging

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

L2 SERVICES - AVAILABILITY

Link Aggregation/ Port Trunking 2

No

No

No

Number of Static Manual LAGs and # of members

N/A

N/A

N/A

L2 SERVICES - MULTICAST FILTERING

IGMP Snooping (v1, v2 and v3)

Yes

Yes

Yes

Block unknown Multicast

Yes

Yes

Yes

Supported Mulitcast groups

128

128

128

L3 SERVICES - DHCP

DHCP client

Yes

Yes

Yes

QUALITY OF SERVICE (QOS)

Rate limiting

Yes

Yes

Yes

DSCP

Yes

Yes

Yes

IEEE 802.1p COS

Yes

Yes

Yes

Port-based VLAN

Yes

Yes

Yes

TOS

Yes

Yes

Yes

WRR (Weighted Round Robin)

Yes

Yes

Yes

Strict Priority Queue Technology

No

No

No

網路通訊協定

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

•IEEE 802.3 Ethernet •IEEE 802.3ab 1000BASE-T •IEEE 802.1Q VLAN Tagging •IEEE 802.3i 10BASE-T •IEEE 802.1p Class of Service •IEEE 802.3x Full-duplex Flow Control •IEEE 802.3u 100BASE-T •IEEE 802.3af (PoE)

管理

System Password

Yes

Yes

Yes

Web browser- based manage - ment GUI

Yes

Yes

Yes

PC Utility

Yes

Yes

Yes

Port Mirroring

Yes

Yes

Yes

Multiple Language GUI

No

No

Yes English, German, Japanese

Max number of source ports allowed (many to 1)

4

4

7

Many-to-One Port Mirroring

Yes

Yes

Yes

Cable Test utility

Yes

Yes

Yes

FW upgrade thru Plus Utility (TFTP)

Yes

Yes

Yes

Config download (to Switch) thru Plus Utility

Yes

Yes

Yes

Config upload (to Server)

Yes

Yes

Yes

其他功能

Loop Detection

Yes

Yes

Yes

DoS Prevention

Yes

Yes

Yes

Broadcast Storm Control

Yes

Yes

Yes

Energy Efficient Ethernet (EEE)

Yes

Yes

Yes

LEDs提示燈

Per port

Speed, Link, Activity

Speed, Link, Activity

Speed, Link, Activity

Per device

Power, Fan and PoE Power Status

Power, Fan and PoE Power Status

Power, Fan and PoE Power Status

體積與重量

Dimensions (mm)

94x100x27

158x100x27

158x101x29

Weight (kg)

0.25

0.47

0.5

Fan

0

0

0

功耗(所有埠同時啟用,及最大PoE使用量時)

Worst case, all ports used, line-rate traffic, max PoE (W)

2.6

22

4.5

Heat Dissipation Max/Standby (BTU/hr)

Max: 8.9 Min: 2.2

Max: 6.7 Min: 1.2

Max: 15.2 Min: 4.9

環境需求

運作環境

Operating temperature

32° to 122°F (0° to 50°C)

32° to 122°F (0° to 50°C)

32° to 104°F (0° to 40°C)

Humidity

90% maximum relative humidity, non-condensing

90% maximum relative humidity, non-condensing

90% maximum relative humidity, non-condensing

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

儲藏環境

Storage temperature

– 4° to 158°F (–20° to 70°C)

– 4° to 158°F (–20° to 70°C)

– 4° to 158°F (–20° to 70°C)

Humidity

95% maximum relative humidity, non-condensing

95% maximum relative humidity, non-condensing

95% maximum relative humidity, non-condensing

Altitude

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

10,000 ft (3,000 m) maximum

電磁輻射干擾與耐受性

Certifications Class (including but not limited to CE, FCC Part 15, VCCI, RCM, KCC, EAC and CCC)

B

B

B

安全認證

Certifications

CB, CE LVD, CCC, EAC

CE LVD,EAC

CB, CE LVD, CCC, EAC

保固

台灣公司貨享5年保固

台灣公司貨享5年保固

台灣公司貨享5年保固

如規格有異動,恕不另行通知。NETGEAR保有所有權利。

型號

PORTS

PoE Ports

PoE Budget

保固

FS108P

8 x FE

4(PoE)

53W

5年

FS116P

16 x FE

8(PoE)

55W

5年

GS108LP(Fanless)

8 x FE

8(PoE+)

60W

5年

GS116LP(Fanless)

16 x FE

16(PoE+)

76W

5年

GS108PP(Fanless)

8 x FE

8(PoE+)

123W

5年

GS116PP(Fanless)

16 x FE

16(PoE+)

183W

5年

FS116

16 x FE

-

-

5年

GS116

16 x GbE

-

-

5年

GS105

5 x GbE

-

-

5年

GS108

8 x GbE

-

-

5年

GS105E

5 x GbE

-

-

5年

GS108E

8 x GbE

-

-

5年

GS108PE

8 x GbE

4(PoE)

53W

5年

GS116E

16 x GbE

-

-

5年

GSS108EPP

8 x GbE

4(PoE+)

47W

5年

GSS108E

8 x GbE

-

-

5年

GSS116E

16 x GbE

-

-

5年

GS105PE

5 x GbE

2(PoE)

接30W POE : 總瓦19W 接15W POE : 總瓦7.9W

5年

GS108T

8 x GbE

-

-

5年

GS110TPP

8 x GbE + 2 SFP

8(PoE)

46W

5年

GS110TP

10 x GbE

8(PoE+)

120W

5年
